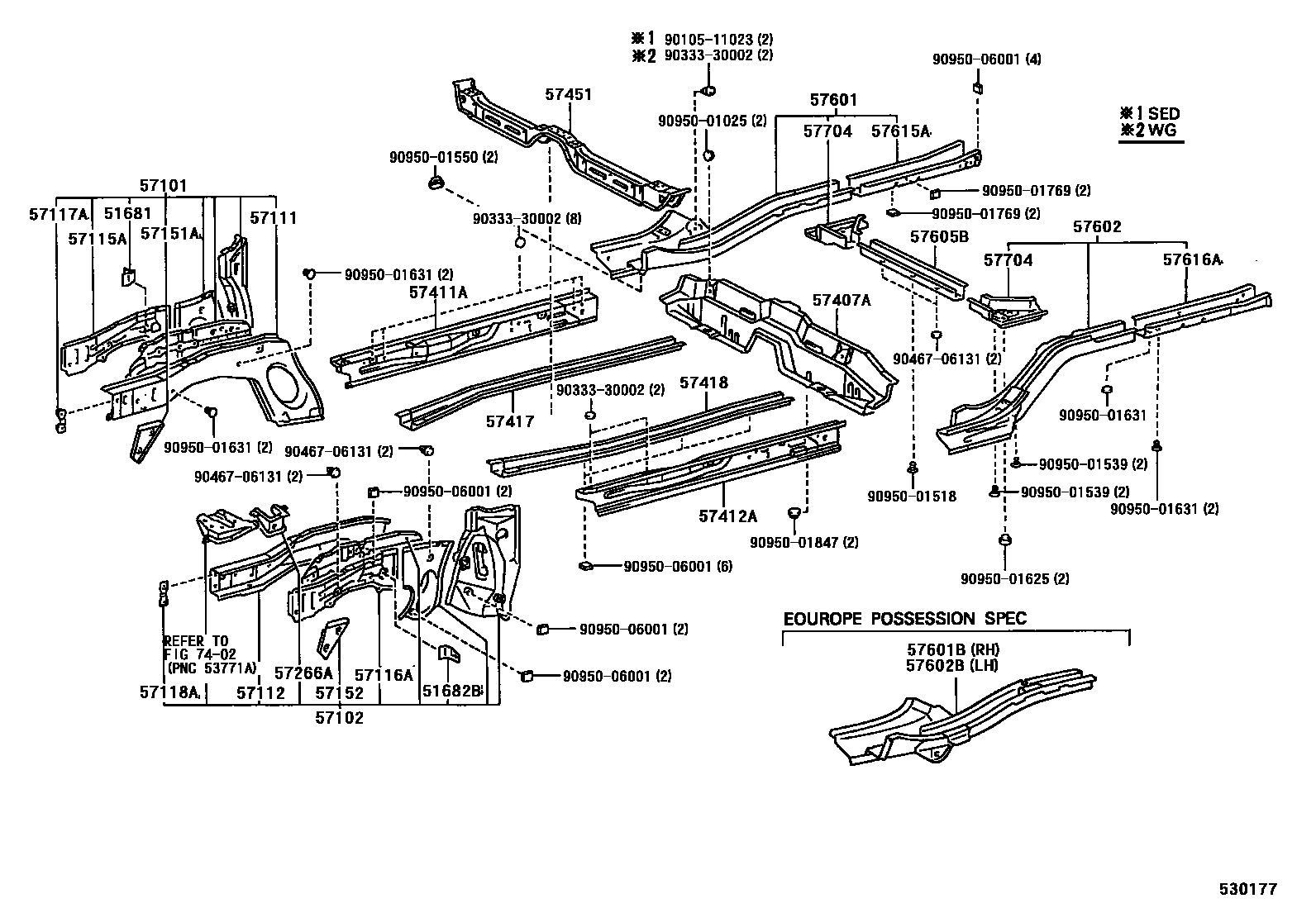

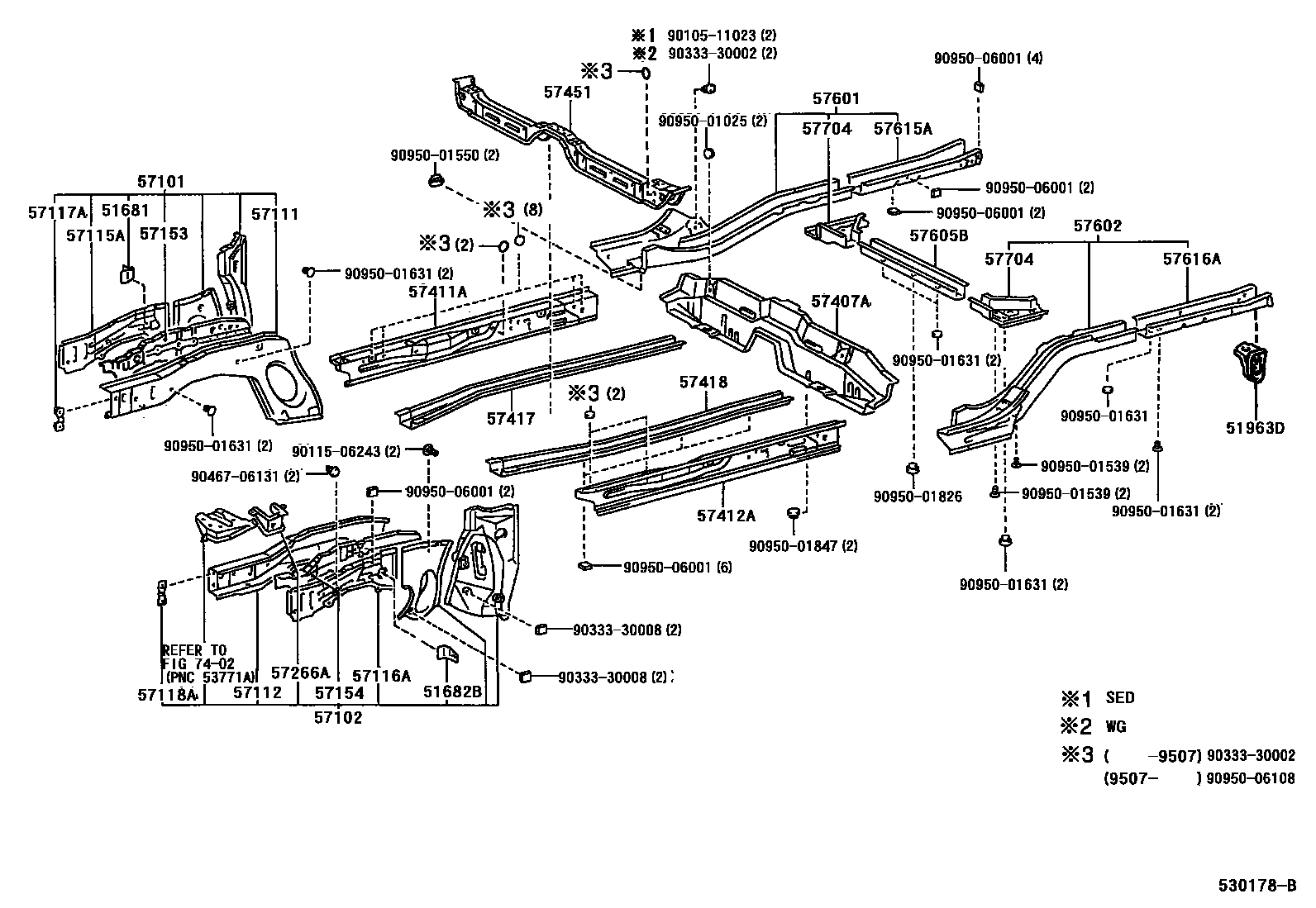

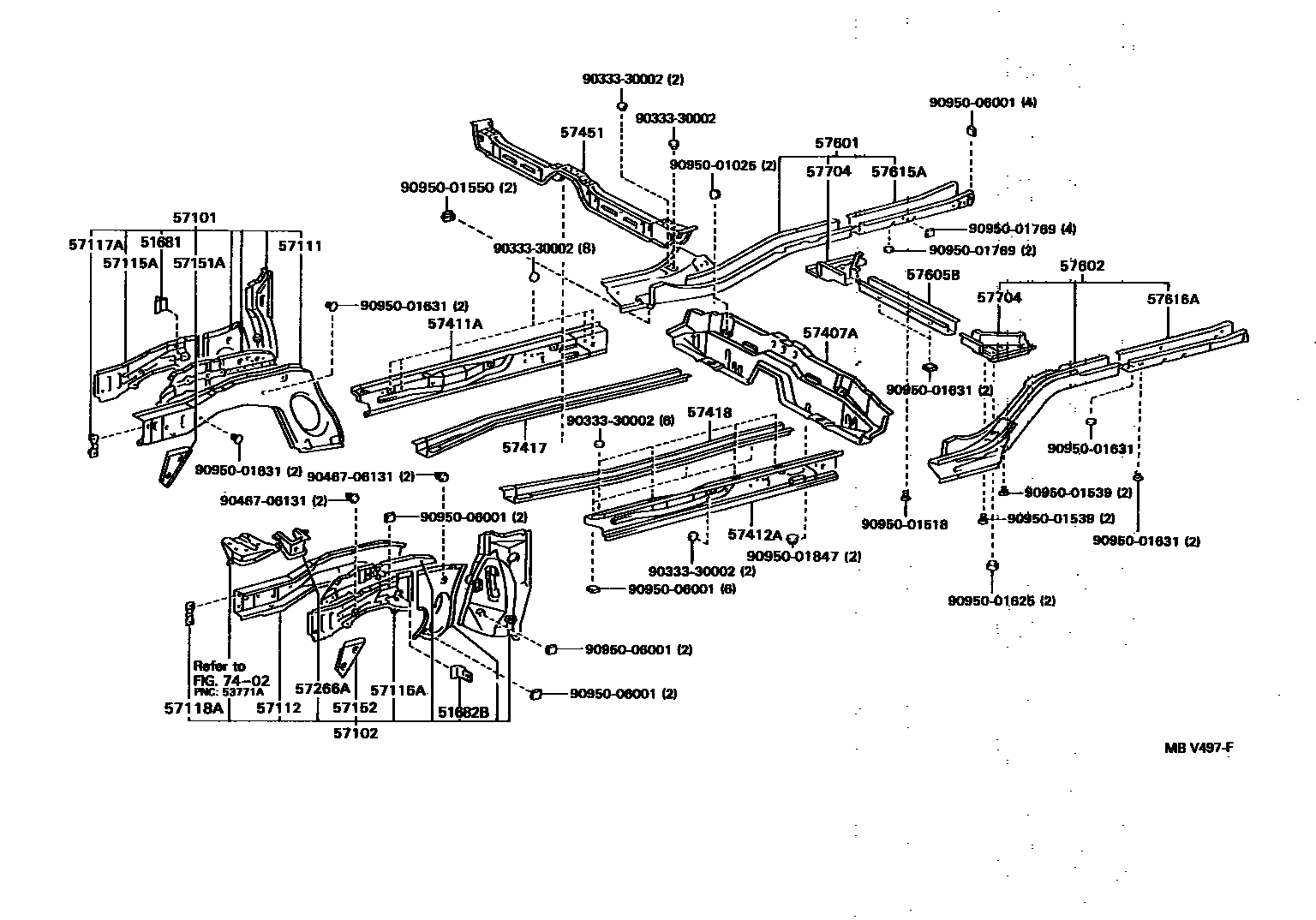

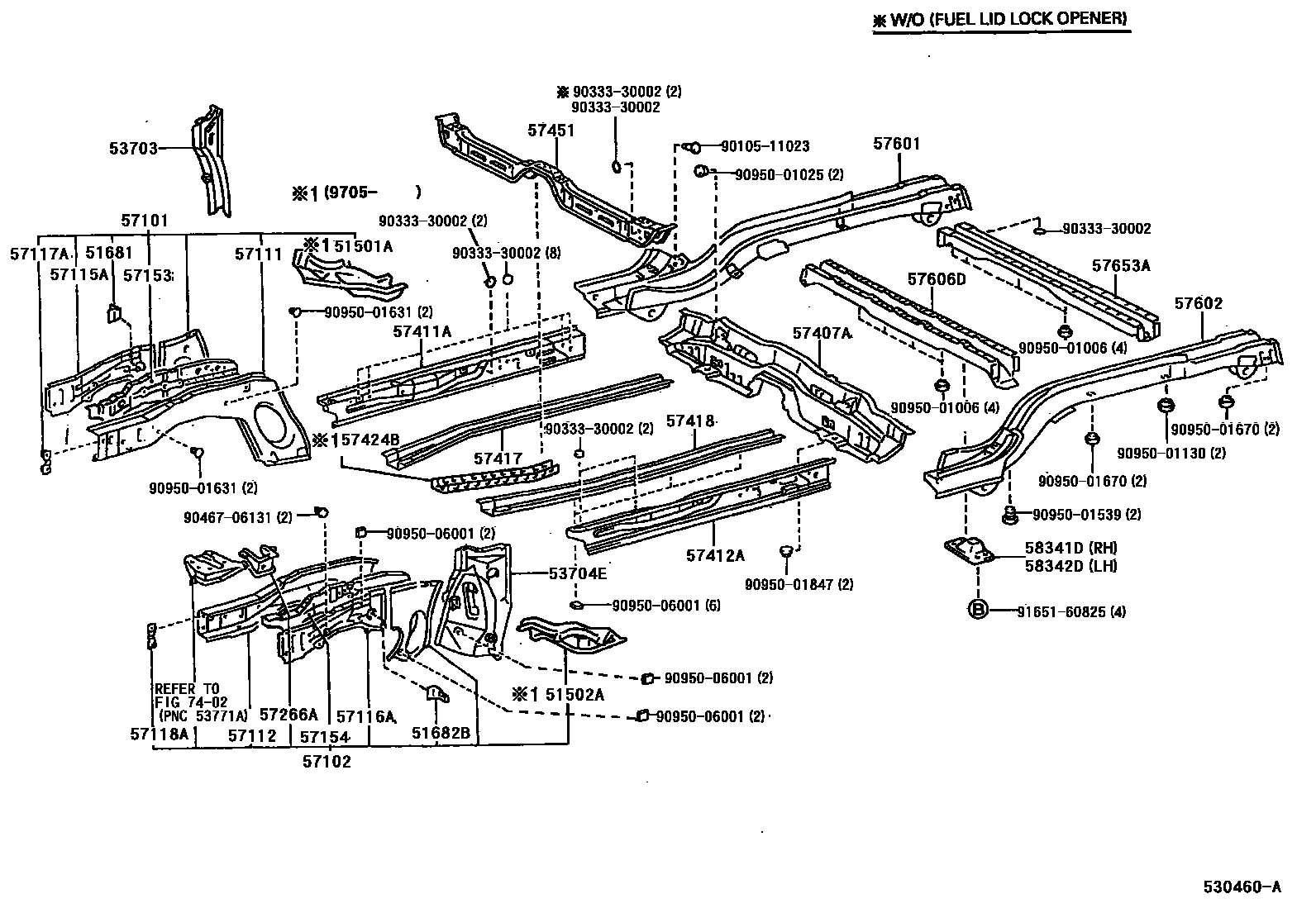

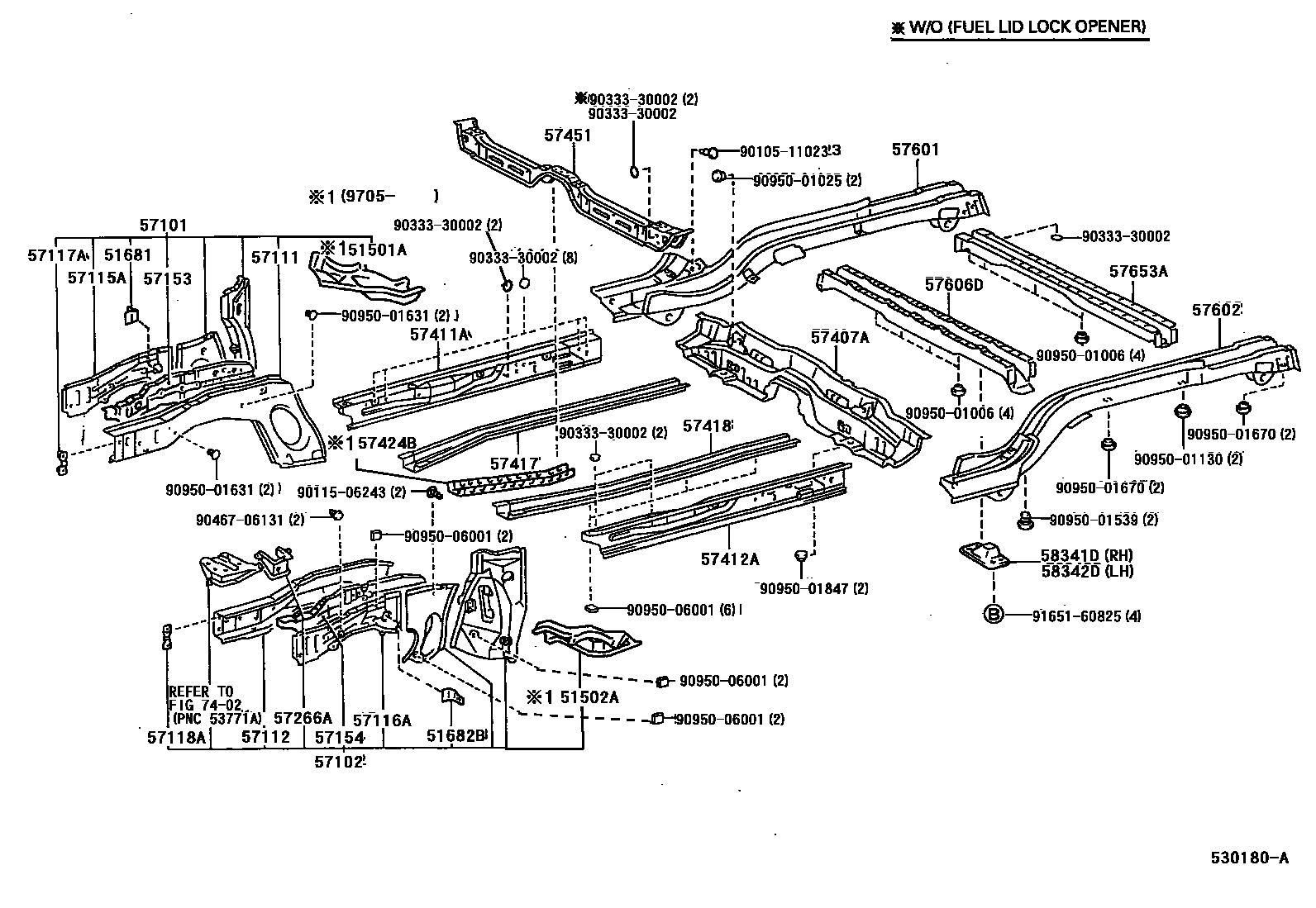

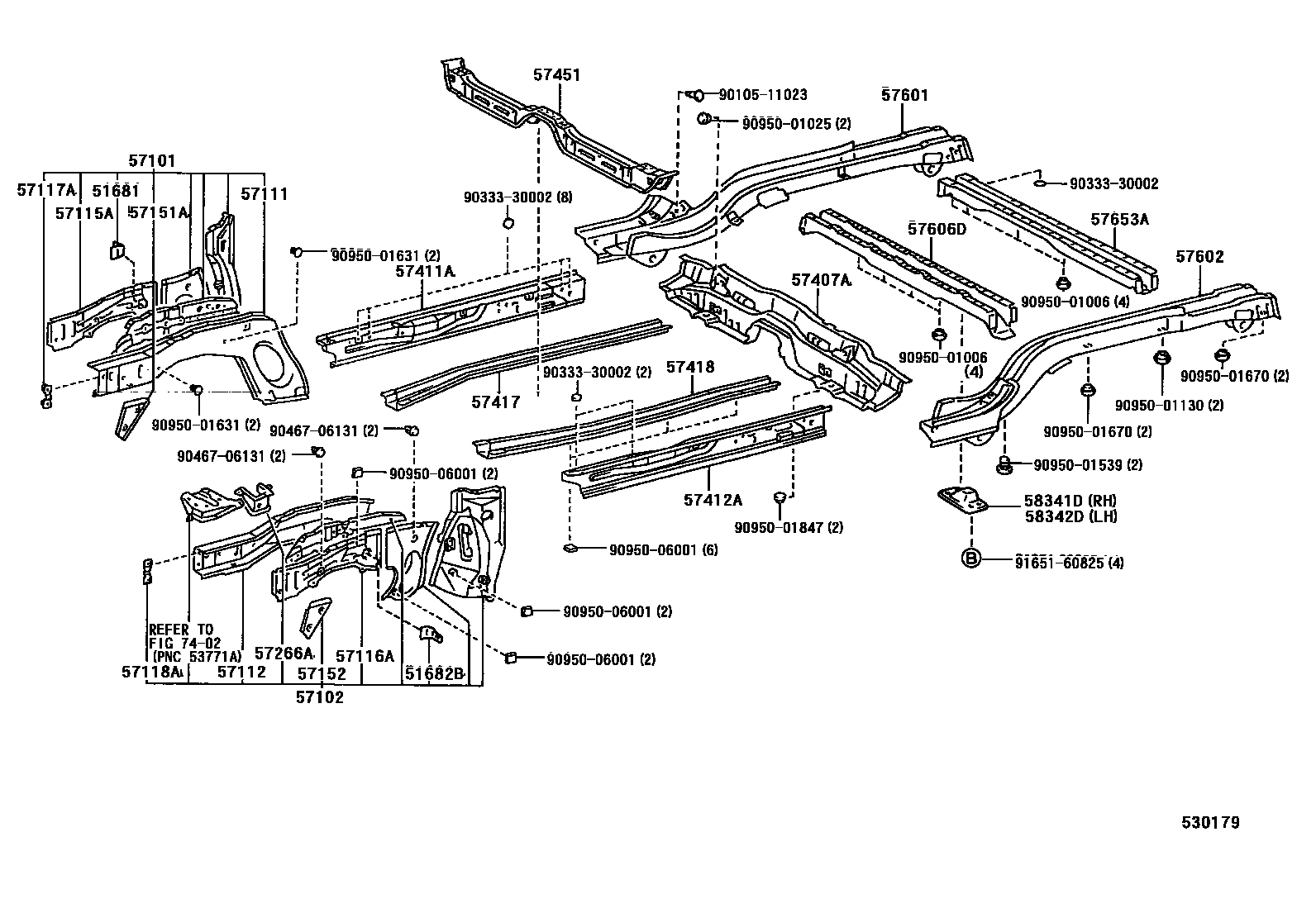

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 6 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51501A | Right front suspension cross member reinforcement sub-assembly | 51501-13010 |
| 51502A | Left front suspension cross member reinforcement sub-assembly | 51502-13010 |
| 51681 | Flexible hose bracket | 51681-12050 · 51681-12060 |
| 51682B | Left side flexible hose bracket | 51682-12050 · 51682-12060 |
| 51963D | Left rear transport hook | 51096-12040 |
| 53703 | Right front fender, rear fender sub-assembly | 53703-12030 · 53703-12040 |
| 53704E | Left front fender rear fender sub-assembly | 53704-12020 · 53704-12030 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-12440 · 57101-12441 · 57101-12450 · 57101-12451 · 57101-12460 · 57101-12480 · 57101-12481 · 57101-12490 · 57101-12491 · 57101-12780 · 57101-12790 · 57101-12941 · 57101-12948 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12401 · 57102-12410 · 57102-12411 · 57102-12420 · 57102-12440 · 57102-12441 · 57102-12450 · 57102-12451 · 57102-12452 · 57102-12954 |
| 57111 | Right front longitudinal beam | 57111-12200 · 57111-12201 |
| 57112 | Left front longitudinal beam | 57112-12140 · 57112-12141 · 57112-12142 |
| 57115A | Right front longitudinal beam outer panel | 57115-12060 |
| 57116A | Left front longitudinal beam outer panel | 57116-12060 |
| 57117A | Front bumper mounting reinforcement | 57117-12110 |
| 57118A | Install reinforcement on the left side of the front bumper | 57117-12110 |
| 57151A | No. 1 right front longitudinal beam reinforcement | 57151-12100 |
| 57152 | No. 1 left front longitudinal beam reinforcement | 57152-12070 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-12050 · 57016-12060 · 57016-12100 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-12030 · 57017-12040 · 57017-13010 |
| 57266A | Engine left mounting bracket | 57208-12100 · 57208-12110 · 57208-12111 · 57208-12120 · 57208-12121 |
| 57407A | Center floor beam sub-assembly | 57407-12040 · 57407-12060 · 57407-13060 |
| 57411A | Floor right inner longitudinal beam | 57401-12460 · 57401-12470 |
| 57412A | Floor left inner longitudinal beam | 57402-12460 · 57402-12470 |
| 57417 | Front floor lower right reinforcement | 57417-12100 · 57417-13010 |
| 57418 | Front floor lower left reinforcement | 57418-12060 · 57418-13010 |
| 57424B | Left inner reinforcement under front floor | 57424-12020 |
| 57451 | front floor cross member | 57451-12130 · 57451-12131 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12920 · 57601-12924 · 57601-12926 · 57601-12927 · 57601-12930 · 57601-12931 · 57601-13140 · 57601-13190 · 57601-13901 · 57601-1A070 · 57601-1A900 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-12923 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12730 · 57602-12921 · 57602-12926 · 57602-12929 · 57602-12934 · 57602-12938 · 57602-13120 · 57602-13180 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-12926 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12130 · 57605-12150 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-13070 · 57606-13090 |
| 57615A | Rear floor right rear longitudinal member | 57615-12110 · 57615-12901 · 57615-12903 |
| 57616A | Rear floor left rear longitudinal member | 57616-12120 · 57616-12901 · 57616-12905 |
| 57653A | No. 2 rear floor cross member | 57605-13050 · 57653-13020 |
| 57704 | Rear suspension spring bracket sub-assembly | 57695-12030 · 57696-12030 · 57703-12060 · 57704-12080 |
| 58341D | No. 1 right rear shock absorber mounting bracket | 58341-13030 |
| 58342D | No. 1 left rear shock absorber mounting bracket | 58342-13030 |
