Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 4 PNC and OE references.

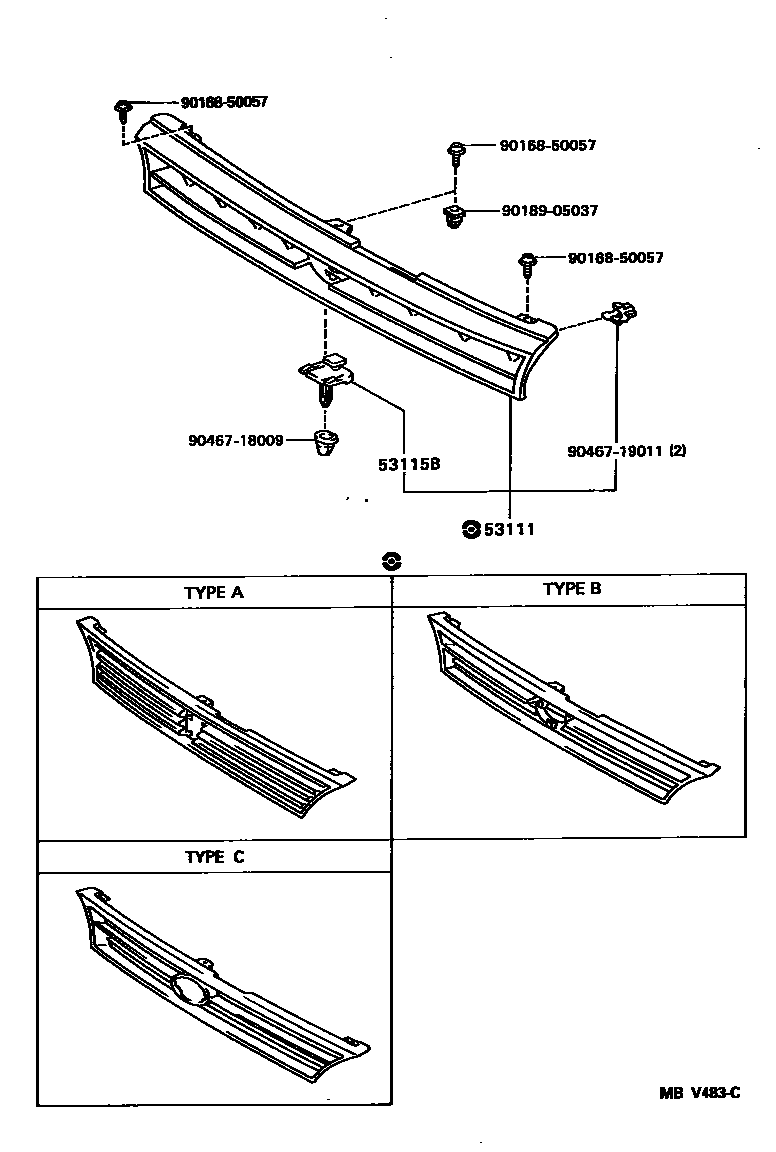

Toyota COROLLA radiator grille EPC diagram — MBV483C
radiator grille — MBV483C (199108 – 999999)

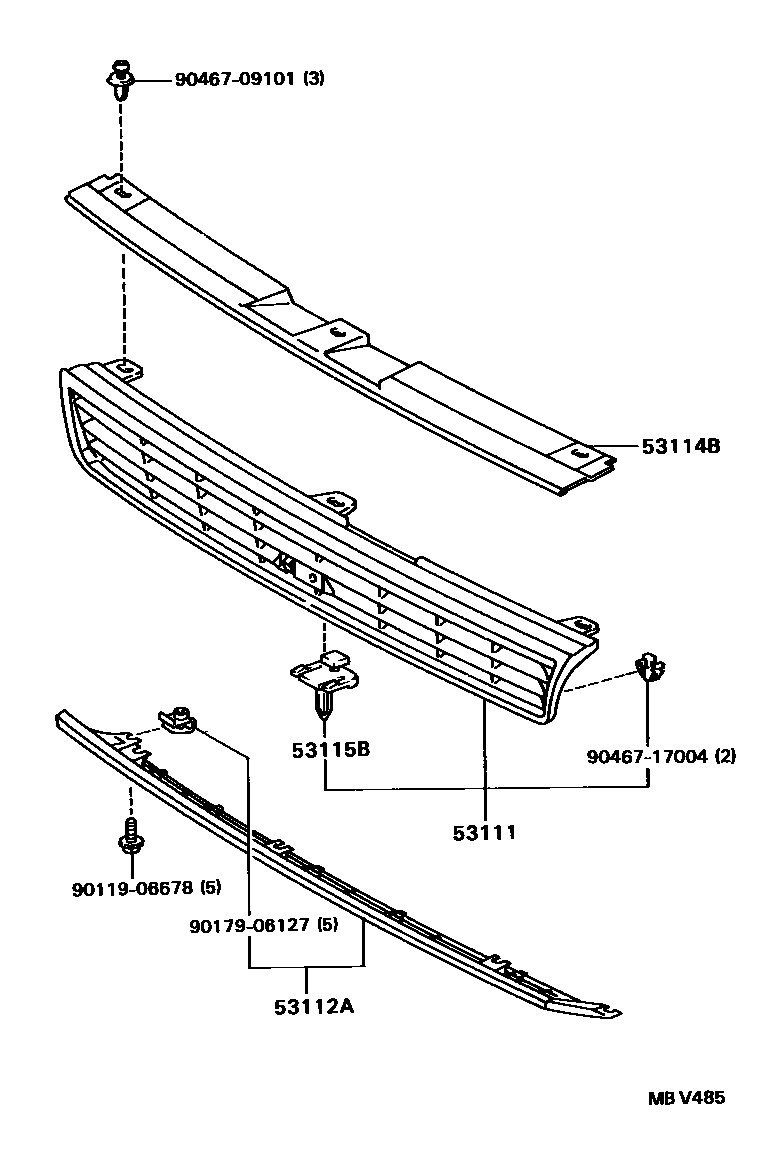

Toyota COROLLA radiator grille EPC diagram — MBV485
radiator grille — MBV485 (199108 – 199505)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-12860 · 53101-12870 · 53101-12890 · 53101-13050 · 53101-13070 · 53101-1A020 · 53101-1A060 · 53101-1A070 · 53101-1A090
53112ALower radiator grille53112-12060
53114BUpper radiator grille53106-12020
53115BRadiator grille bracket53115-16010
