Toyota COROLLA 后保险杠及附件 — Figure 5202

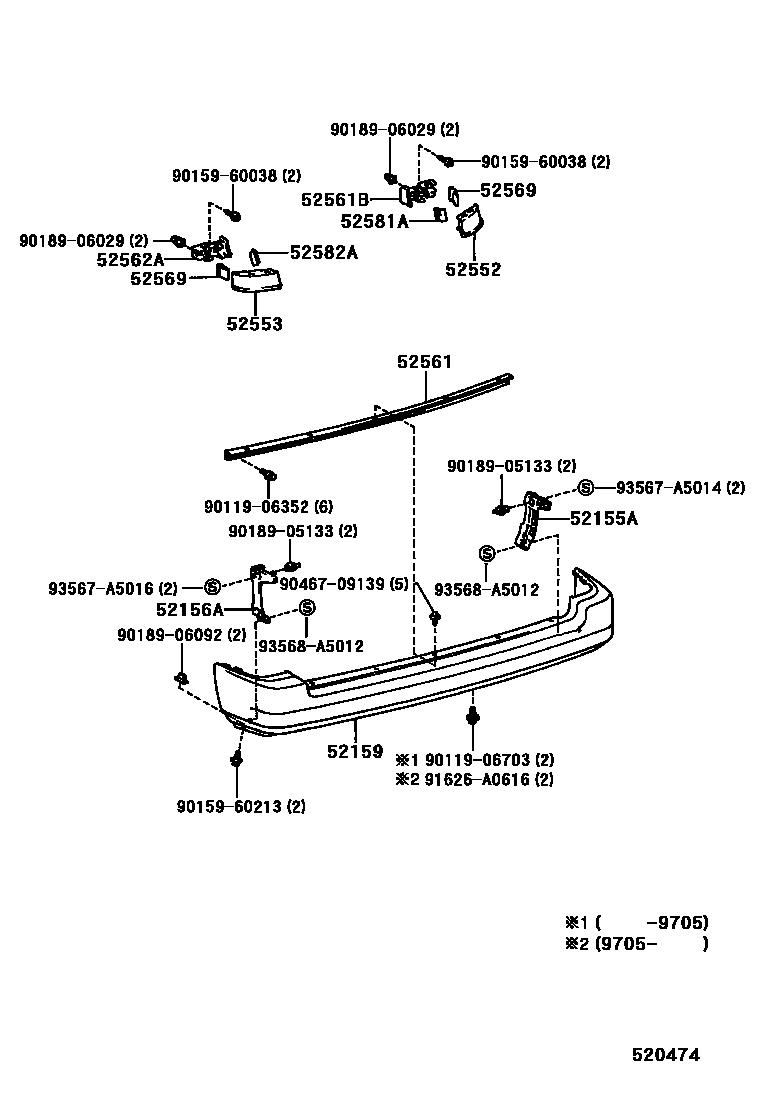

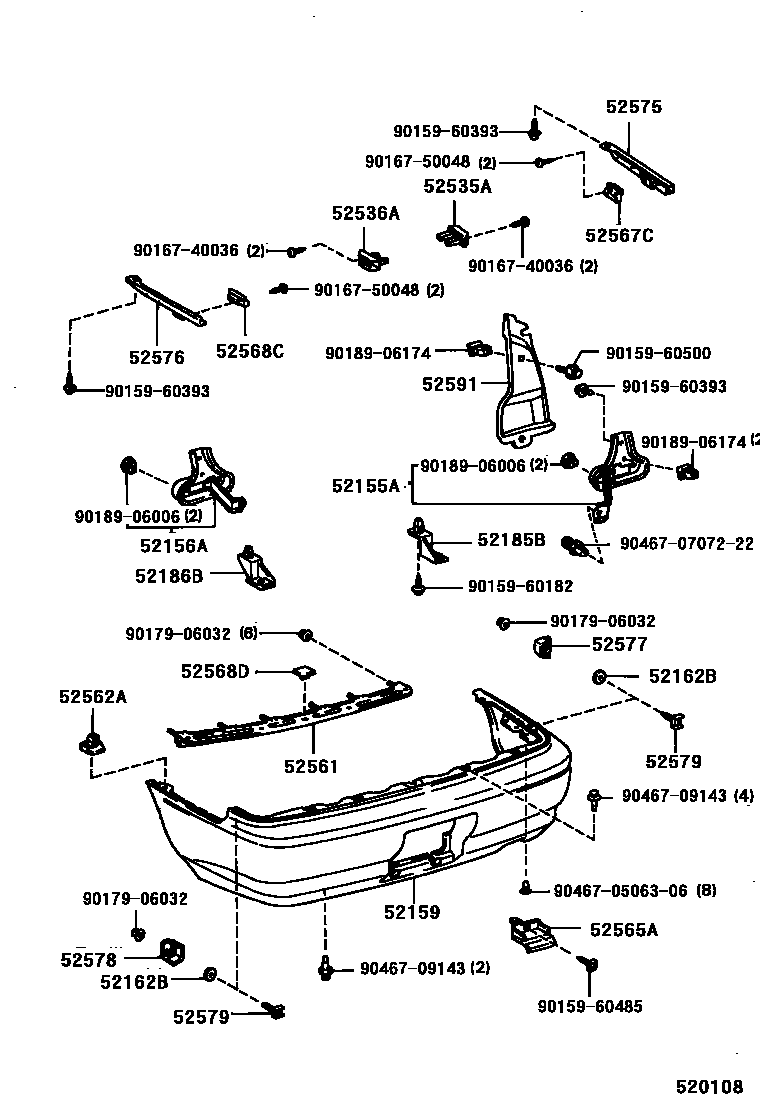

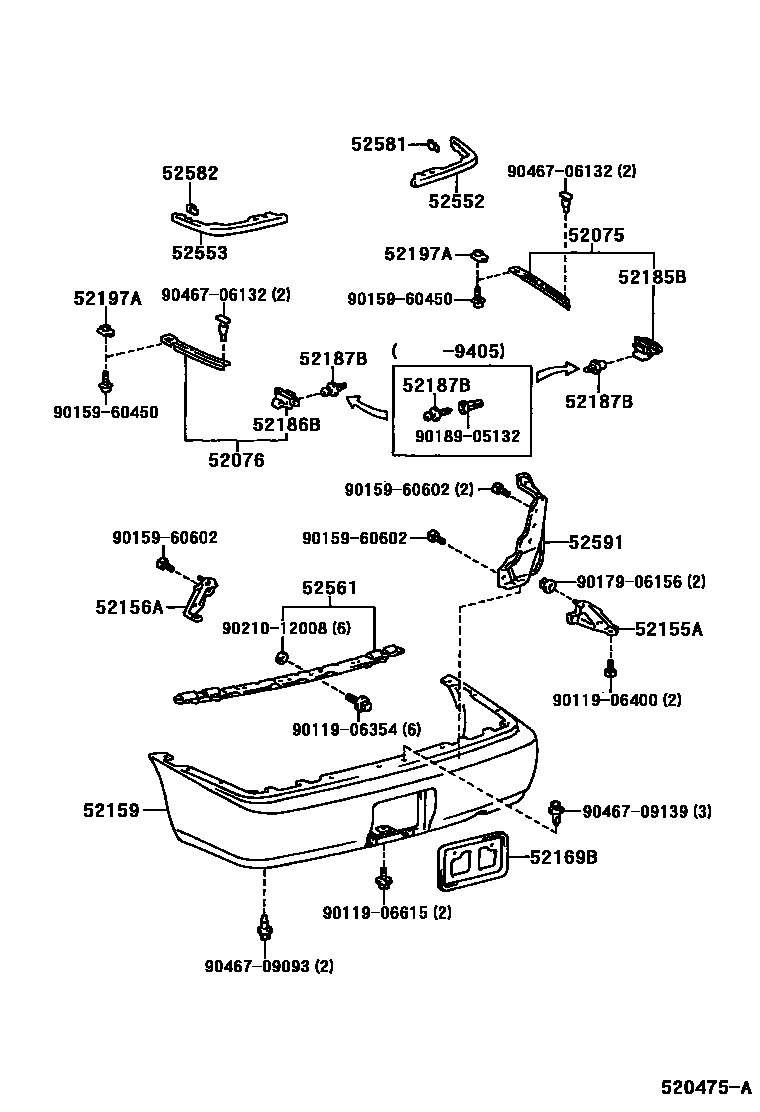

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-12030 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-12030 |
| 52155A | Rear bumper right side bracket | 52155-12200 · 52155-12210 · 52155-12260 · 52155-13050 |
| 52156A | Rear bumper left bracket | 52156-12190 · 52156-12200 · 52156-12250 · 52156-13050 |
| 52159 | rear bumper cover | 52159-13080 · 52159-1A440 · 52159-1A540 · 52159-1A905 · 52159-1A906 · 52159-1A907 · 52159-1A909 |
| 52162B | Rear bumper No. 1 fender | 52162-12050 |
| 52169B | Rear bumper center bracket | 52169-12020 |
| 52185B | Installation support on the right side of the rear bumper | 52185-12130 · 52185-12150 · 52185-12210 |
| 52186B | Rear bumper left side mounting support | 52185-12130 · 52186-12110 · 52186-12130 |
| 52187B | Rear bumper positioning guide rod | 52187-12140 · 52187-12160 |
| 52197A | Rear bumper right seal support | 52197-12070 |
| 52535A | Rear bumper right side fixing bracket | 52535-12080 |
| 52536A | Rear bumper left side fixing bracket | 52535-12080 |
| 52552 | Arc filler on the right side of the rear bumper | 52552-12030 · 52552-13020 |
| 52553 | Rear bumper left curved filler | 52553-12030 · 52553-13020 |
| 52561 | Rear bumper upper center fixing bracket | 52508-12030 · 52561-12160 · 52561-13030 |
| 52561B | Rear bumper arc filler No. 1 fixing piece | 52561-13040 · 52561-13041 |
| 52562A | Rear bumper arc filler No. 2 fixing piece | 52562-12020 · 52562-13020 · 52562-13021 |
| 52565A | Rear bumper lower fixing bracket | 52565-12080 |
| 52567C | Rear bumper lower right side fixing bracket | 52567-12030 |
| 52568C | Rear bumper lower left side fixing bracket | 52567-12030 |
| 52568D | Rear bumper No. 2 upper fixing bracket | 52568-12030 |
| 52569 | Rear bumper curved filler liner | 52569-13010 |
| 52575 | Rear bumper right side fixing bracket | 52575-12110 |
| 52576 | Rear bumper left side fixing bracket | 52576-12110 |
| 52577 | Rear bumper No. 2 right side fixing bracket | 52577-12040 |
| 52578 | Rear bumper No. 2 left side fixing bracket | 52577-12040 |
| 52579 | Rear bumper No. 3 side fixing bracket | 52579-12020 |
| 52581 | Rear bumper right side protector | 52581-12060 |
| 52581A | Rear bumper curved filler protector | 52581-13020 |
| 52582 | Rear bumper left protector | 52581-12060 |
| 52582A | Rear bumper left curved filler protection piece | 52582-13020 |
| 52591 | Rear bumper right seal | 52591-12080 · 52591-12090 |
