Toyota COROLLA 前保险杠及附件 — Figure 5201

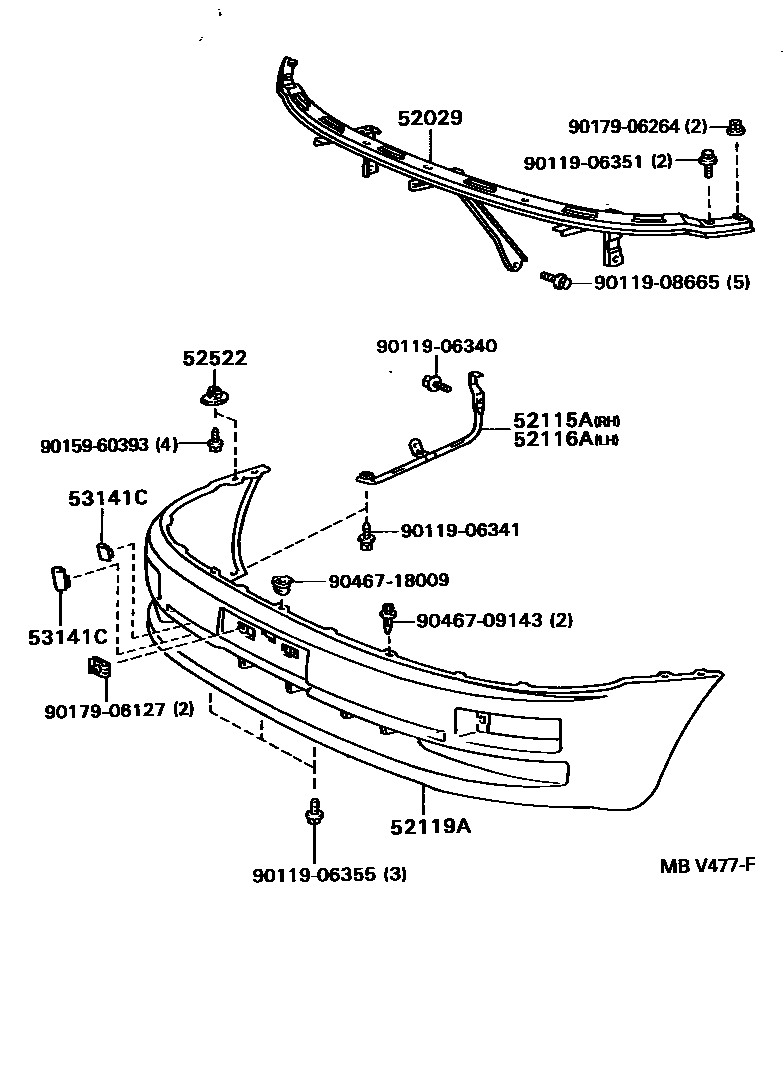

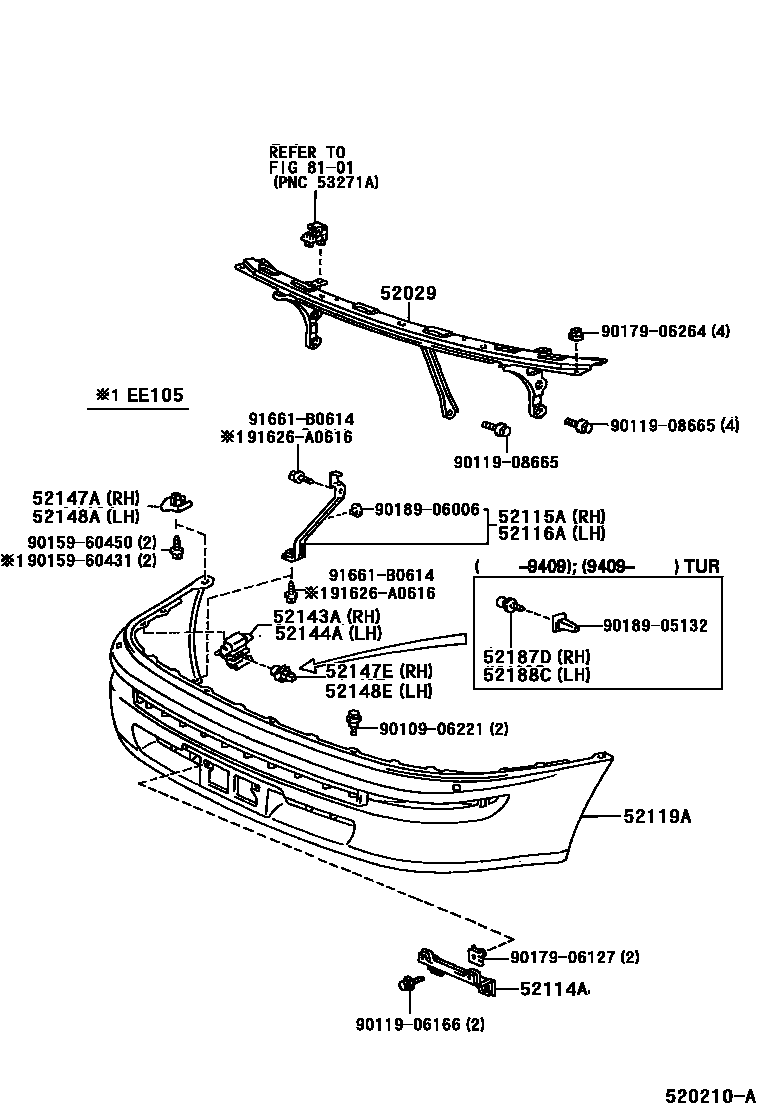

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-12010 · 52029-12030 · 52029-13010 |
| 52114A | Front bumper extension mounting bracket | 52114-30050 |
| 52115A | Front bumper right side bracket | 52115-12330 · 52115-12340 |
| 52116A | Front bumper left bracket | 52116-12260 · 52116-12270 |
| 52119A | front bumper cover | 52119-1A910 · 52119-1A911 · 52119-1E010 · 52119-1E260 · 52119-1E901 · 52119-1E903 · 52119-1E904 · 52119-1E905 |
| 52143A | Front bumper inner right arm | 52143-12300 · 52143-12330 |
| 52144A | Front bumper inner left arm | 52143-12300 · 52143-12330 |
| 52147A | Front bumper stay right side bracket | 52147-12170 · 52147-16080 |
| 52147E | Front bumper right side mounting support | 52148-12130 |
| 52148A | Front bumper stay left bracket | 52147-12170 · 52147-16080 |
| 52148E | Front bumper left side mounting support | 52148-12130 |
| 52187D | Front bumper right positioning guide rod | 52187-12140 |
| 52188C | Front bumper left positioning guide rod | 52187-12140 |
| 52522 | Front bumper upper side fixing bracket | 52522-12050 · 90189-06089 |
| 53141C | Radiator grille trim | 53141-12070 · 53141-12080 |
