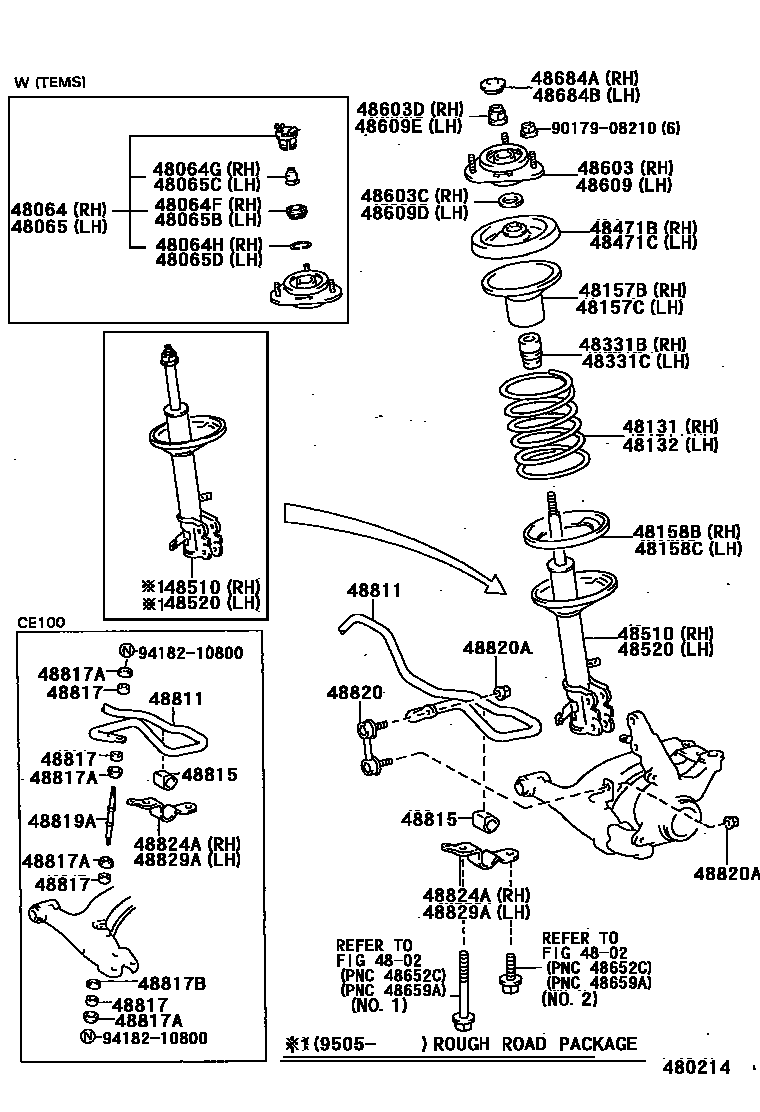

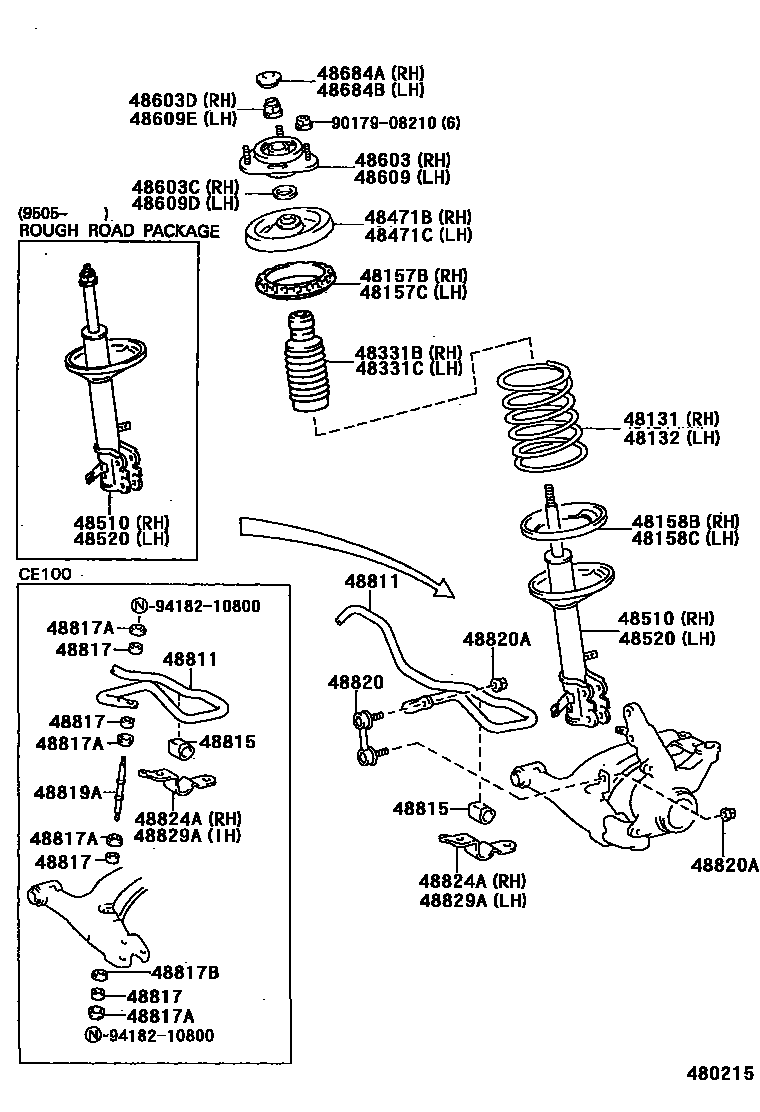

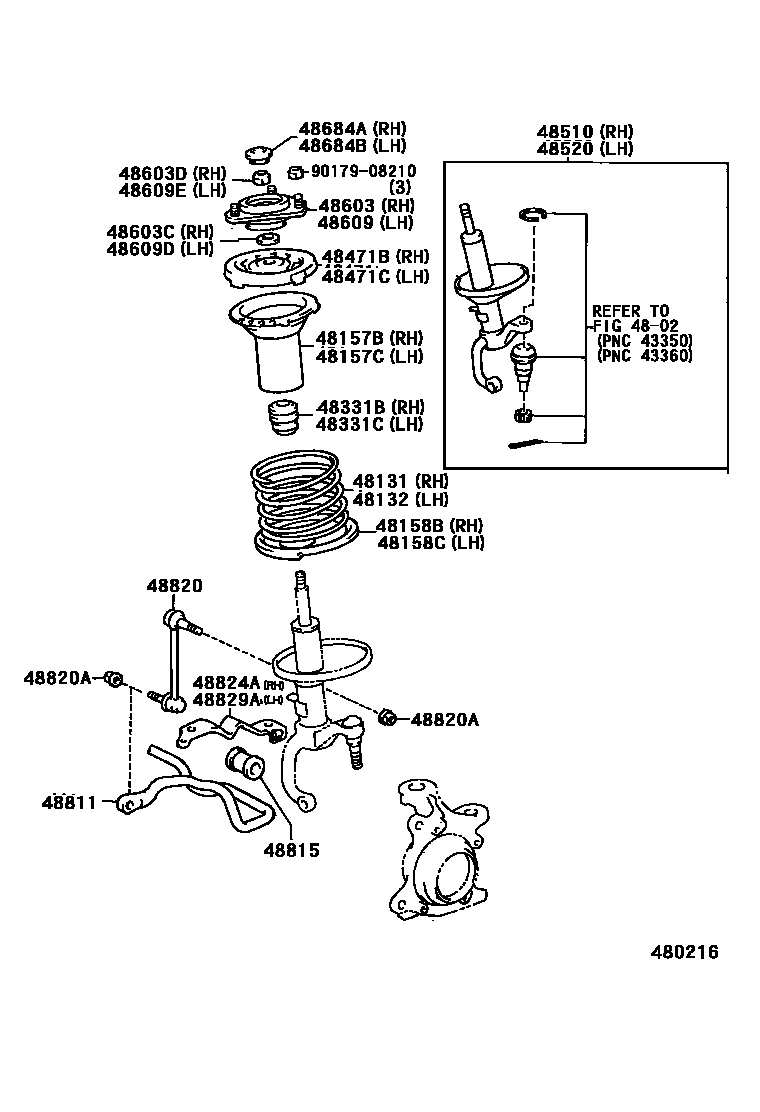

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48064 | Right front suspension support cover sub-assembly | 48064-12020 |
| 48064F | Dust seal (for right front suspension mount cover) | 90304-26001 |
| 48064G | Seal (for right front suspension mount cover) | 90480-13019 |
| 48064H | Locating ring (for right front suspension mount cover) | 90522-24001 |
| 48065 | Left front suspension support cover sub-assembly | 48065-12020 |
| 48065B | Dust seal (for left front suspension mount cover) | 90304-26001 |
| 48065C | Seal (for left front suspension mount cover) | 90480-13019 |
| 48065D | Locating ring (for left front suspension mount cover) | 90522-24001 |
| 48131 | Right front coil spring | 48131-1K330 · 48131-1K380 · 48131-1K400 · 48131-1K530 · 48131-1K540 · 48131-1K560 · 48131-1K600 · 48131-1K620 · 48131-1K640 · 48131-1K690 · 48131-1K700 · 48131-1K720 · 48131-1K740 · 48131-1K840 · 48131-1K860 · 48131-1K890 · 48131-1L200 · 48131-1L270 · 48131-1L290 · 48131-1L320 · 48131-1L340 · 48131-1L360 · 48131-1L370 · 48131-1L440 |
| 48132 | Left front coil spring | 48131-1K380 · 48131-1K400 · 48131-1K510 · 48131-1K530 · 48131-1K540 · 48131-1K560 · 48131-1K600 · 48131-1K620 · 48131-1K640 · 48131-1K660 · 48131-1K700 · 48131-1K720 · 48131-1K790 · 48131-1K840 · 48131-1K860 · 48131-1K870 · 48131-1K890 · 48131-1L020 · 48131-1L200 · 48131-1L270 · 48131-1L290 · 48131-1L320 · 48131-1L340 · 48131-1L360 · 48131-1L370 · 48131-1L430 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-12060 · 48157-12070 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-12060 · 48157-12070 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-12030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-12030 |
| 48331B | Right front spring buffer block | 48331-12120 · 48331-12130 · 48331-12140 · 48331-12150 |
| 48331C | Left front spring buffer block | 48331-12120 · 48331-12130 · 48331-12140 · 48331-12150 |
| 48471B | Front coil spring upper right seat | 48044-01020 · 48044-12090 |
| 48471C | Front coil spring upper left seat | 48044-01020 · 48044-12090 |
| 48510 | Right front shock absorber assembly | 48510-12750 · 48510-12770 · 48510-12780 · 48510-12790 · 48510-12800 · 48510-12830 · 48510-12880 · 48510-19255 · 48510-19265 · 48510-19475 · 48510-1A010 · 48510-87686 · 48510-87688 · 48510-87693 · 48510-87697 |
| 48520 | Left front shock absorber assembly | 48520-12630 · 48520-12650 · 48520-12660 · 48520-12670 · 48520-12680 · 48520-12750 · 48520-12770 · 48520-19015 · 48520-19025 · 48520-19195 · 48520-49215 · 48520-49216 · 48520-49235 · 48520-49236 |
| 48603 | Right front suspension bearing sub-assembly | 48609-12250 · 48609-12260 · 48609-12270 · 48609-12290 · 48609-12300 · 48609-12330 · 48609-12340 · 48609-12350 · 48609-12370 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14029 · 94182-11400 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12250 · 48609-12260 · 48609-12270 · 48609-12290 · 48609-12300 · 48609-12330 · 48609-12340 · 48609-12350 · 48609-12370 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14029 · 94182-11400 |
| 48684A | Right front suspension support dust cover | 48684-12070 · 48684-32010 |
| 48684B | Left front suspension support dust cover | 48684-12070 · 48684-32010 |
| 48811 | front stabilizer bar | 48811-12710 · 48811-12720 · 48811-12770 · 48811-12821 · 48811-12890 · 48811-1A011 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12190 · 48815-12220 · 48815-12230 |
| 48817 | Front stabilizer bar cushion | 48817-30020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 |
| 48819A | front stabilizer bar bolt | 48819-20030 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-12010 · 48820-20021 · 48820-33010 |
| 48820A | Nut (for front stabilizer bar link) | 90179-10183 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-12120 · 48824-12130 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48829-12050 · 48829-12060 |
