Toyota COROLLA 制动配管和卡箍 — Figure 4708

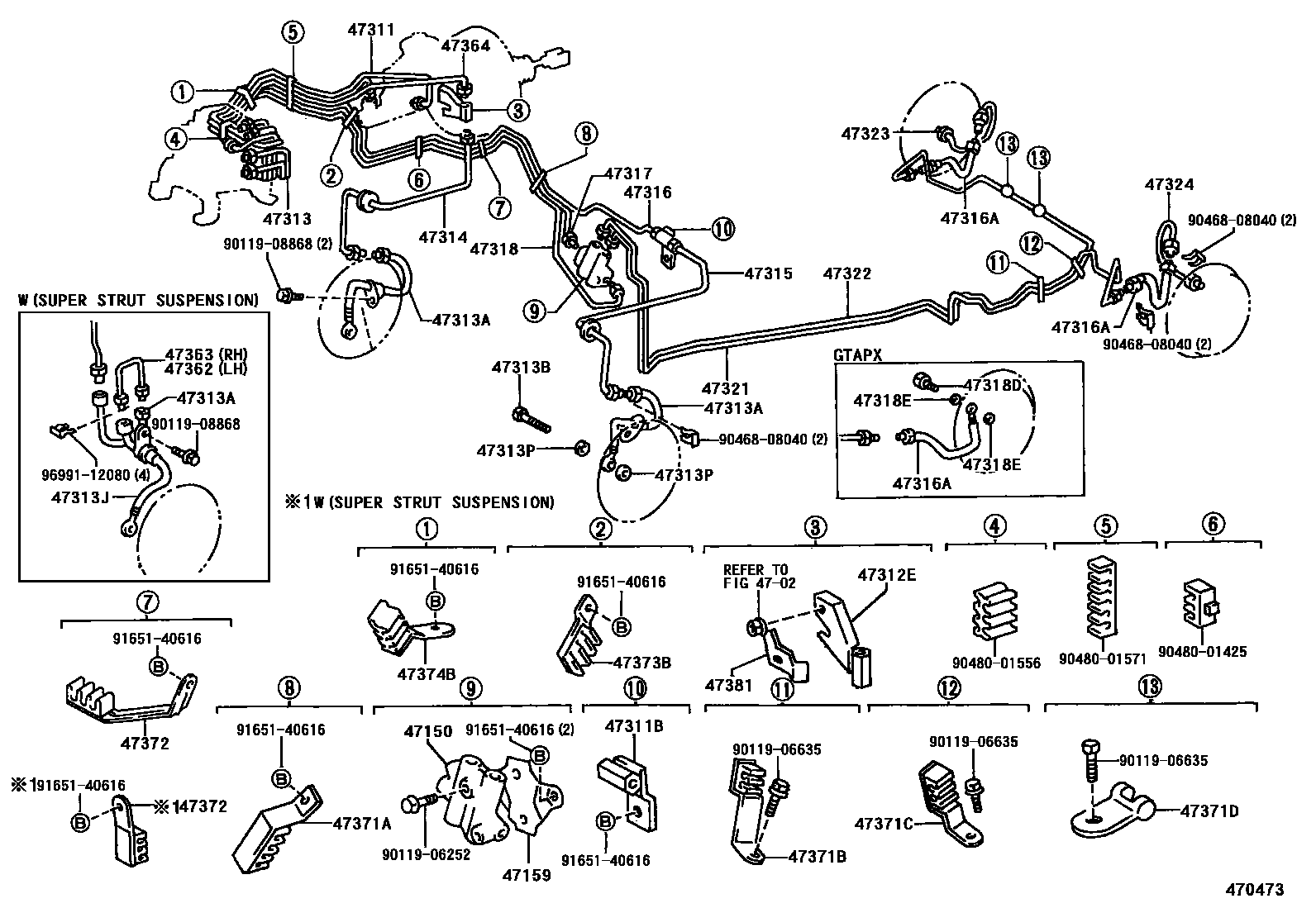

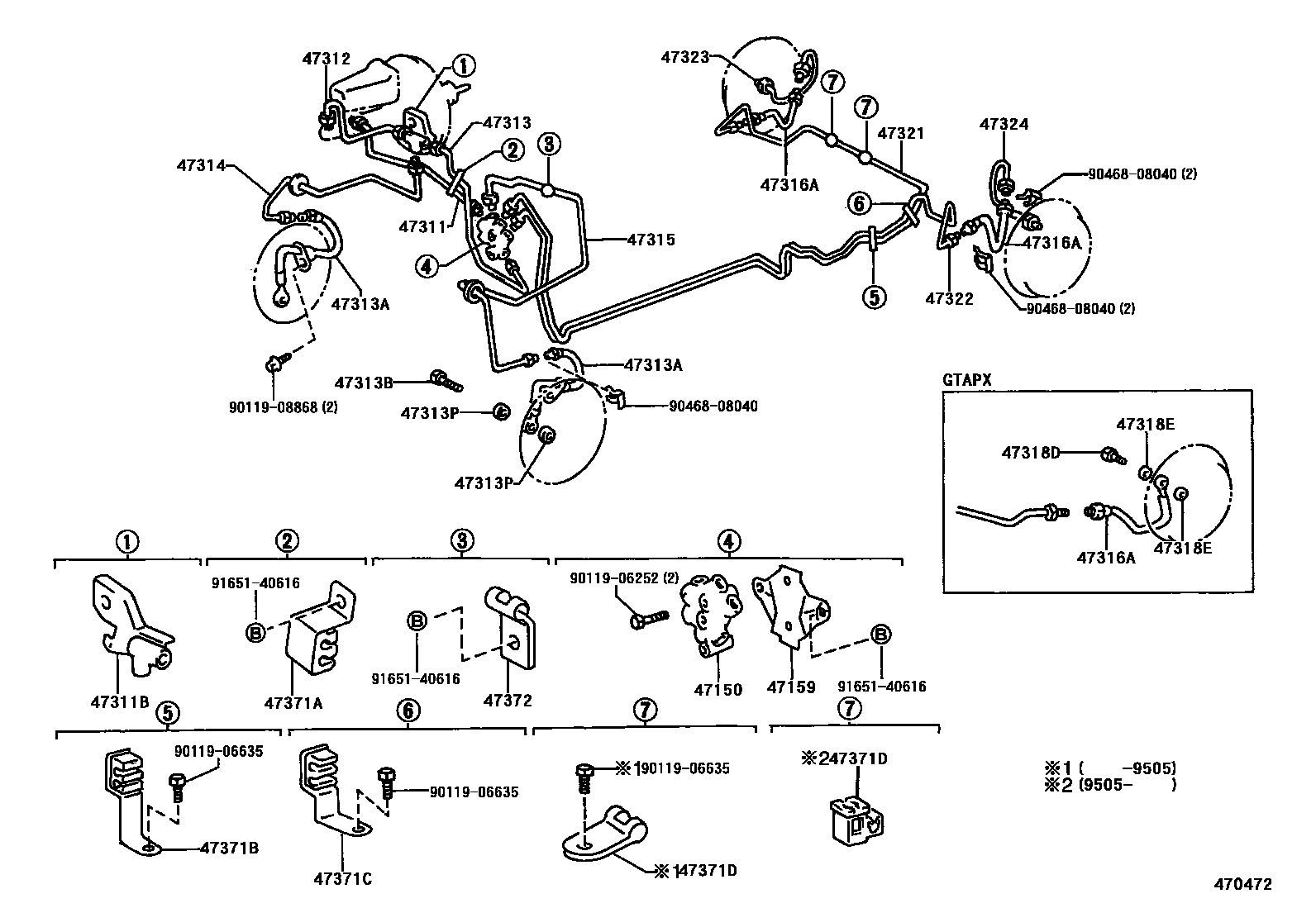

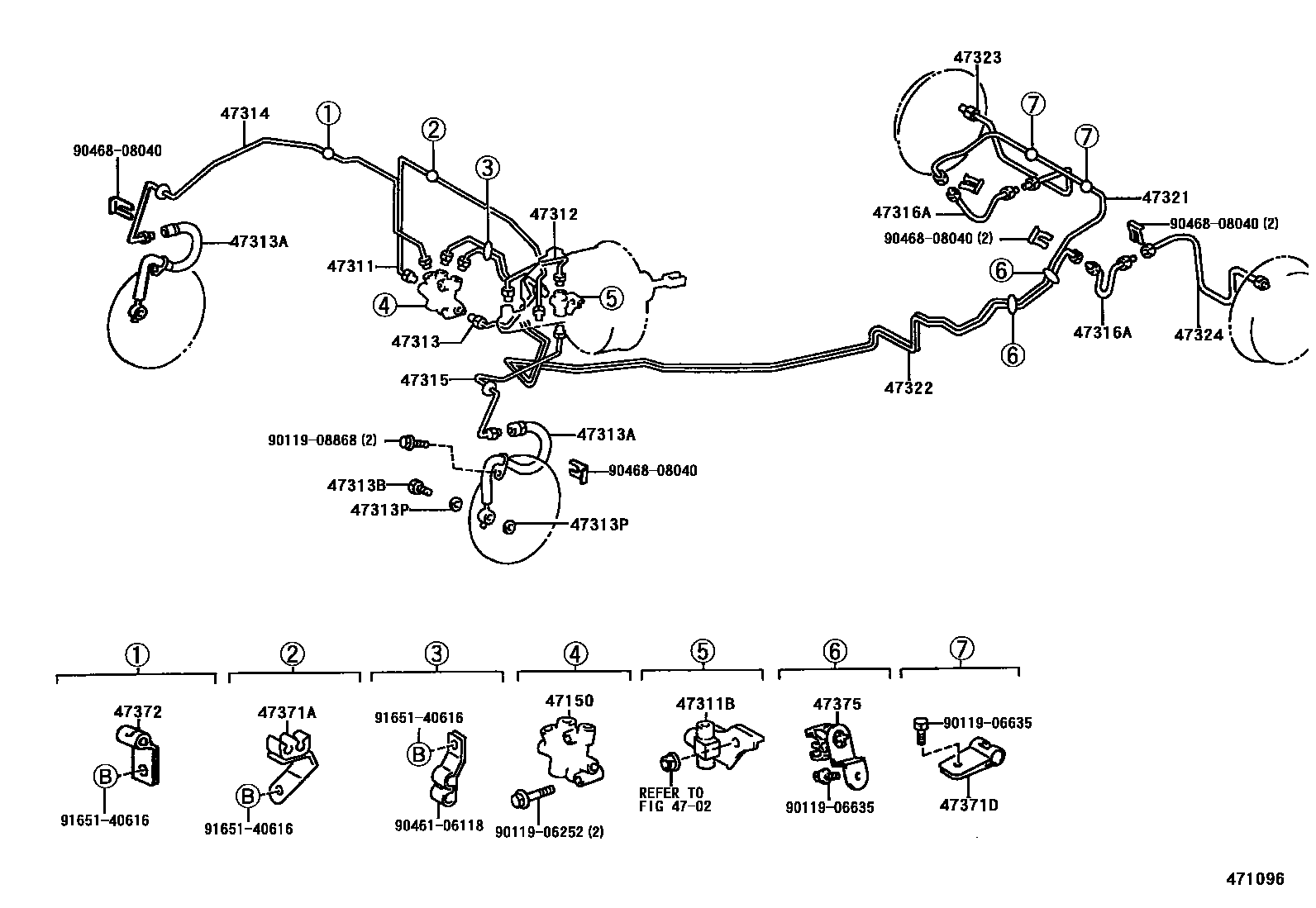

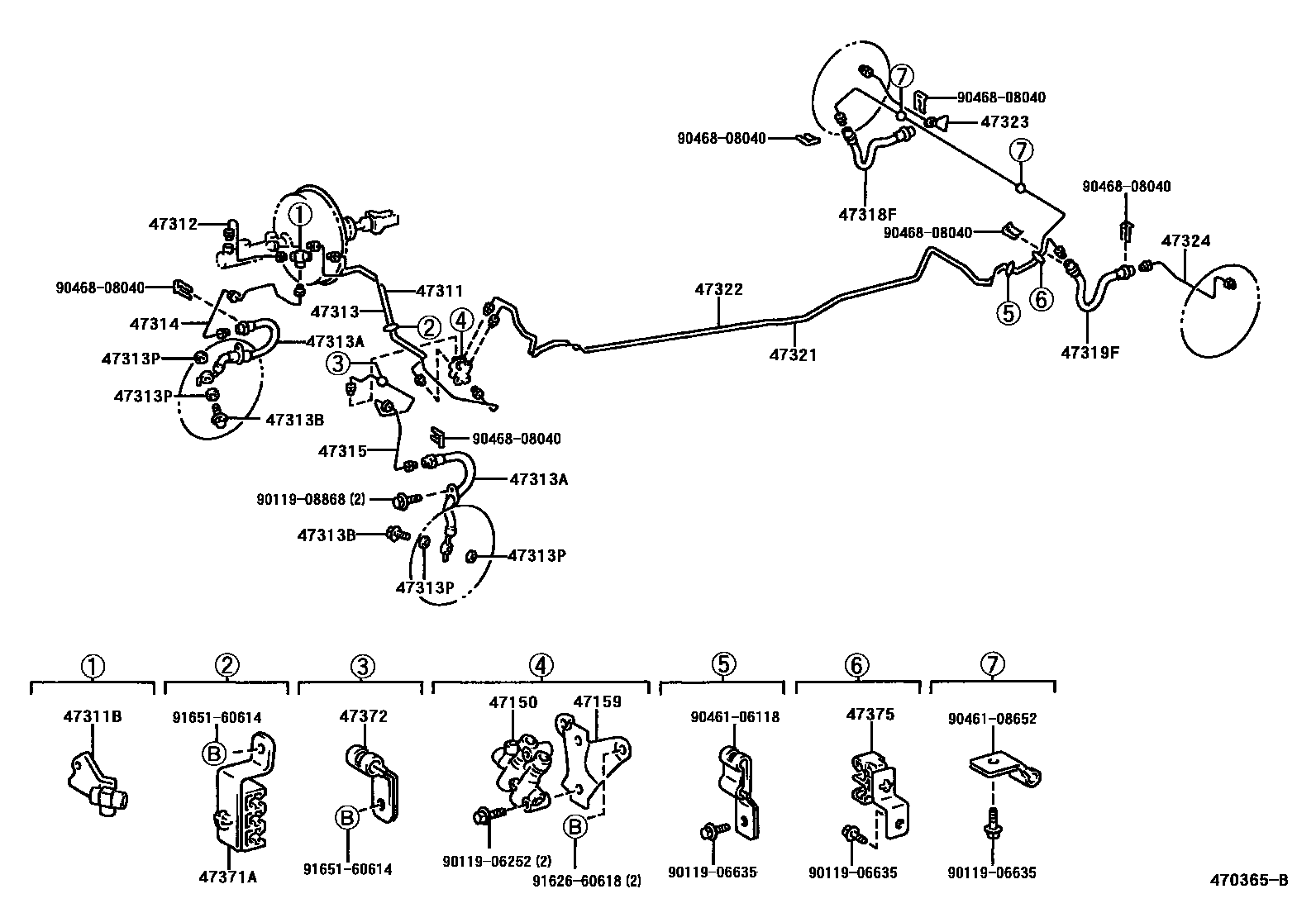

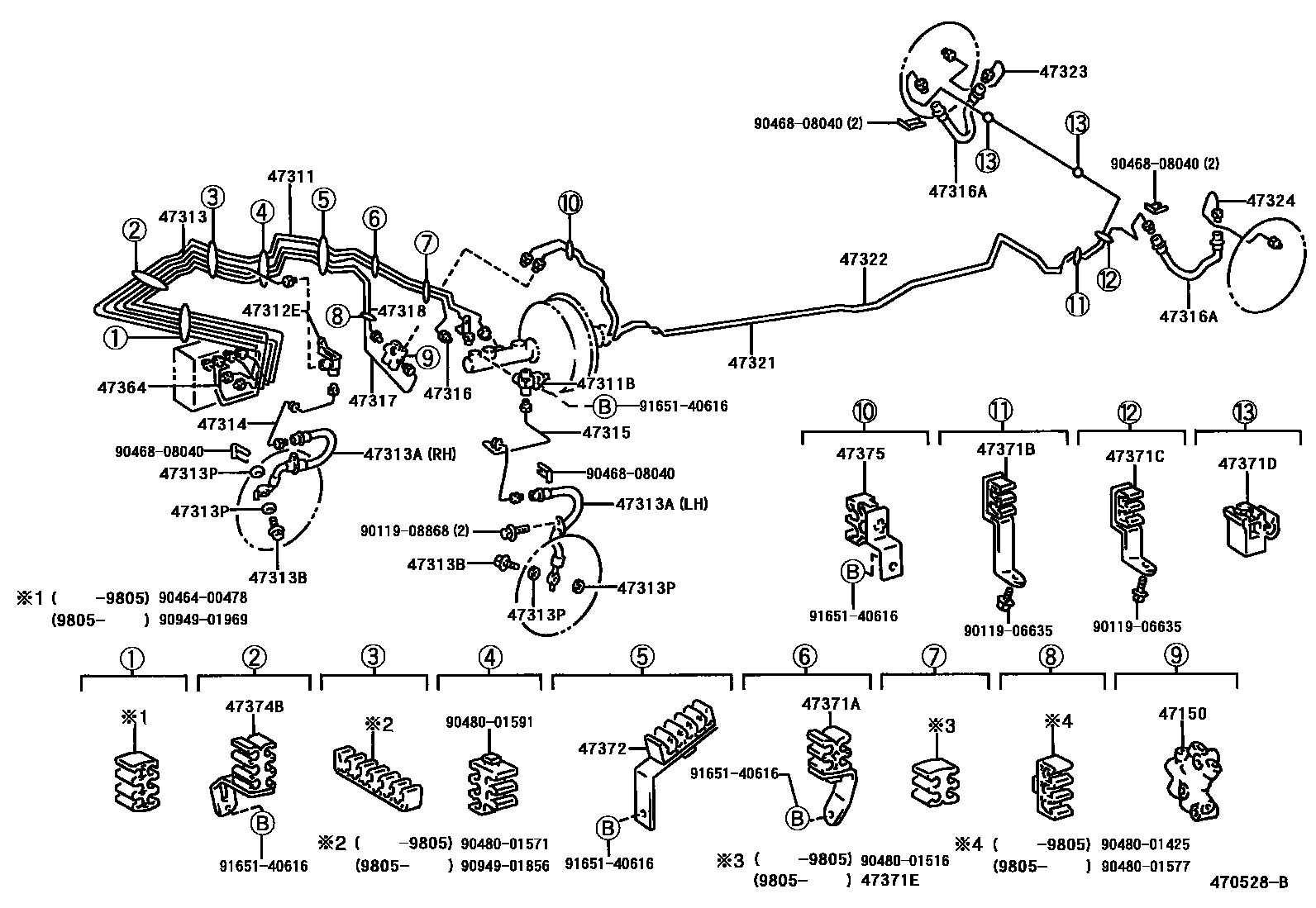

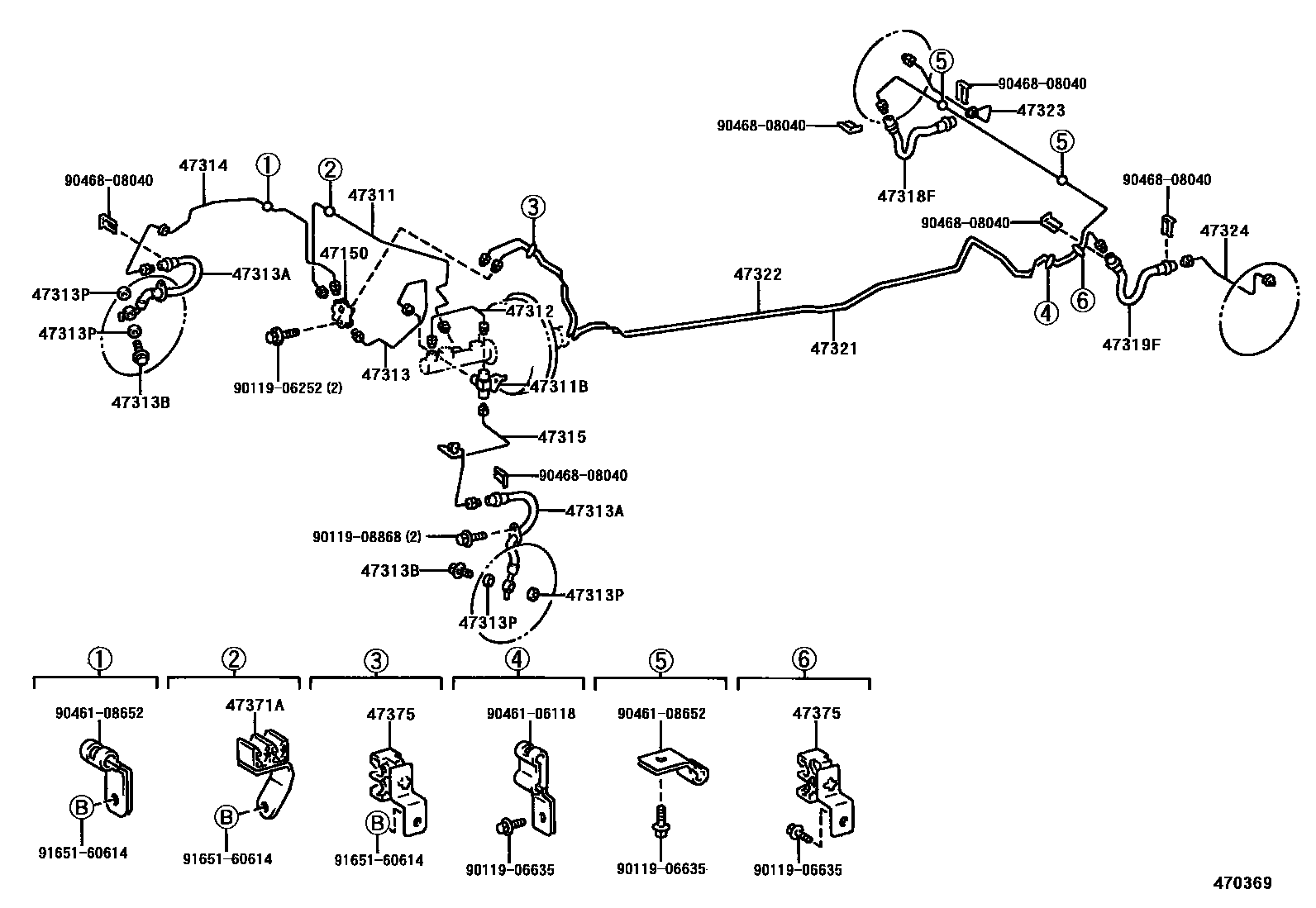

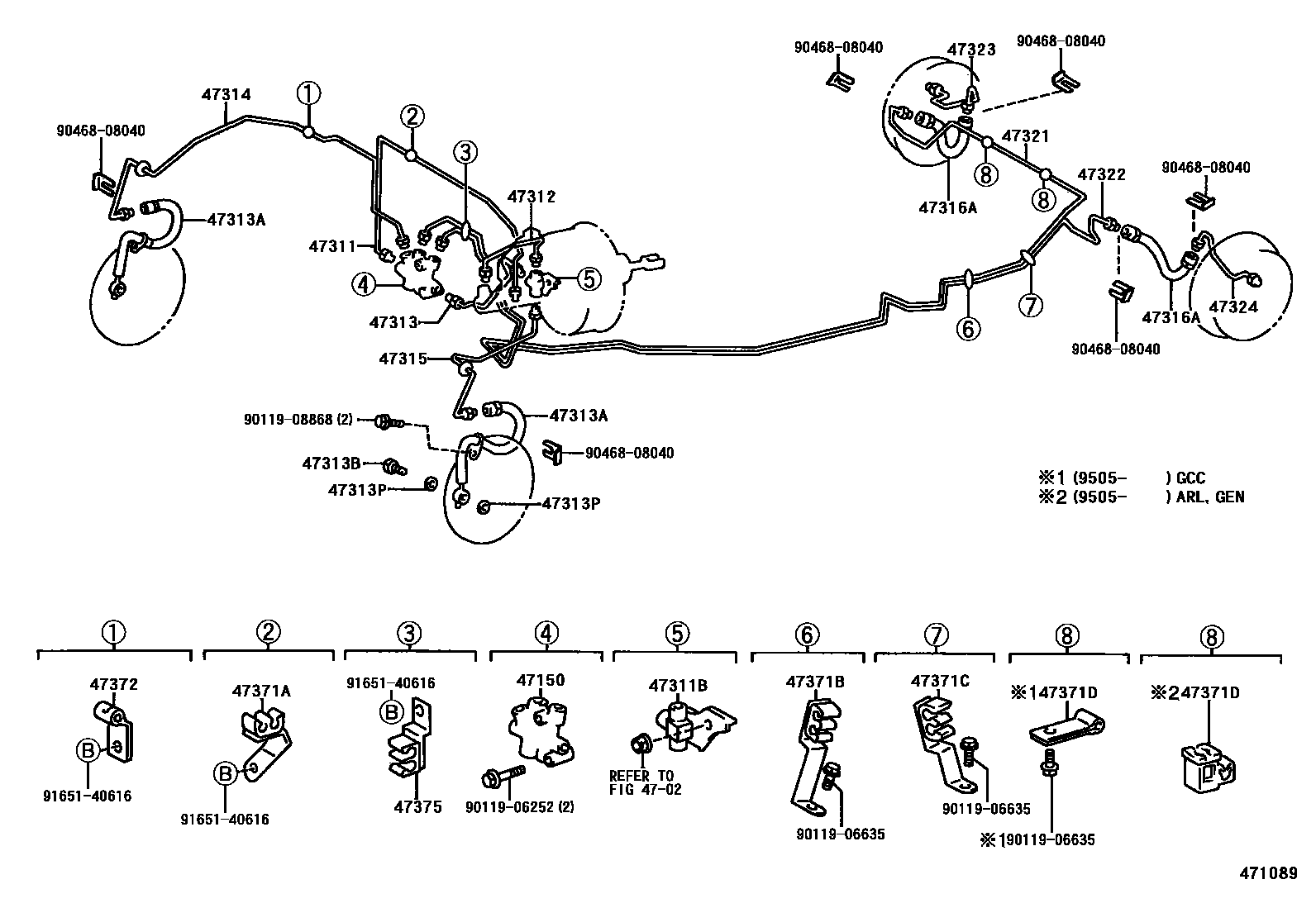

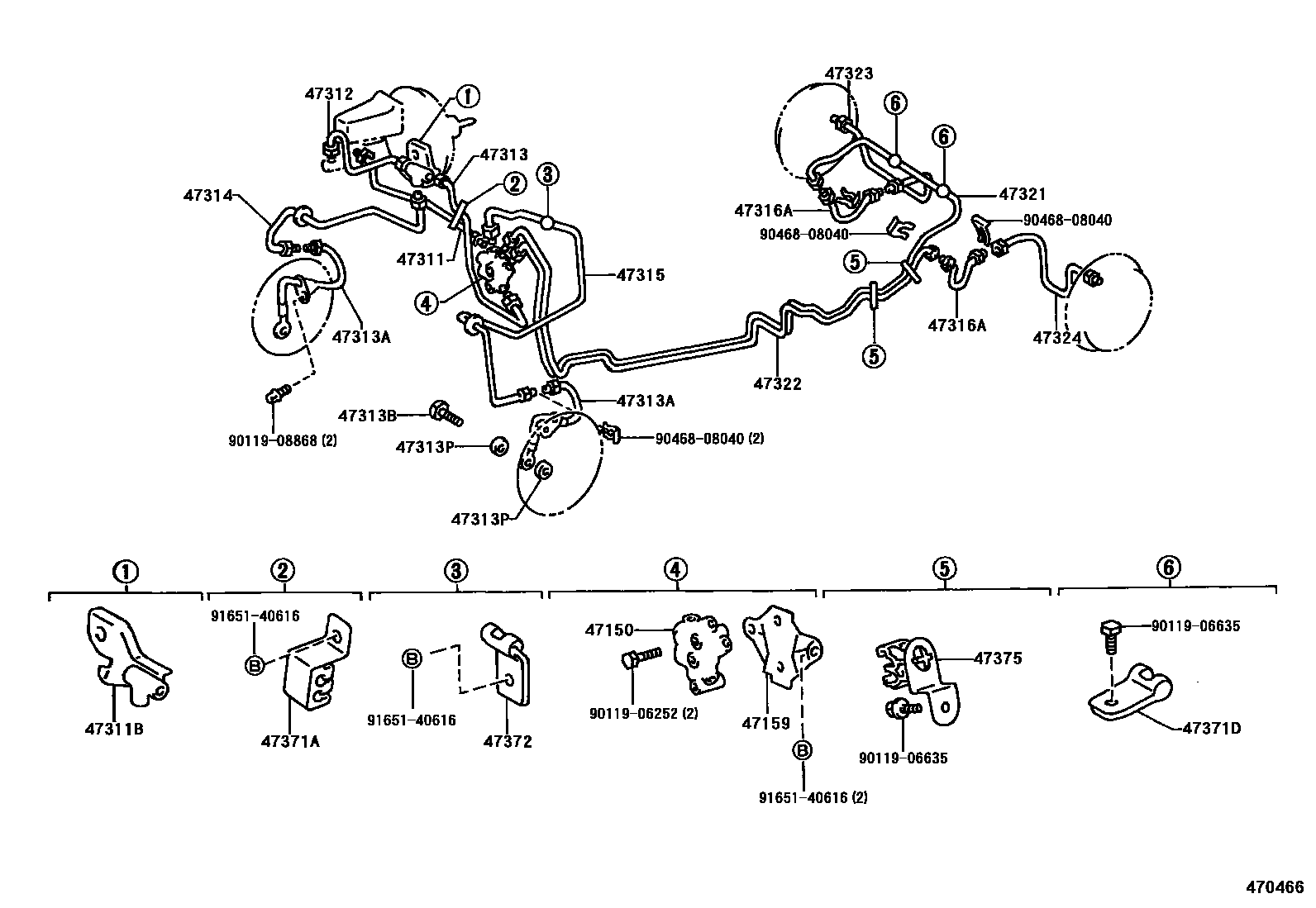

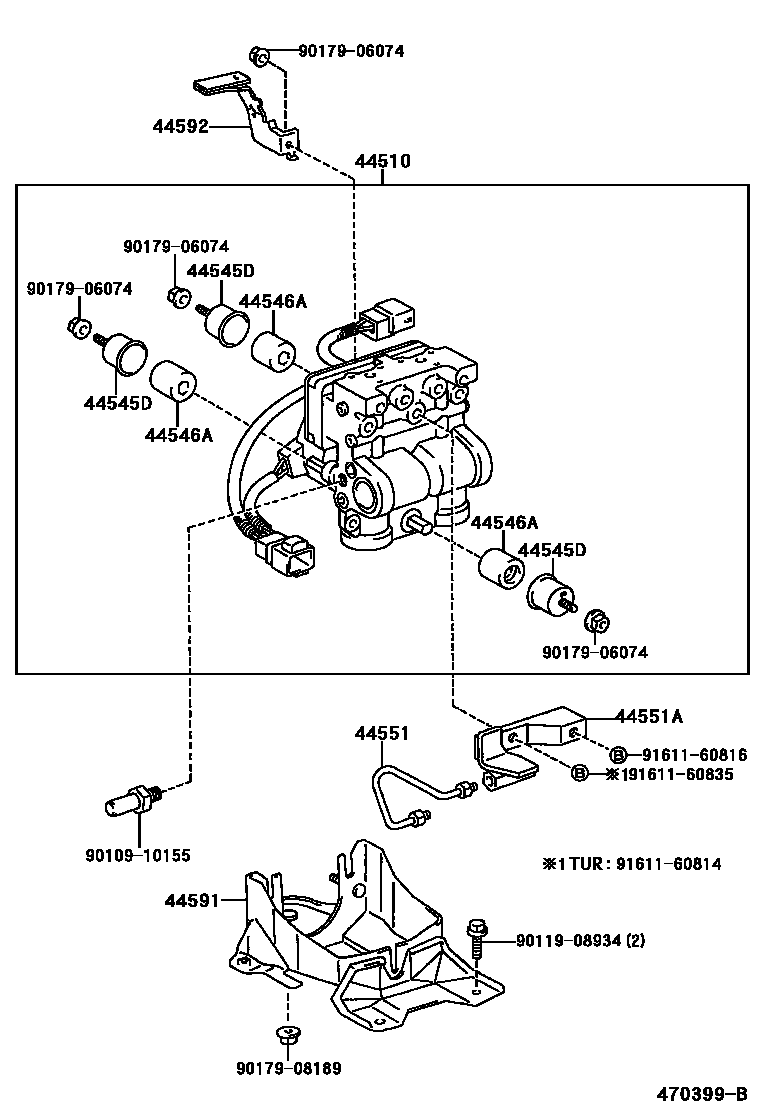

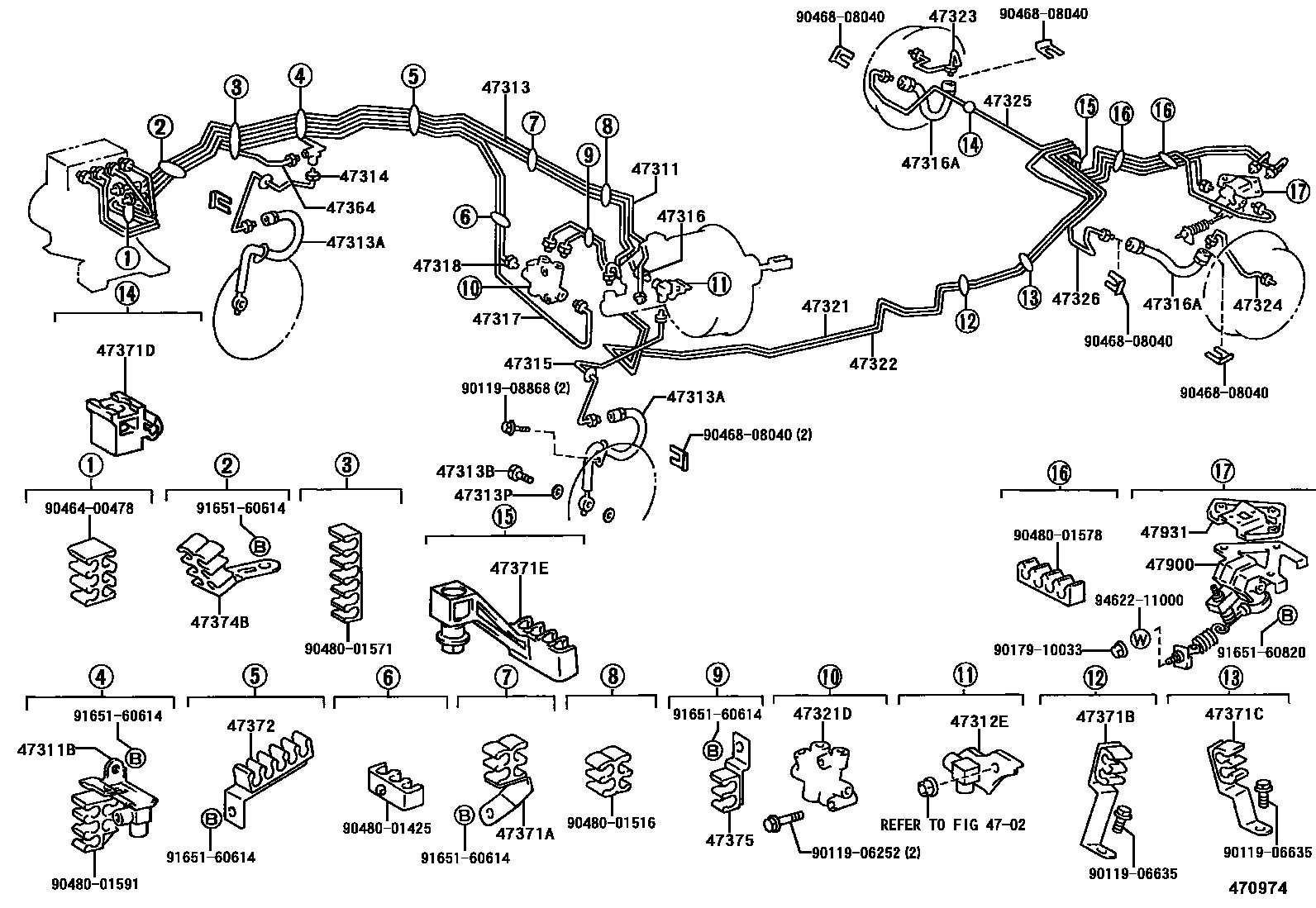

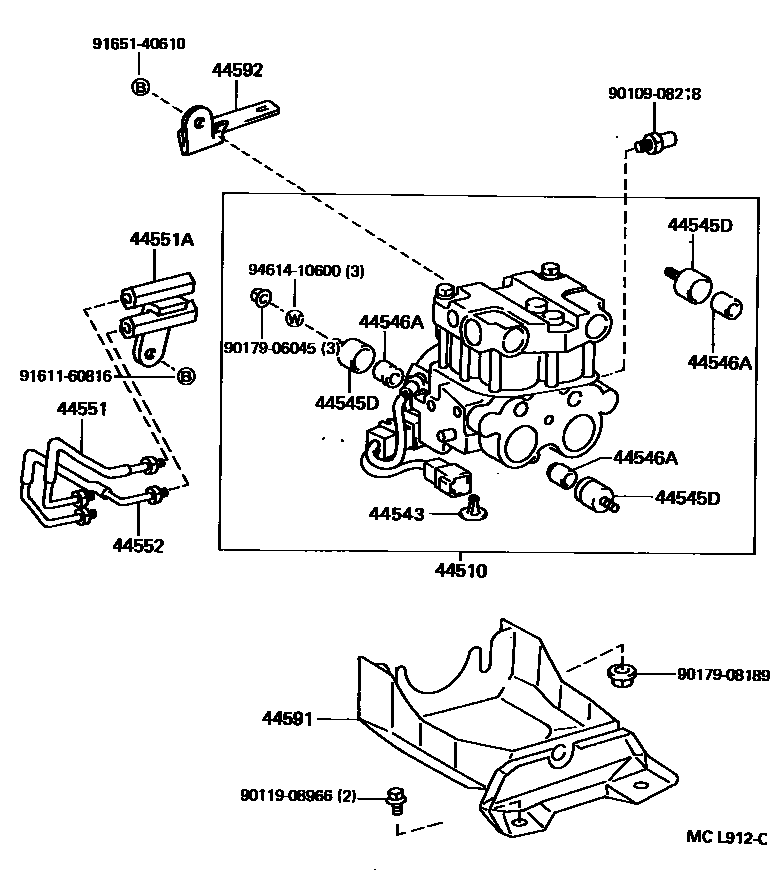

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 11 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-12020 · 44510-12030 · 44510-12040 · 44510-12050 · 44510-12090 · 44510-12100 · 44510-12160 · 44510-12230 |
| 44543 | rubber cap | 44543-12010 |
| 44545D | Brake actuator bolt mount | 44545-12010 · 44545-12020 · 44545-12090 |
| 44546A | Brake actuator bolt cushion | 44546-12010 · 44546-12090 |
| 44551 | No. 1 brake actuator pipe | 44551-12031 · 44551-12040 |
| 44551A | Pipe joint No. 1 (for brake actuator) | 90412-10184 · 90412-10197 · 90904-12006 |
| 44552 | No. 2 brake actuator pipe | 44552-12021 |
| 44591 | No. 1 brake actuator bracket | 44590-12010 · 44590-12011 · 44591-12020 · 44591-12030 · 44591-12031 |
| 44592 | No. 2 brake actuator bracket | 44592-12010 · 44592-12020 · 44594-12010 |
| 47150 | Proportional valve assembly | 47150-10090 · 47150-12150 · 47150-12160 · 47150-12270 · 47150-16050 · 47150-20140 · 47150-20240 · 47150-20250 · 47150-20280 · 47150-44020 |
| 47159 | Proportional valve bracket | 47159-12070 |
| 47311 | No. 1 front brake pipe | 47311-12440 · 47311-12450 · 47311-12460 · 47311-12470 · 47311-12480 · 47311-12490 · 47311-12500 · 47311-12520 · 47311-12530 · 47311-12540 · 47311-12550 · 47311-12560 · 47311-12610 · 47311-12630 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 47391-12010 · 47391-12030 · 90412-10116 · 90412-10207 · 90413-10159 · 90413-10262 |
| 47312 | No. 2 front brake pipe | 47312-12260 · 47312-12290 · 47312-12330 · 47312-12350 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10183 · 90412-10208 · 90904-12007 |
| 47313 | No. 3 front brake pipe | 47313-12250 · 47313-12260 · 47313-12270 · 47313-12280 · 47313-12290 · 47313-12300 · 47313-12310 · 47313-12330 · 47313-12340 · 47313-12350 · 47313-12360 · 47313-12370 · 47313-12410 · 47313-12440 |
| 47313A | No. 1 front flexible hose | 90947-02659 · 90947-02660 · 90947-02662 · 90947-02798 · 90947-02799 · 90947-02806 · 90947-02910 · 90947-02913 · 90947-02914 · 90947-02917 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10045 · 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02663 · 90947-02664 · 90947-02807 · 90947-02808 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12290 · 47314-12320 · 47314-12330 · 47314-12340 · 47314-12350 · 47314-12360 · 47314-12370 · 47314-12371 · 47314-12400 · 47314-12410 |
| 47315 | No. 5 front brake pipe | 47315-12420 · 47315-12450 · 47315-12460 · 47315-12470 |
| 47316 | No. 6 front brake pipe | 47316-12190 · 47316-12200 · 47316-12210 · 47316-12240 · 47316-12260 · 47316-12280 · 47316-12290 · 47316-12330 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02657 · 90947-02658 · 90947-02678 · 90947-02740 · 90947-02783 · 90947-02809 · 90947-02830 · 90947-02921 |
| 47317 | No. 7 front brake pipe | 47317-12040 · 47317-12050 · 47317-12060 · 47317-12090 · 47317-12110 · 47317-12120 · 47317-12130 · 47317-12180 |
| 47318 | No. 8 front brake pipe | 47318-12180 · 47318-12190 · 47318-12200 · 47318-12230 · 47318-12240 · 47318-12250 · 47318-12260 · 47318-12320 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47318F | Right rear flexible hose | 90947-02908 |
| 47319F | Left rear flexible hose | 90947-02908 |
| 47321 | No. 1 rear brake pipe | 47321-12100 · 47321-12120 · 47321-12130 · 47321-12150 · 47321-12190 · 47321-12210 · 47321-13060 · 47321-13070 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 |
| 47322 | No. 2 rear brake pipe | 47322-12260 · 47322-12270 · 47322-12280 · 47322-12300 · 47322-12340 · 47322-12360 · 47322-13100 · 47322-13110 |
| 47323 | No. 3 rear brake pipe | 47323-12250 · 47323-13090 |
| 47324 | No. 4 rear brake pipe | 47324-12210 · 47324-13090 |
| 47325 | No. 5 rear brake pipe | 47325-12180 |
| 47326 | No. 6 rear brake pipe | 47326-12070 |
| 47362 | No. 11 front brake pipe | 47362-12010 |
| 47363 | No. 12 front brake pipe | 47363-12010 |
| 47364 | No. 13 front brake pipe | 47364-12010 · 47364-12020 · 47364-12030 · 47364-12080 · 47364-12090 · 47364-12100 · 47364-12120 · 47364-12170 |
| 47371A | No. 1 brake pipe clamp | 47371-12090 · 47371-12100 · 47371-12110 · 47371-12120 · 47371-12190 · 47371-12200 |
| 47371B | No. 6 brake pipe clamp | 47375-12010 · 47375-12040 |
| 47371C | No. 7 brake pipe clamp | 47375-12020 · 47375-12060 |
| 47371D | No. 8 brake pipe clamp | 47371-12150 · 90461-08652 · 90461-08687 · 90949-01B45 |
| 47371E | No. 9 brake pipe clamp | 47371-12160 · 47375-35120 |
| 47372 | No. 2 brake pipe clamp | 47372-12010 · 47372-12020 · 47372-12040 · 47372-12070 · 90461-06119 · 90461-08652 |
| 47373B | No. 3 brake pipe clamp | 47373-12010 |
| 47374B | No. 4 brake pipe clamp | 47374-12020 · 47374-12030 |
| 47375 | No. 5 brake pipe clamp | 47375-12030 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-12190 |
| 47900 | Load sensing valve assembly with spring | 47900-12011 |
| 47931 | Load sensing valve bracket | 47931-12011 |
