Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707

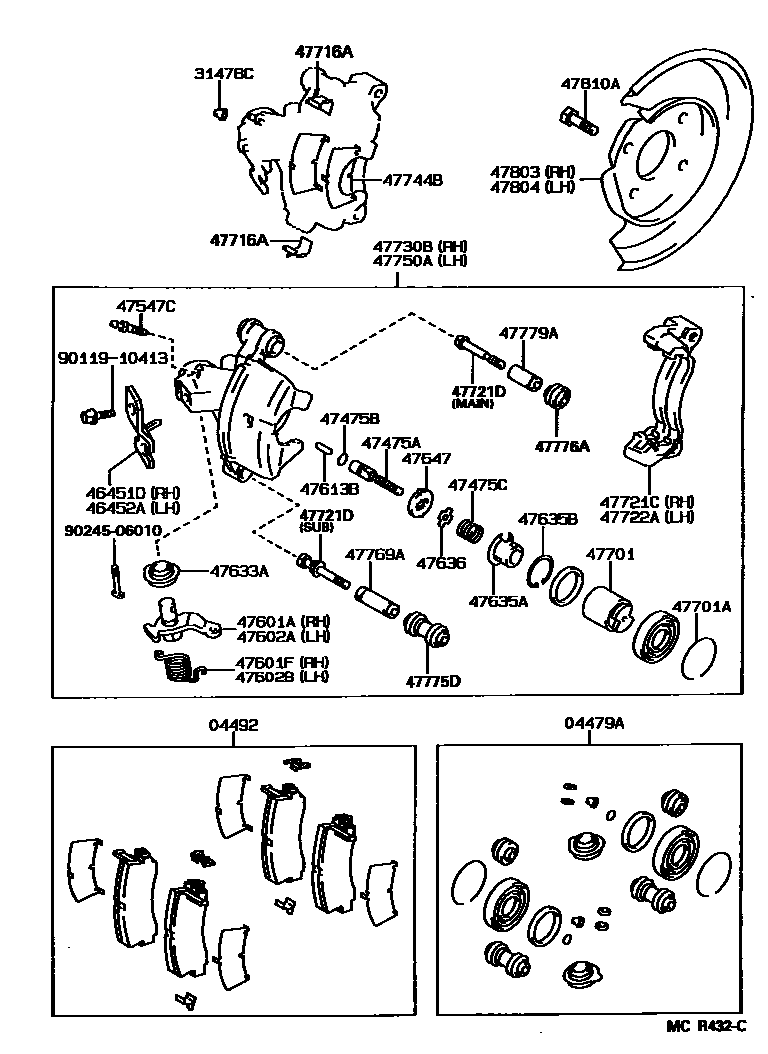

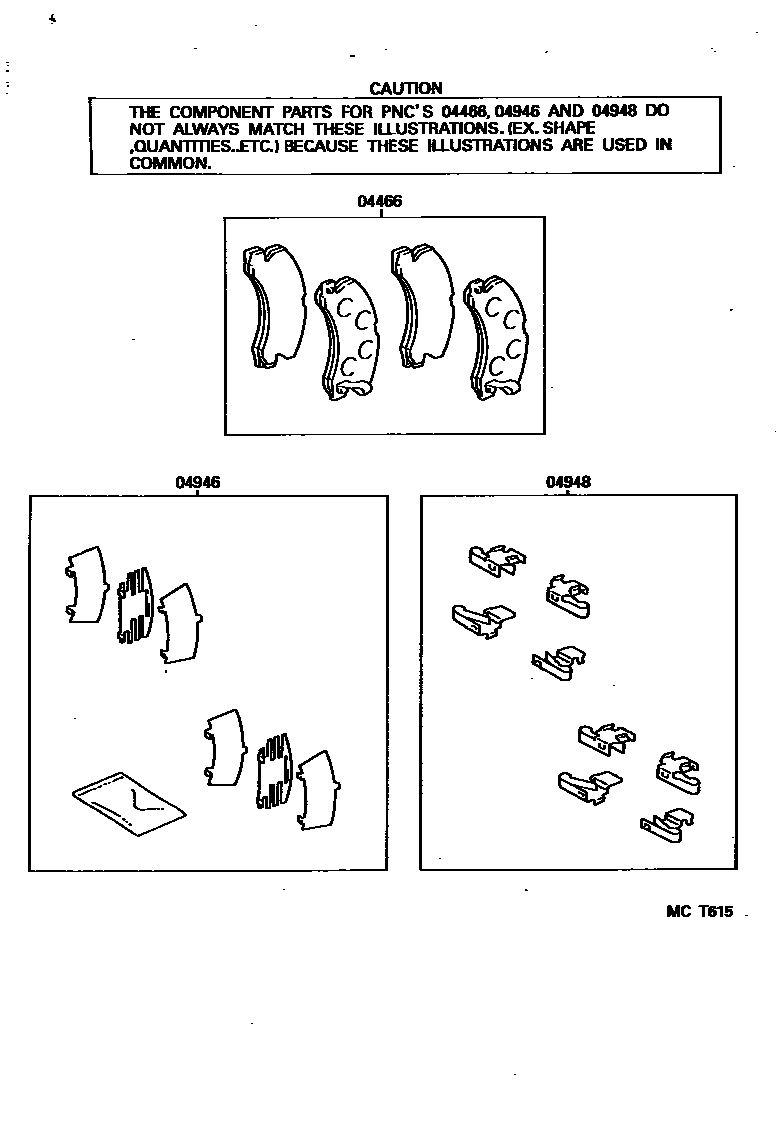

Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-12010 · 04466-12080 |
| 04479A | Rear disc brake cylinder assembly | 04479-12130 |
| 04492 | Rear disc brake pad assembly | 04492-12080 · 04492-12090 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-12010 |
| 04948 | Rear disc brake mounting assembly | 04948-12020 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 46451D | Right parking brake cable bracket | 46451-12030 |
| 46452A | Left parking brake cable bracket | 46452-12020 |
| 47475A | Pad adjustment bolt (for rear disc brake) | 47475-12030 |
| 47475B | O-ring (for rear disc brake pad adjustment bolt) | 90301-09007 |
| 47475C | Compression spring (for pad adjustment bolt) | 90501-23051 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47601A | Right parking brake angle lever sub-assembly | 47601-12020 |
| 47601F | Torsion spring (for right parking brake angle lever) | 90508-32021 |
| 47602A | Left parking brake angle lever sub-assembly | 47602-12020 |
| 47602B | Torsion spring (for left parking brake angle lever) | 90508-32020 |
| 47613B | Parking brake shoe push rod (for rear wheel brake) | 47613-12020 |
| 47633A | Parking brake angle lever dust cover | 47633-12010 |
| 47635A | Adjustment bolt spring retainer (for rear disc brake) | 47635-12020 |
| 47635B | Ring (for rear brake adjustment bolt spring retainer) | 90521-32002 |
| 47636 | Adjustment bolt spring leaf (for rear disc brake) | 47636-12010 |
| 47647 | Self-adjusting bolt stop (for rear disc brakes) | 47647-12020 |
| 47701 | Rear disc brake piston sub-assembly | 47701-12030 |
| 47701A | retaining ring (for rear disc brake piston) | 90522-43004 |
| 47716A | Pad support plate No. 1 (for rear disc brake) | 47716-12020 |
| 47721C | Right rear disc brake cylinder retainer | 47721-12190 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90109-08098 · 90119-08431 |
| 47722A | Left rear disc brake cylinder retainer | 47721-12190 |
| 47730B | Right rear disc brake cylinder assembly | 47730-12430 |
| 47744B | Silencer spacer (for rear disc brake) | 47744-12080 |
| 47750A | Left rear disc brake cylinder assembly | 47750-12430 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-28010 |
| 47775D | Bushing boot (for rear disc brake) | 47775-14010 |
| 47776A | Kingpin dust boot (for rear disc brake) | 47776-12010 |
| 47779A | No. 2 brake cylinder sliding sleeve (for rear disc brake) | 47779-12010 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-12060 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-12060 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-10167 |
