Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705

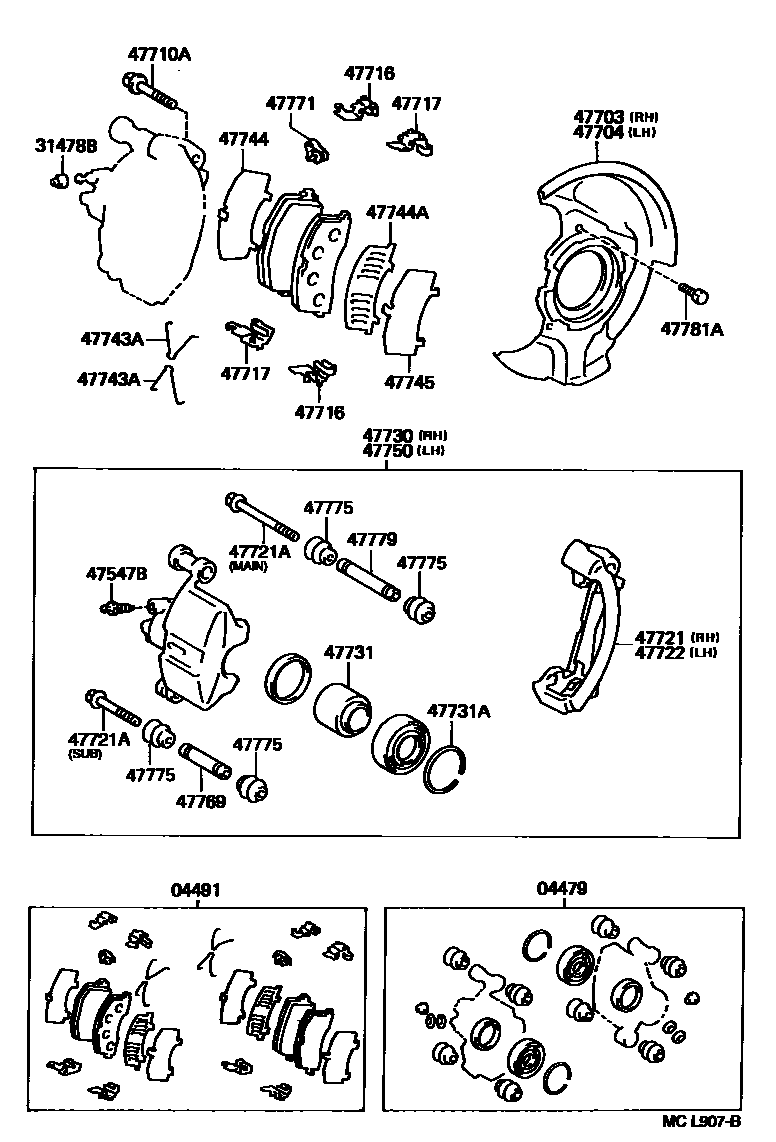

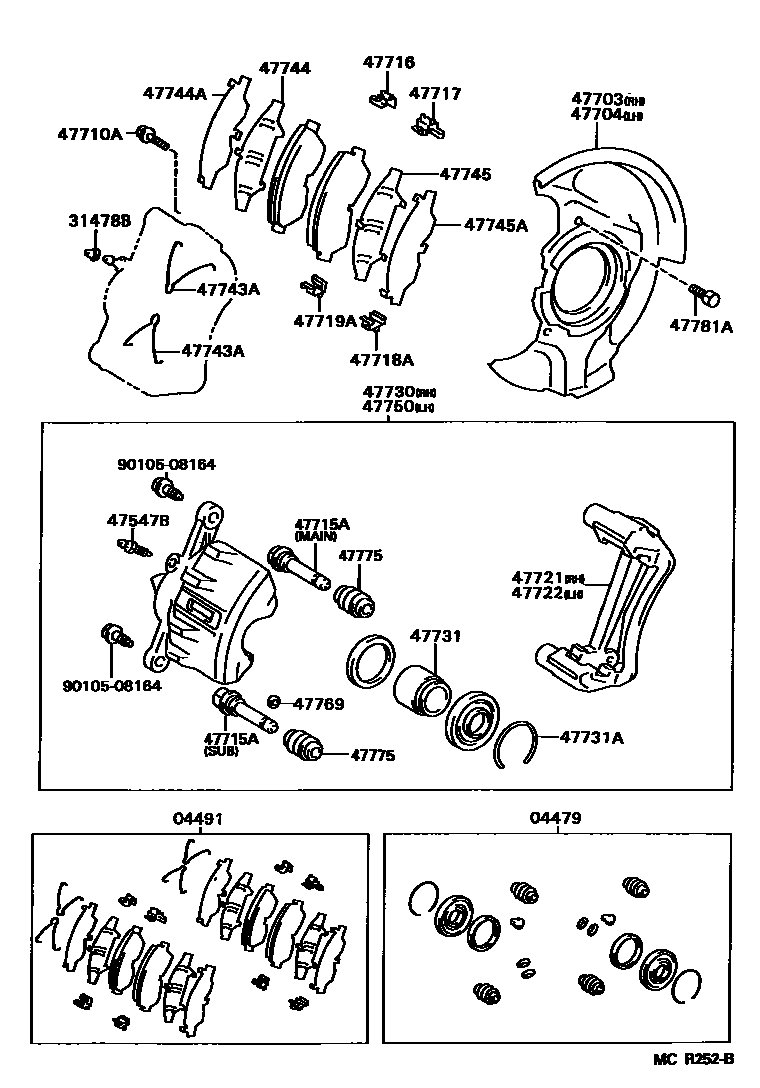

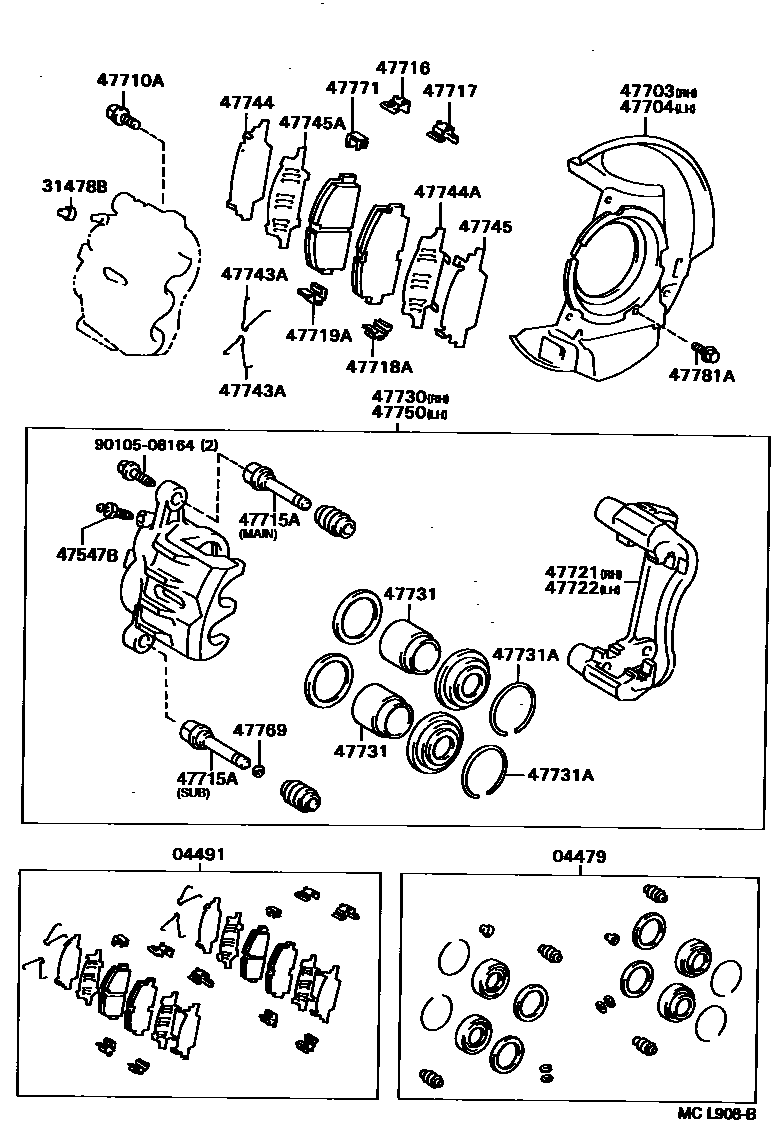

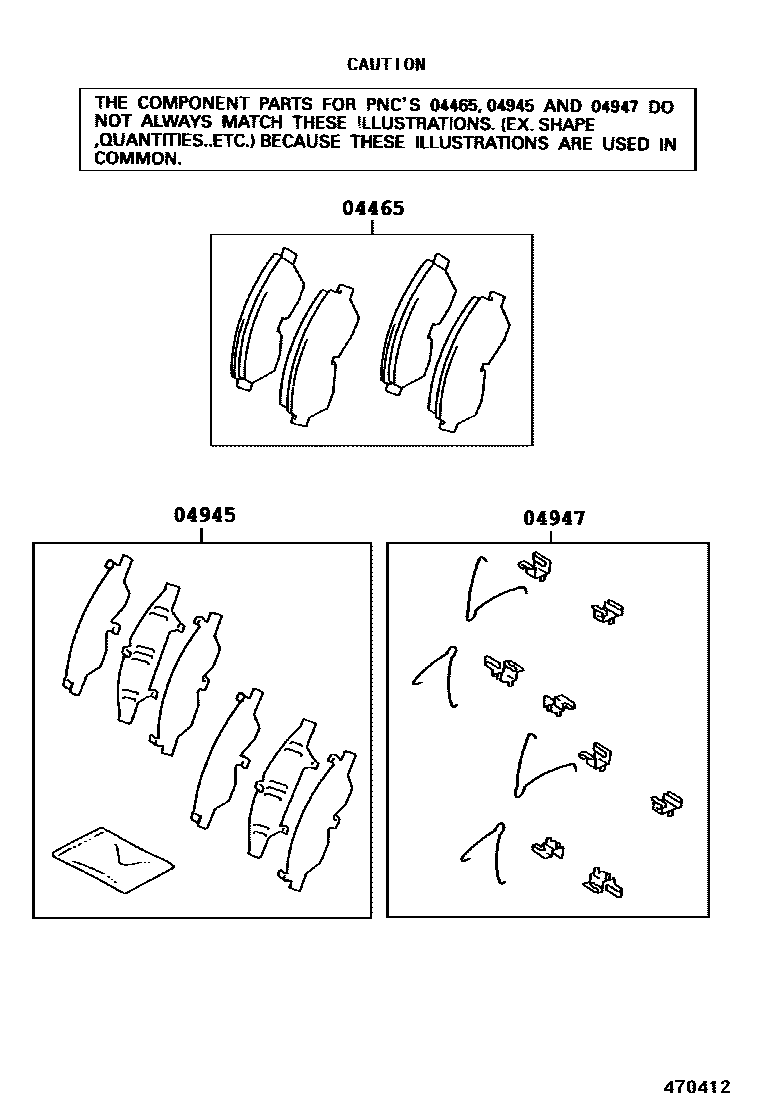

Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 4 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-12040 · 04465-12090 · 04465-12160 · 04465-12240 · 04465-12500 · 04465-12510 · 04465-12540 · 04465-12550 · 04465-33040 |
| 04479 | Front disc brake cylinder assembly | 04479-12091 · 04479-12140 · 04479-12170 · 04479-12180 |
| 04491 | Front disc brake pad assembly | 04491-12432 · 04491-12540 · 04491-12541 · 04491-12560 · 04491-12561 · 04491-12580 · 04491-12581 · 04491-12590 · 04491-12630 · 04491-12650 · 04491-12651 |
| 04945 | Front silencer gasket assembly | 04945-12010 · 04945-12060 · 04945-13020 · 04945-20090 · 04945-32050 · 04945-32060 |
| 04947 | Front disc brake mounting kit | 04947-20060 · 04947-32010 · 04947-32080 · 04947-33020 · 04947-33090 · 04947-33130 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47703 | Right front disc brake dust cover sub-assembly | 47781-12160 · 47781-12170 · 47781-12180 · 47781-12190 |
| 47704 | Left front disc brake dust cover sub-assembly | 47782-12160 · 47782-12170 · 47782-12180 · 47782-12190 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12131 · 90119-12040 |
| 47715A | Front disc brake cylinder sliding pin | 47715-50010 · 47715-50030 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-20140 · 47716-32031 · 47716-33010 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47716-33020 · 47717-20140 · 47717-32031 |
| 47718A | No. 3 pad support plate (for front disc brake) | 47717-33010 |
| 47719A | No. 4 pad support plate (for front disc brake) | 47717-33020 |
| 47721 | Right front disc brake cylinder retainer | 47721-12120 · 47721-12130 · 47721-12160 · 47721-12170 · 47721-12180 · 47721-12210 · 47721-12211 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90119-09003 · 90119-09004 |
| 47722 | Left front disc brake cylinder retainer | 47721-12120 · 47721-12130 · 47721-12160 · 47721-12170 · 47722-12010 · 47722-12030 · 47722-12031 |
| 47730 | Right front disc brake cylinder assembly | 47730-12310 · 47730-12320 · 47730-12400 · 47730-12410 · 47730-12420 · 47730-12450 · 47730-12451 |
| 47731 | Front disc brake piston | 47731-12130 · 47731-12150 · 47731-12180 · 47731-50020 |
| 47731A | retaining ring (for front disc brake piston) | 90522-50002 · 90522-61001 · 90522-64003 |
| 47743A | Silencer spring (for front disc brake) | 47743-12070 · 47743-12090 · 47743-32010 · 47743-32020 · 47743-32030 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-20120 · 47744-32010 · 47744-33010 · 47745-12060 |
| 47744A | No. 3 silencer gasket (for front disc brake) | 47742-12030 · 47742-32040 · 47745-33010 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47744-20120 · 47744-33010 · 47745-12060 · 47745-32040 |
| 47745A | No. 4 silencer gasket (for front disc brake) | 47742-12030 · 47745-33010 |
| 47750 | Left disc brake cylinder assembly | 47750-12310 · 47750-12320 · 47750-12400 · 47750-12410 · 47750-12420 · 47750-12450 · 47750-12451 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-12030 · 47769-50010 |
| 47771 | No. 1 pad wear indicator plate | 47771-12050 · 47771-32010 · 47771-50010 |
| 47775 | Bushing boot (for front disc brake) | 47775-20080 · 47775-32010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-16010 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90109-06134 |
