Toyota COROLLA Brake Pedal & Bracket — Figure 4701

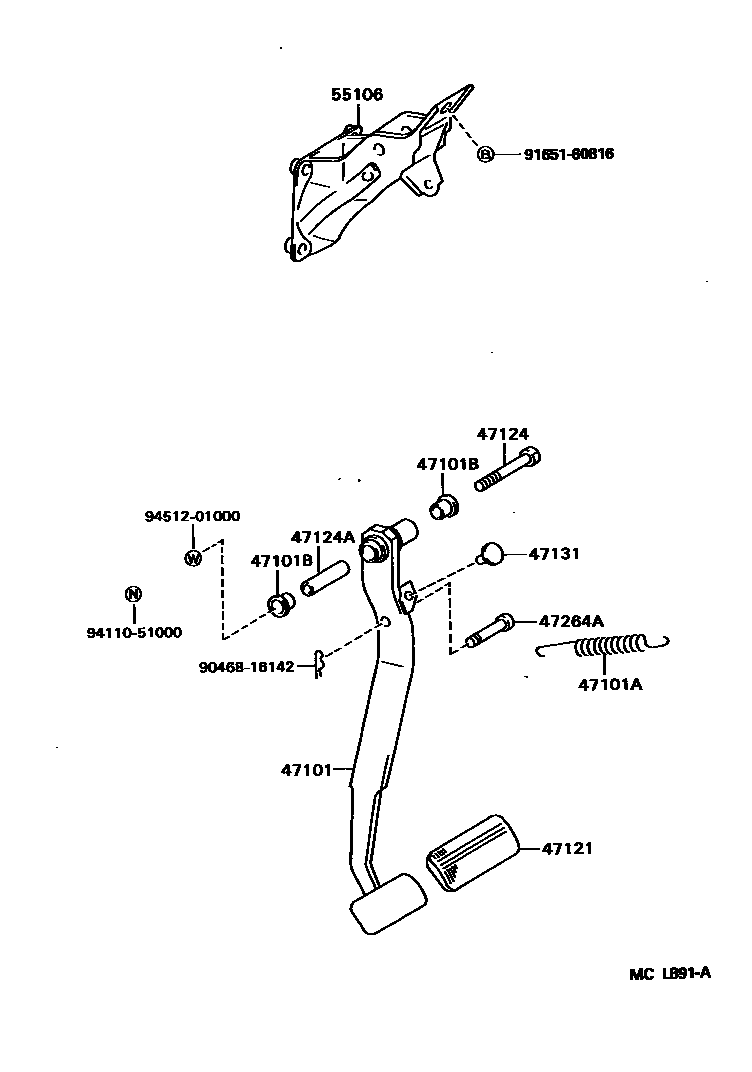

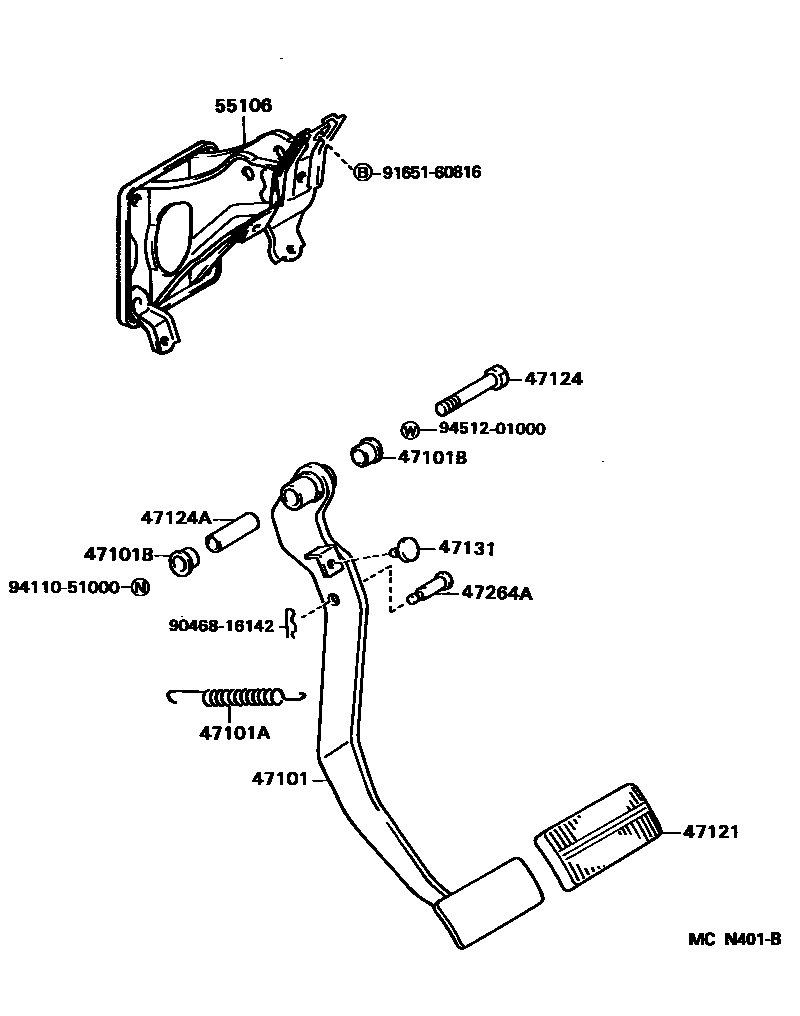

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-12470 · 47101-12480 · 47101-12490 · 47101-12500 · 47101-12510 · 47101-12520 · 47101-12530 · 47101-12550 · 47101-12570 |
| 47101A | Spring (for brake pedal return) | 90507-14037 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-12040 · 47121-12020 |
| 47124 | brake pedal shaft | 90101-10015 · 90101-10039 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06036 |
| 47264A | Pin (for push rod) | 47148-12020 · 47148-12040 · 47148-12050 · 47148-12060 |
| 55106 | Brake pedal bracket sub-assembly | 55106-12600 · 55106-12610 · 55106-12620 · 55106-12630 · 55106-12640 |
