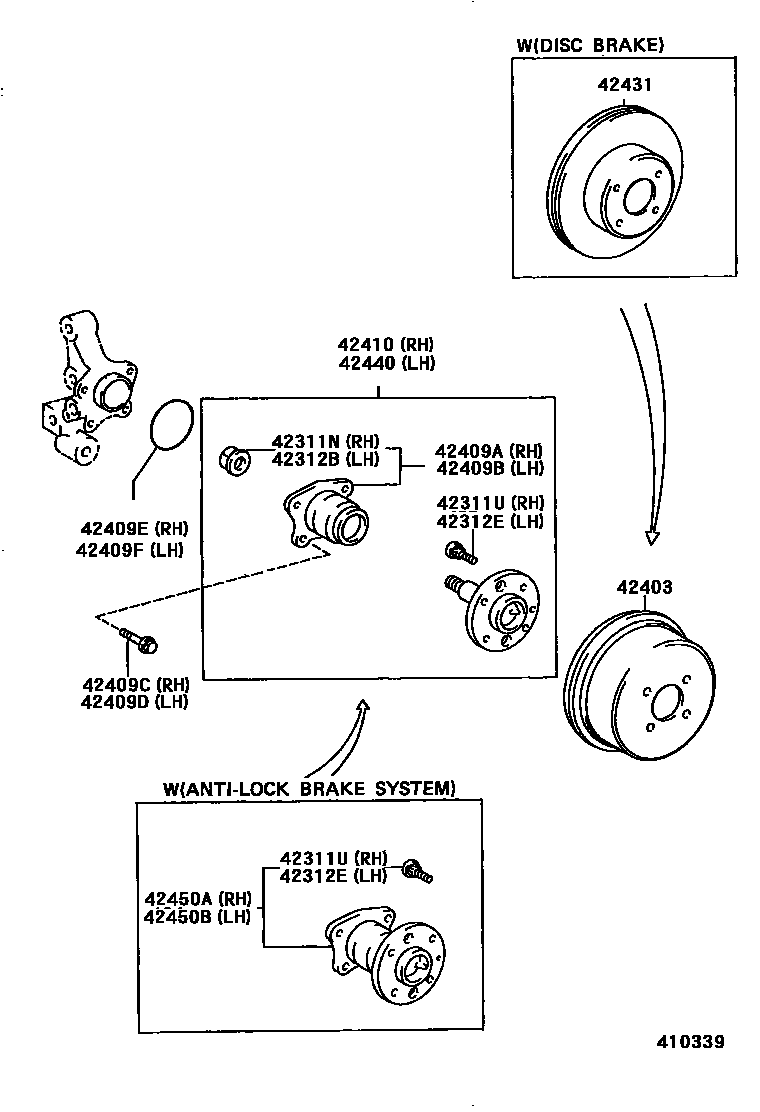

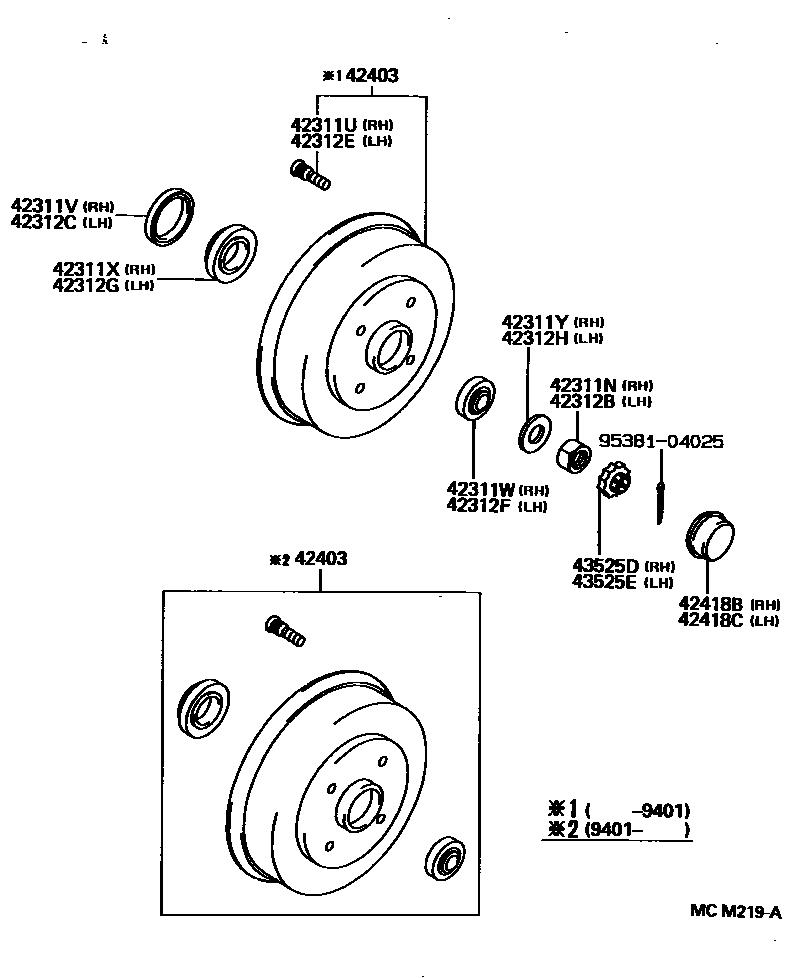

Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102
Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311N | Nut (for rear axle right half shaft) | 90170-19185 · 90179-20017 |
| 42311U | Hub bolt (for rear axle right) | 90942-02047 |
| 42311V | Oil seal (for rear axle right half shaft) | 90311-48001 |
| 42311W | Outer bearing (for rear axle right half shaft) | 90080-36075 · 90368-22001 |
| 42311X | Inner bearing (for rear axle right half shaft) | 90080-36072 · 90368-35004 |
| 42311Y | Claw washer (for rear axle right half shaft) | 90214-20005 |
| 42312B | Nut (for rear axle left half shaft) | 90170-19185 · 90179-20017 |
| 42312C | Oil seal (for rear axle left half shaft) | 90311-48001 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 |
| 42312F | Outer bearing (for rear axle left half shaft) | 90080-36075 · 90368-22001 |
| 42312G | Inner bearing (for rear axle left half shaft) | 90080-36072 · 90368-35004 |
| 42312H | Claw washer (for rear axle left half shaft) | 90214-20005 |
| 42403 | Rear brake drum sub-assembly | 42403-20040 · 42403-29015 · 42403-29025 · 42431-12130 · 42431-20250 |
| 42409A | Rear axle right bearing sub-assembly | 42409-19015 |
| 42409B | Rear axle left bearing sub-assembly | 42409-19015 |
| 42409C | Bolt (for rear axle right bearing) | 90105-10124 · 90105-10404 |
| 42409D | Bolt (for rear axle left bearing) | 90105-10124 · 90105-10404 |
| 42409E | O-ring (for rear axle right bearing) | 90301-61002 |
| 42409F | O-ring (for rear axle left bearing) | 90301-61002 |
| 42410 | Rear axle right hub and bearing assembly | 42410-12090 · 42410-12100 |
| 42418B | Right rear wheel hub grease cap | 42418-13010 · 42418-13011 |
| 42418C | Left rear wheel hub grease cap | 42418-13010 · 42418-13011 |
| 42431 | rear brake disc | 42431-12150 · 42431-12170 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-12090 · 42410-12100 |
| 42450A | Rear axle right hub and bearing assembly | 42450-12010 · 42450-12020 · 42450-12030 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-12010 · 42450-12020 · 42450-12030 |
| 43525D | Right rear wheel adjustment lock cover | 43525-22010 |
| 43525E | Left rear wheel adjustment lock cover | 43525-22010 |
