Toyota COROLLA carburetor assembly — Figure 2102

Toyota COROLLA EPC diagram 2102, carburetor assembly, with 2 images and 7 PNC and OE references.

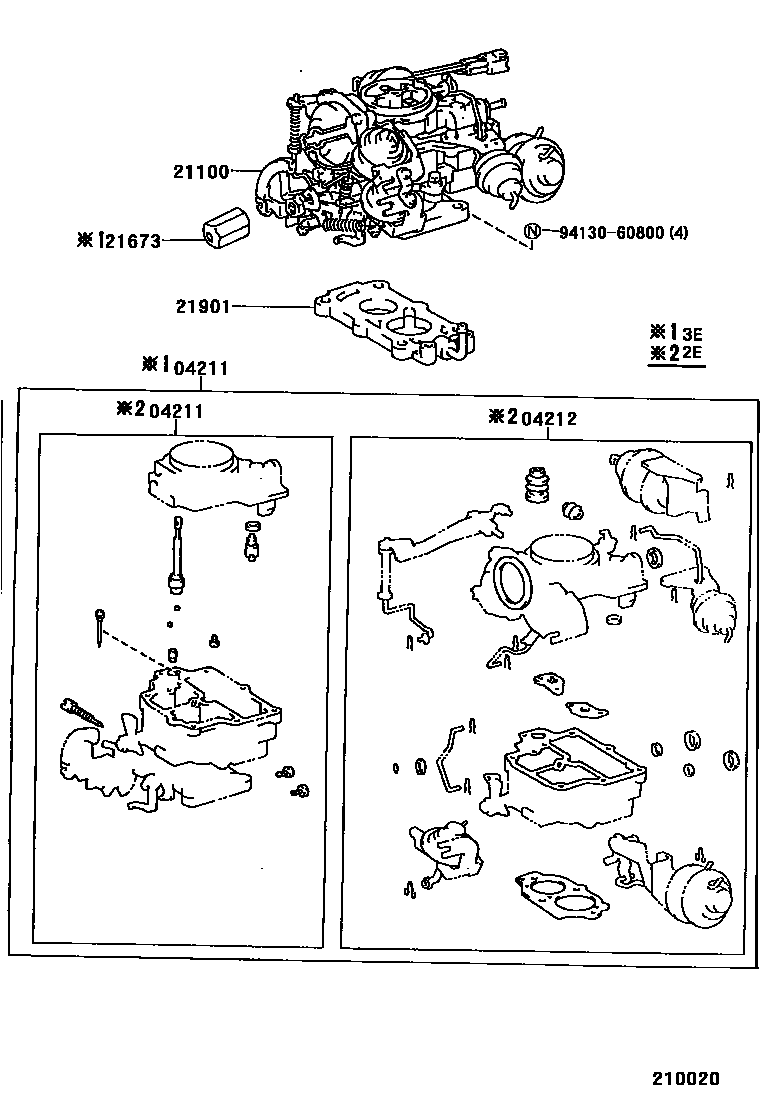

Toyota COROLLA carburetor assembly EPC diagram — 210020
carburetor assembly — 210020 (199108 – 999999)

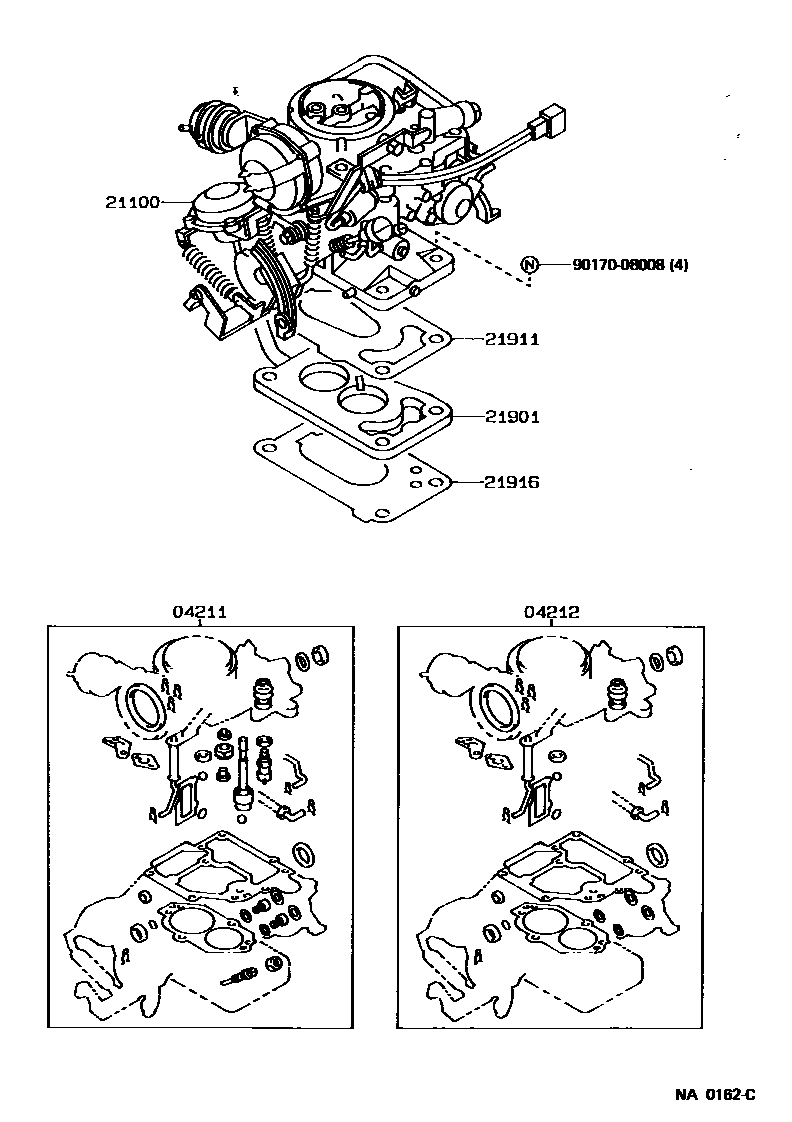

Toyota COROLLA carburetor assembly EPC diagram — NA0162C
carburetor assembly — NA0162C (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
04211carburetor components04211-11180 · 04211-11190 · 04211-11200 · 04211-16152 · 04211-16172 · 04211-16241 · 04211-1B020 · 04211-1B060
04212carburetor gasket assembly04212-11071 · 04212-14021 · 04212-16011 · 04212-16071
21100carburetor assembly21100-11820 · 21100-11840 · 21100-11850 · 21100-11870 · 21100-11880 · 21100-11890 · 21100-16540 · 21100-16550 · 21100-16560 · 21100-1B020 · 21100-1B040 · 21100-1B060
21673Idle speed limit cap21673-13280
21901No. 1 carburetor heat insulation pad sub-assembly21901-11060 · 21901-15091
21911carburetor gasket21911-15072
21916No. 2 carburetor gasket21916-15041
