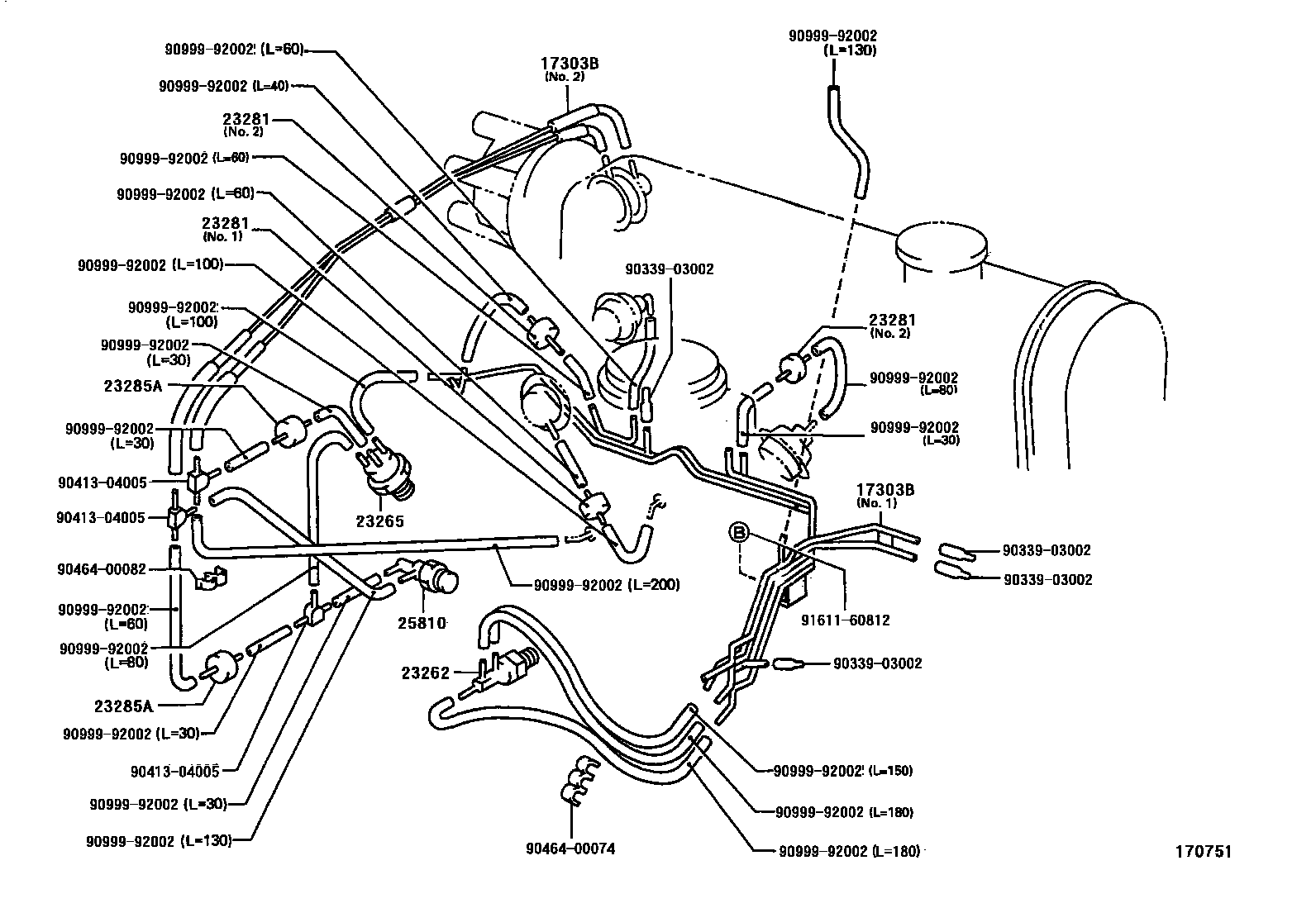

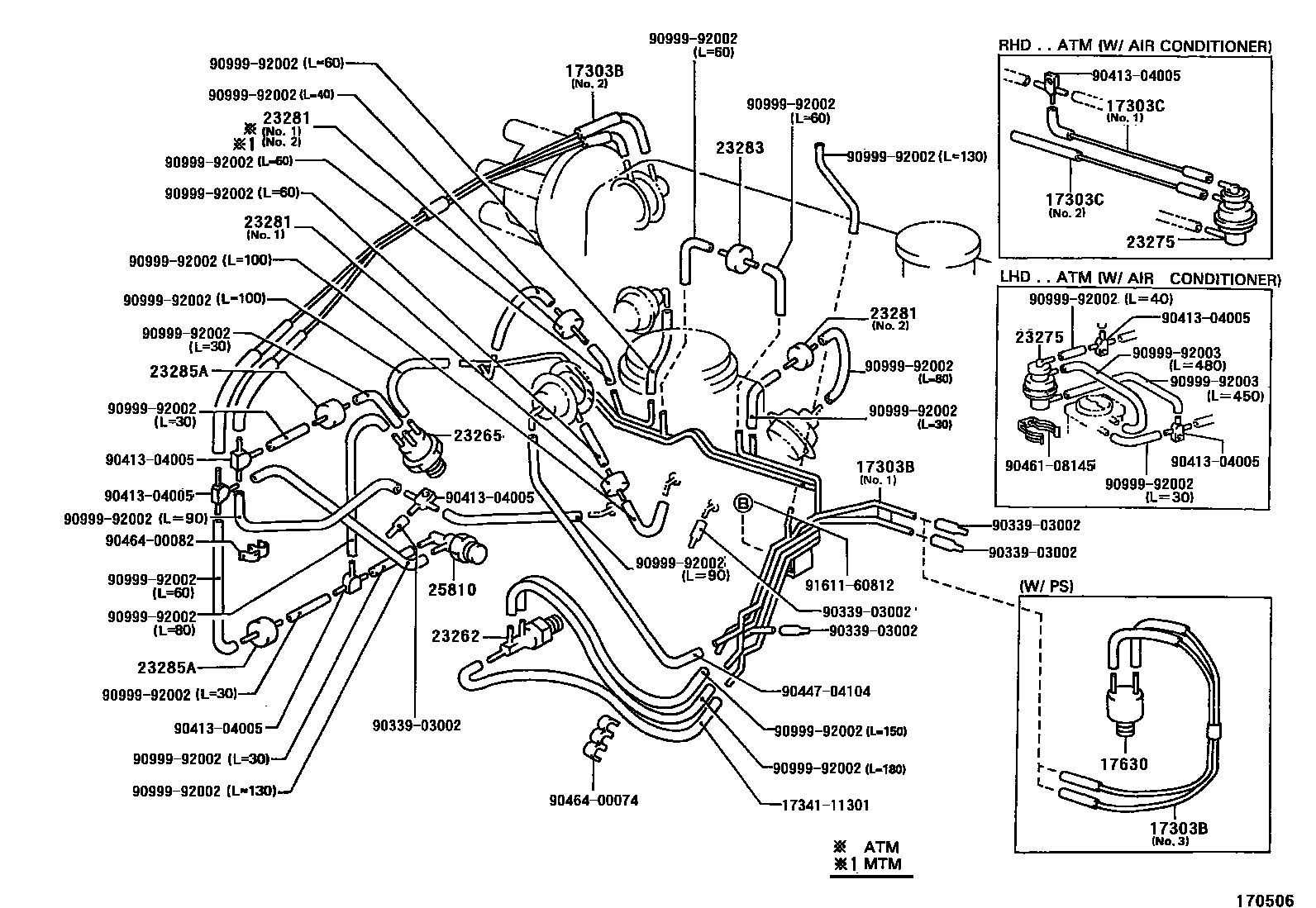

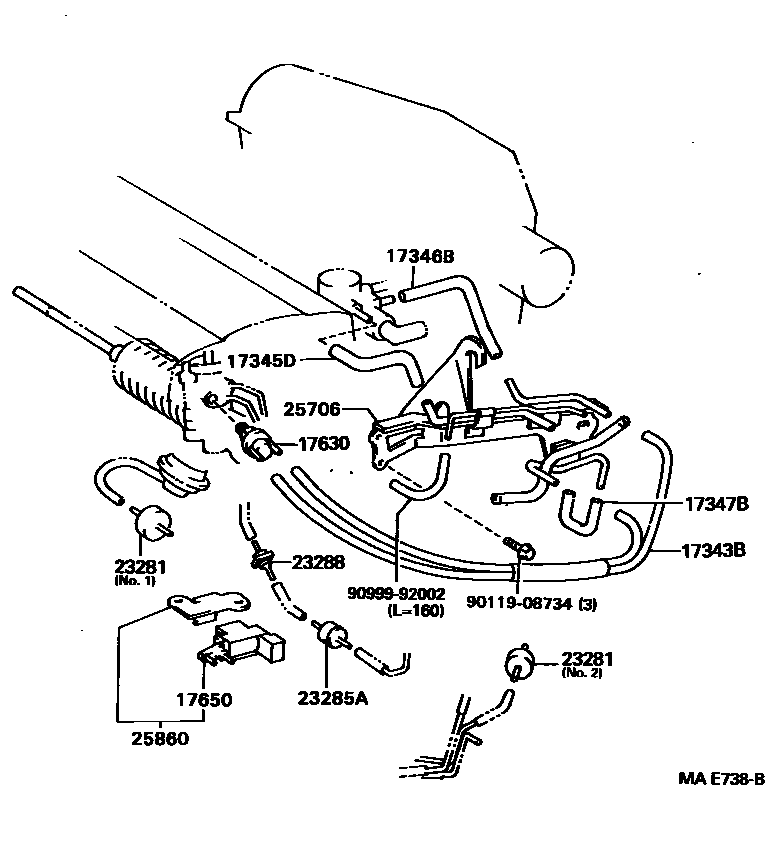

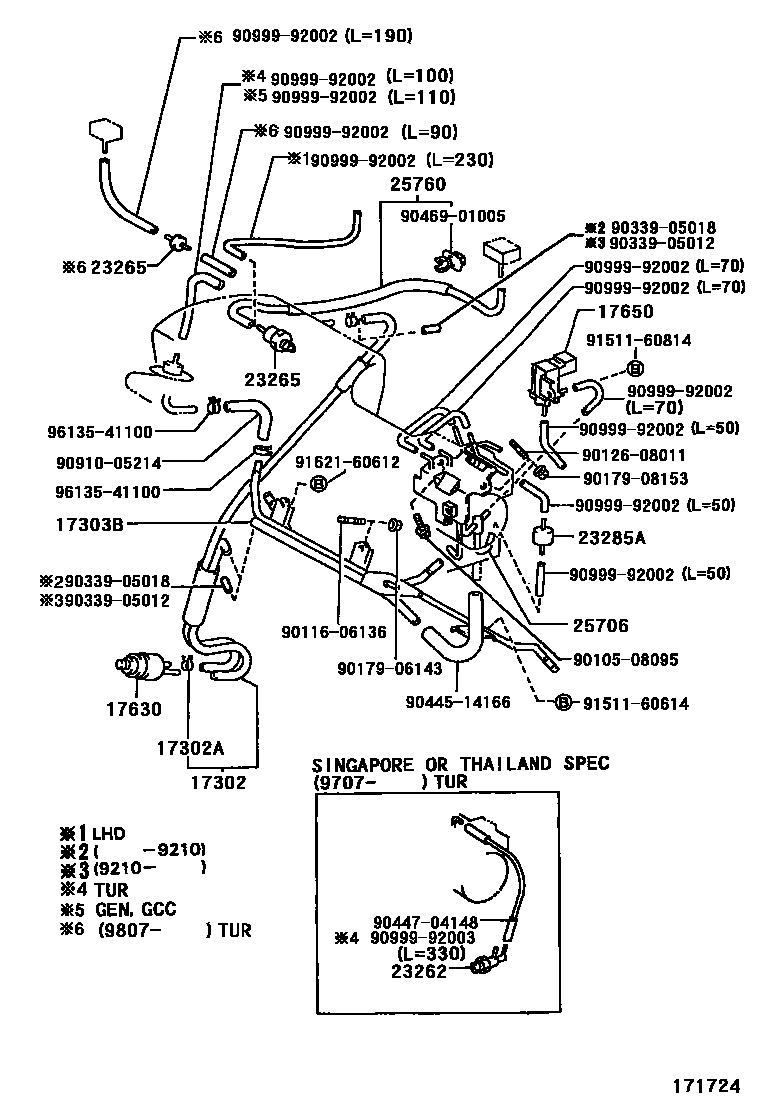

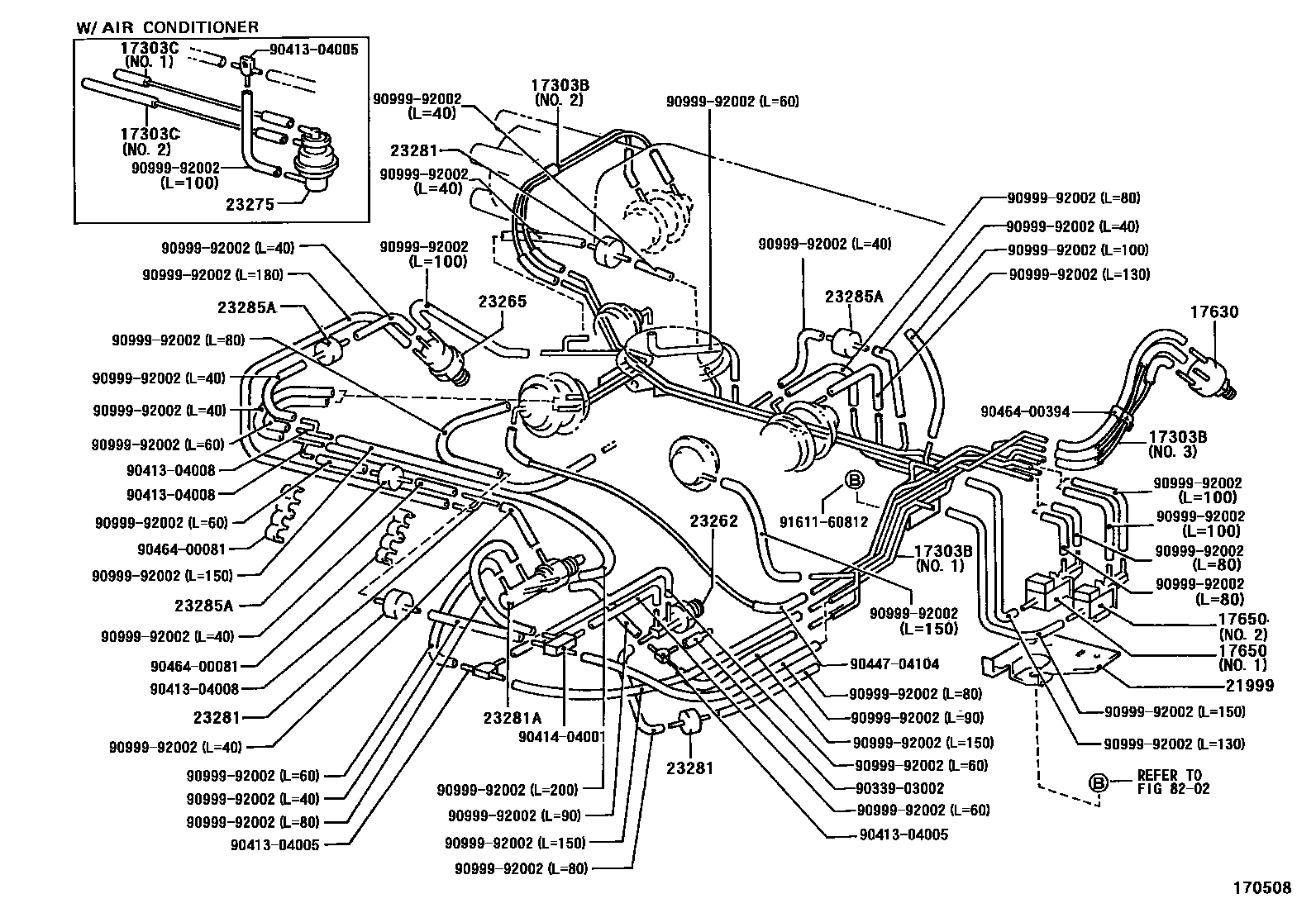

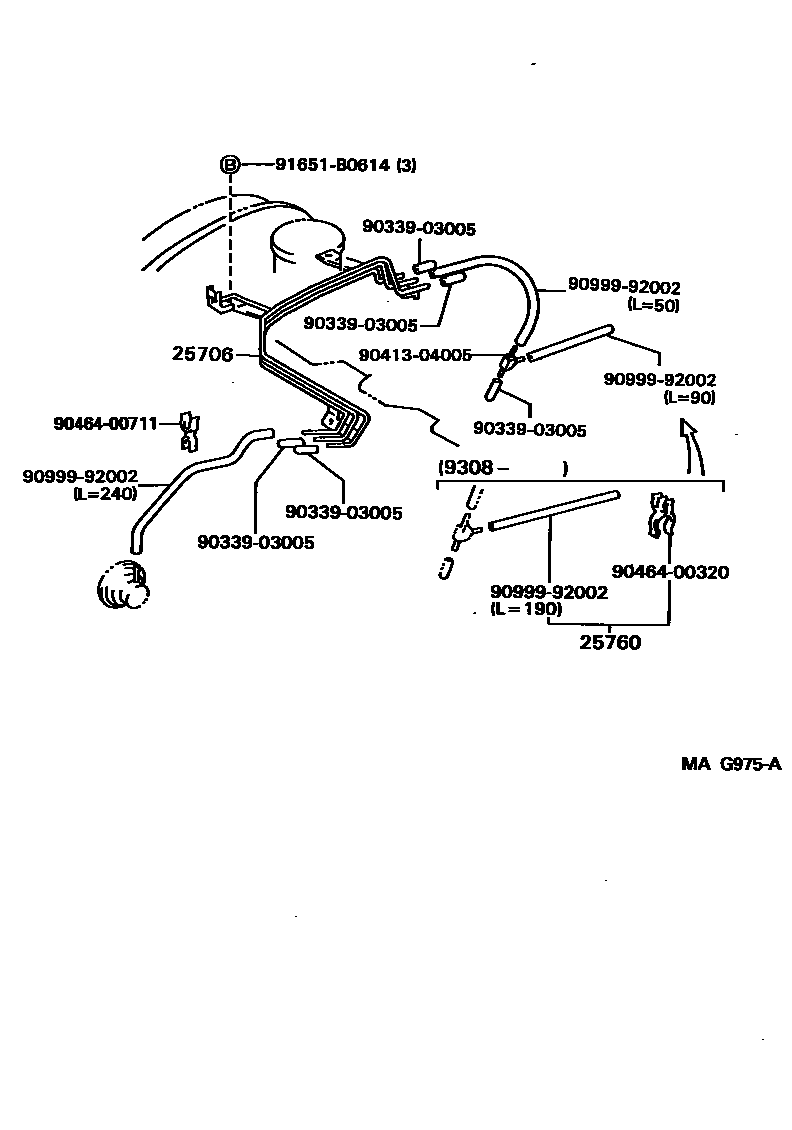

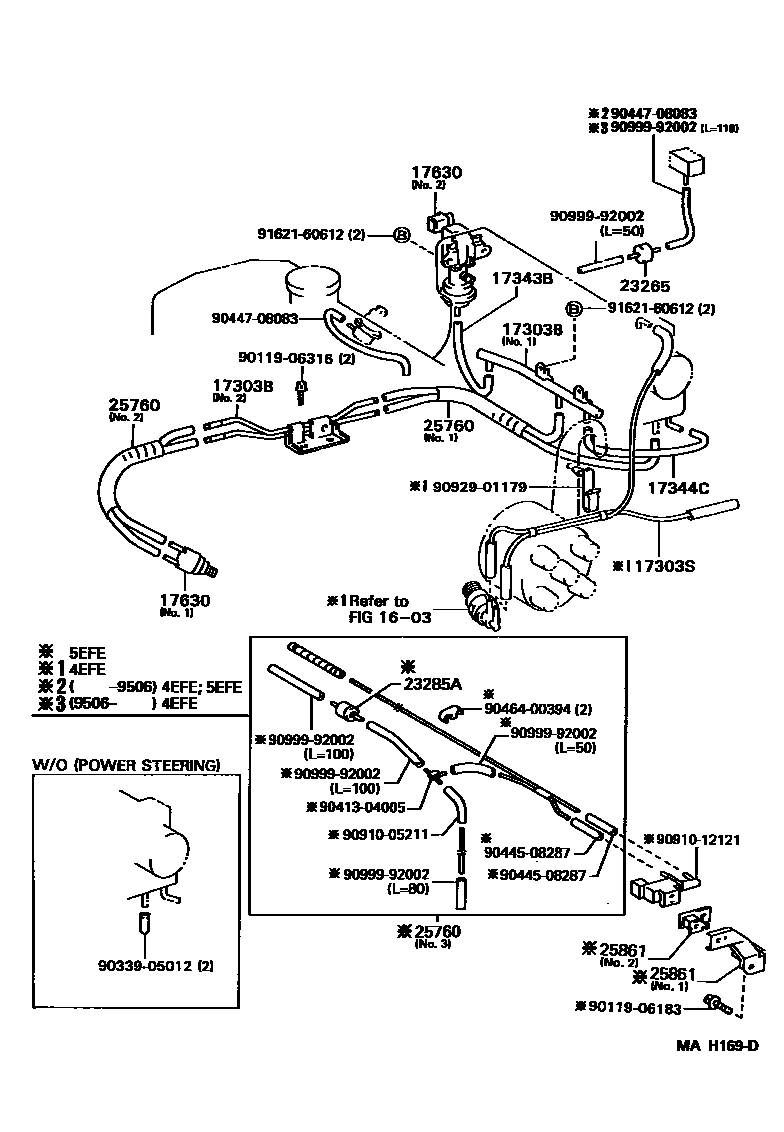

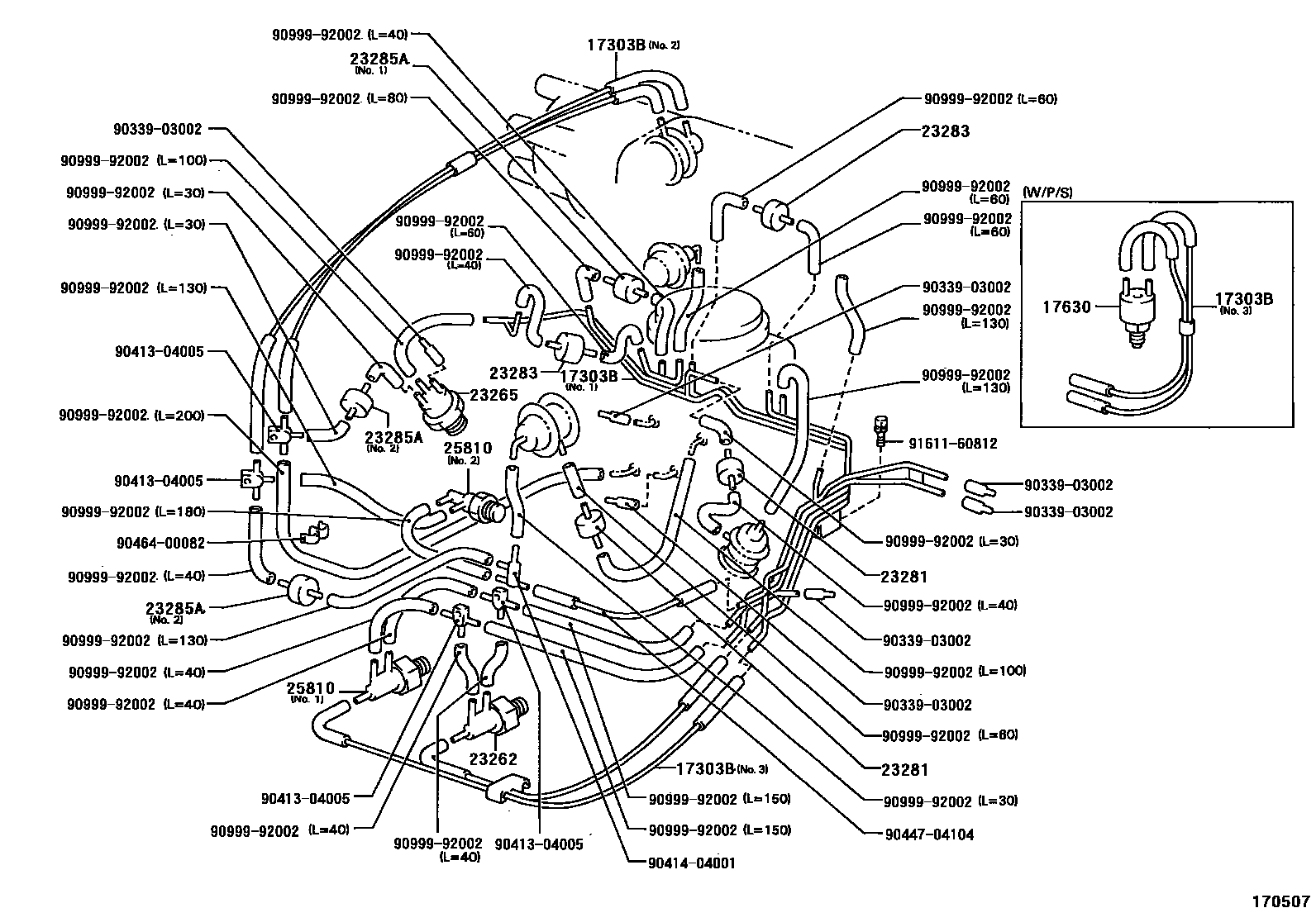

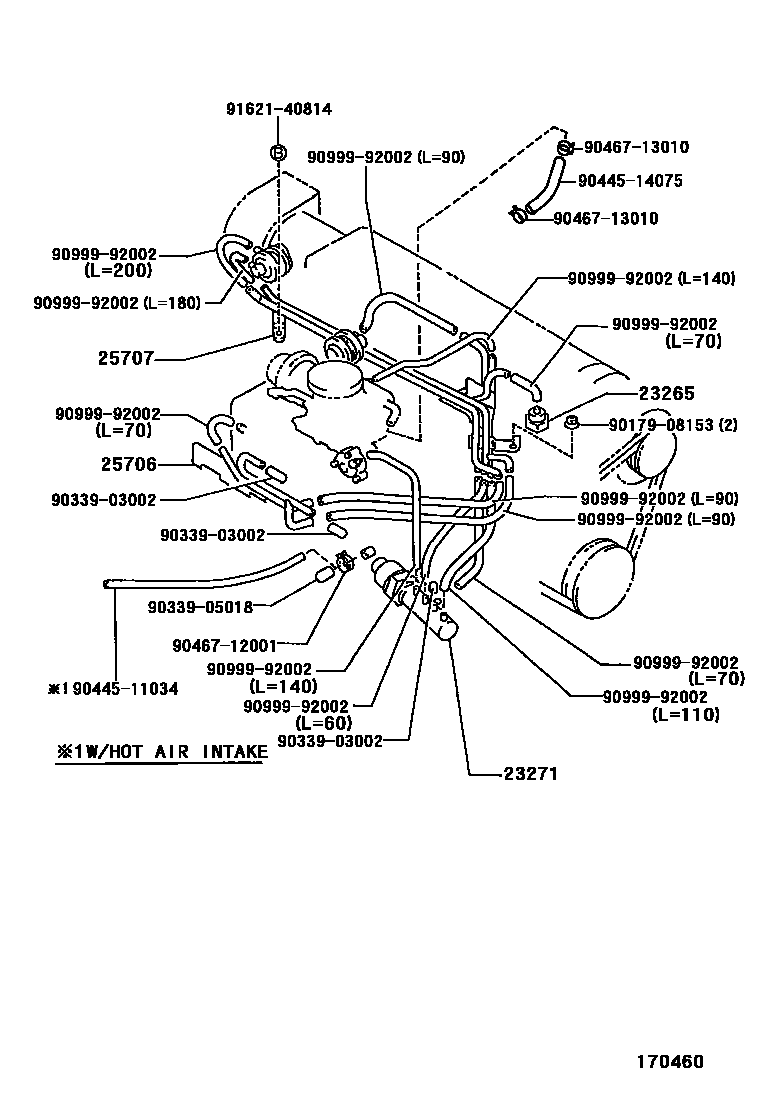

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 10 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-15010 |
| 17302A | Hose clip | 90467-10099 · 96132-51000 · 96132-51100 |
| 17303B | No. 1 air pipe sub-assembly | 17303-11310 · 17303-11350 · 17303-11401 · 17303-11440 · 17303-11460 · 17303-11510 · 17303-11550 · 17303-11570 · 17303-11690 · 17303-11700 · 17303-15060 · 17303-15090 |
| 17303C | No. 2 air pipe sub-assembly | 17303-11680 · 17303-11770 |
| 17303S | No. 3 air pipe sub-assembly | 17303-11800 |
| 17343B | No. 3 hose (for idle speed boost) | 17308-16040 · 17343-11080 |
| 17344C | No. 4 hose (for idle speed boost) | 17344-11030 |
| 17345D | No. 5 air hose | 17345-16030 |
| 17346B | No. 6 air hose | 17346-16020 |
| 17347B | No. 7 air hose | 17347-16020 |
| 17630 | Air control valve assembly | 17630-11050 · 17630-11060 · 17630-15030 · 17630-15080 · 17630-16040 · 17630-28020 |
| 17650 | Vacuum switch valve assembly | 90910-12047 · 90910-12109 · 90910-12110 · 90910-12119 · 90910-12144 |
| 21999 | Vacuum switch valve bracket | 21999-11120 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25820-11040 · 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11027 · 90917-11030 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23275 | Vacuum control valve No. 1 | 90925-03164 · 90925-03173 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01027 · 90925-01084 · 90925-01091 · 90925-01095 · 90925-01100 · 90925-01101 |
| 23281A | Vacuum Transfer Valve No. 2 | 90925-02088 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01021 · 90925-01091 |
| 23285A | No. 1 one-way valve | 90917-10049 · 90917-10080 |
| 23288 | Nozzle No. 1 | 90925-04034 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-15230 · 25706-16210 · 25706-16320 · 25706-16390 · 25706-64070 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-16061 |
| 25760 | Vacuum transfer hose assembly | 25760-11200 · 25760-11230 · 25760-11250 · 25760-11260 · 25760-15020 · 25760-64120 |
| 25810 | Bimetal valve assembly | 25810-11070 · 25810-11080 · 90925-05035 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-16140 |
| 25861 | Vacuum switch valve bracket | 25861-11020 · 25862-11010 |
