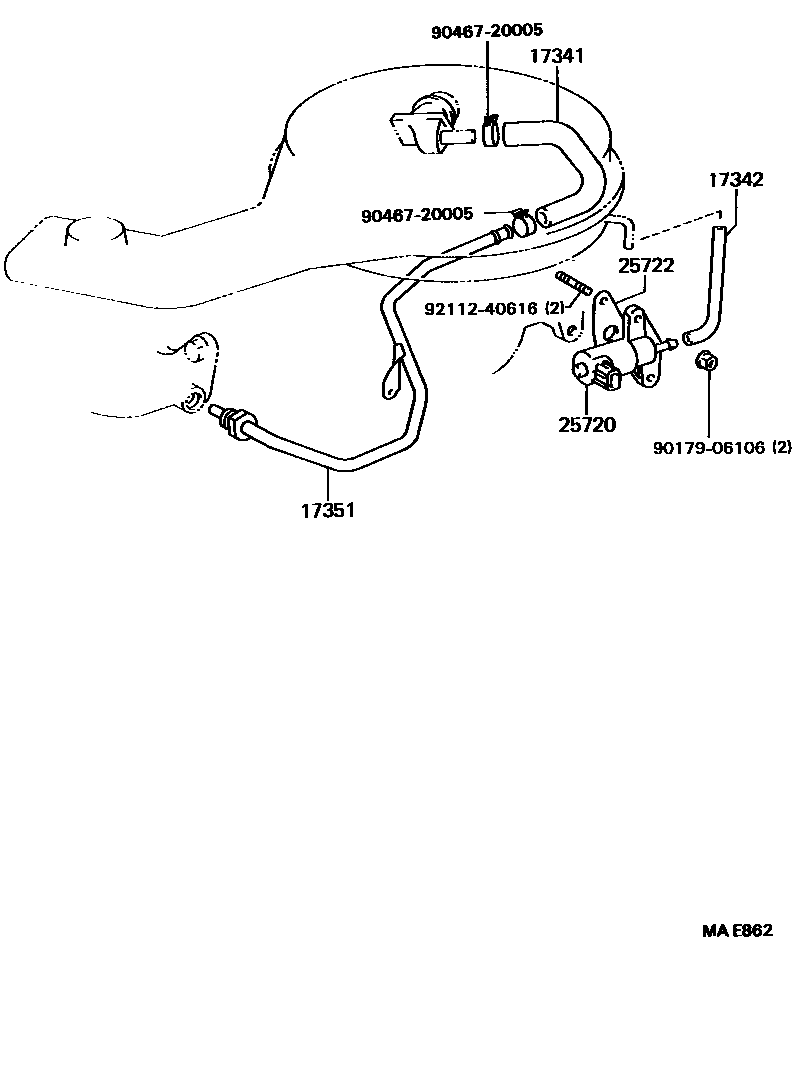

Toyota COROLLA 歧管喷气系统 — Figure 1706
Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341 | Hoses No. 1 (for air injection systems) | 17341-11120 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-11090 |
| 17351 | jet manifold | 17306-11090 |
| 25720 | Electronic air control valve assembly | 25720-11080 |
| 25722 | Electronic air control valve gasket | 25722-11010 |
