Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 13 images and 33 PNC and OE references.

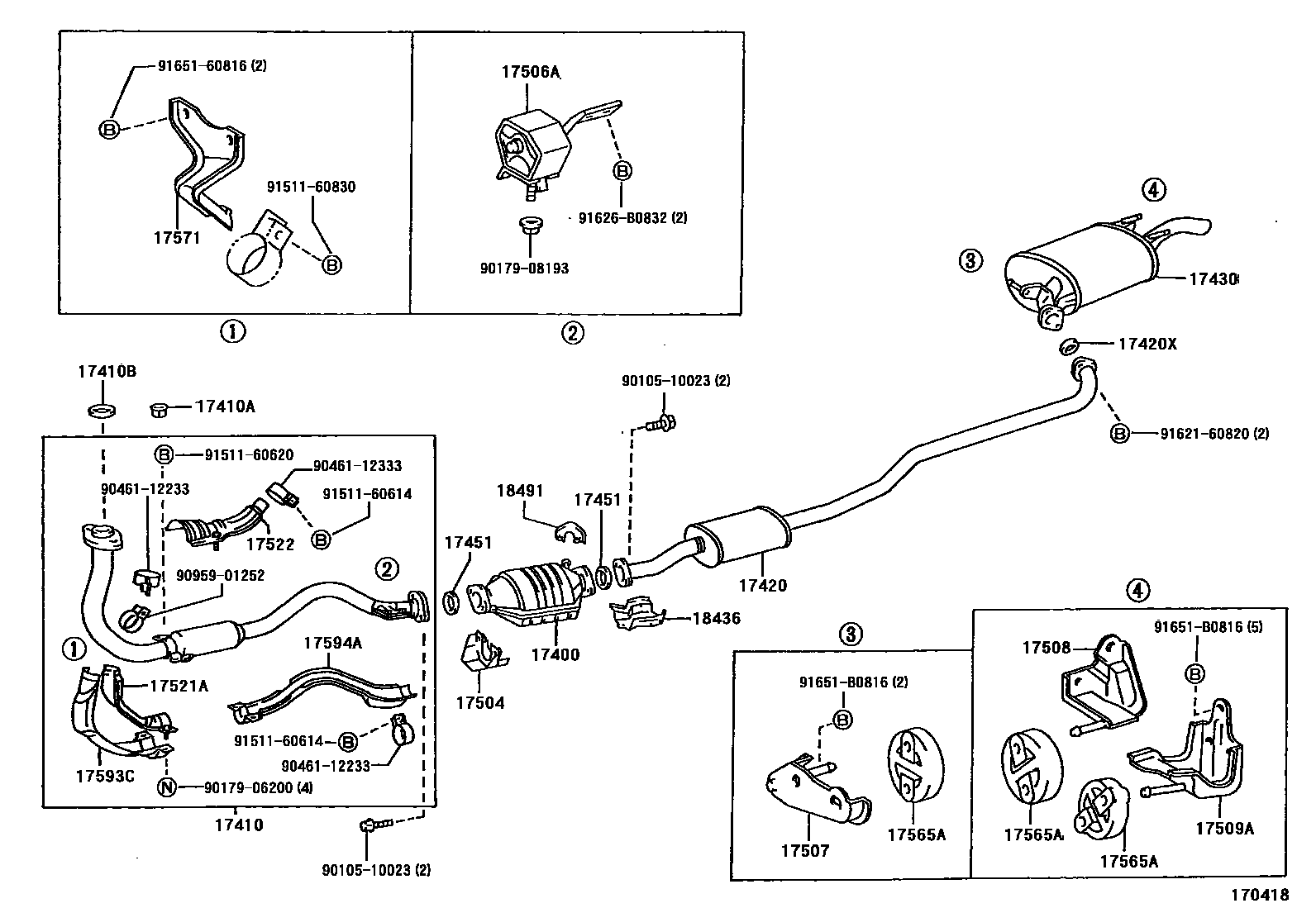

Toyota COROLLA Exhaust Pipe EPC diagram — 170418
Exhaust Pipe — 170418 (199401 – 199704)

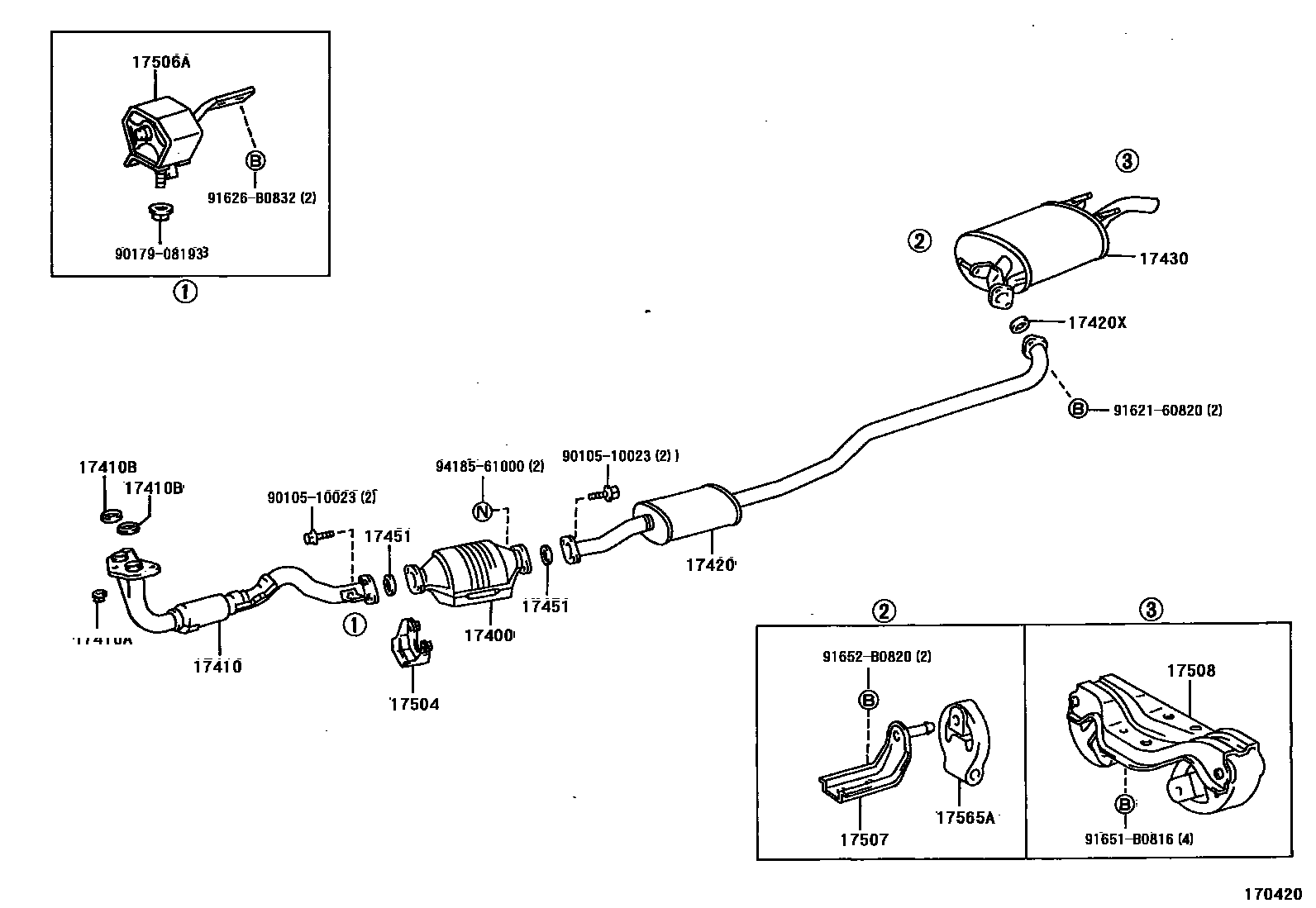

Toyota COROLLA Exhaust Pipe EPC diagram — 170420
Exhaust Pipe — 170420 (199205 – 999999)

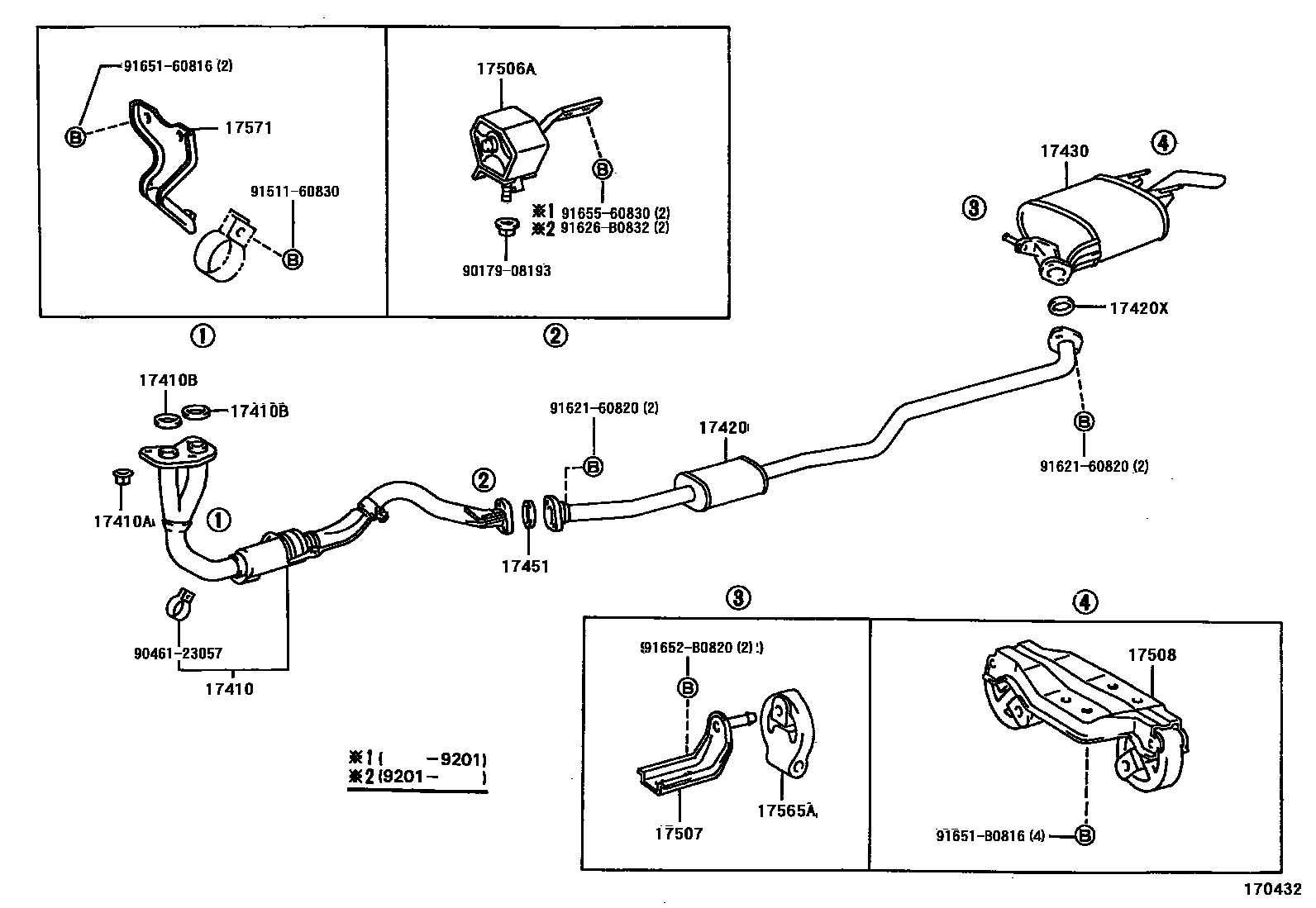

Toyota COROLLA Exhaust Pipe EPC diagram — 170432
Exhaust Pipe — 170432 (199108 – 999999)

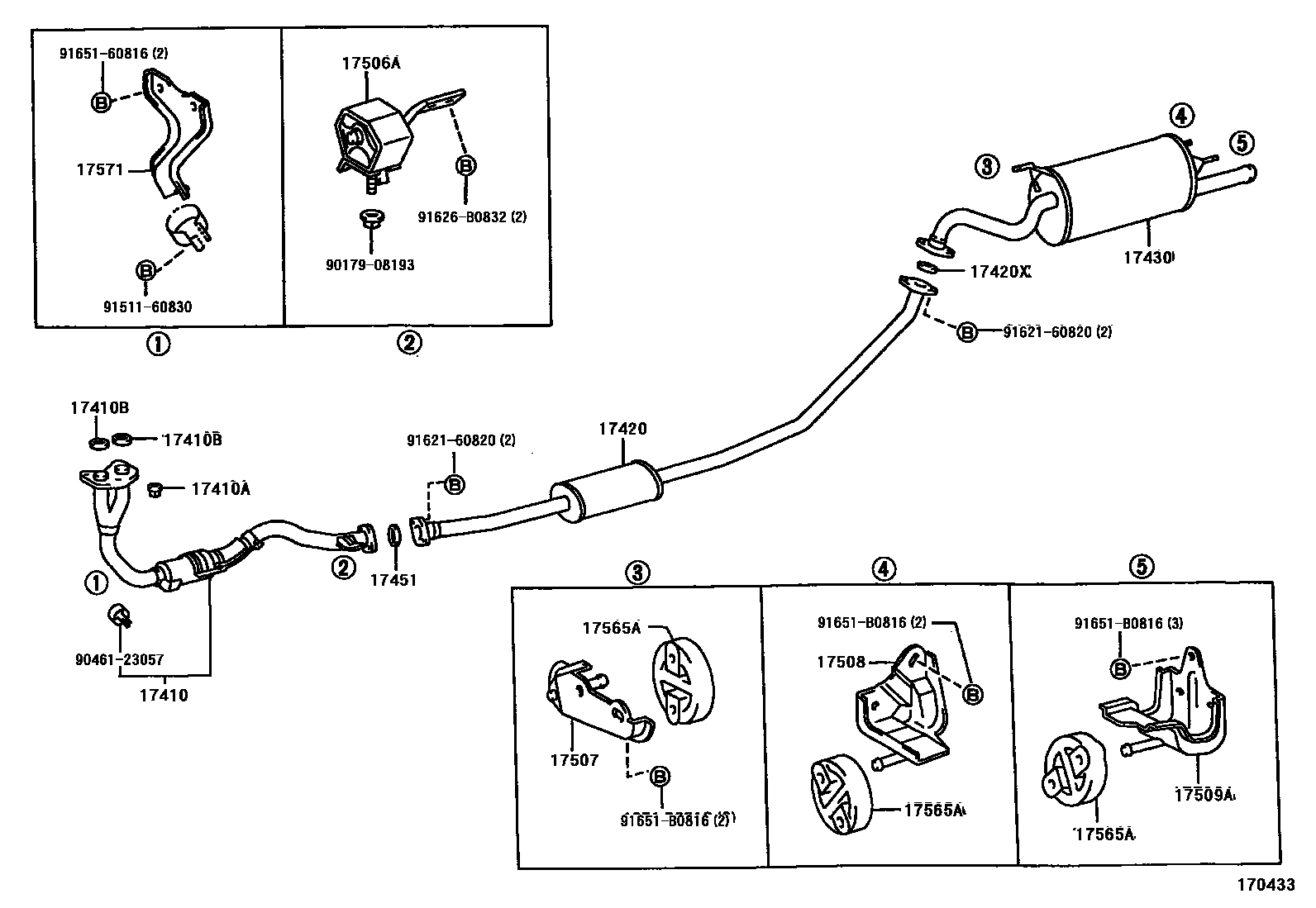

Toyota COROLLA Exhaust Pipe EPC diagram — 170433
Exhaust Pipe — 170433 (199205 – 999999)

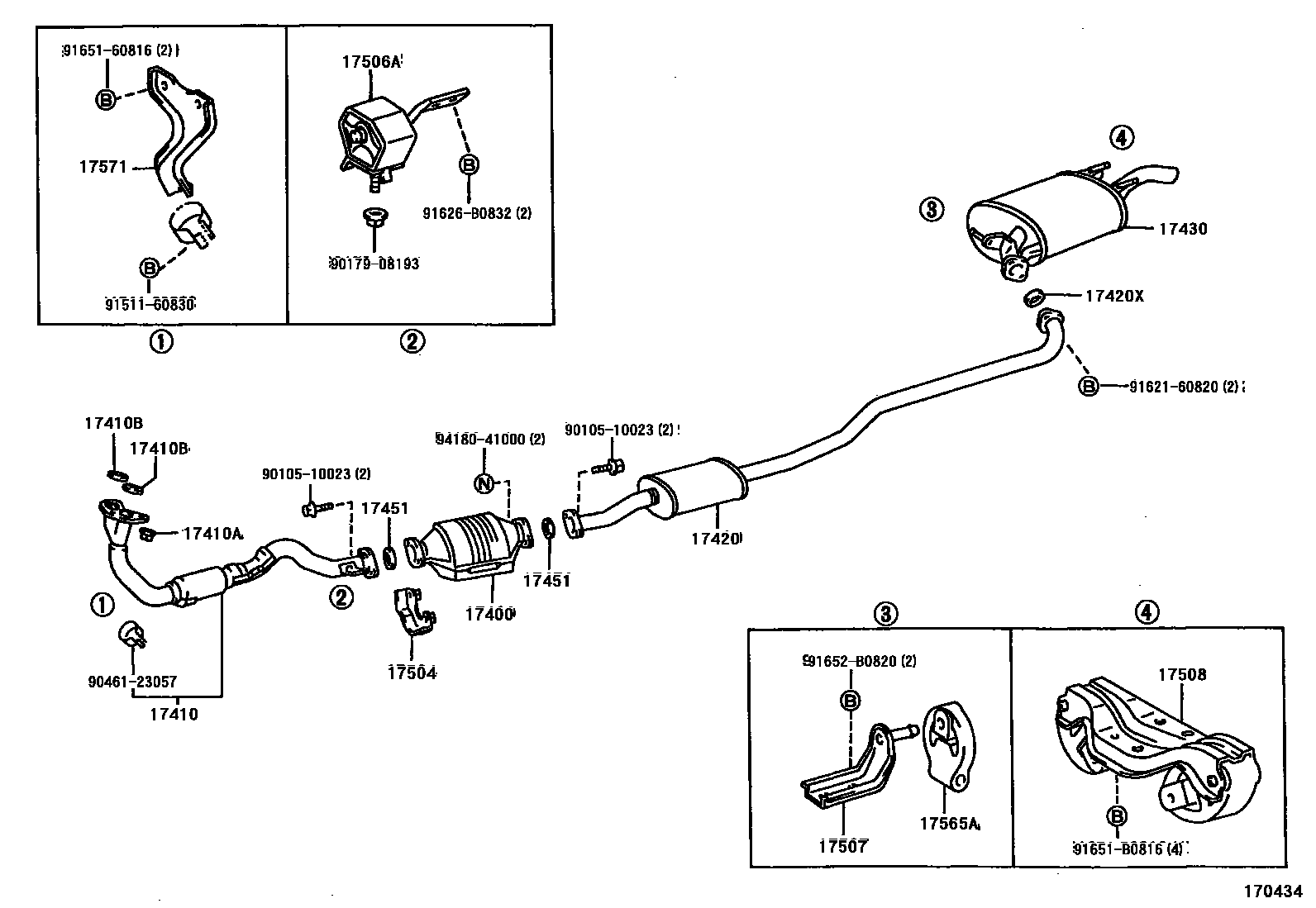

Toyota COROLLA Exhaust Pipe EPC diagram — 170434
Exhaust Pipe — 170434 (199205 – 199511)

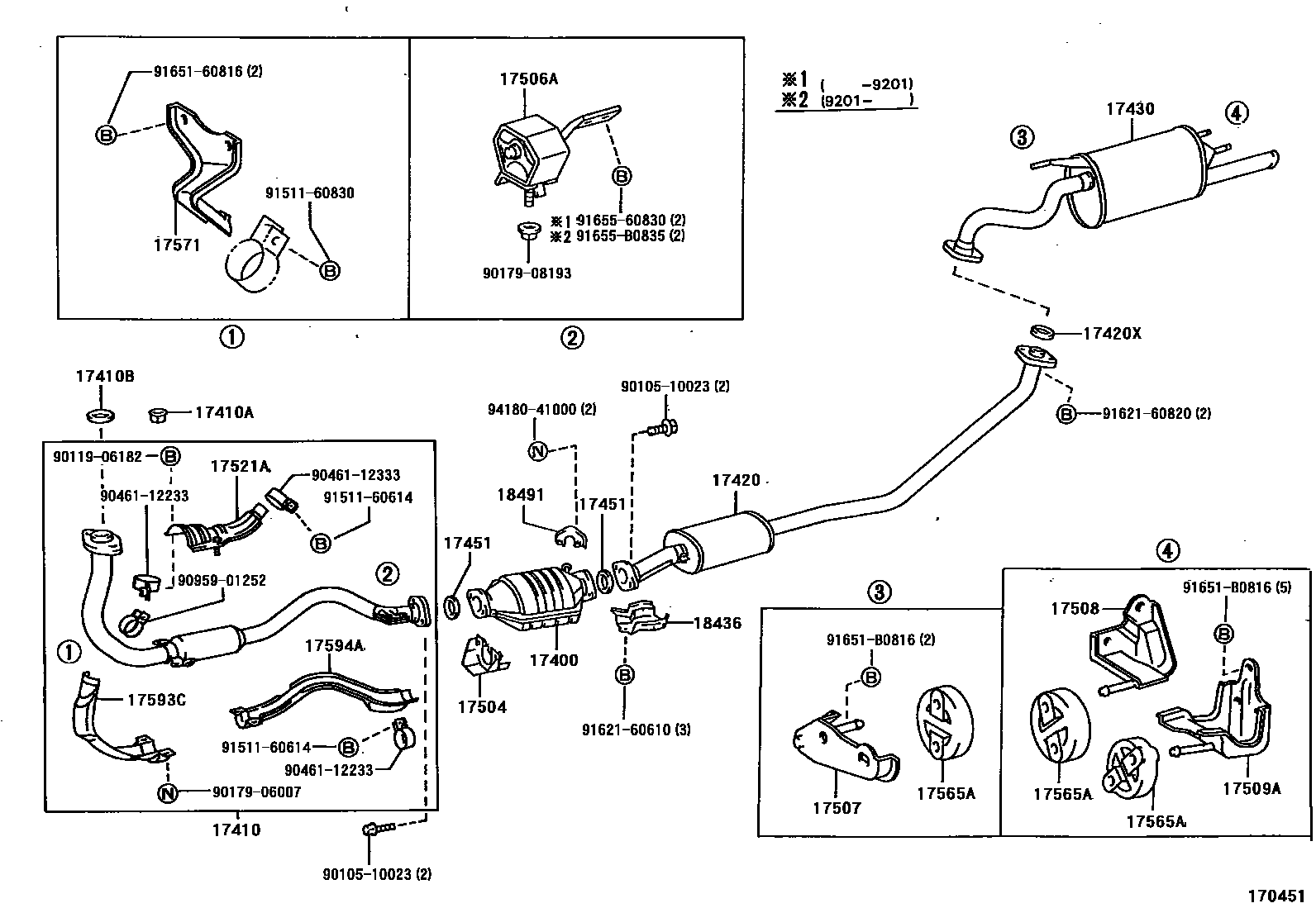

Toyota COROLLA Exhaust Pipe EPC diagram — 170451
Exhaust Pipe — 170451 (199109 – 199401)

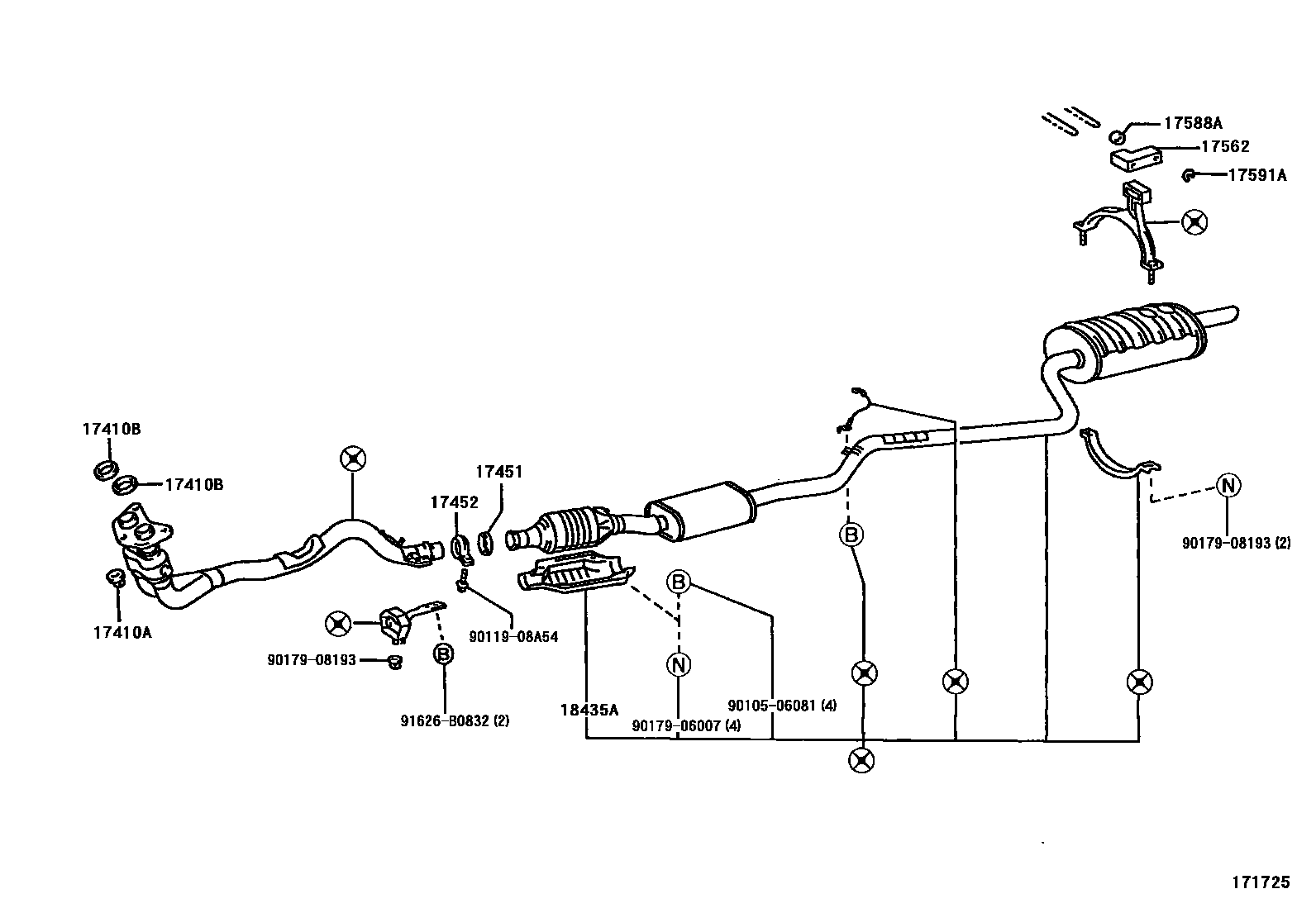

Toyota COROLLA Exhaust Pipe EPC diagram — 171725
Exhaust Pipe — 171725 (199807 – 999999)

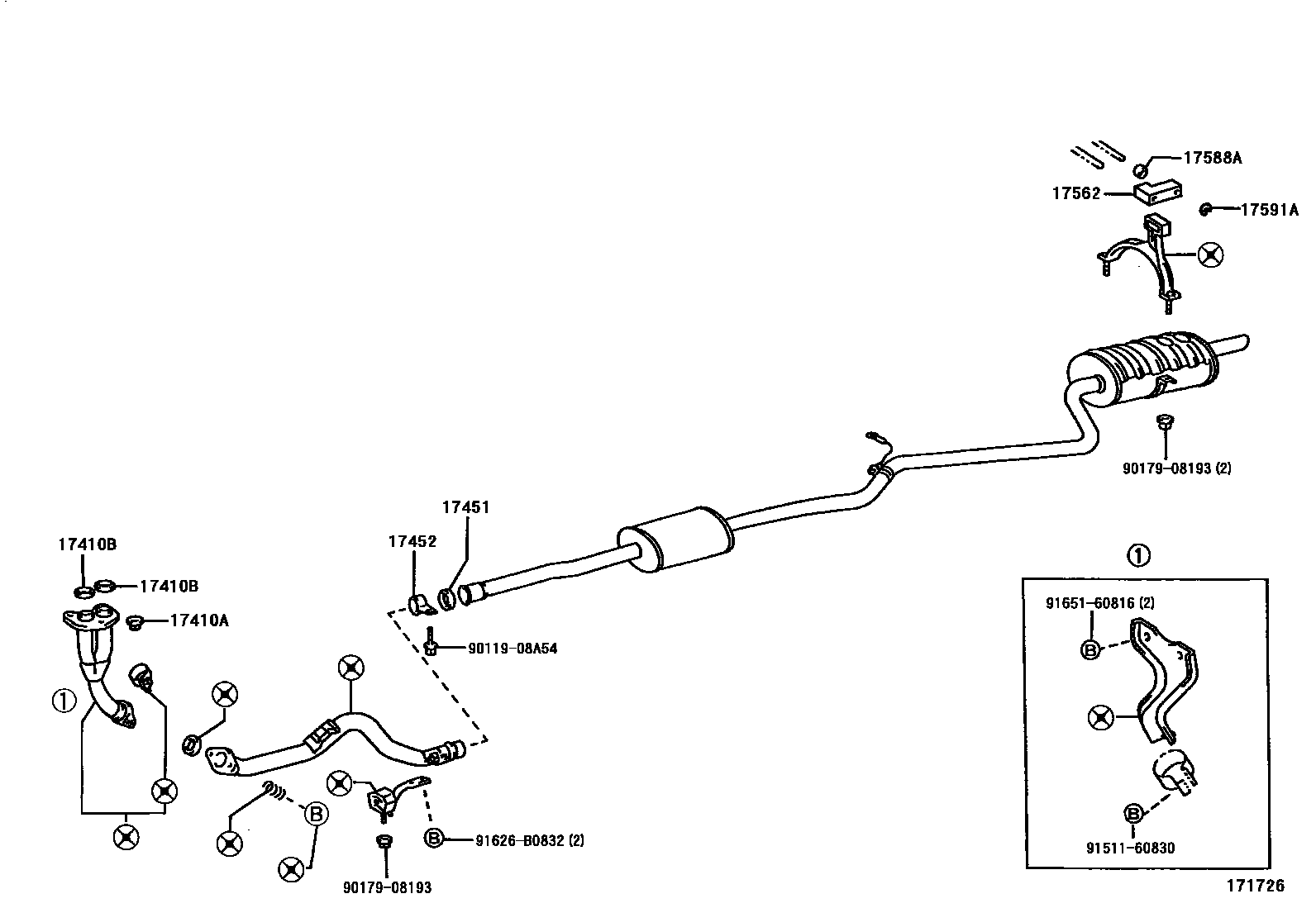

Toyota COROLLA Exhaust Pipe EPC diagram — 171726
Exhaust Pipe — 171726 (199807 – 999999)

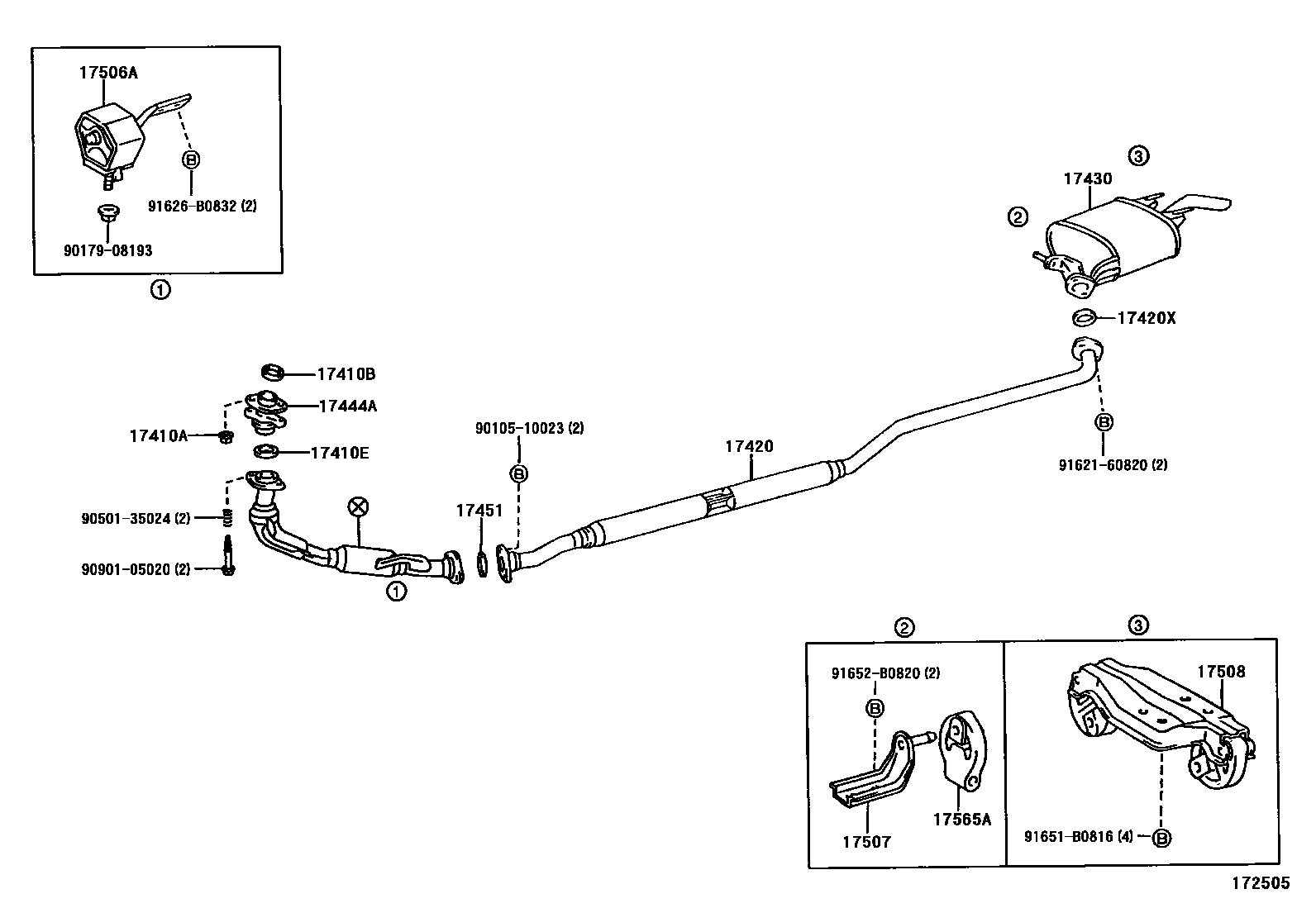

Toyota COROLLA Exhaust Pipe EPC diagram — 172505
Exhaust Pipe — 172505 (200004 – 999999)

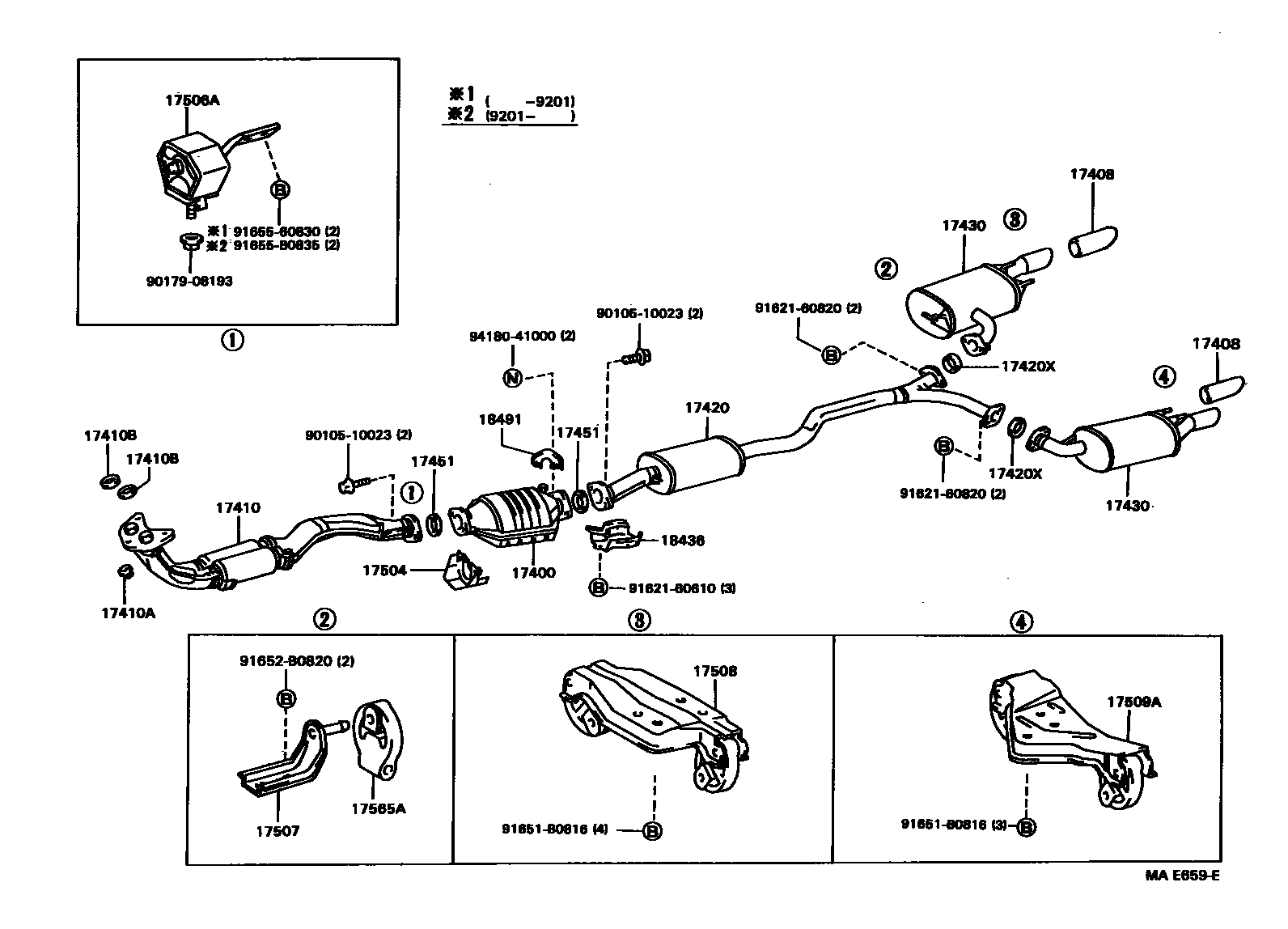

Toyota COROLLA Exhaust Pipe EPC diagram — MAE659E
Exhaust Pipe — MAE659E (199108 – 199505)

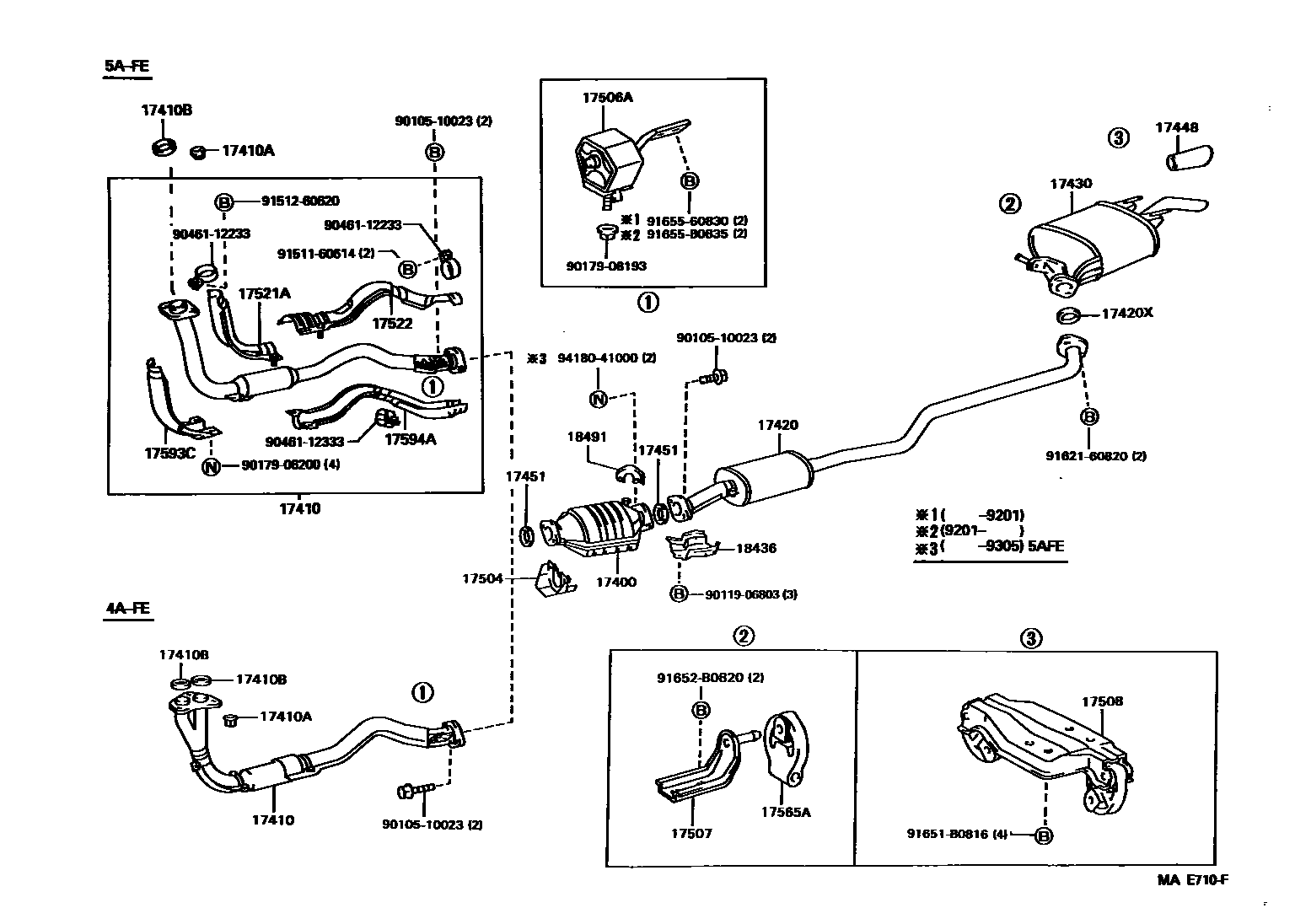

Toyota COROLLA Exhaust Pipe EPC diagram — MAE710F
Exhaust Pipe — MAE710F (199108 – 199505)

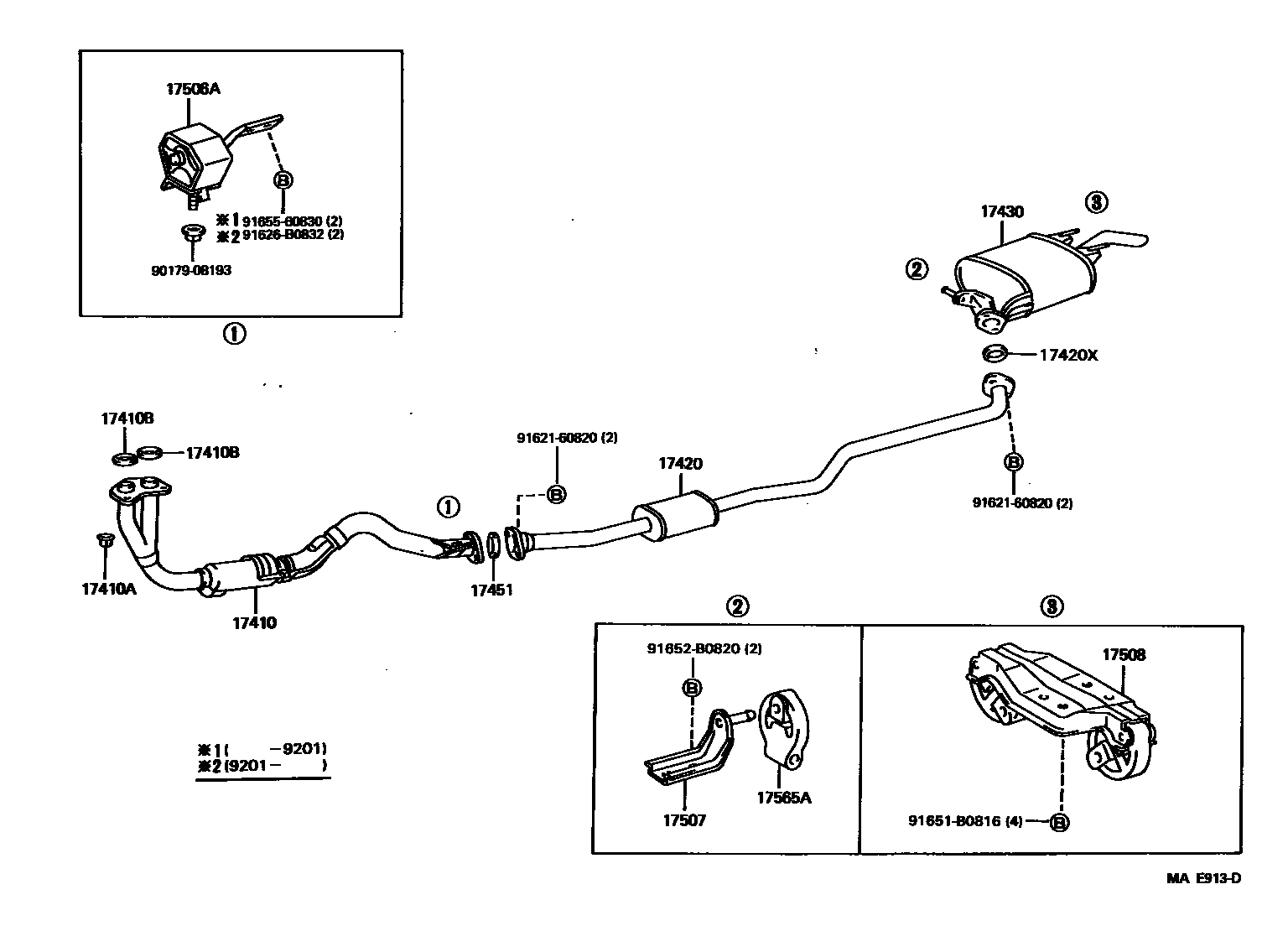

Toyota COROLLA Exhaust Pipe EPC diagram — MAE913D
Exhaust Pipe — MAE913D (199108 – 999999)

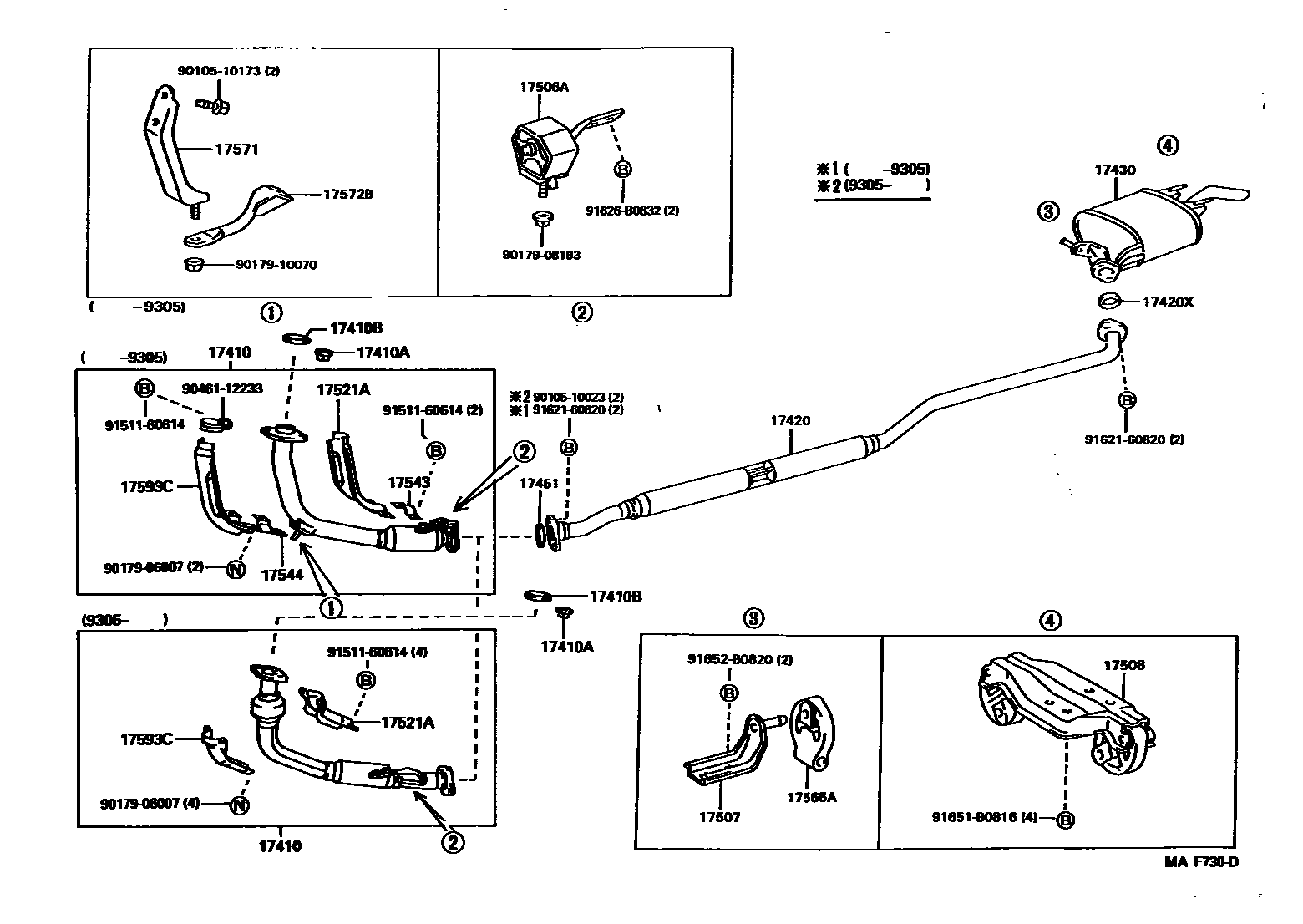

Toyota COROLLA Exhaust Pipe EPC diagram — MAF730D
Exhaust Pipe — MAF730D (199205 – 200004)

PNC and OE references

PNCPart nameOE numbers
17400Three-way catalytic converter assembly with catalyst18450-11150 · 18450-11170 · 18450-15140 · 18450-16250 · 18450-16540 · 18450-16550 · 18450-16610 · 18450-16640 · 18450-16650
17408Exhaust pipe tail throat sub-assembly17408-50010 · 17408-74040
17410Front exhaust pipe assembly17410-11570 · 17410-11580 · 17410-11610 · 17410-11660 · 17410-15260 · 17410-16780 · 17410-16810 · 17410-16830 · 17410-1A030 · 17410-1A090 · 17410-1A120 · 17410-64532 · 17410-64600 · 17410-64601
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket90917-06061 · 90917-06064 · 90917-06065 · 90917-06069 · 90917-06077
17410ENo. 1 front exhaust pipe clamp (for front)90917-06080
17420Central exhaust pipe assembly17420-11220 · 17420-11230 · 17420-11260 · 17420-11300 · 17420-15150 · 17420-16350 · 17420-16540 · 17420-16580 · 17420-16590 · 17420-64131 · 17420-64200
17420XCenter exhaust pipe liner90917-06039 · 90917-06045 · 90917-06060 · 90917-06074
17430Exhaust tailpipe assembly17430-11630 · 17430-11631 · 17430-11640 · 17430-15540 · 17430-1A010 · 17430-1A070 · 17430-1A220 · 17430-64680 · 17430-64690 · 17430-64691 · 17440-16010
17444Afront exhaust pipe spacer17444-64030
17448Exhaust pipe tail throat17448-70020
17451Exhaust pipe gasket90917-06039 · 90917-06043 · 90917-06044 · 90917-06045 · 90917-06054 · 90917-06057 · 90917-06074 · 90917-06082 · 90917-06084
17452Exhaust pipe clamp90461-15013 · 90461-15016
17504Three-way catalytic converter bracket sub-assembly17504-16011 · 17504-16020 · 17504-16030 · 17504-42010
17506ANo. 1 exhaust pipe bracket sub-assembly17506-15070 · 17506-16120
17507No. 2 exhaust pipe bracket sub-assembly17507-11050 · 17507-15040
17508No. 3 exhaust pipe bracket sub-assembly17508-11060 · 17508-11080 · 17508-15050
17509ANo. 4 exhaust pipe bracket sub-assembly17509-11070 · 17509-11080 · 17509-16040
17521ANo. 1 upper exhaust pipe protection device17521-11110 · 17521-11150 · 17521-15130 · 17521-64040 · 17521-64100 · 17521-64120
17522No. 2 upper exhaust pipe protection device17521-11110 · 17522-15140
17543No. 3 exhaust pipe protection device stay17543-64010
17544No. 4 exhaust pipe protection device stay17544-64010
17562No. 2 exhaust pipe lifting lug17562-16240
17565ANo. 4 exhaust pipe lifting lug17565-15140 · 17565-16230
17571No. 1 exhaust pipe bracket17571-11110 · 17571-11190 · 17571-11200 · 17571-64130
17572BNo. 2 exhaust pipe bracket17572-64120
17588AExhaust pipe hanger spacer17588-16020
17591AExhaust pipe bracket block17591-16020
17593CNo. 1 lower exhaust pipe protection device17593-11150 · 17593-11210 · 17593-15140 · 17593-64040 · 17593-64090 · 17593-64110
17594ANo. 2 lower exhaust pipe protection device17594-11260 · 17594-15160
18435AIntegrated three-way catalytic converter protection device18435-16170
18436No. 1 integrated three-way catalytic converter protection device17504-11010 · 18436-16030 · 18436-63010
18491Thermal sensor air inlet flange18491-16010 · 18491-63010
