Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 6 images and 6 PNC and OE references.

Toyota COROLLA Ventilation Hose EPC diagram — 120085
Ventilation Hose — 120085 (199108 – 999999)

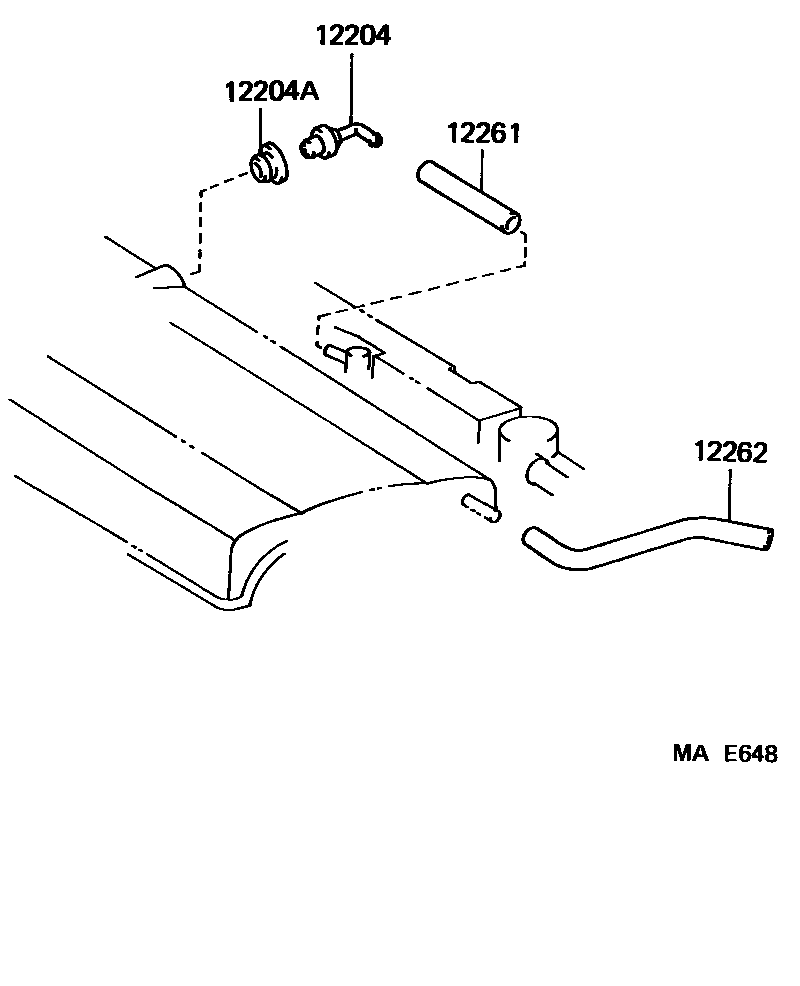

Toyota COROLLA Ventilation Hose EPC diagram — MAE648
Ventilation Hose — MAE648 (199108 – 199505)

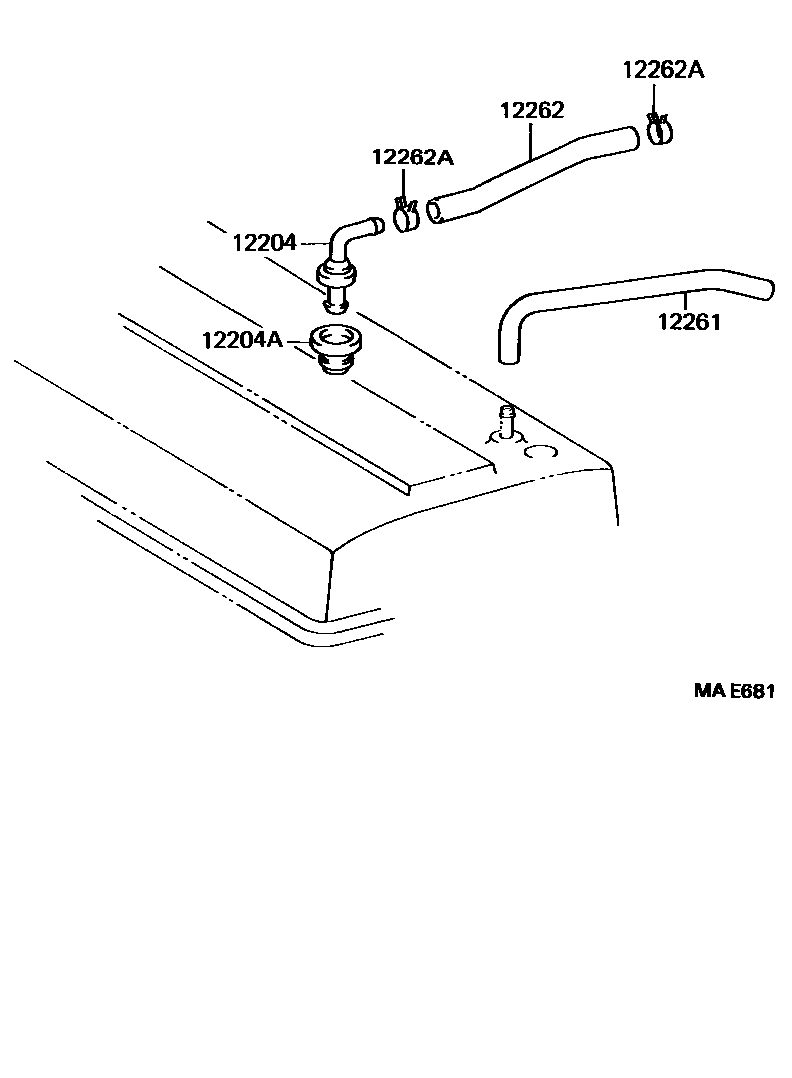

Toyota COROLLA Ventilation Hose EPC diagram — MAE681
Ventilation Hose — MAE681 (199205 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — MAG245
Ventilation Hose — MAG245 (199205 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — NA0050
Ventilation Hose — NA0050 (199108 – 999999)

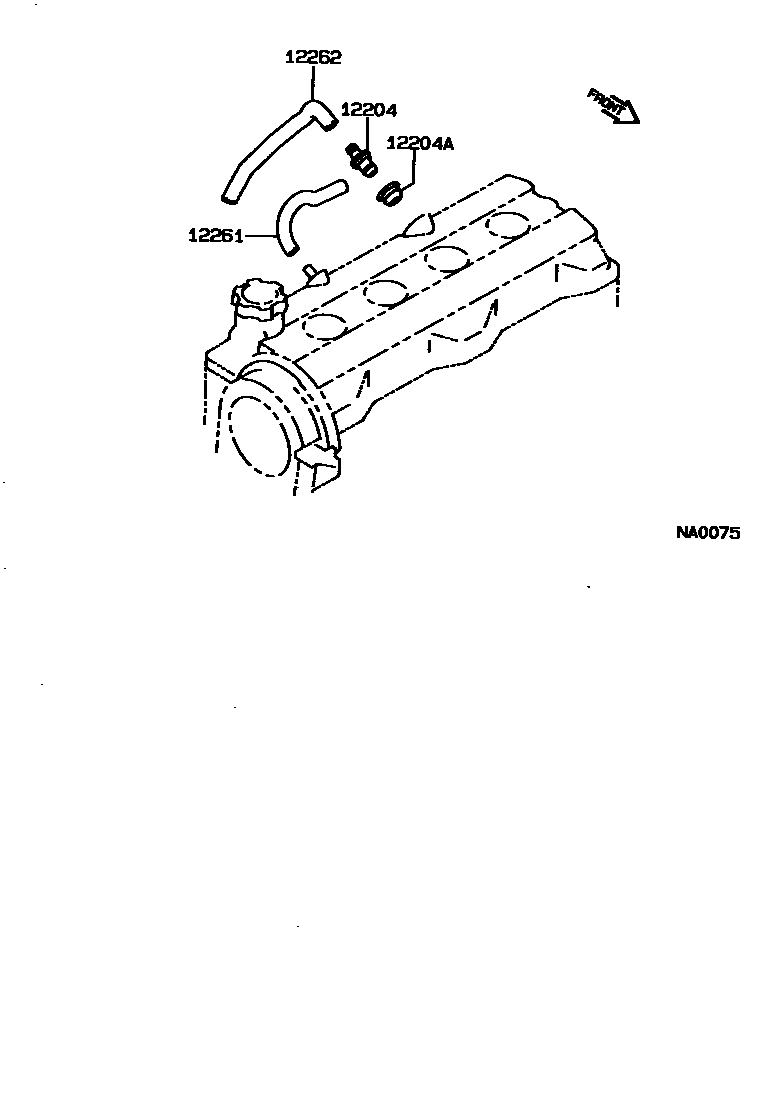

Toyota COROLLA Ventilation Hose EPC diagram — NA0075
Ventilation Hose — NA0075 (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-10020 · 12204-10030 · 12204-11040 · 12204-11050 · 12204-15040 · 12204-15050
12204AGasket (for ventilation system)90480-18001 · 90480-18006
12261Ventilation Hose12261-11020 · 12261-11050 · 12261-11160 · 12261-11200 · 12261-15090 · 12261-16070 · 12261-64110 · 12261-64190 · 90445-10064 · 90910-05222
12261AClip or clip (for vent hose)90467-10099 · 90467-18003
12262Ventilation hose No. 212262-10020 · 12262-11050 · 12262-15040 · 12262-16050 · 90445-15063 · 90445-15068
12262AClamp (for vent hose No. 2)90467-14001 · 90467-14017 · 90467-14043 · 90467-15022 · 90467-15027
