Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 12 images and 17 PNC and OE references.

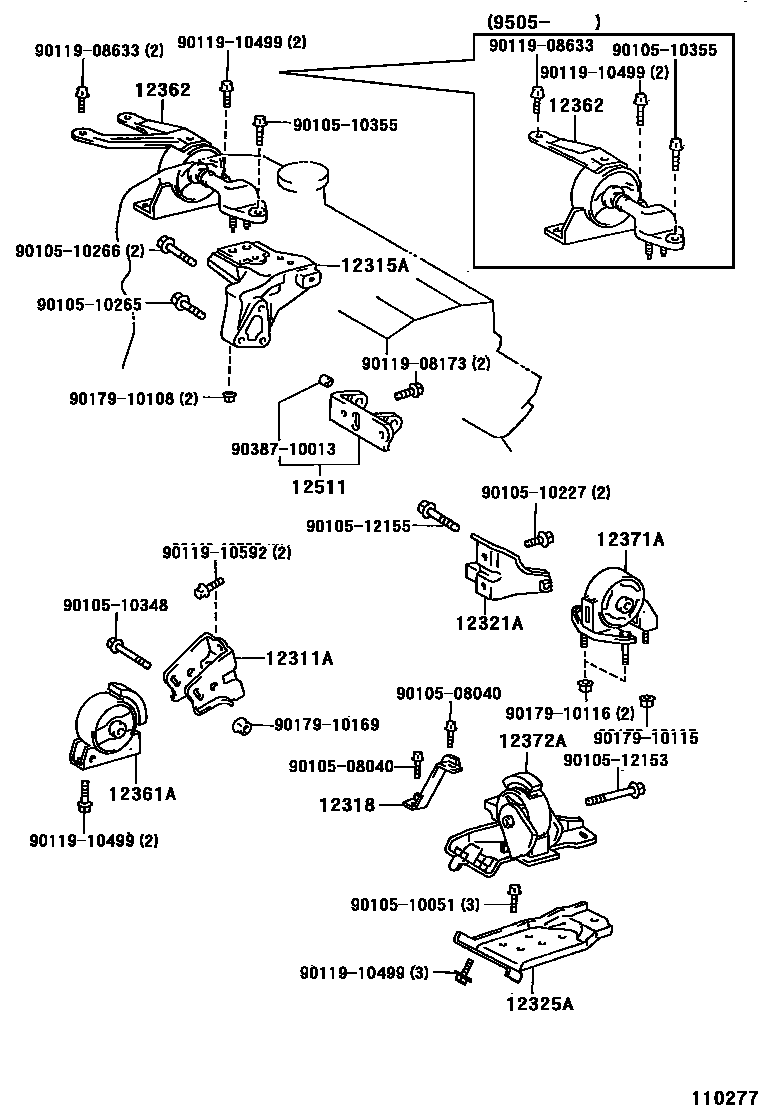

Toyota COROLLA Engine Mounting EPC diagram — 110277 — Engine Mounting — 110277 (199108 – 199704)

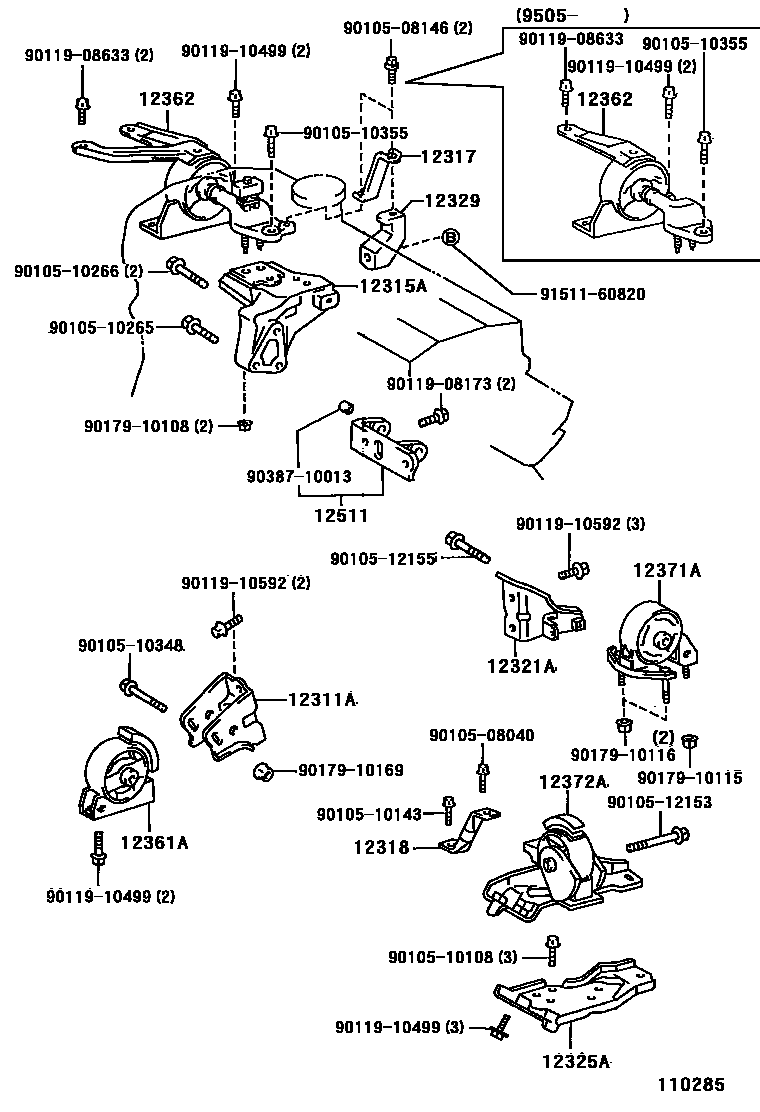

Toyota COROLLA Engine Mounting EPC diagram — 110285 — Engine Mounting — 110285 (199205 – 199704)

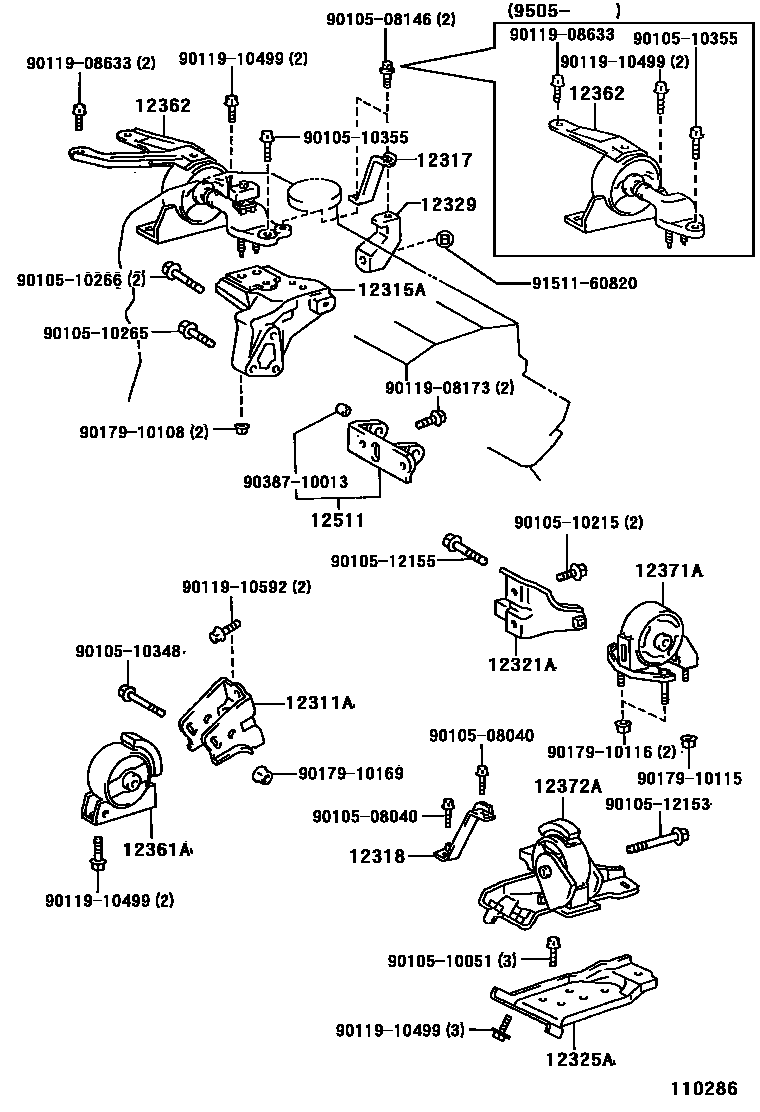

Toyota COROLLA Engine Mounting EPC diagram — 110286 — Engine Mounting — 110286 (199205 – 199704)

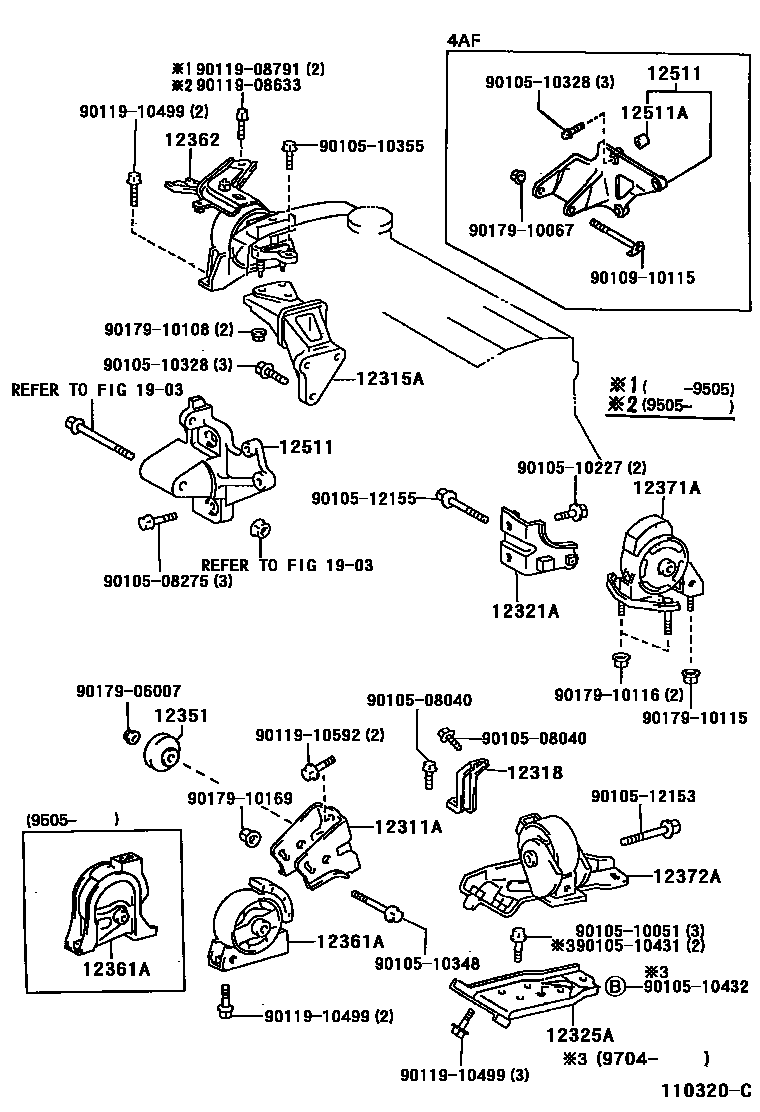

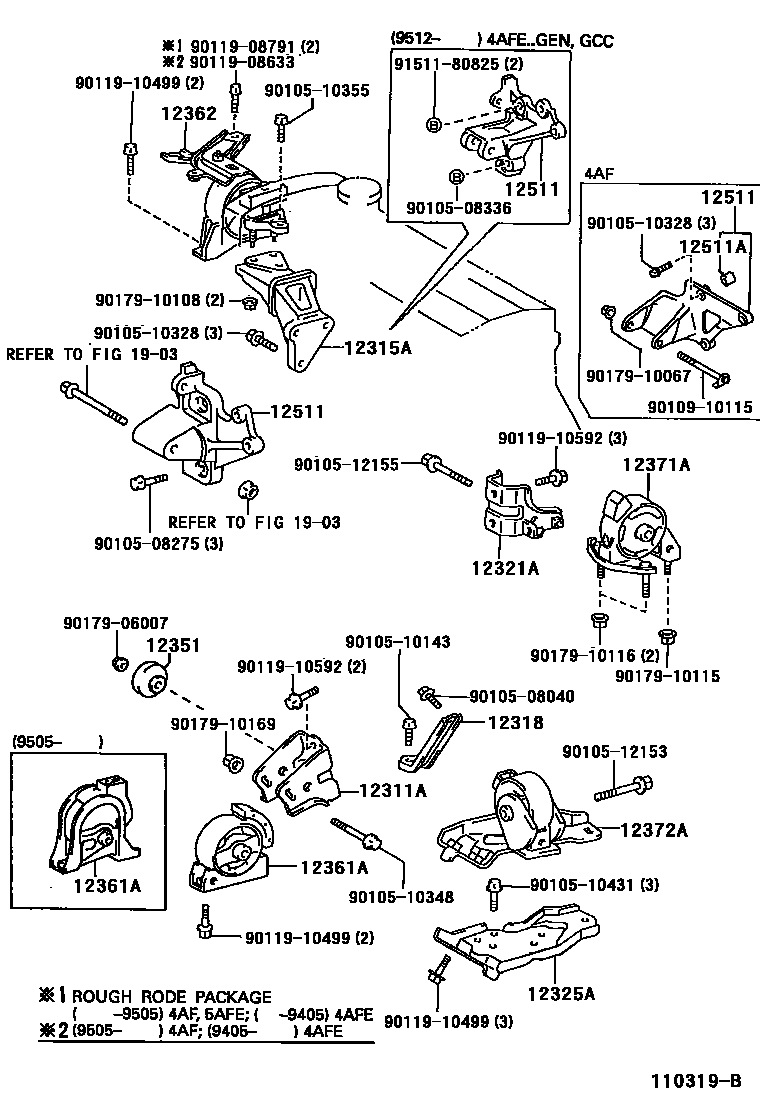

Toyota COROLLA Engine Mounting EPC diagram — 110319B — Engine Mounting — 110319B (199108 – 199711)

Toyota COROLLA Engine Mounting EPC diagram — 110320C — Engine Mounting — 110320C (199108 – 199711)

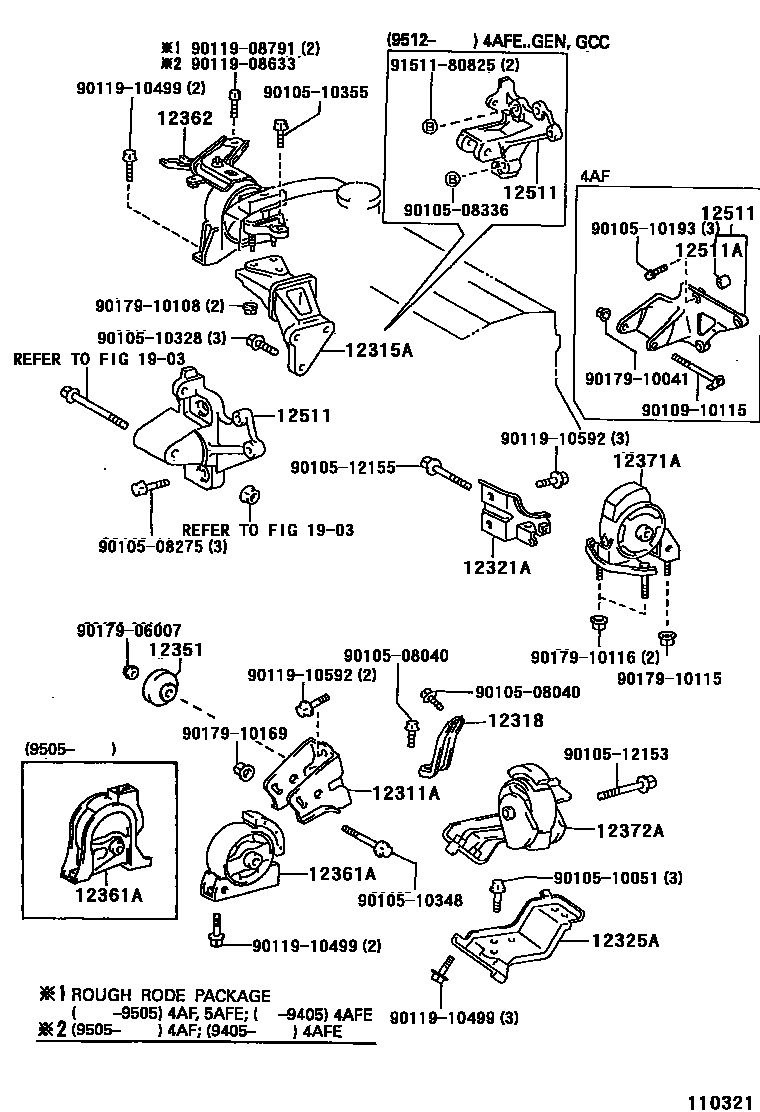

Toyota COROLLA Engine Mounting EPC diagram — 110321 — Engine Mounting — 110321 (199108 – 199711)

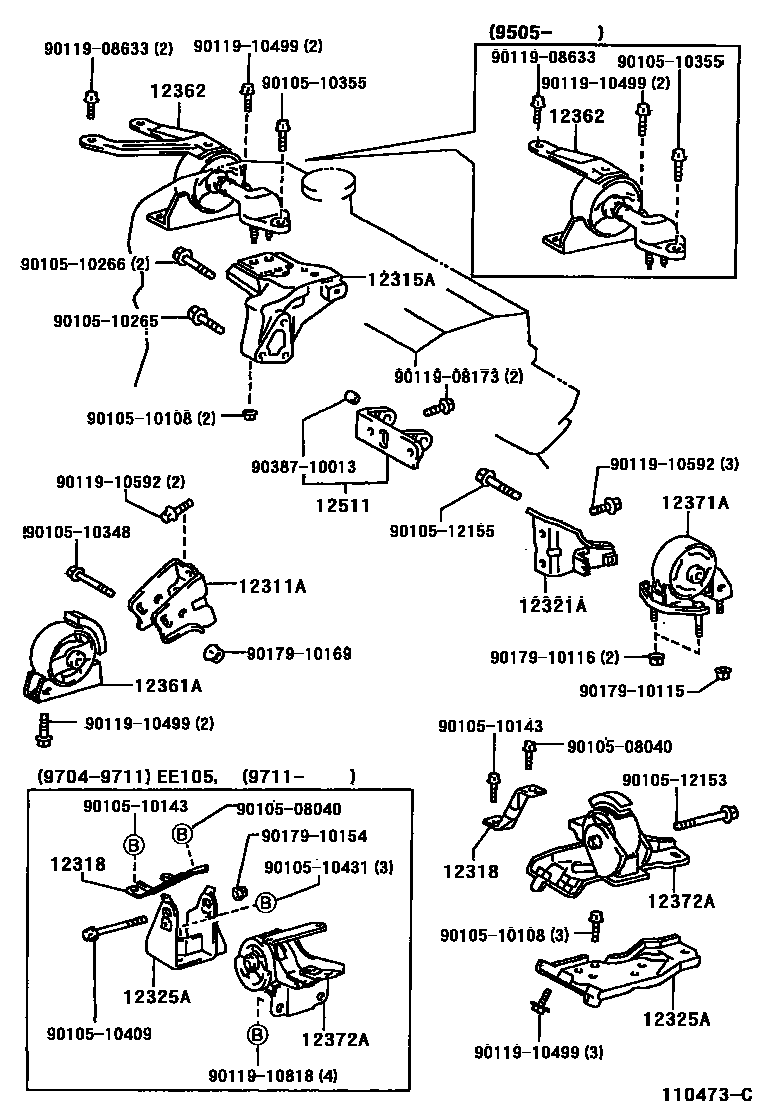

Toyota COROLLA Engine Mounting EPC diagram — 110473C — Engine Mounting — 110473C (199108 – 999999)

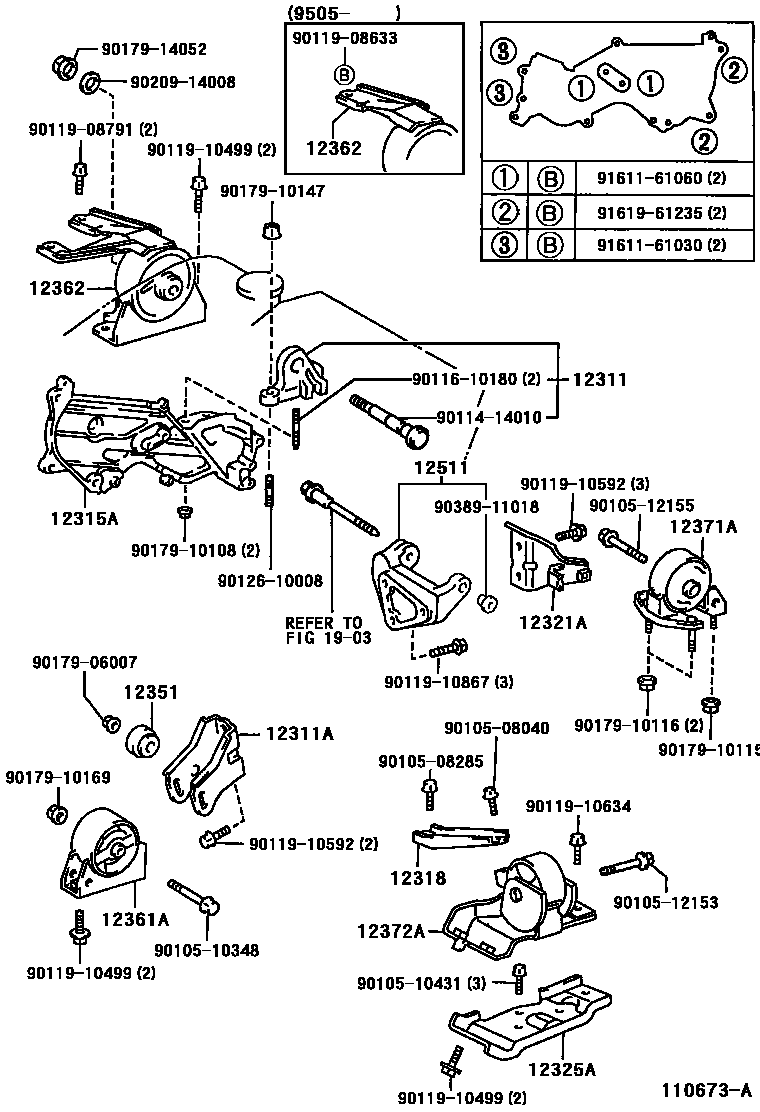

Toyota COROLLA Engine Mounting EPC diagram — 110673A — Engine Mounting — 110673A (199205 – 199711)

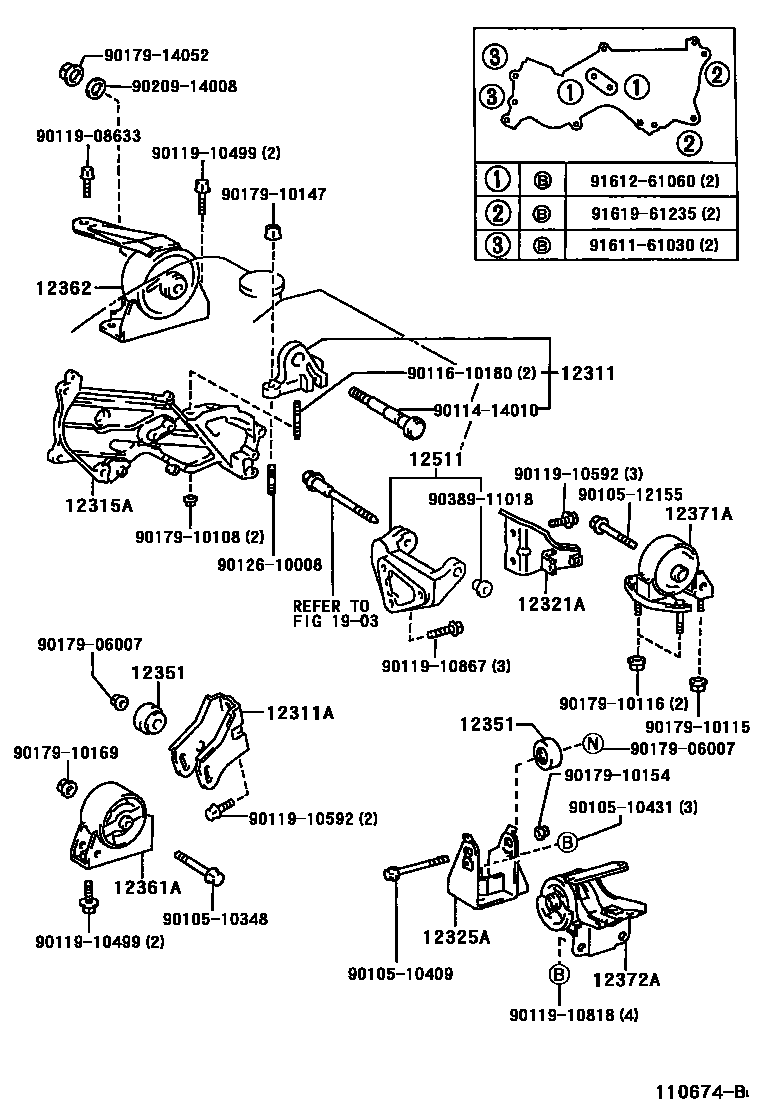

Toyota COROLLA Engine Mounting EPC diagram — 110674B — Engine Mounting — 110674B (199711 – 999999)

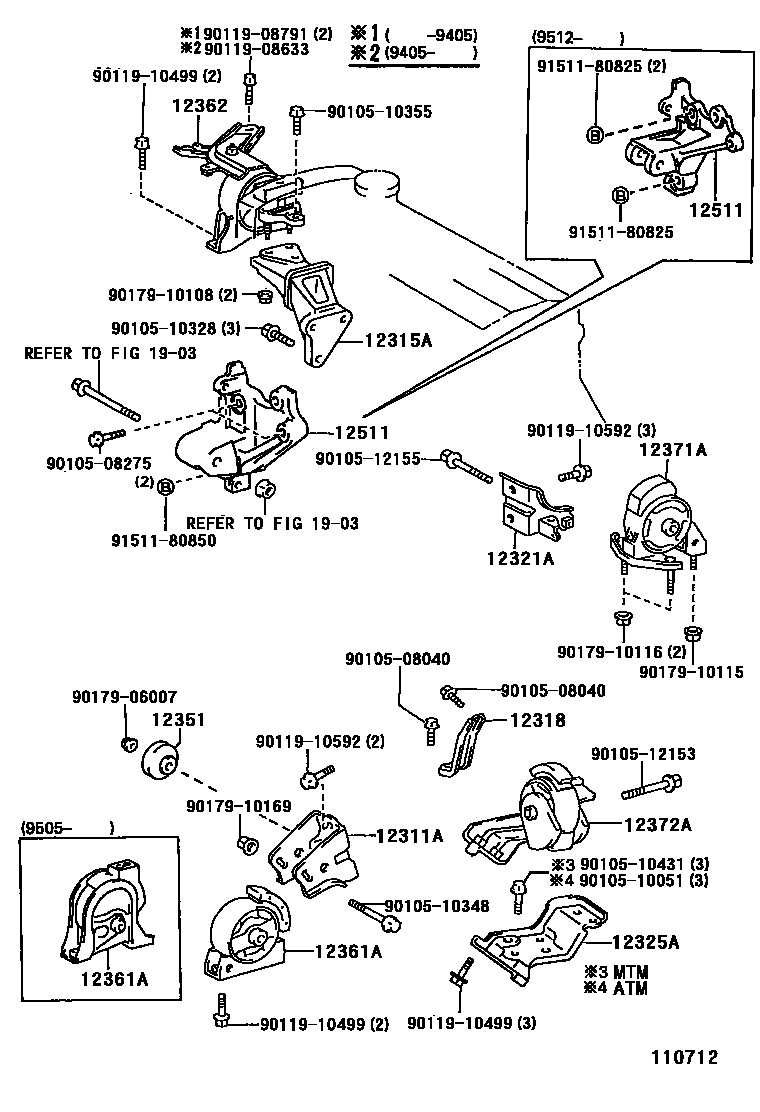

Toyota COROLLA Engine Mounting EPC diagram — 110712 — Engine Mounting — 110712 (199309 – 199711)

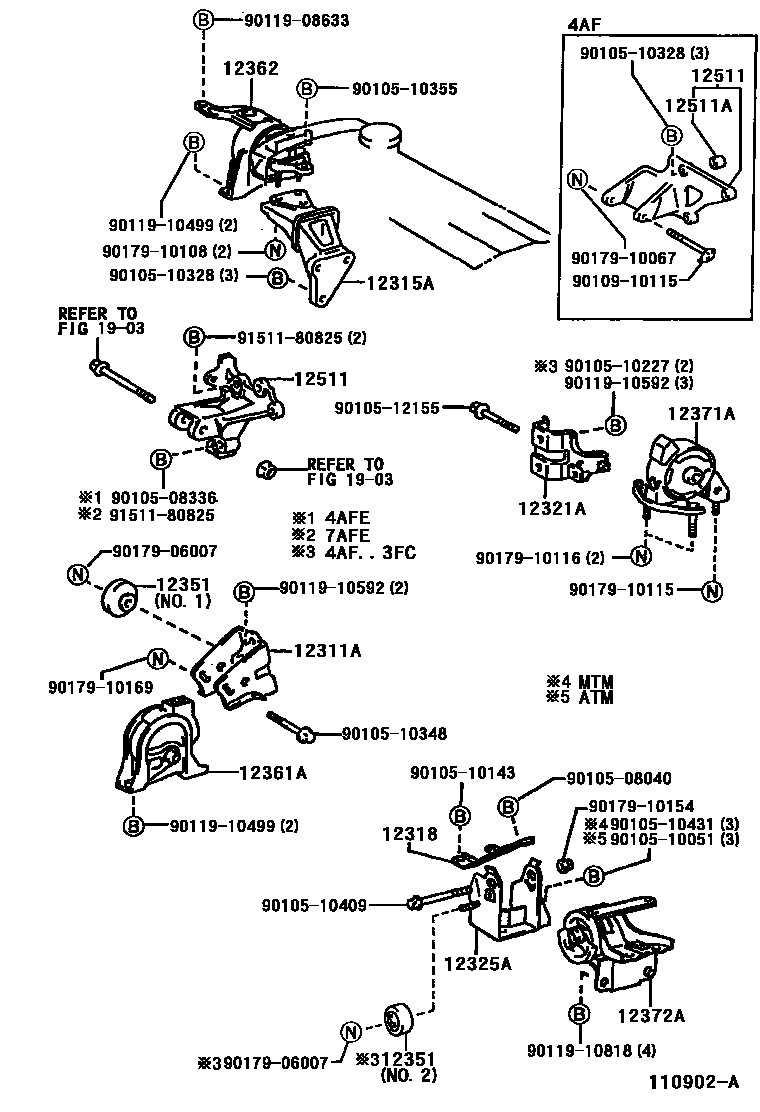

Toyota COROLLA Engine Mounting EPC diagram — 110902A — Engine Mounting — 110902A (199711 – 999999)

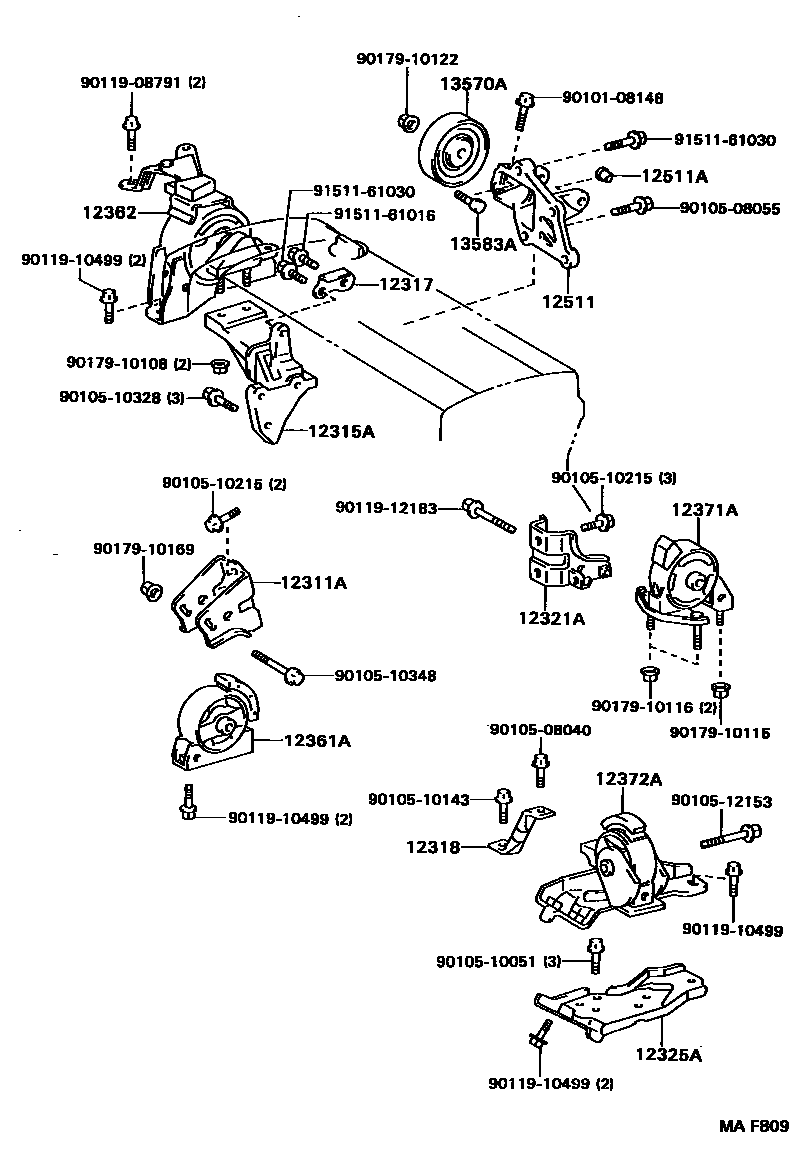

Toyota COROLLA Engine Mounting EPC diagram — MAF809 — Engine Mounting — MAF809 (199108 – 199505)

PNC and OE references

PNC	Part name	OE numbers
12311	Engine Mounting Bracket No. 1, Front RH	12301-64020
12311A	Engine front mounting bracket (for transverse engine)	12311-11090 · 12311-15130 · 12311-16090 · 12311-64120
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-02040 · 12315-11050 · 12315-11051 · 12315-15070 · 12315-15080 · 12315-15081 · 12315-16050 · 12315-64050 · 12315-64160
12317	Engine right mounting bracket	12317-11040 · 12317-16050
12318	Engine left mounting bracket	12318-11010 · 12318-11020 · 12318-11050 · 12318-15020 · 12318-15030 · 12318-15040 · 12318-15050 · 12318-15060 · 12318-15080 · 12318-16010 · 12318-16110 · 12318-64060
12321A	Rear engine mounting bracket (for transverse engine)	12321-11190 · 12321-11191 · 12321-11200 · 12321-15120 · 12321-15130 · 12321-15140 · 12321-16210 · 12321-64190 · 12321-64191
12325A	Engine left side mounting bracket (for transversely mounted engine)	12325-11120 · 12325-11130 · 12325-11131 · 12325-11160 · 12325-11170 · 12325-15080 · 12325-15090 · 12325-15110 · 12325-16120 · 12325-16130 · 12325-16170 · 12325-64010 · 12325-64130
12329	Engine mounting bracket	12329-11030
12351	engine mount shock absorber	12351-15060 · 12351-15070 · 12351-15110 · 12351-64050
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-11160 · 12361-11170 · 12361-11180 · 12361-11181 · 12361-15170 · 12361-15171 · 12361-15180 · 12361-15181 · 12361-15190 · 12361-15200 · 12361-16190 · 12361-64240 · 12361-64241
12362	Engine right side mounting vibration isolation pad (for transversely mounted engine)	12305-11010 · 12305-11020 · 12305-11030 · 12305-11050 · 12305-11060 · 12305-15020 · 12305-15040 · 12305-16010 · 12305-16050 · 12305-16060 · 12305-16061 · 12305-16062 · 12305-16080 · 12362-64150 · 12362-64220
12371A	Engine rear mount vibration isolation pad	12371-11430 · 12371-11431 · 12371-11460 · 12371-11461 · 12371-11462 · 12371-11600 · 12371-15240 · 12371-15241 · 12371-16220 · 12371-16260 · 12371-16280 · 12371-64200 · 12371-64210
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-11230 · 12372-11240 · 12372-11250 · 12372-15160 · 12372-15171 · 12372-15180 · 12372-15181 · 12372-15200 · 12372-15210 · 12372-15220 · 12372-16210 · 12372-64170 · 12372-64250 · 12372-64251
12511	No. 1 generator bracket	12511-02030 · 12511-11020 · 12511-15040 · 12511-15050 · 12511-15060 · 12511-16080 · 12511-16100 · 12511-16110 · 12511-64060
12511A	Generator bracket bushing	90387-10013 · 90389-10017
13570A	No. 1 poly-ribbed belt idler assembly	13570-16010
13583A	Poly V-belt idler shaft	13583-16010
