Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 22 images and 2 PNC and OE references.

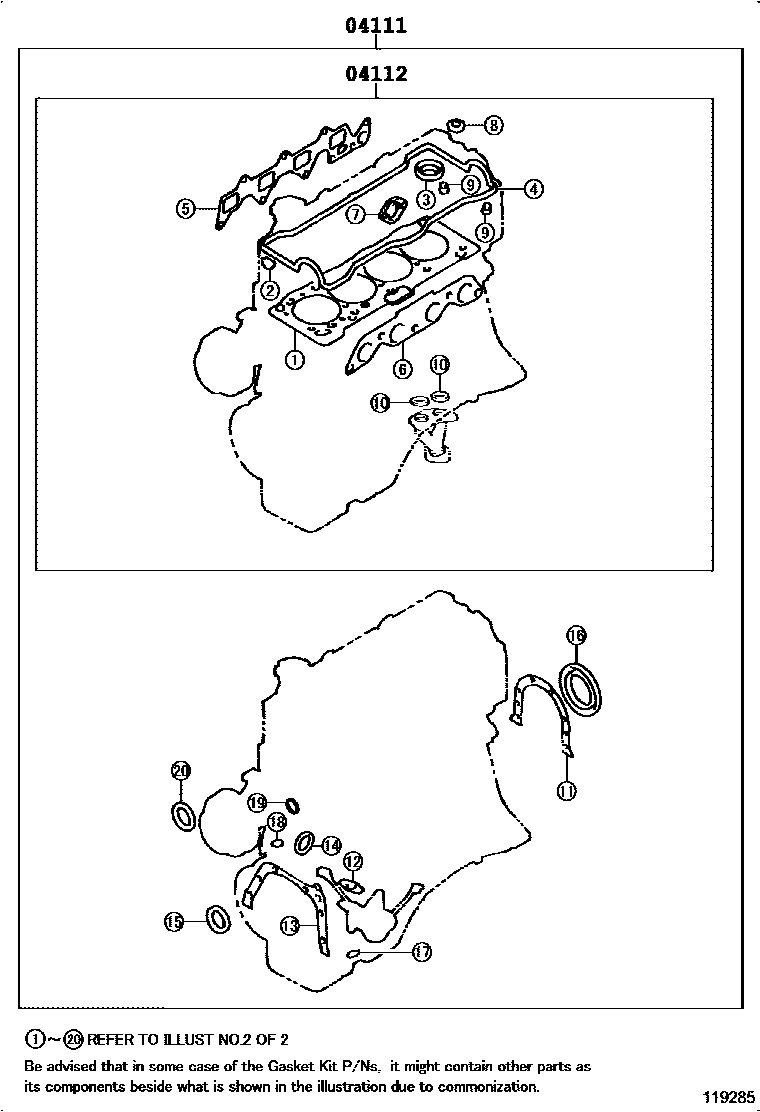

Engine Overhaul Gasket Kit — 119285 (199205 – 999999)

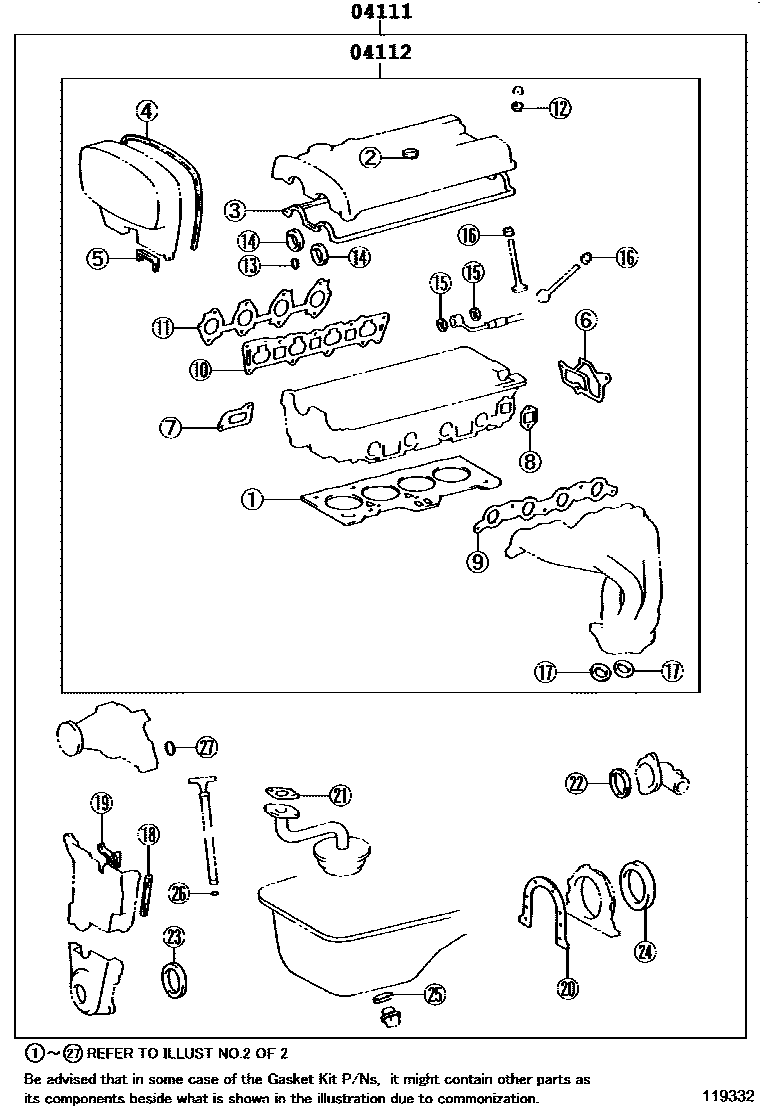

Engine Overhaul Gasket Kit — 119332 (199108 – 199505)

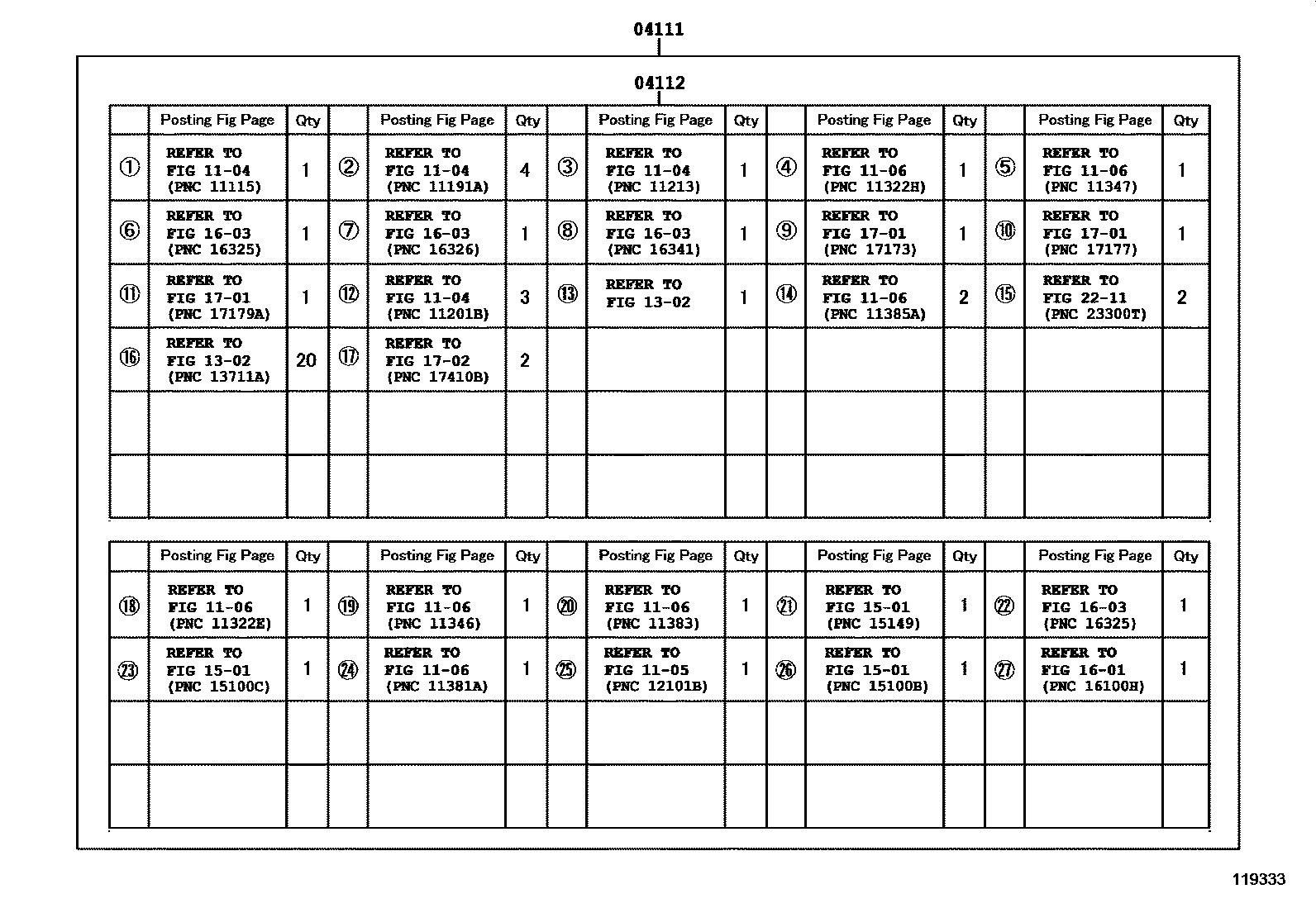

Engine Overhaul Gasket Kit — 119333 (199108 – 199505)

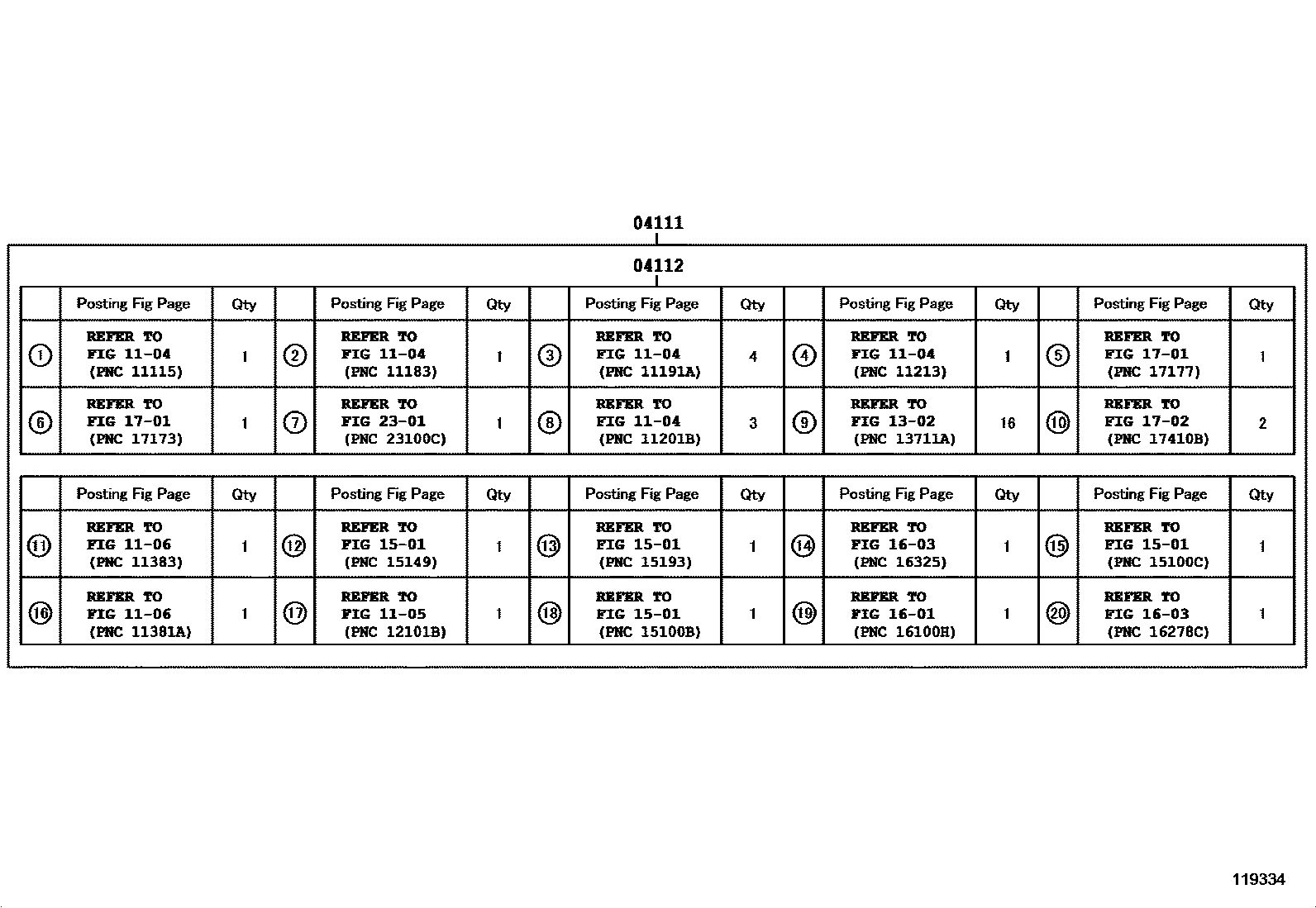

Engine Overhaul Gasket Kit — 119334 (199205 – 999999)

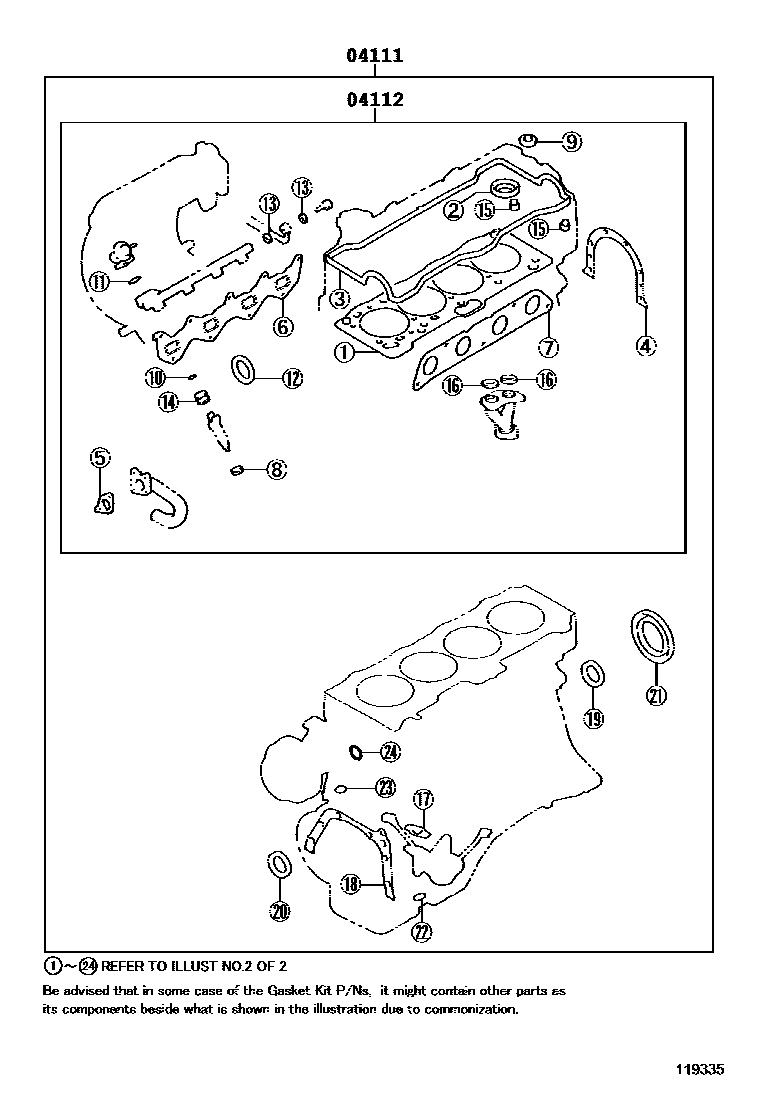

Engine Overhaul Gasket Kit — 119335 (199108 – 999999)

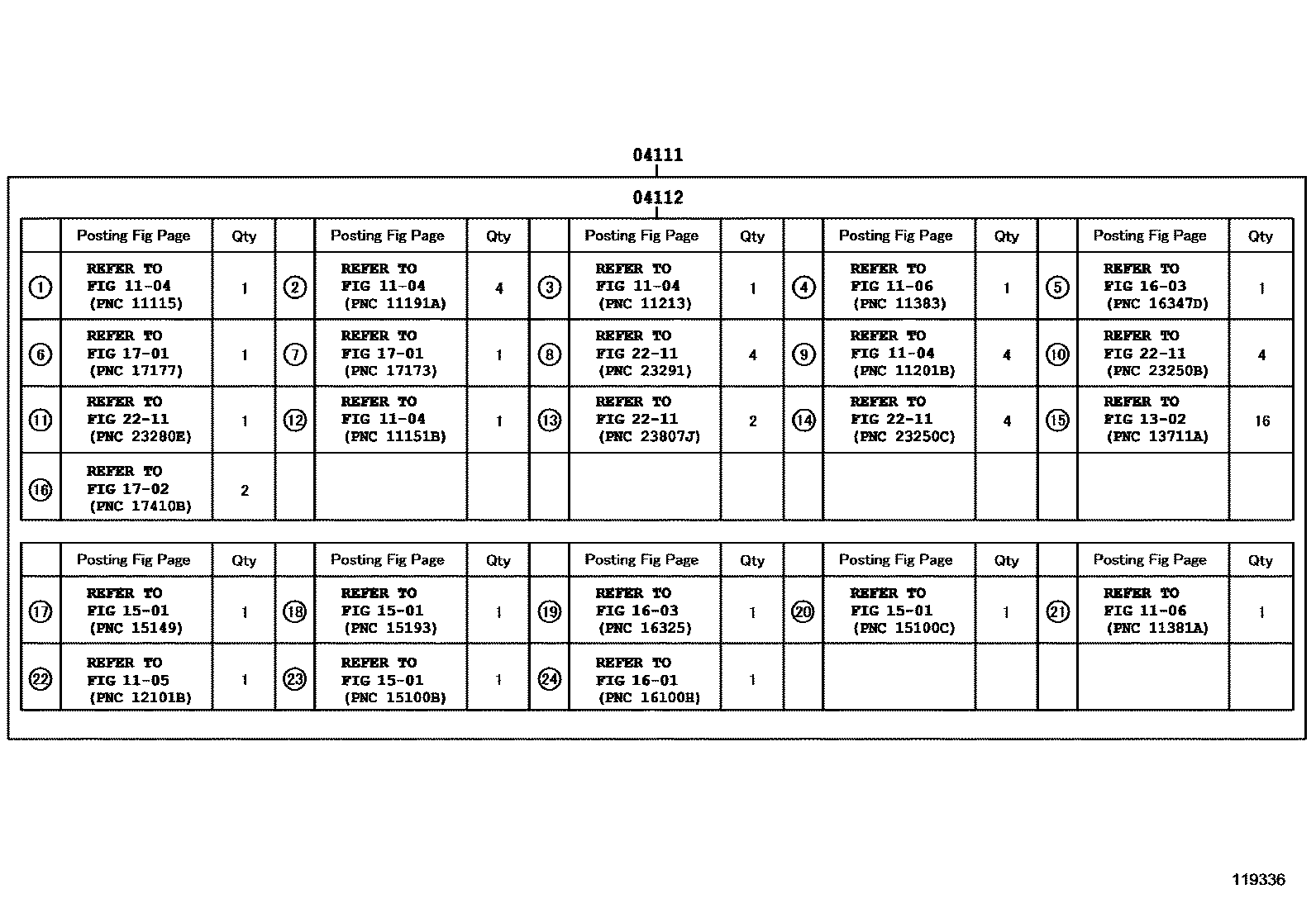

Engine Overhaul Gasket Kit — 119336 (199108 – 999999)

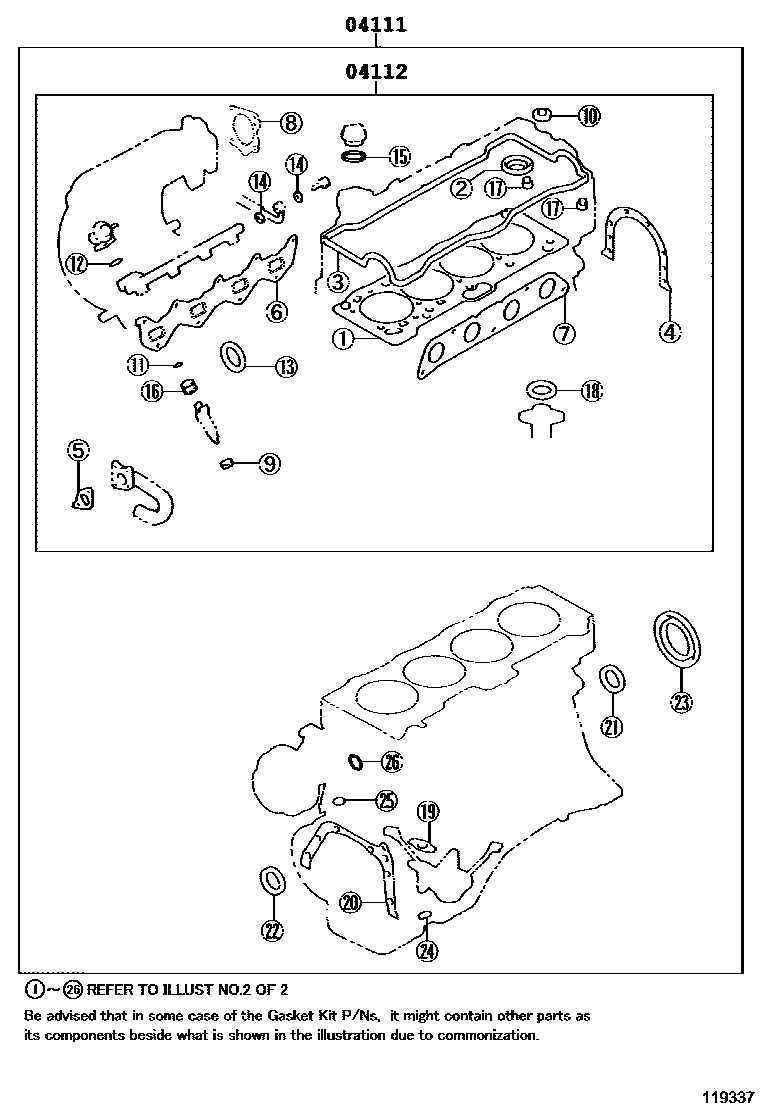

Engine Overhaul Gasket Kit — 119337 (199108 – 999999)

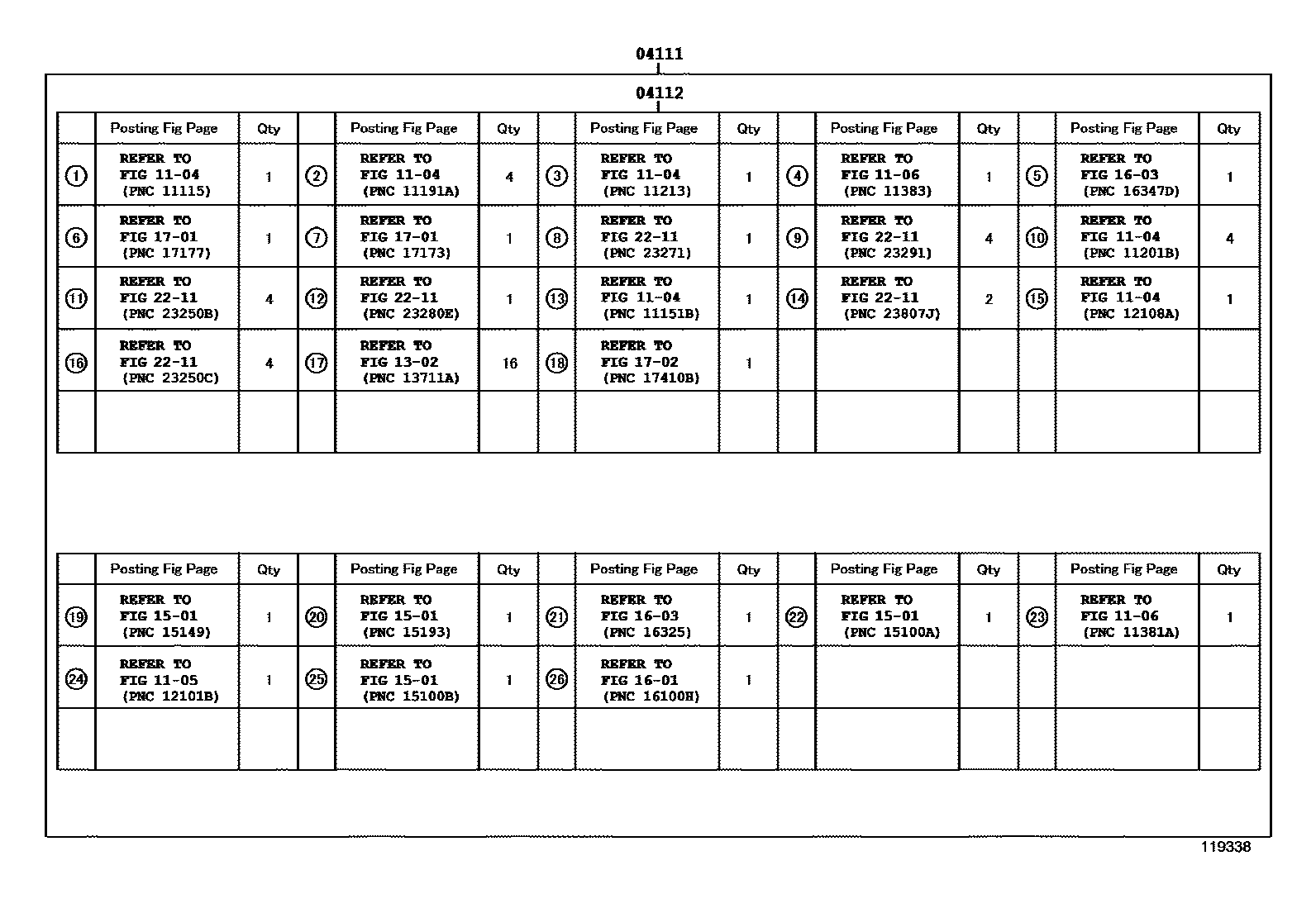

Engine Overhaul Gasket Kit — 119338 (199108 – 999999)

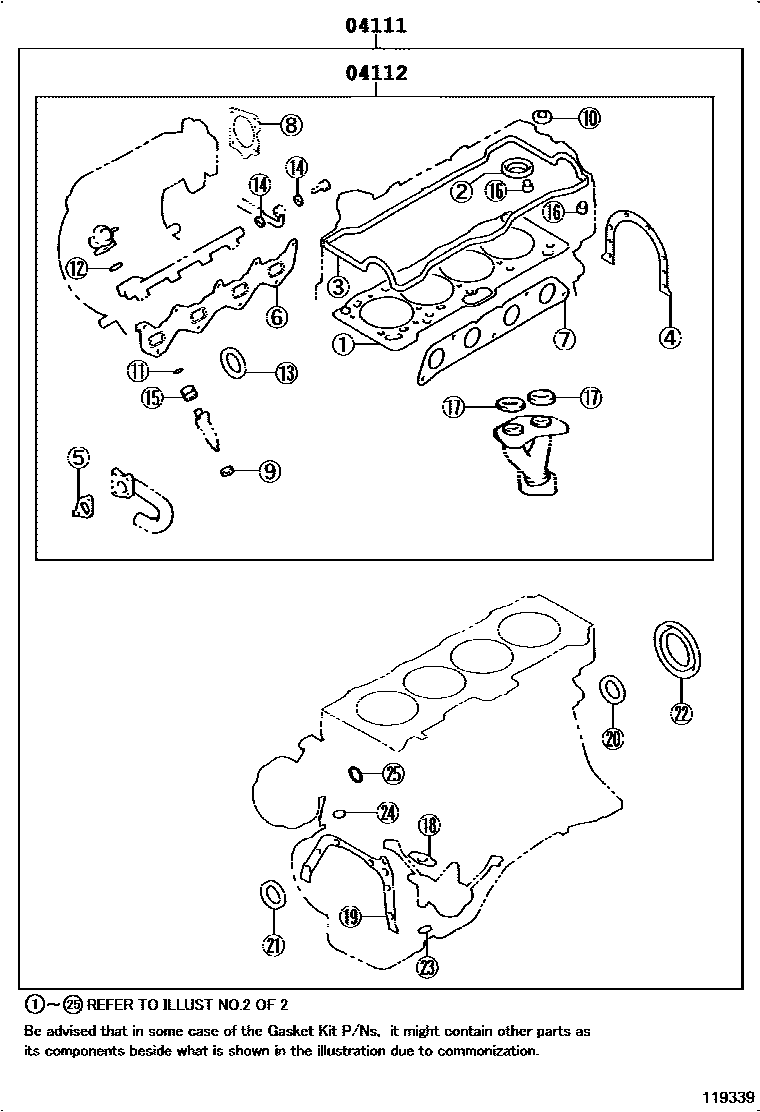

Engine Overhaul Gasket Kit — 119339 (199309 – 999999)

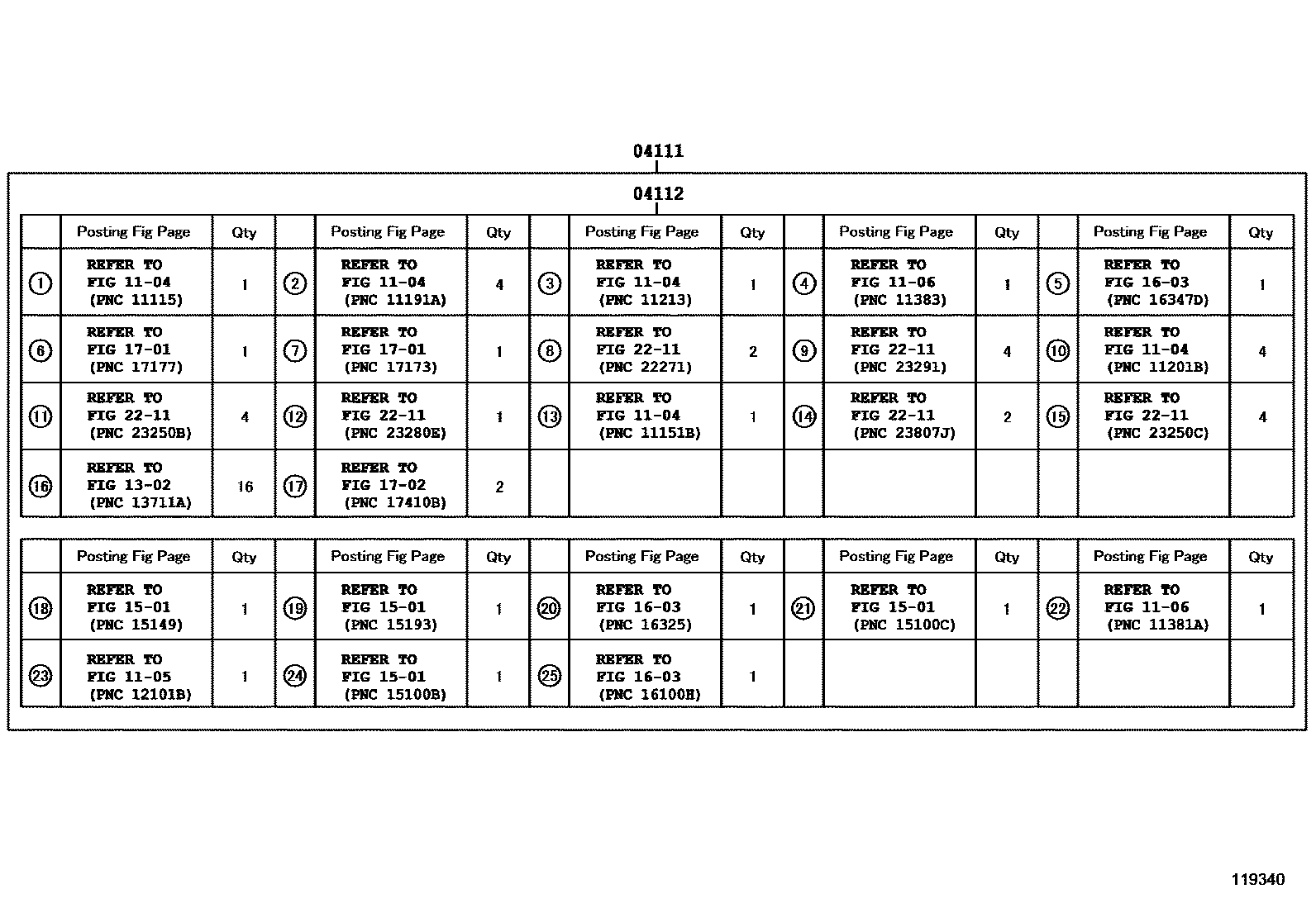

Engine Overhaul Gasket Kit — 119340 (199309 – 999999)

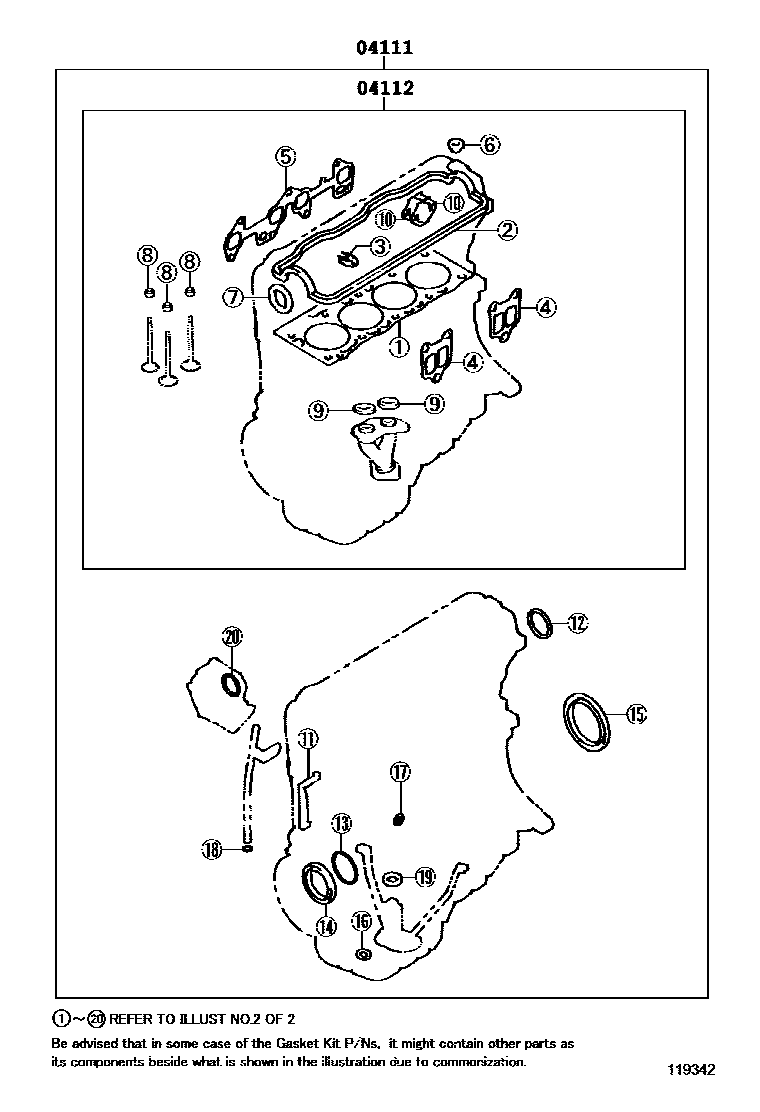

Engine Overhaul Gasket Kit — 119342 (199108 – 999999)

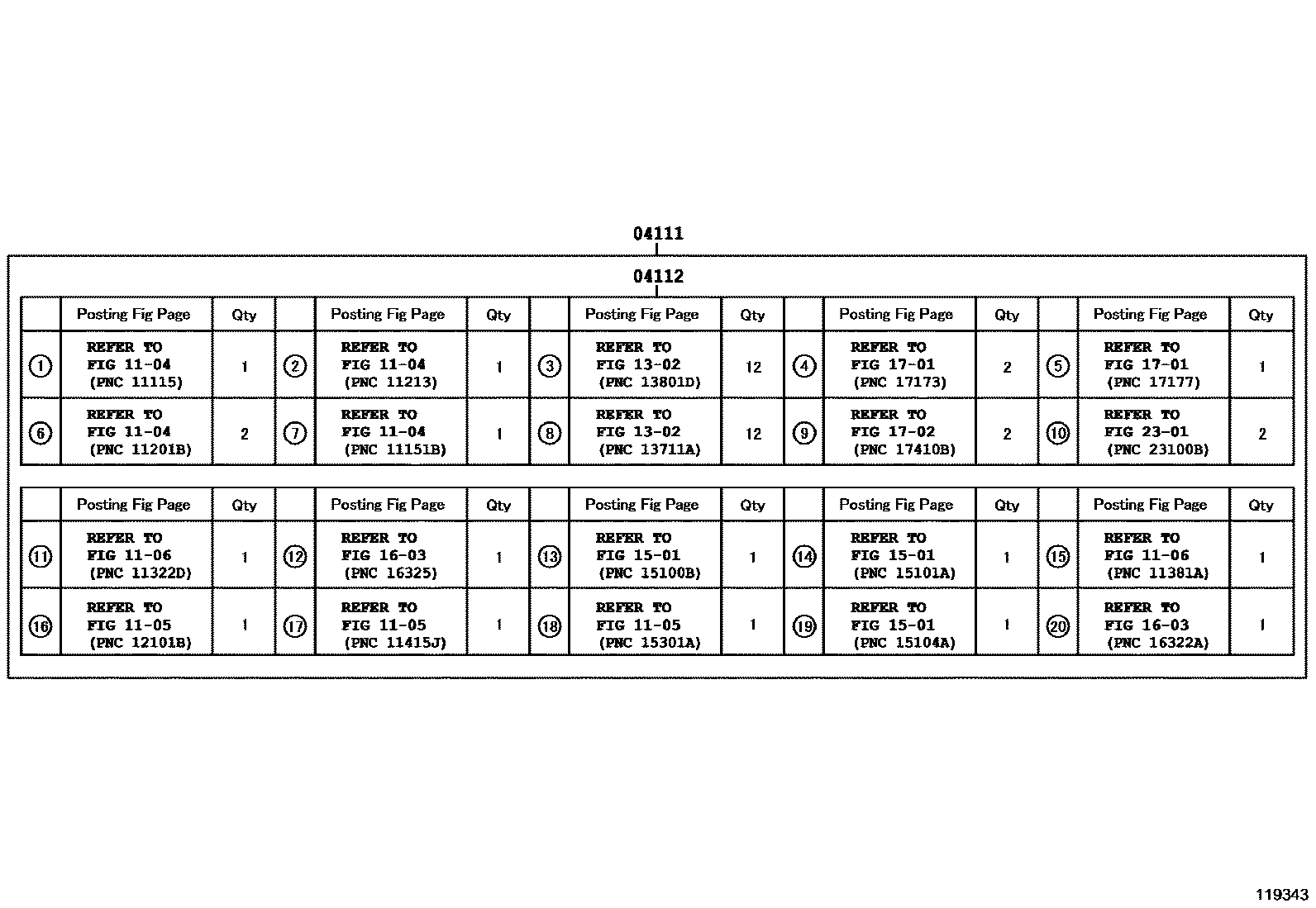

Engine Overhaul Gasket Kit — 119343 (199108 – 999999)

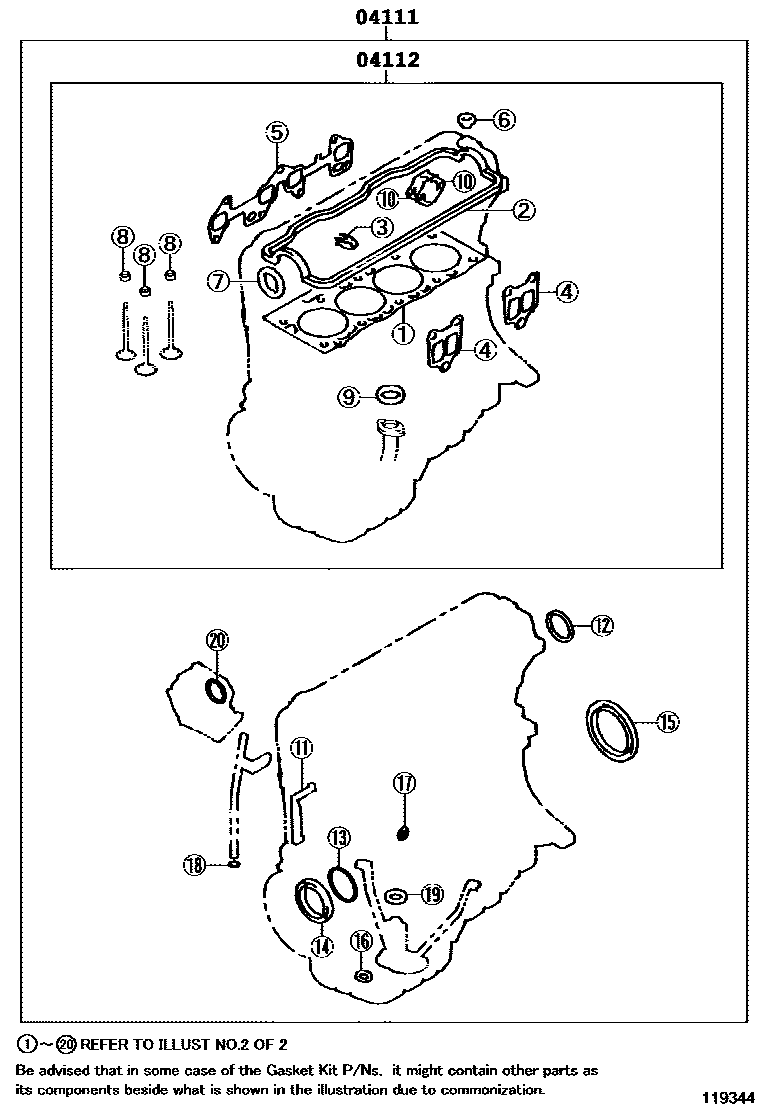

Engine Overhaul Gasket Kit — 119344 (199108 – 999999)

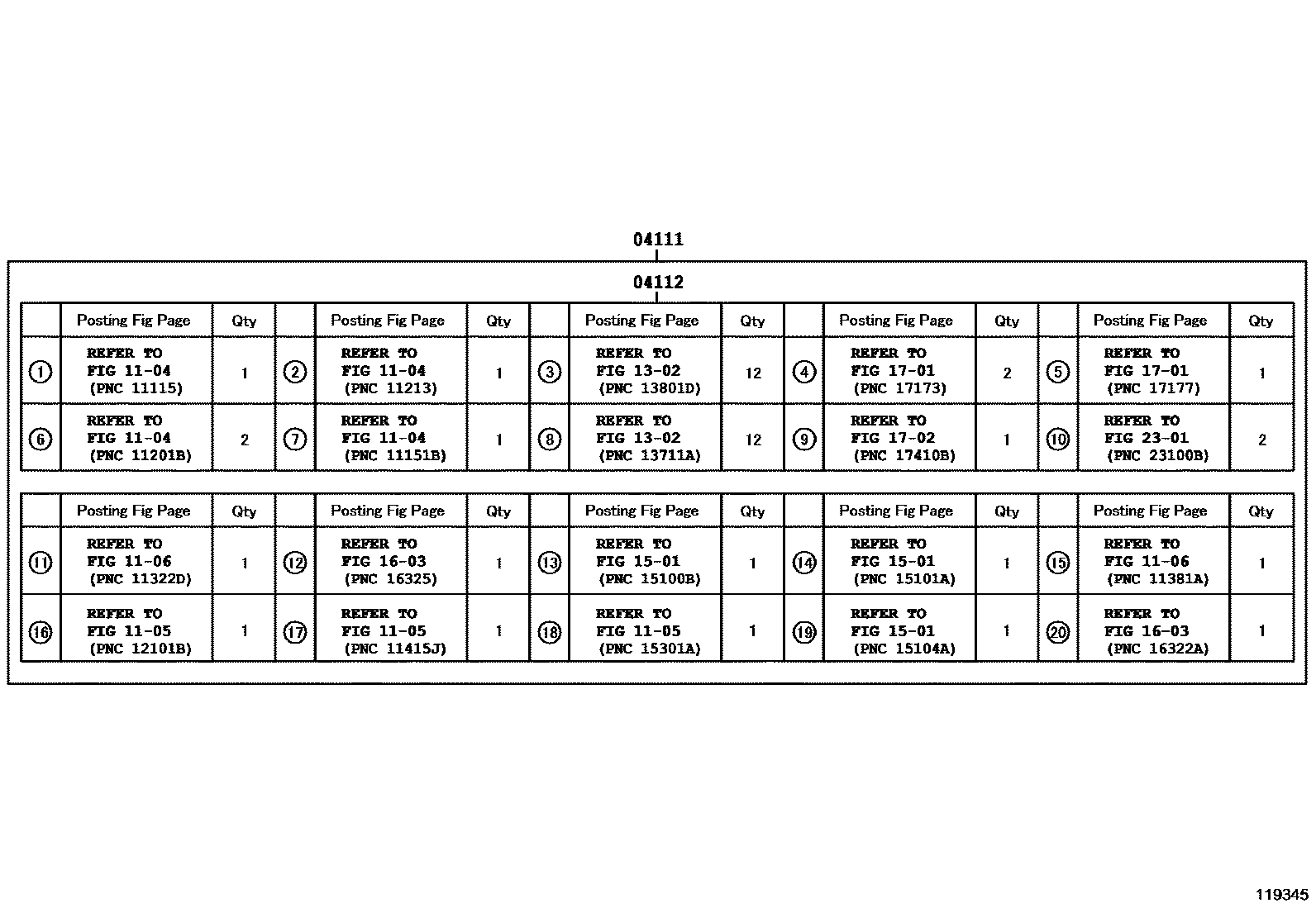

Engine Overhaul Gasket Kit — 119345 (199108 – 999999)

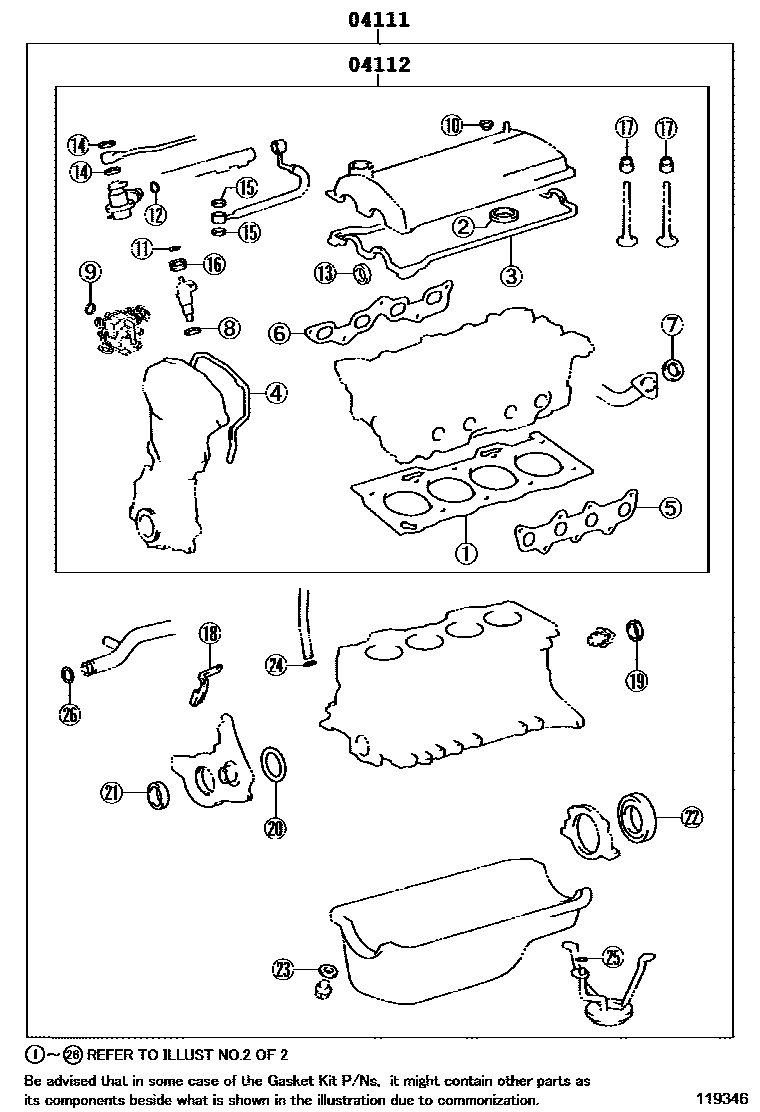

Engine Overhaul Gasket Kit — 119346 (199205 – 199704)

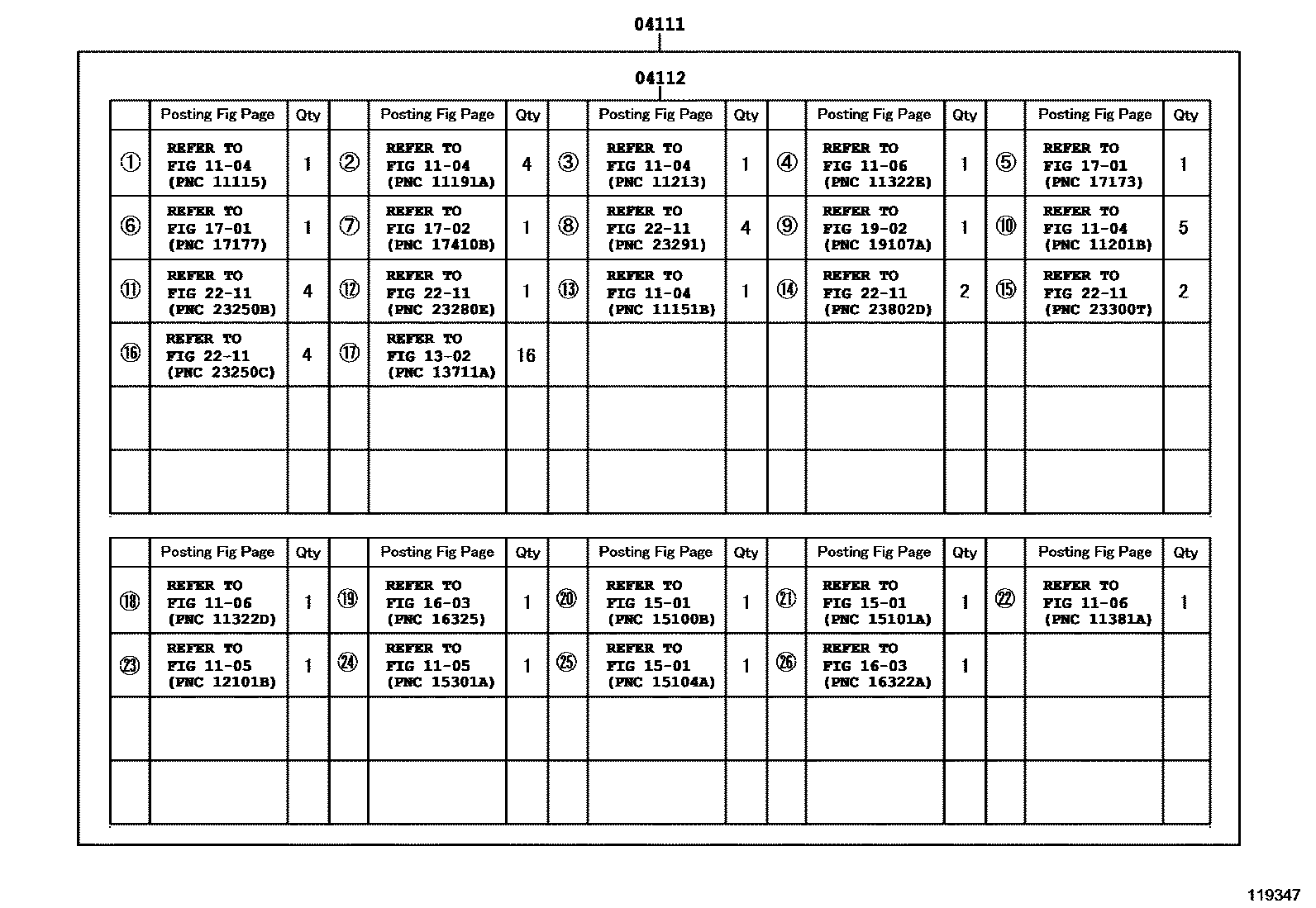

Engine Overhaul Gasket Kit — 119347 (199205 – 199704)

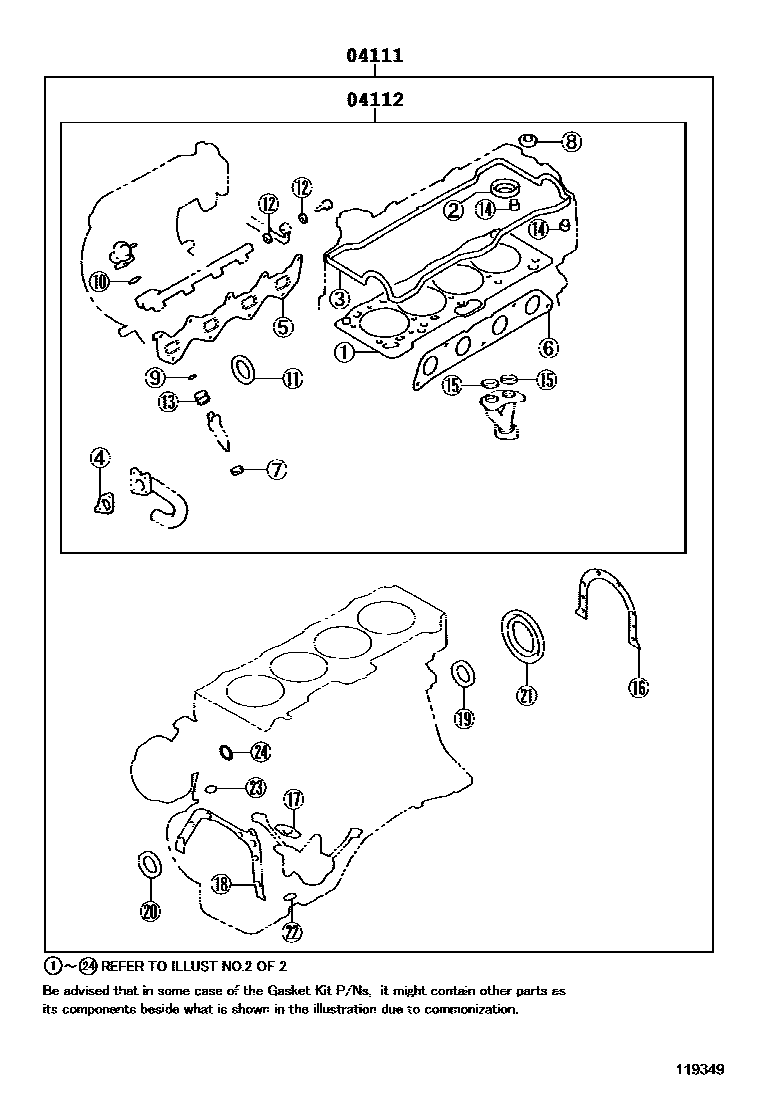

Engine Overhaul Gasket Kit — 119349 (199108 – 999999)

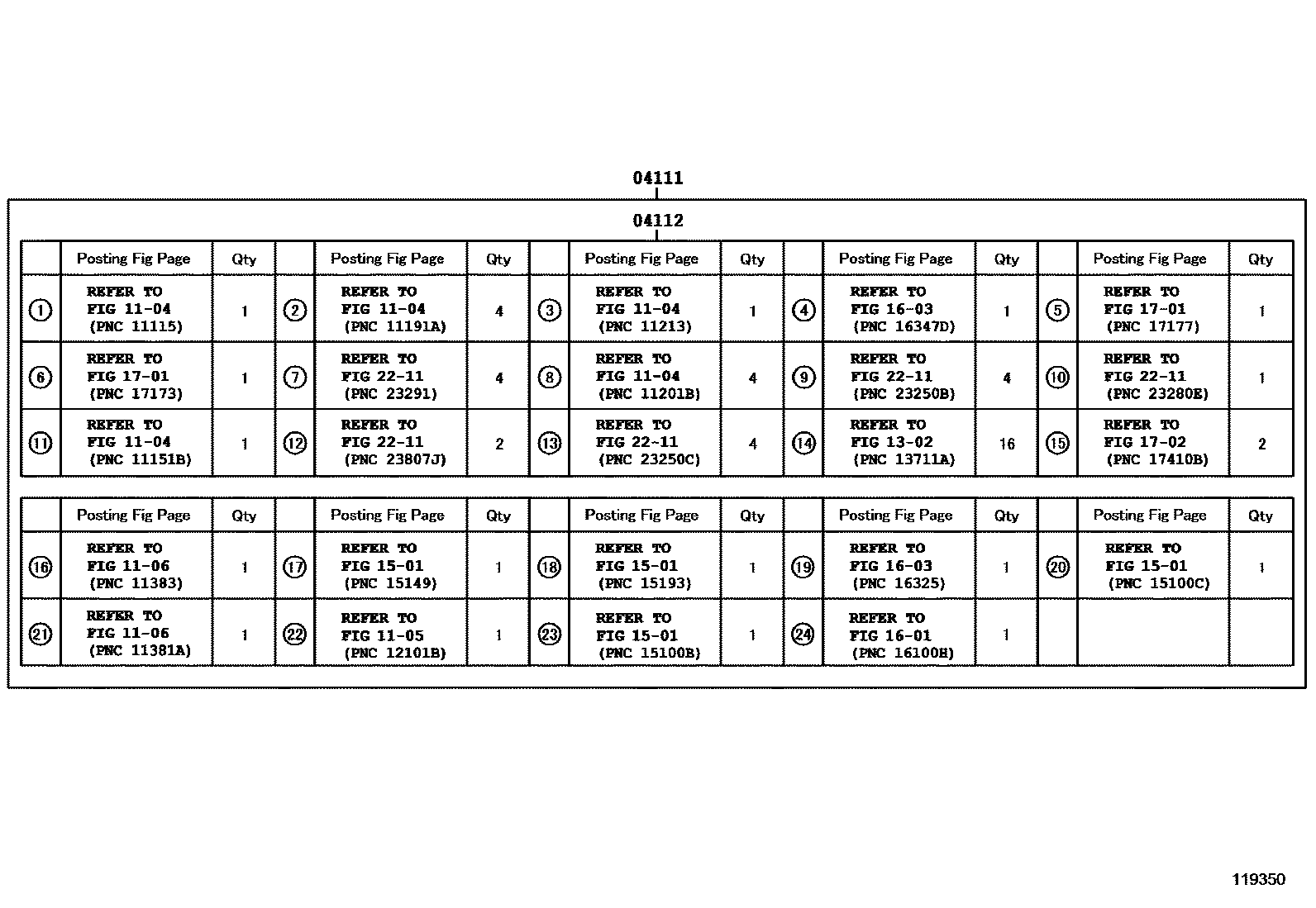

Engine Overhaul Gasket Kit — 119350 (199108 – 999999)

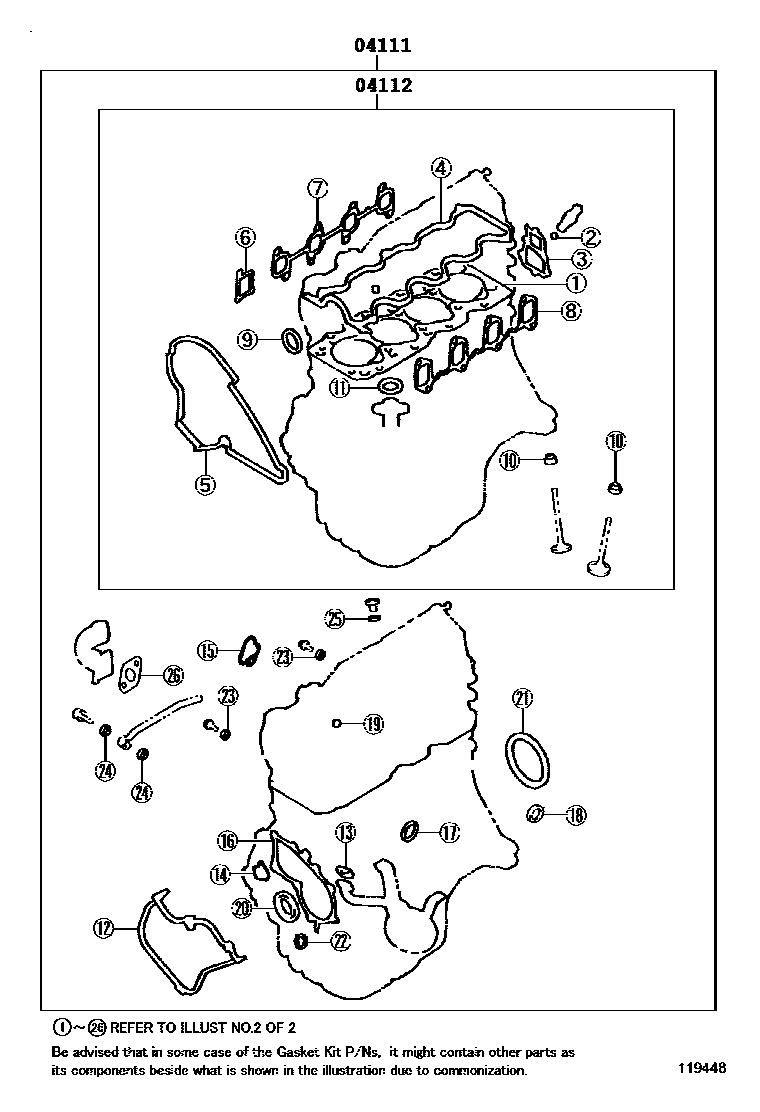

Engine Overhaul Gasket Kit — 119448 (199205 – 199708)

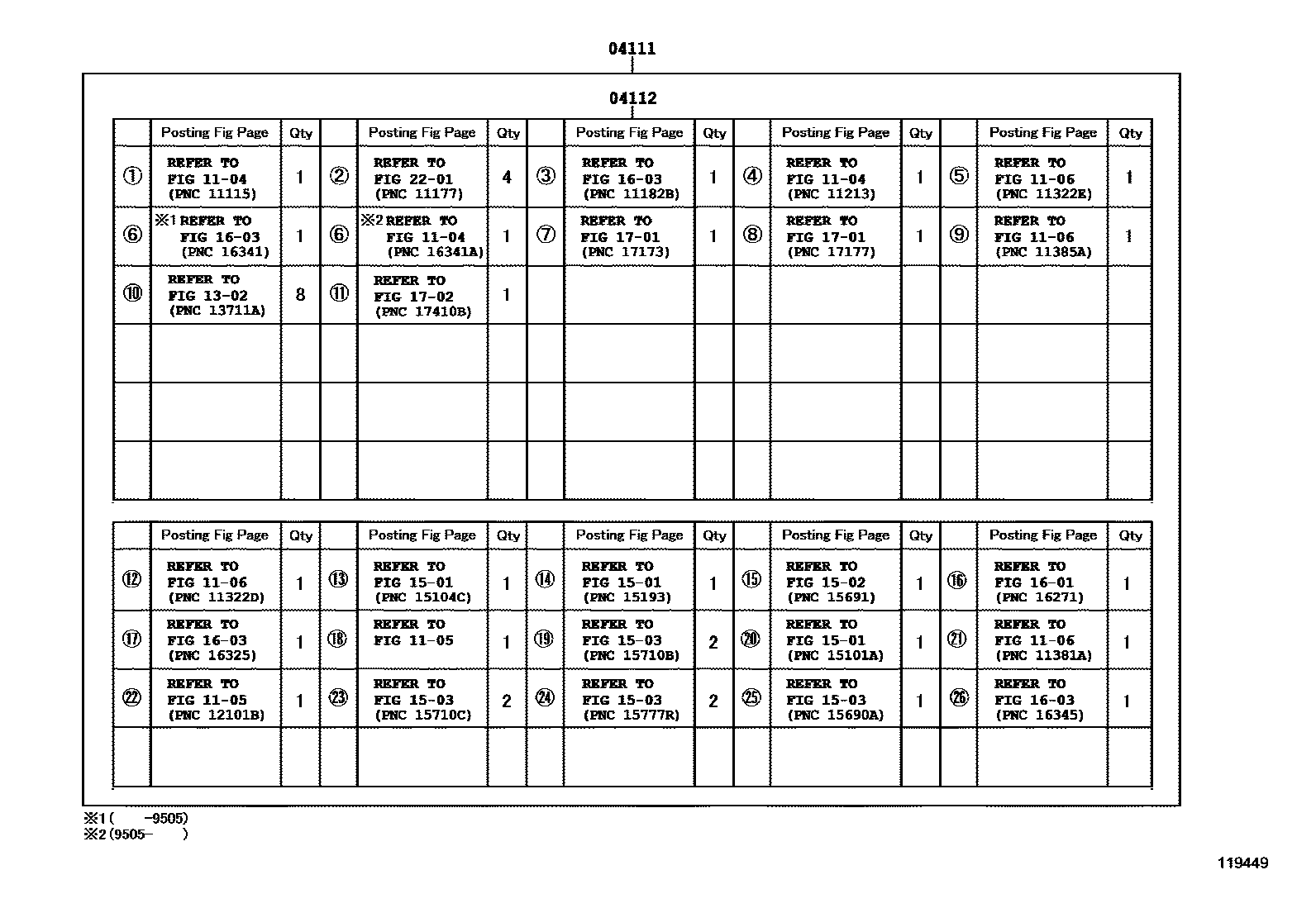

Engine Overhaul Gasket Kit — 119449 (199205 – 199708)

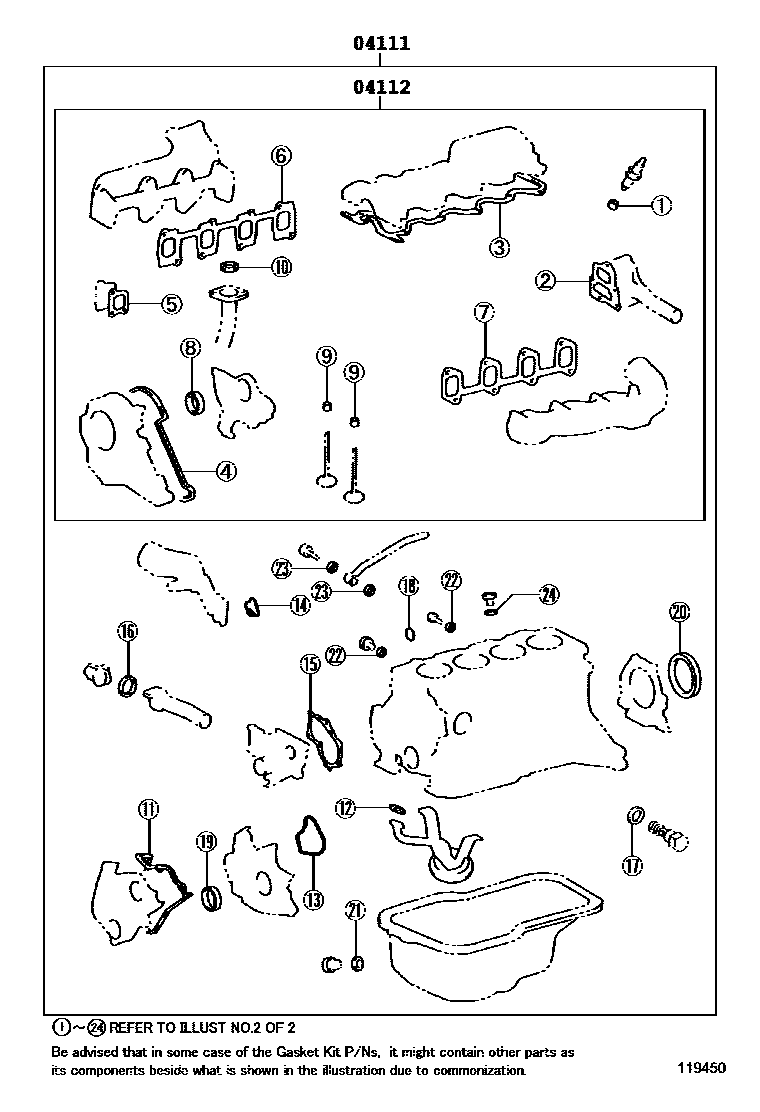

Engine Overhaul Gasket Kit — 119450 (199708 – 999999)

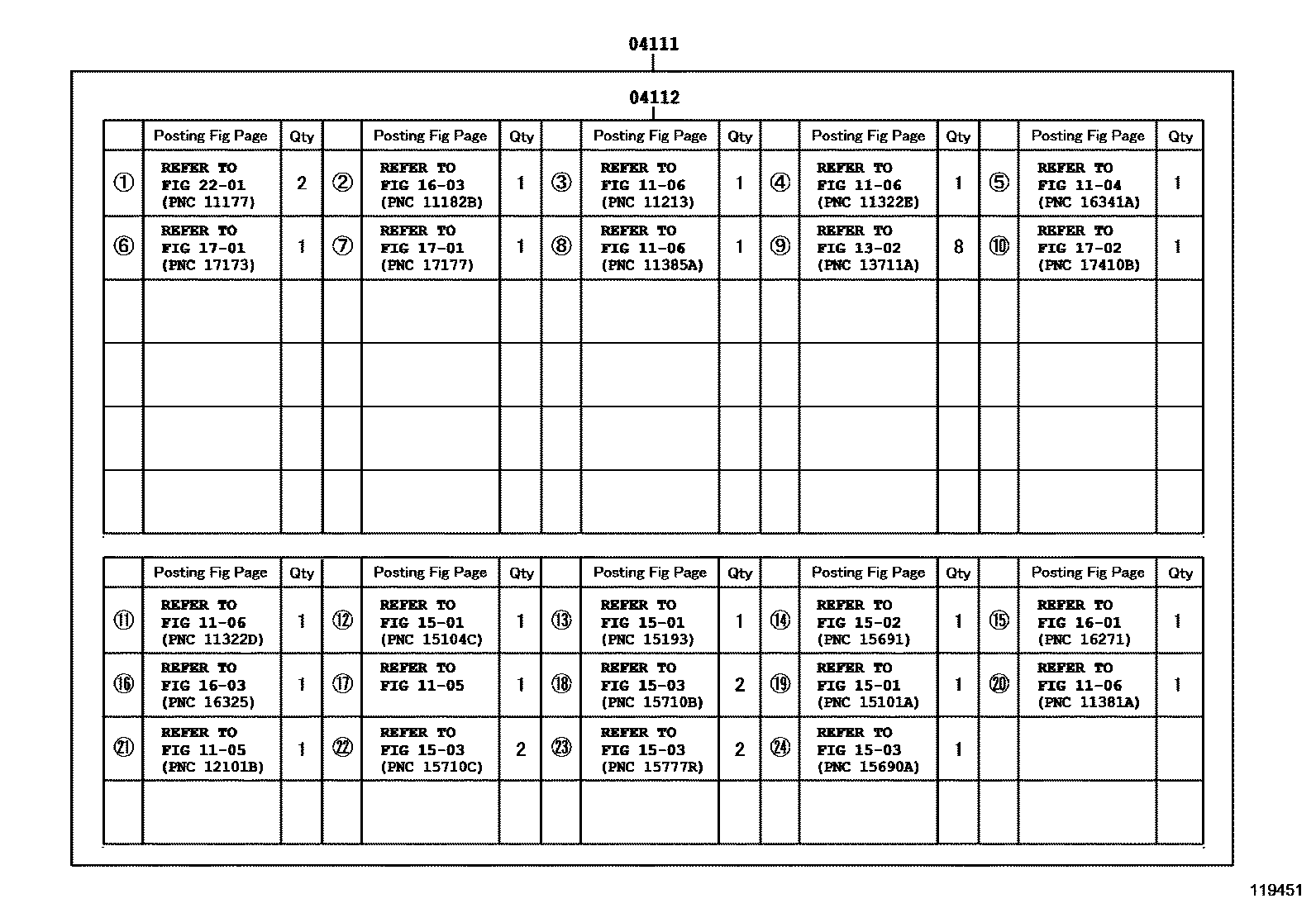

Engine Overhaul Gasket Kit — 119451 (199708 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-02021 · 04111-02080 · 04111-11024 · 04111-11025 · 04111-11026 · 04111-11054 · 04111-11090 · 04111-11091 · 04111-11092 · 04111-11132 · 04111-11141 · 04111-11151 · 04111-16124 · 04111-16210 · 04111-16211 · 04111-16220 · 04111-16221 · 04111-16230 · 04111-16231 · 04111-16240 · 04111-16241 · 04111-16281 · 04111-16282 · 04111-64200 · 04111-64201 · 04111-64290 · 04111-64291 · 04111-64293 · 04111-64294 · 04111-64295 · 04111-64296 |
| 04112 | Engine valve grinding pad assembly | 04112-02021 · 04112-02080 · 04112-11012 · 04112-11043 · 04112-11080 · 04112-11081 · 04112-11101 · 04112-11121 · 04112-11131 · 04112-16123 · 04112-16210 · 04112-16220 · 04112-16230 · 04112-16240 · 04112-16280 · 04112-16281 · 04112-64140 · 04112-64141 · 04112-64220 · 04112-64221 · 04112-64223 · 04112-64224 |
