Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

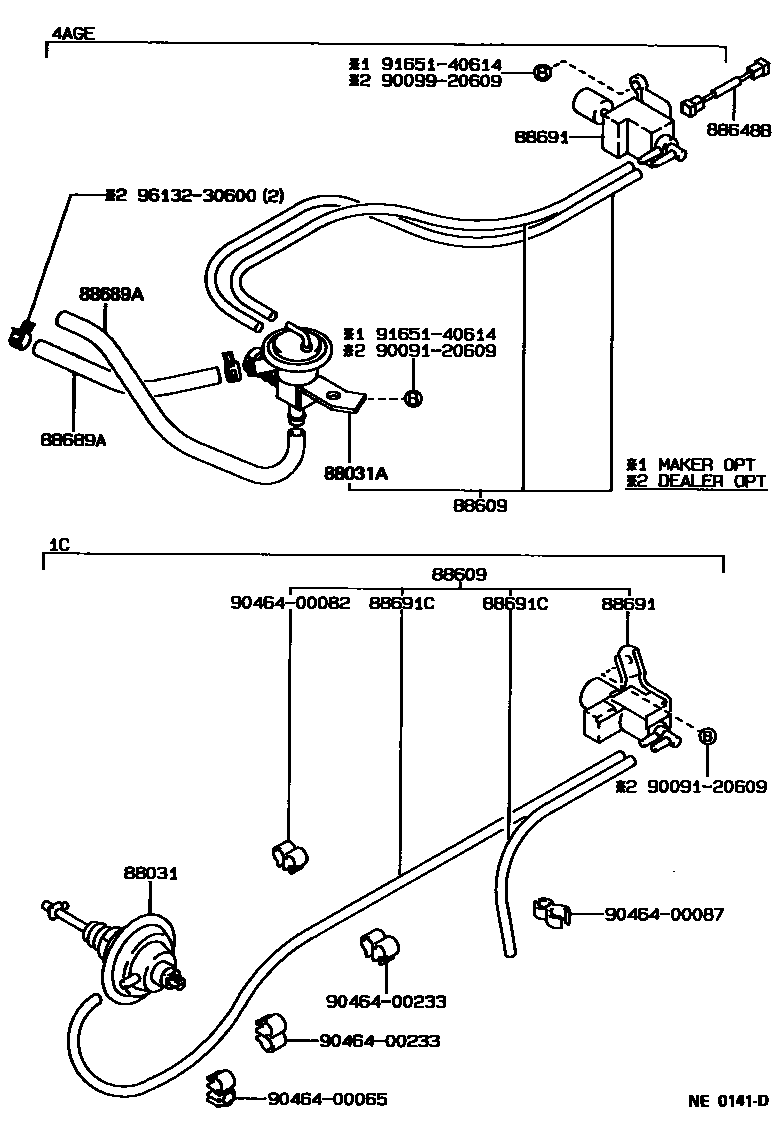

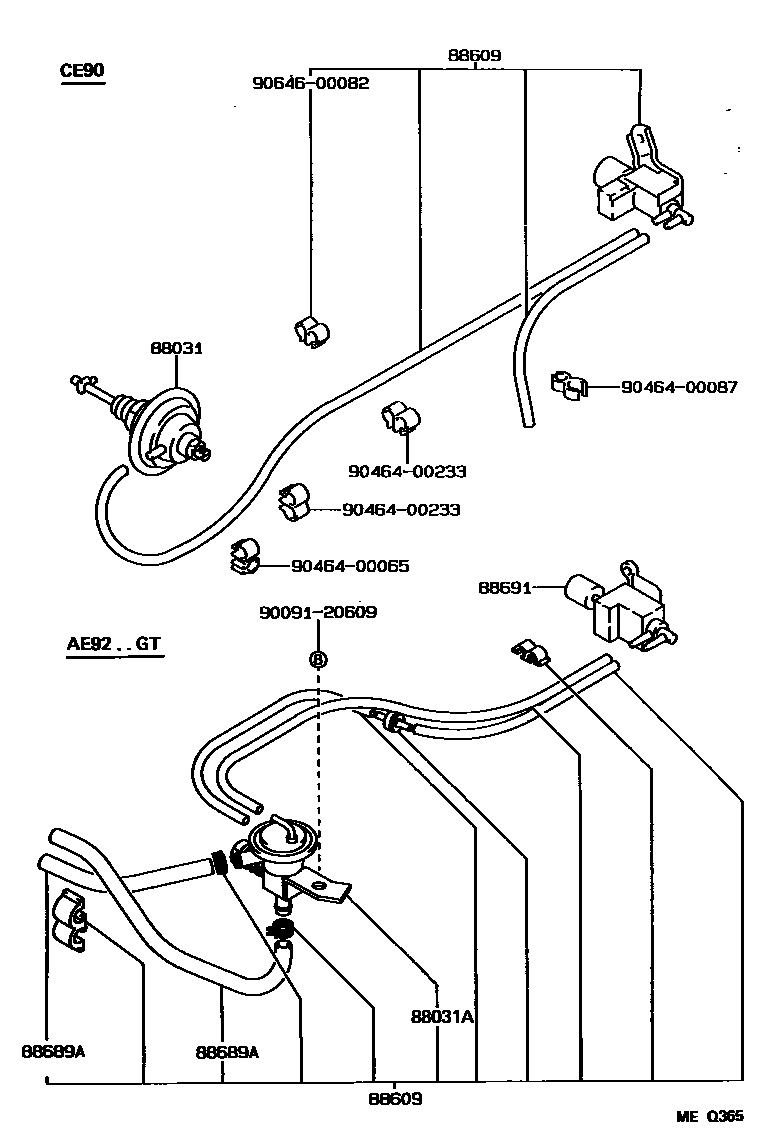

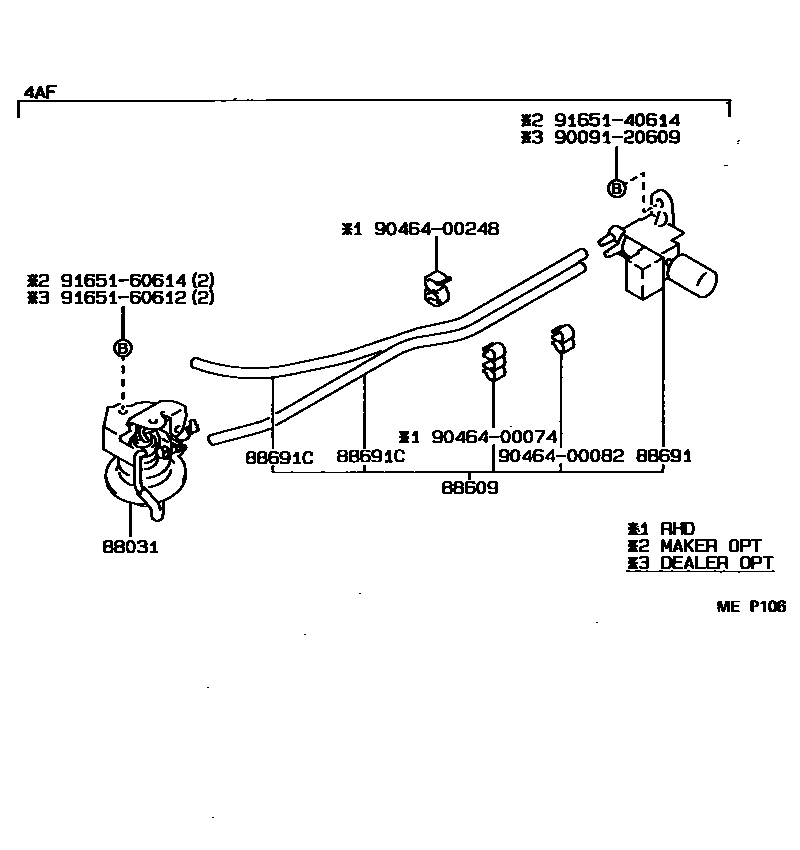

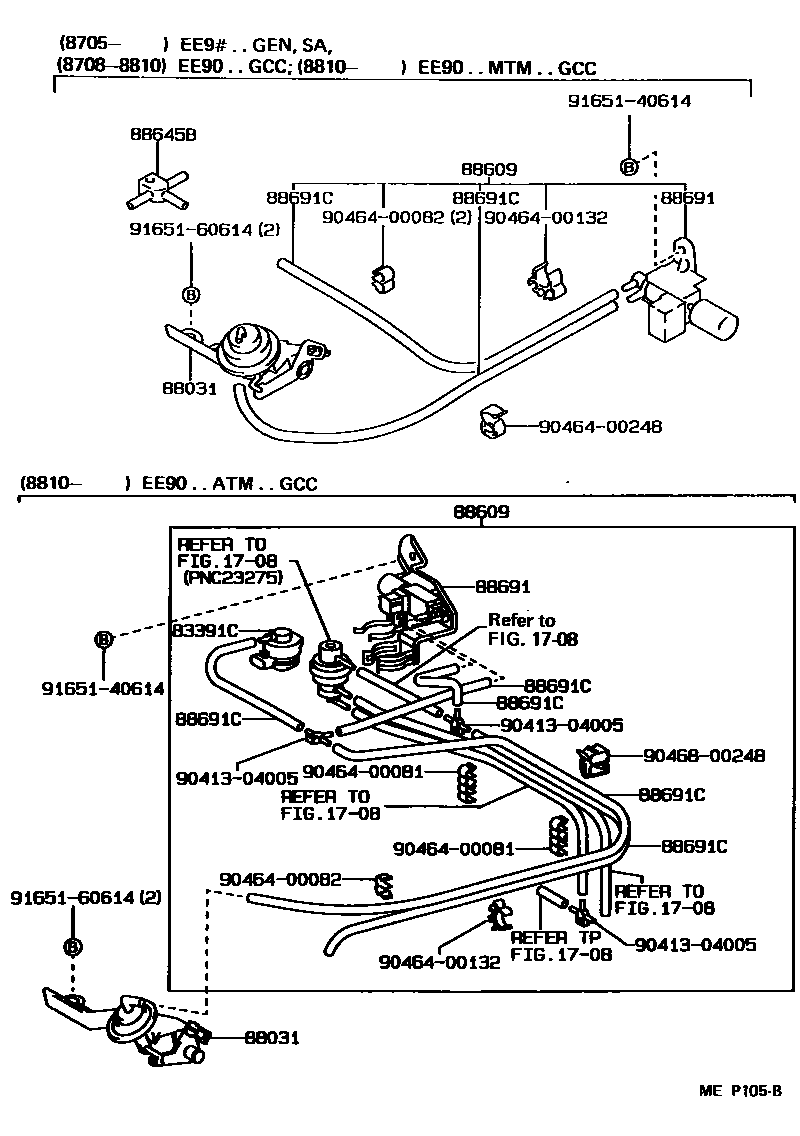

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83391C | Cooler vacuum switch | 83391-20060 |
| 88031 | Idle speed lift actuator assembly | 88031-10010 · 88031-12140 · 88031-12150 · 88031-20080 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-12020 · 88606-14020 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12420 · 88609-12430 · 88609-12440 · 88609-12450 · 88609-12470 · 88609-12490 · 88609-12511 · 88609-12550 · 88609-12551 · 88609-12580 · 88609-12590 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04005 |
| 88648B | No. 1 cooler wiring harness | 88648-12420 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-12180 · 88689-12210 · 88689-12220 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12430 · 88690-12530 · 88690-12740 · 88690-12760 · 88691-10010 · 88691-20040 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92002 · 90999-92003 · 90999-92004 · 95411-10030 · 95411-19926 |
