Toyota COROLLA 喇叭 — Figure 8611

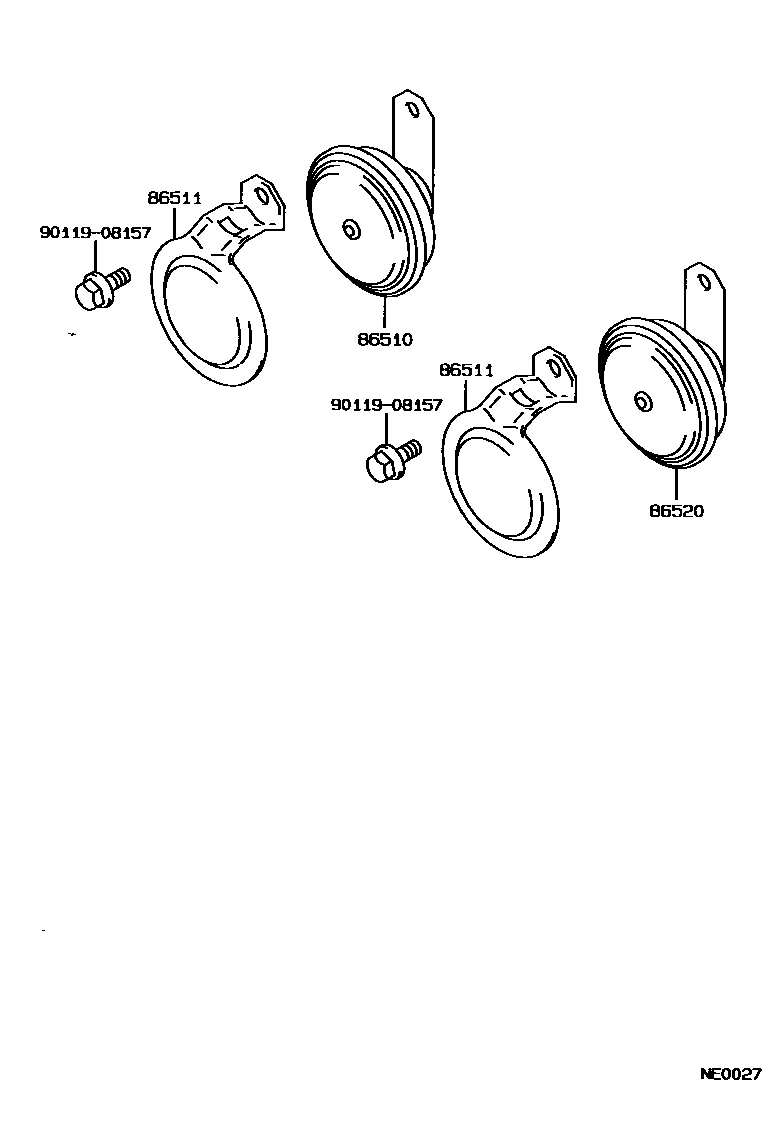

Toyota COROLLA EPC diagram 8611, 喇叭, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-12270 · 86510-12280 · 86510-12440 · 86510-12450 · 86510-12470 · 86510-12480 |
| 86511 | tweeter cover | 86511-12550 |
| 86520 | Subwoofer assembly | 86520-12220 · 86520-12640 · 86520-12660 · 86520-12670 · 86520-12680 |
