Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 2 PNC and OE references.

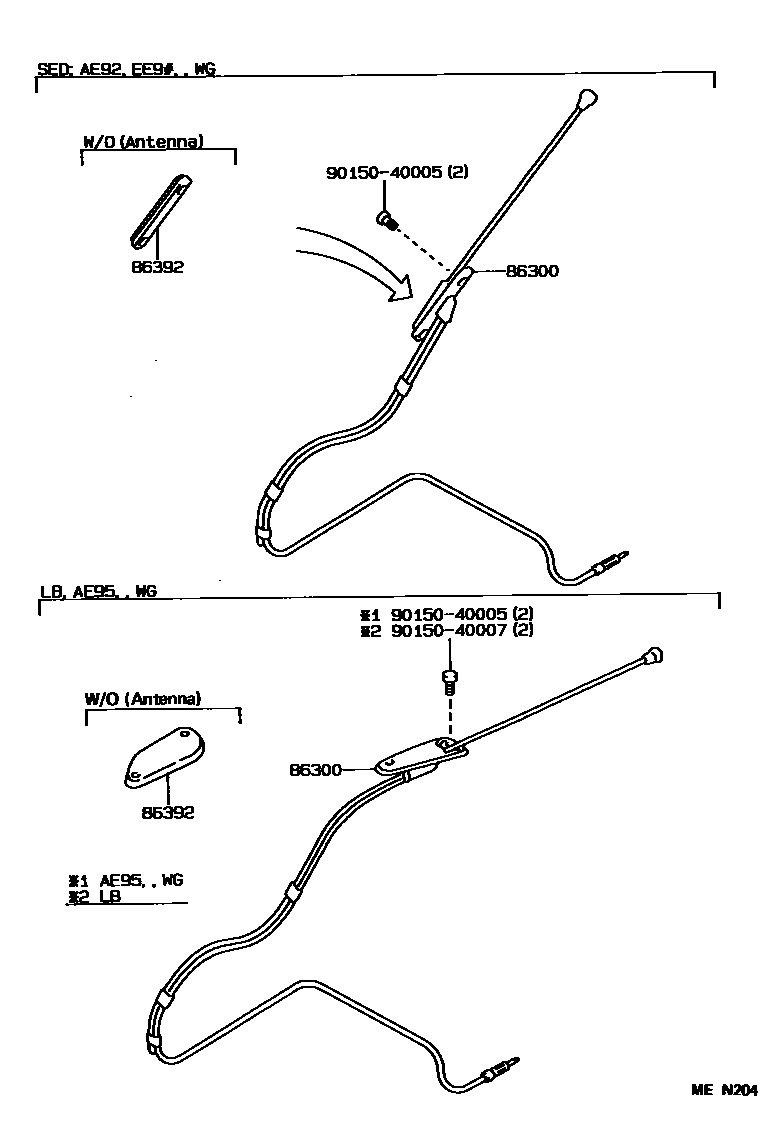

Toyota COROLLA antenna EPC diagram — MEN204
antenna — MEN204 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
86300Antenna assembly with fixing parts86300-12320 · 86300-12330 · 86300-12360 · 86300-12370 · 86300-12380 · 86300-12381
86392Antenna decorative parts86392-12090 · 86392-12120 · 86392-12130 · 86392-12140
