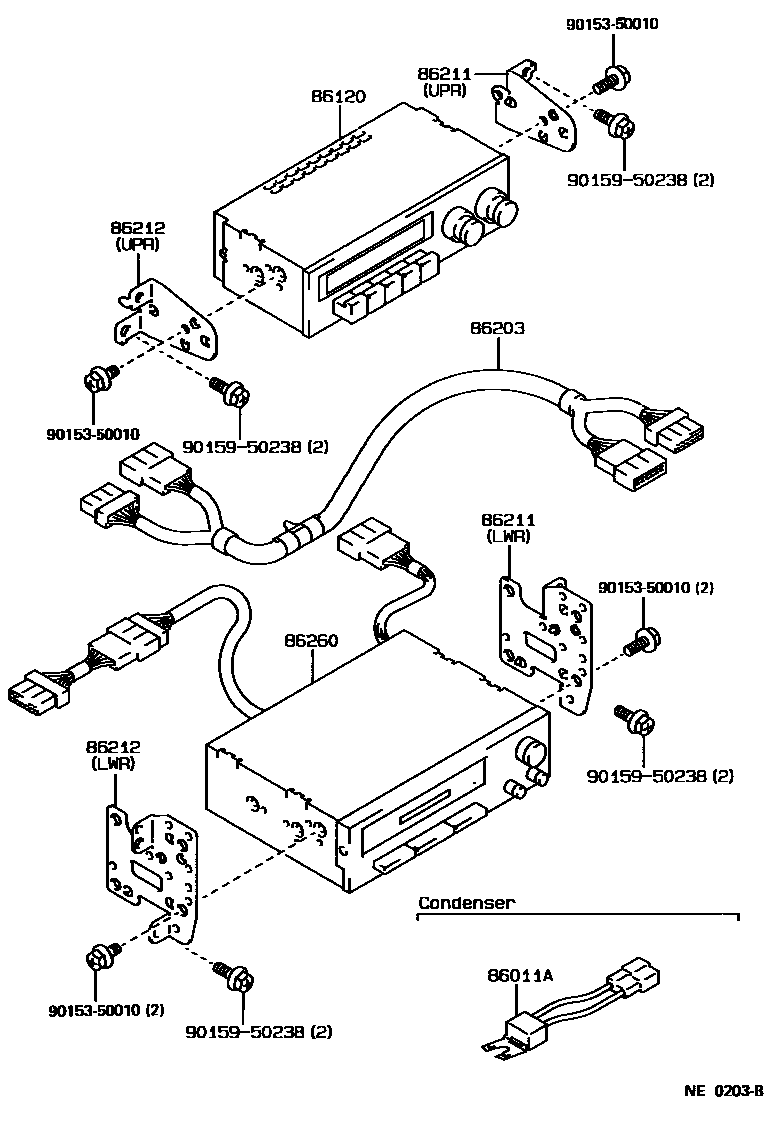

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04055 |
| 86120 | Radio assembly | 86120-12550 · 86120-12590 · 86120-12730 · 86120-16430 · 86120-16460 · 86120-16470 · 86120-20680 · 86120-2B400 · 86120-32390 |
| 86203 | radio wiring harness | 86203-12100 · 86203-12200 |
| 86211 | No. 1 radio bracket | 86211-12210 · 86211-12220 |
| 86212 | No. 2 radio bracket | 86212-12190 · 86212-12200 |
| 86260 | Tape player assembly | 86260-12160 · 86260-16140 |
