Toyota COROLLA 后组合灯 — Figure 8111

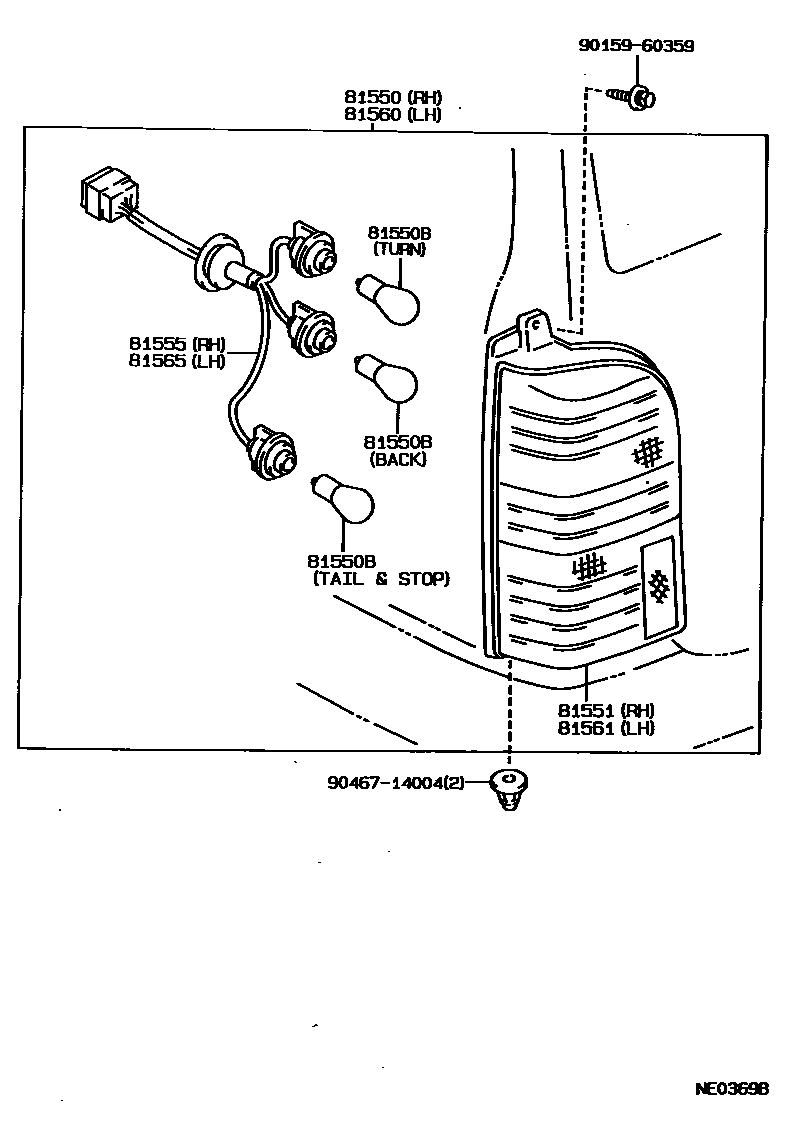

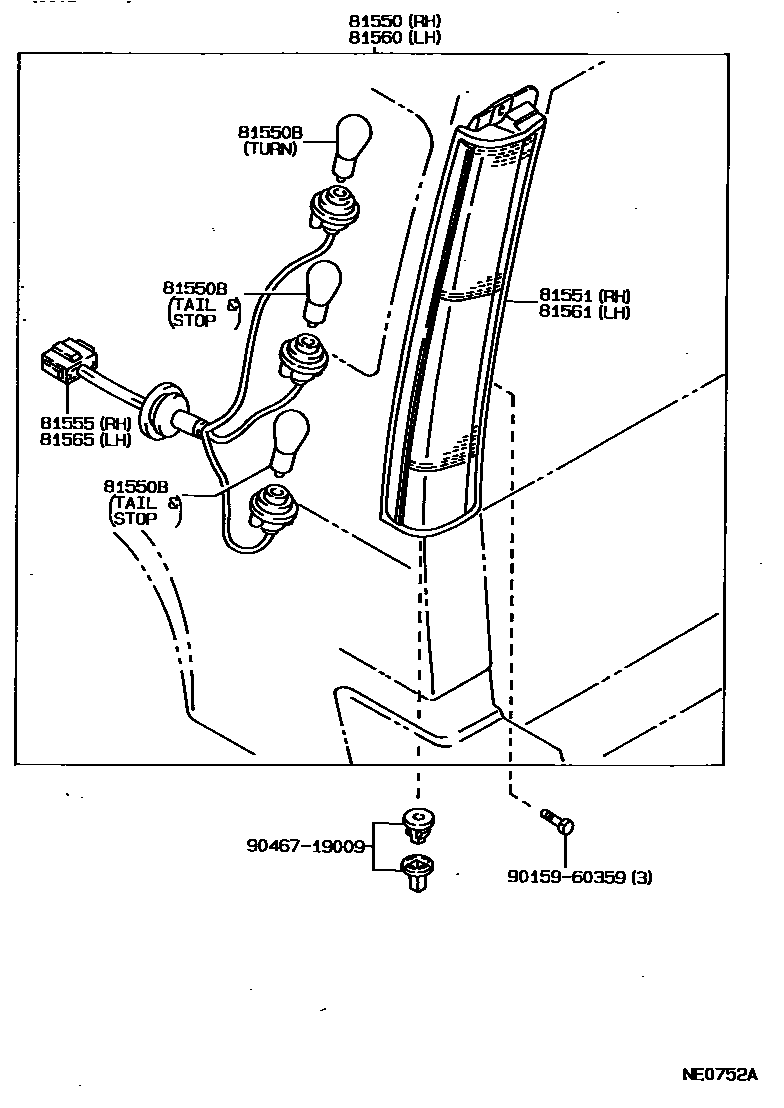

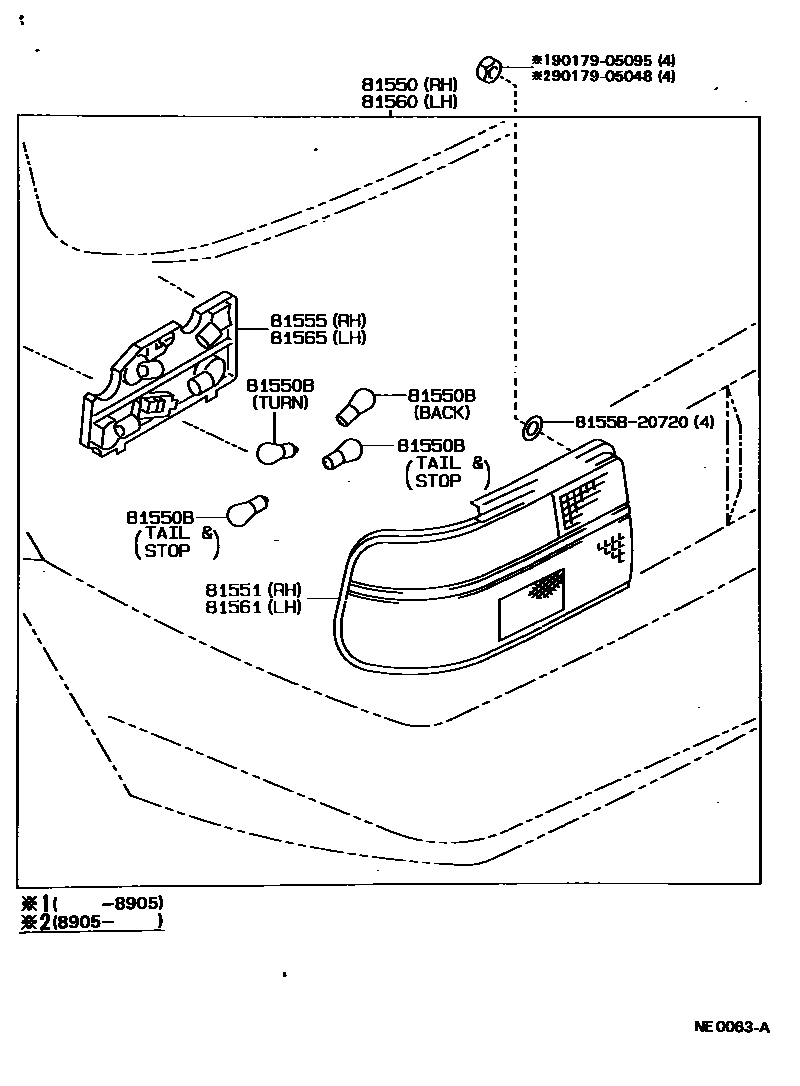

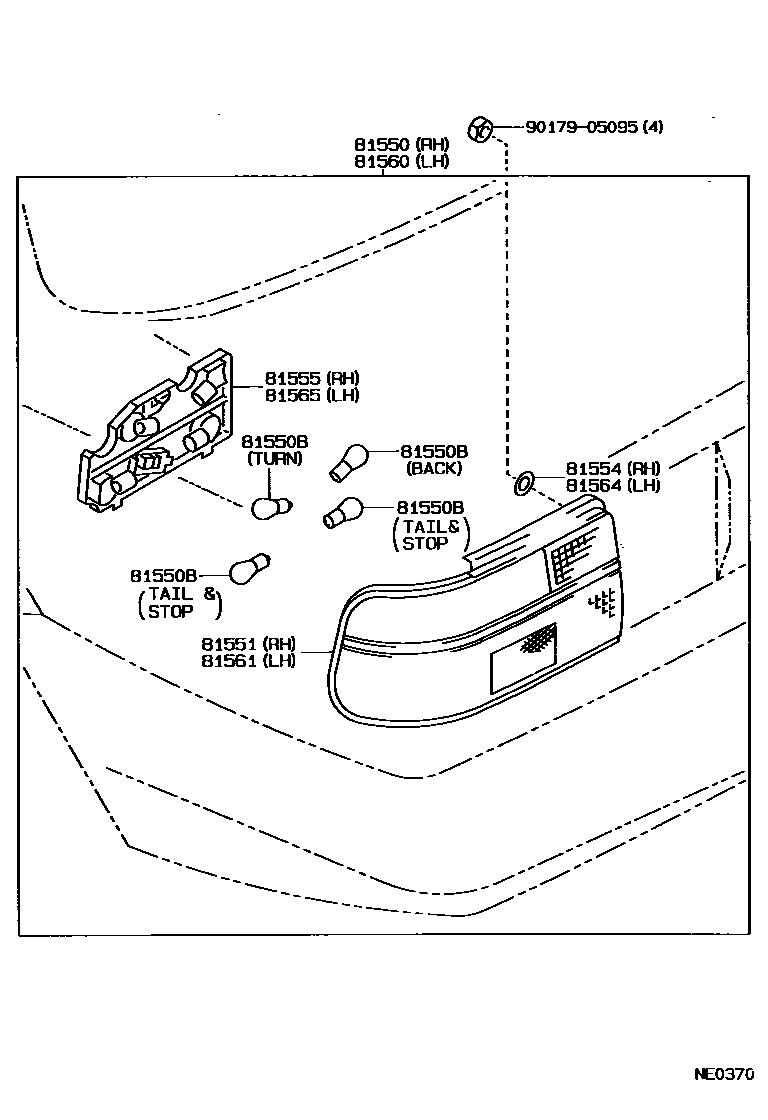

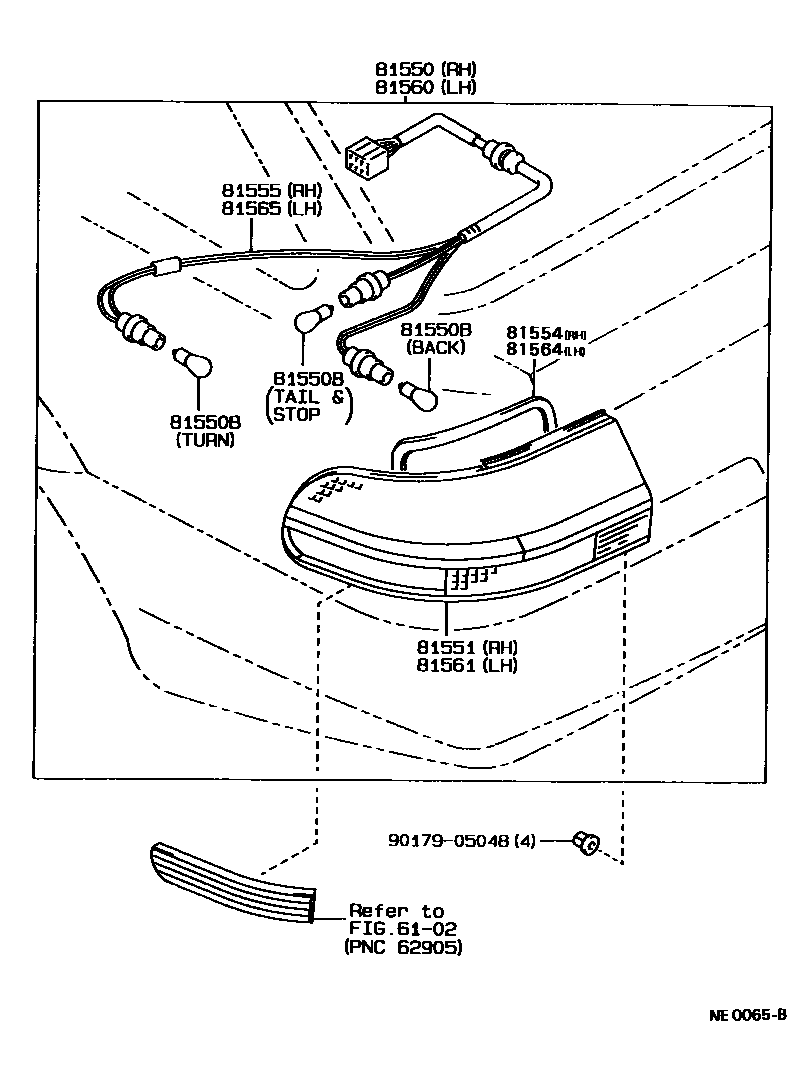

Toyota COROLLA EPC diagram 8111, 后组合灯, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-13300 · 81550-13301 · 81550-1A360 · 81550-1A410 · 81550-1A411 · 81550-1A420 · 81550-1A421 · 81550-1A450 · 81550-1A451 · 81550-1A480 · 81550-1A481 · 81550-1A580 · 81550-1A581 · 81550-1A620 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-11270 · 99132-21210 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-13300 · 81551-1A360 · 81551-1A410 · 81551-1A420 · 81551-1A450 · 81551-1A451 · 81551-1A480 · 81551-1A481 · 81551-1A580 · 81551-1A620 |
| 81554 | Right rear combination lamp body gasket | 81554-1A370 · 81554-1A411 · 81554-1A421 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13300 · 81555-1A360 · 81555-1A410 · 81555-1A450 · 81555-1A480 · 81555-1A580 · 81555-1A620 |
| 81560 | Left rear combination light assembly | 81560-12890 · 81560-13300 · 81560-13301 · 81560-1A370 · 81560-1A371 · 81560-1A380 · 81560-1A381 · 81560-1A410 · 81560-1A411 · 81560-1A420 · 81560-1A421 · 81560-1A450 · 81560-1A580 · 81560-1A581 |
| 81561 | Left rear combination lamp shade | 81561-12890 · 81561-13300 · 81561-1A370 · 81561-1A380 · 81561-1A410 · 81561-1A411 · 81561-1A420 · 81561-1A421 · 81561-1A450 · 81561-1A580 |
| 81564 | Left rear combination lamp body gasket | 81554-1A370 · 81554-1A411 · 81554-1A421 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13300 · 81555-1A450 · 81565-12890 · 81565-1A370 · 81565-1A410 · 81565-1A450 · 81565-1A580 |

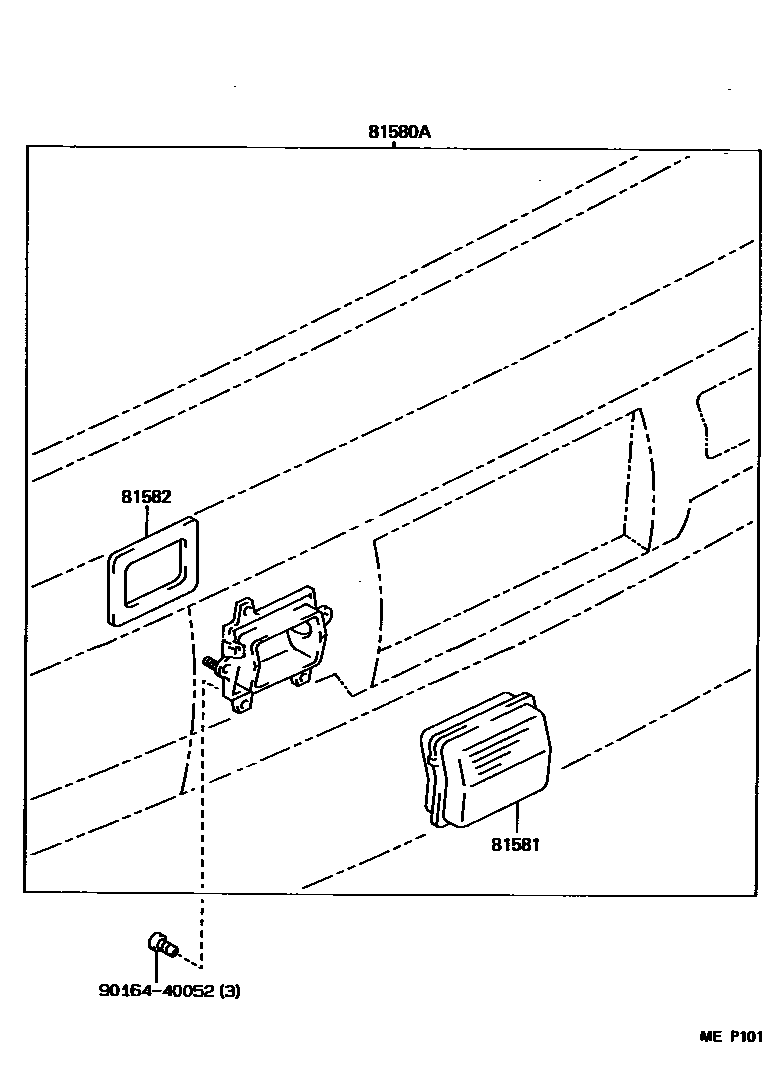

| 81580A | Rear light assembly | 81210-12050 · 81220-12030 |
| 81581 | rear light shade | 81211-12050 · 81221-12030 |
| 81582 | rear light gasket | 81212-12040 |
