Toyota COROLLA 前示宽灯 — Figure 8104

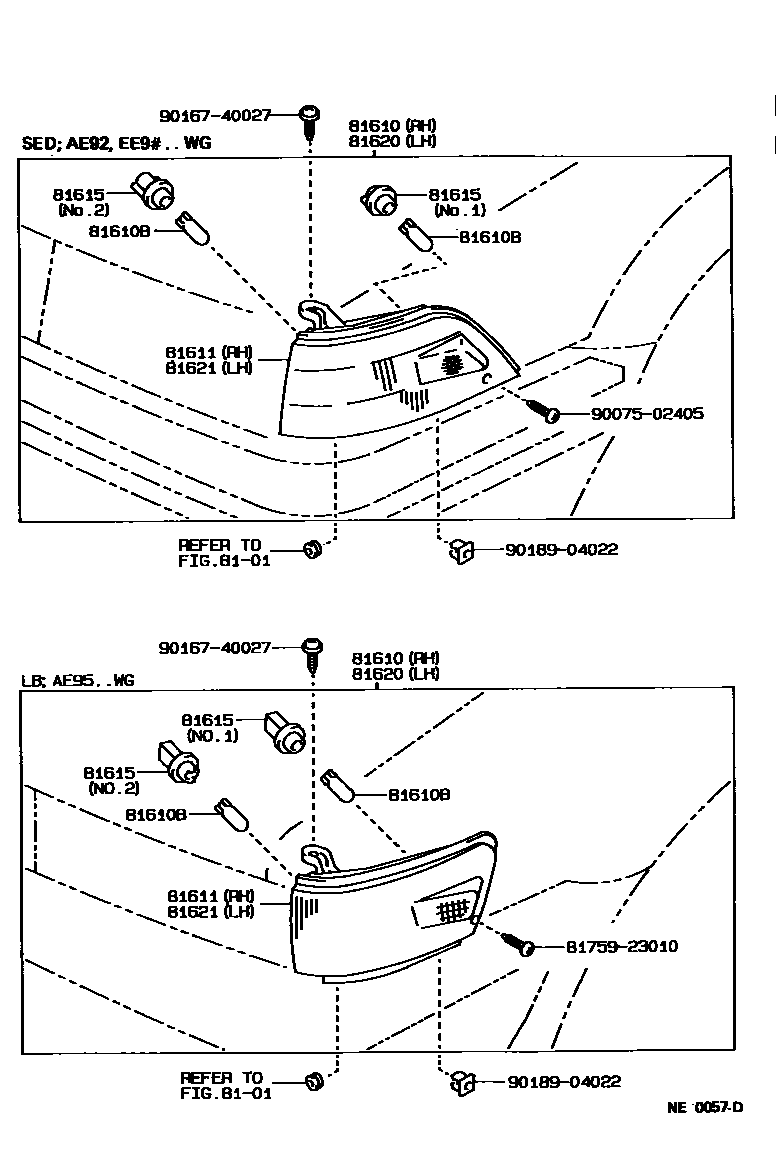

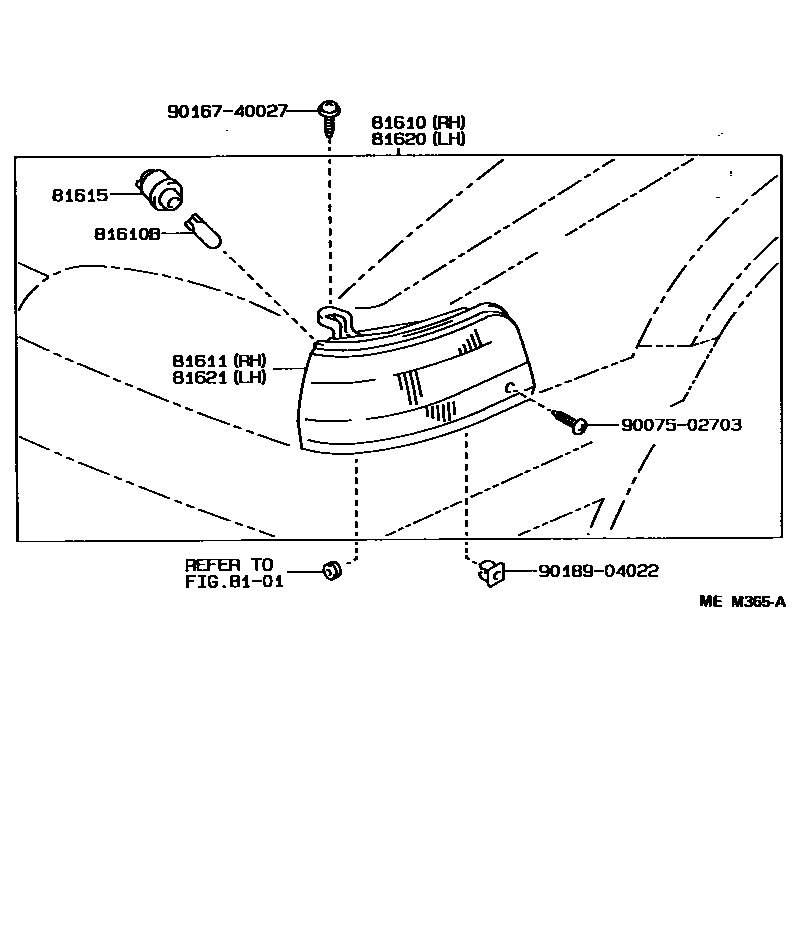

Toyota COROLLA EPC diagram 8104, 前示宽灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-12390 · 81610-12391 · 81610-12400 · 81610-12420 · 81610-12450 · 81610-12510 |
| 81610B | Bulbs (for parking lights and side lights) | 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-12390 · 81611-12391 · 81611-12400 · 81611-12420 · 81611-12450 · 81611-12510 |
| 81615 | Width light lamp holder and wiring harness | 81735-12180 · 90075-99006 · 90075-99007 |
| 81620 | Left parking light and width indicator light assembly | 81620-12390 · 81620-12391 · 81620-12400 · 81620-12420 · 81620-12450 · 81620-12510 |
| 81621 | Left parking light and width indicator light cover | 81621-12390 · 81621-12391 · 81621-12400 · 81621-12420 · 81621-12450 · 81621-12510 |
