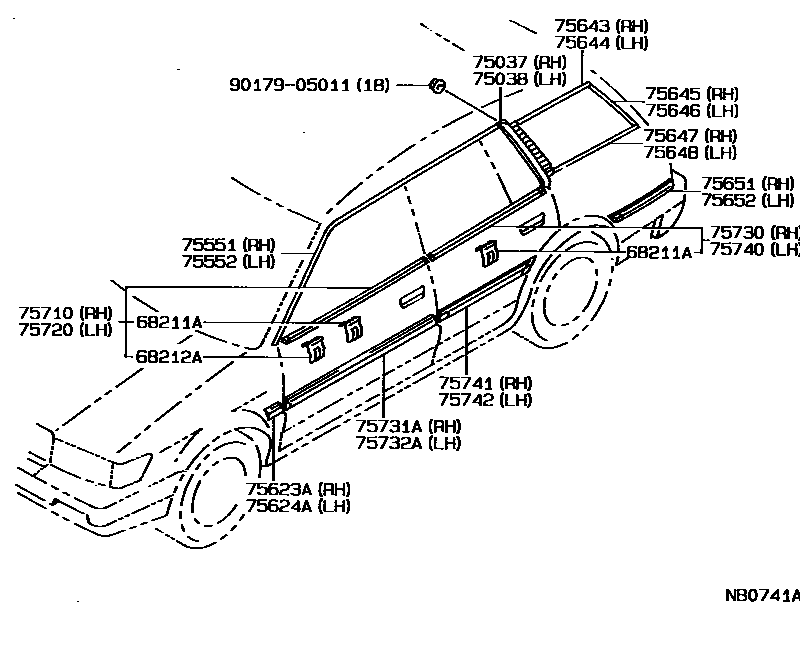

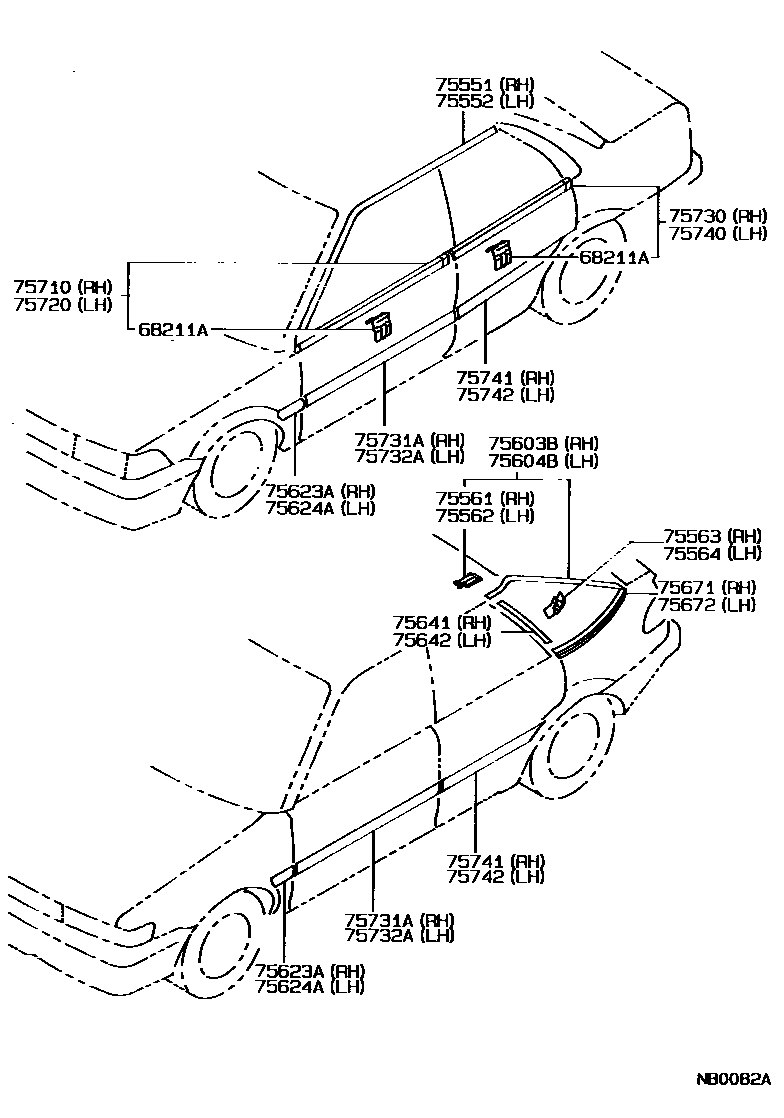

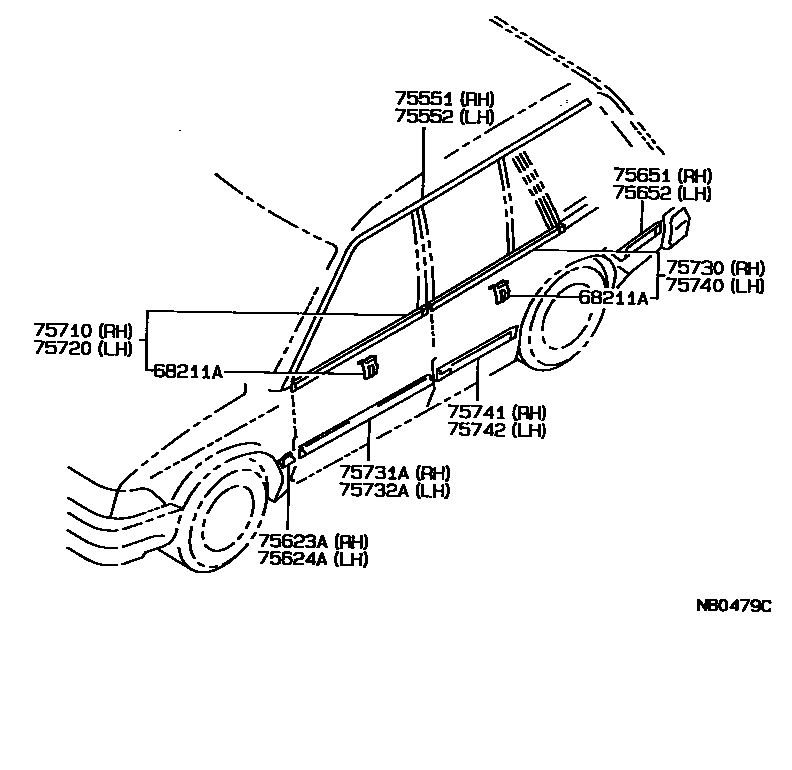

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68211A | Door belt line protection strip clip | 68211-12130 |
| 68212A | Car door glass outer seal strip clip | 68212-12010 |
| 75037 | Right side enclosure trim sub-assembly | 75037-12010 |
| 75038 | Left side enclosure trim sub-assembly | 75038-12010 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-12370 · 75551-12380 · 75551-12430 · 75551-12440 · 75551-12450 · 75551-13071 · 75551-13081 · 75551-13091 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-12370 · 75552-12380 · 75552-12430 · 75552-12440 · 75552-12450 · 75552-13071 · 75552-13081 · 75552-13091 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-12020 |
| 75562 | No. 2 roof drain channel side decorative strip clip | 75562-12020 |
| 75563 | No. 1 roof drain channel side decorative strip fixings | 75563-12040 |
| 75564 | No. 2 roof drain channel side decorative strip fixings | 75564-12020 |
| 75603B | Right corner window protection strip sub-assembly | 75603-12100 · 75603-12110 |
| 75604B | Left corner window protection strip sub-assembly | 75604-12040 · 75604-12050 |
| 75623A | Right front fender outer rear protective strip | 75623-12330 · 75623-12460 · 75623-12470 · 75623-12490 · 75623-12500 |
| 75624A | Left front fender outer rear protective strip | 75624-12330 · 75624-12460 · 75624-12470 · 75624-12490 · 75624-12500 |
| 75641 | Right front corner window outer protective strip | 75641-12130 |
| 75642 | Left front corner window protection strip | 75642-12130 |
| 75643 | Protective strip on the outside of the right corner window | 75643-12080 |
| 75644 | Protective strip on the outside of the left corner window | 75644-12080 |
| 75645 | Right rear corner window protection strip | 75645-12080 |
| 75646 | Left rear corner window protection strip | 75646-12080 |
| 75647 | Right corner window outer lower protective strip | 75647-12080 |
| 75648 | Left corner window outer lower protective strip | 75648-12080 |
| 75651 | Right side outer protective strip | 75651-13070 |
| 75652 | Left side outer protective strip | 75652-13060 |
| 75671 | Right corner window decorative strip | 75671-12130 · 75671-12140 |
| 75672 | Left corner window decorative strip | 75672-12140 · 75672-12150 |
| 75710 | Right front door waistline protection strip assembly | 75710-12400 · 75710-12410 |
| 75720 | Left front door waistline protection strip assembly | 75720-12400 · 75720-12410 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12070 · 75730-12080 · 75730-12100 · 75730-12101 · 75730-12110 · 75730-12111 · 75730-12130 · 75730-13020 |
| 75731A | Right front door outer protective strip | 75731-12860 · 75731-12870 · 75731-12890 · 75731-1A030 · 75731-1A180 |
| 75732A | Left front door outer protective strip | 75732-12700 · 75732-12710 · 75732-12730 · 75732-12760 · 75732-1A020 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12160 · 75740-12170 · 75740-12190 · 75740-12191 · 75740-12200 · 75740-12201 · 75740-12220 · 75740-13020 |
| 75741 | Right rear door outer protective strip | 75741-12490 · 75741-12630 · 75741-12640 · 75741-12660 · 75741-12670 |
| 75742 | Left rear door outer protective strip | 75742-12610 · 75742-12620 · 75742-12640 · 75742-12650 · 75742-12760 |
