Toyota COROLLA 前防护条 — Figure 7502

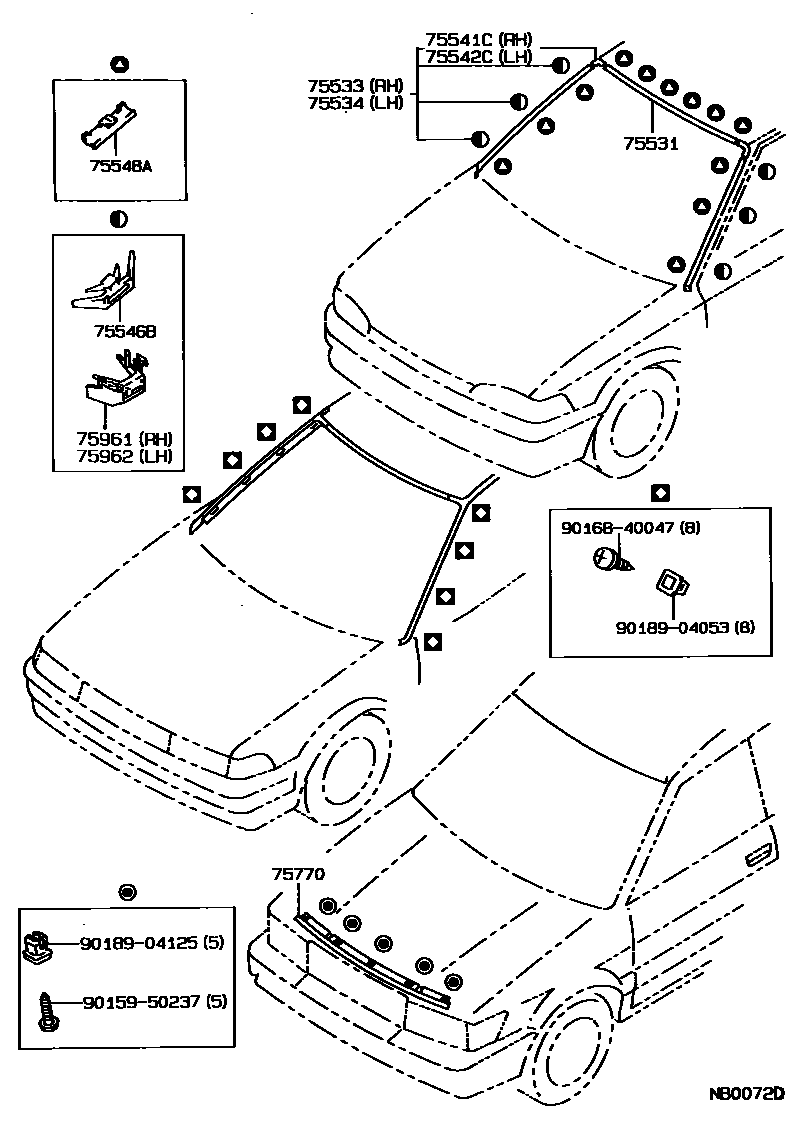

Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-12290 · 75531-12300 · 75531-12310 · 75531-12320 |
| 75533 | Windshield right outer protective strip | 75533-12290 · 75533-12291 · 75533-12300 · 75533-12301 · 75533-12320 · 75533-12370 |
| 75534 | Windshield left outer protective strip | 75534-12220 · 75534-12221 · 75534-12230 · 75534-12231 · 75534-12250 · 75534-12300 |
| 75541C | Windshield upper right protective strip joint cover | 75541-12160 · 75541-12170 |
| 75542C | Windshield upper left protective strip joint cover | 75542-12130 · 75542-12140 |
| 75546B | No. 2 windshield outer protective strip clip | 75546-12060 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-16030 |
| 75770 | Engine cover front protective strip assembly | 75770-12170 |
| 75961 | No. 4 windshield outer protective strip clip | 75961-12010 |
| 75962 | No. 5 windshield outer protective strip clip | 75962-12010 |
