Toyota COROLLA 扶手和遮阳板 — Figure 7401

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 2 PNC and OE references.

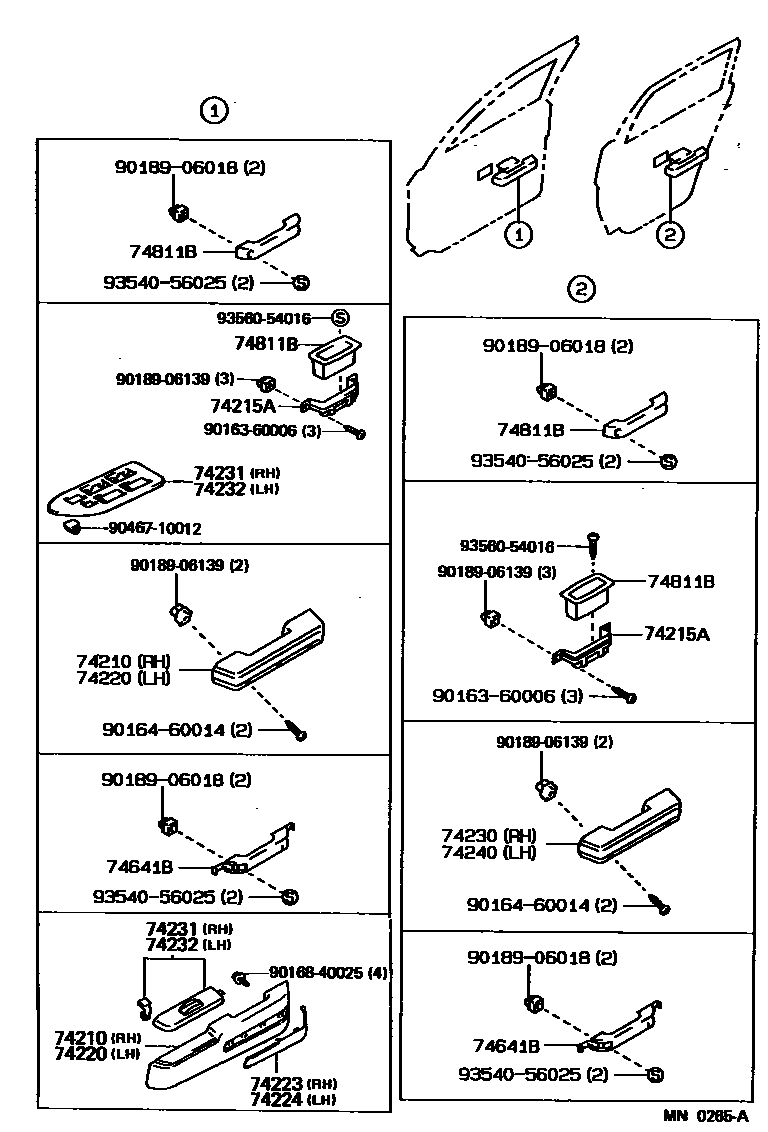

Toyota COROLLA 扶手和遮阳板 EPC diagram — MN0265A — 扶手和遮阳板 — MN0265A (198908 – 999999)

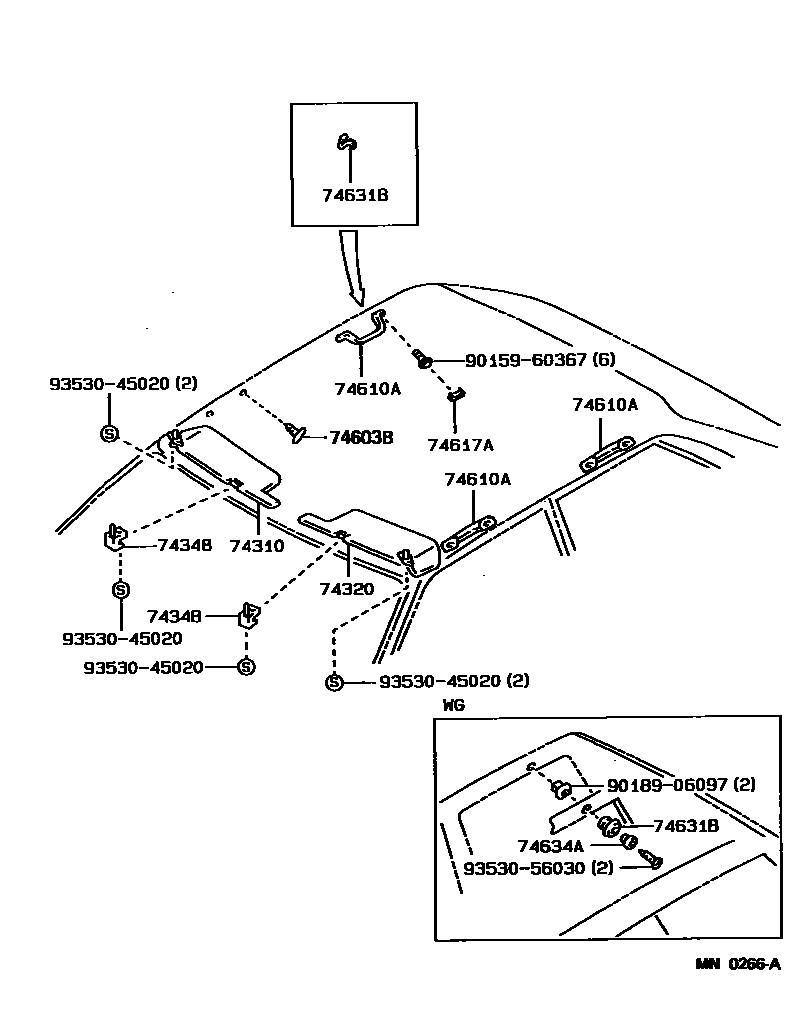

Toyota COROLLA 扶手和遮阳板 EPC diagram — MN0266A — 扶手和遮阳板 — MN0266A (198705 – 999999)

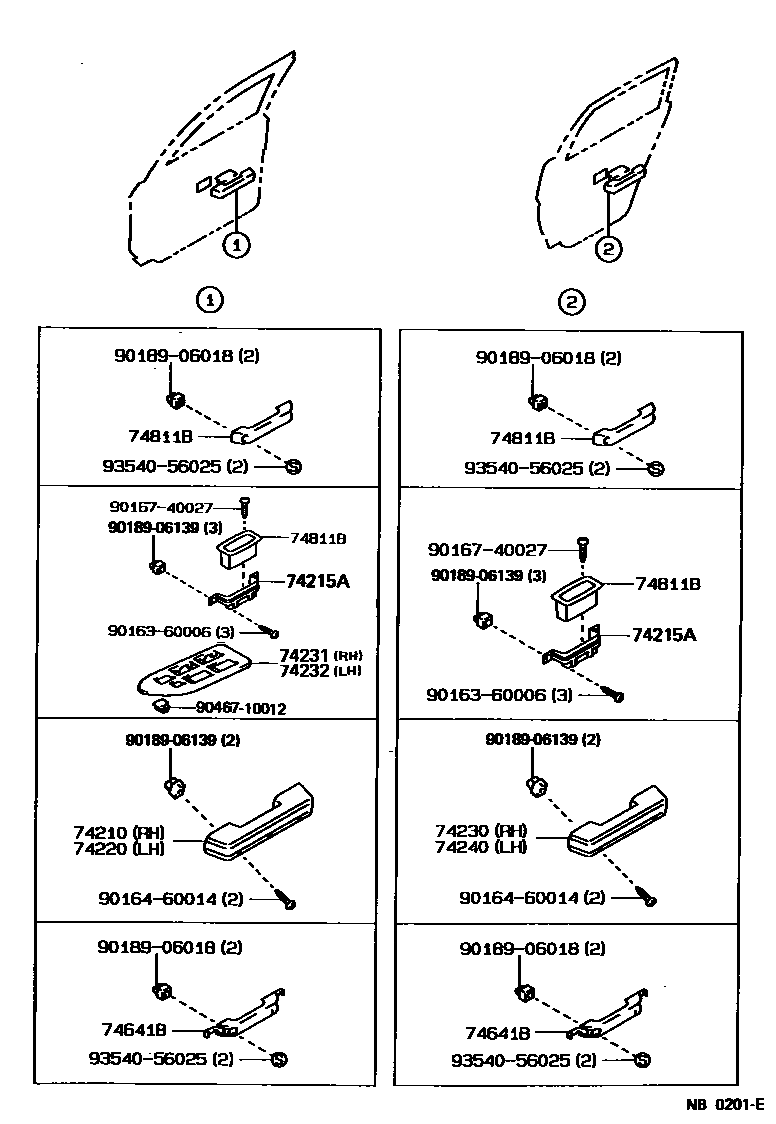

Toyota COROLLA 扶手和遮阳板 EPC diagram — NB0201E — 扶手和遮阳板 — NB0201E (198705 – 198908)

PNC and OE references

PNC	Part name	OE numbers
74215A	Right door armrest seat	74215-12020 · 74215-12040
74634A	Coat hook collar	74634-12010
