Toyota COROLLA 锁芯组件 — Figure 6712

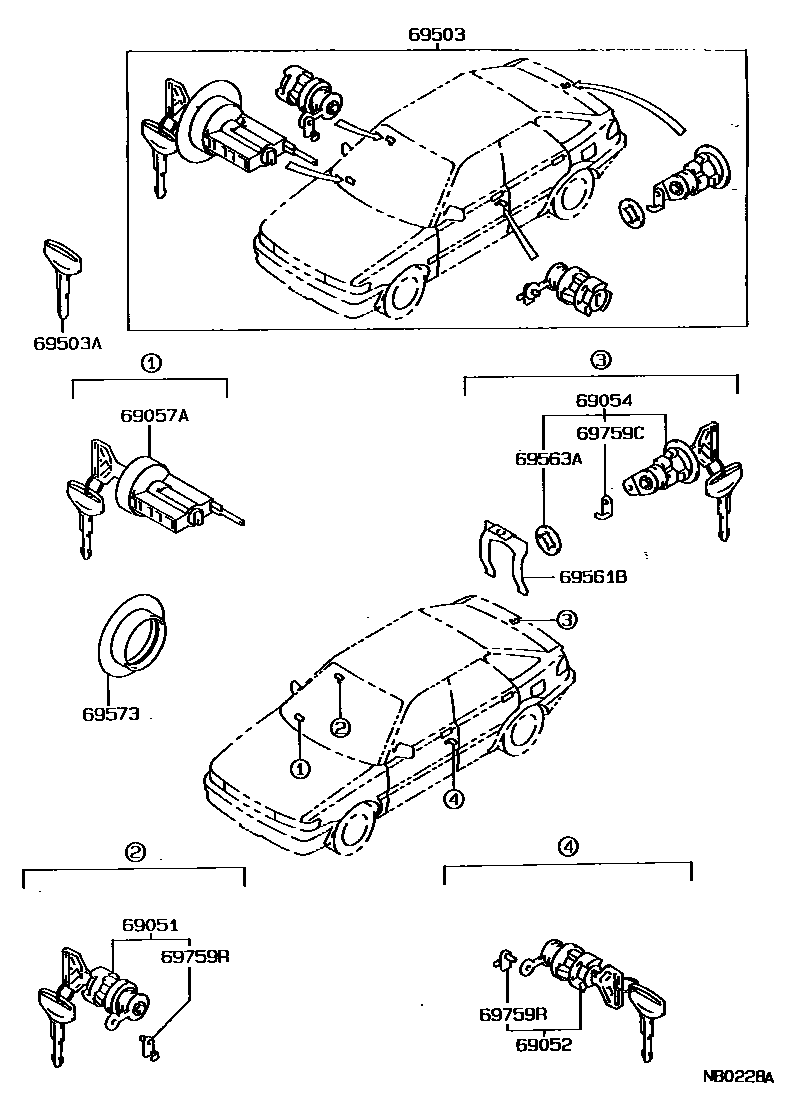

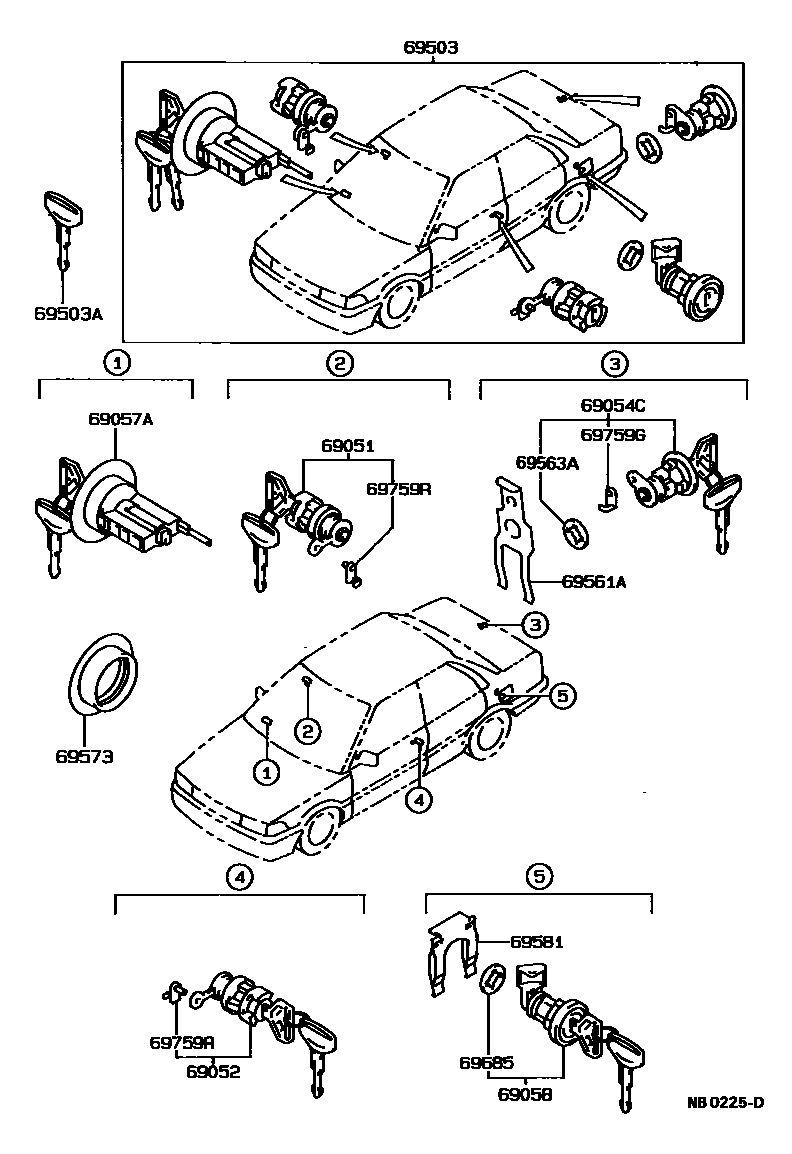

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12200 · 69051-12220 · 69051-13090 |
| 69052 | Left door lock cylinder and key assembly | 69052-12200 · 69052-12220 · 69052-13090 |
| 69054 | Rear door lock cylinder and key assembly | 69055-12460 · 69055-12540 · 69055-13100 |
| 69054C | Luggage lock cylinder and key assembly | 69055-12400 · 69055-12410 · 69055-12430 · 69055-12450 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12090 · 69057-12110 · 69057-13060 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-12120 · 69058-12130 · 69058-13080 |
| 69503 | Door lock cylinder components | 69005-12740 · 69005-12760 · 69005-12780 · 69005-12790 · 69005-12810 · 69005-13140 · 69005-13170 · 69005-1A160 · 69005-1A220 |
| 69503A | external tooth key | 90999-00112 · 90999-00130 · 90999-00131 · 90999-00132 · 90999-00133 · 90999-00134 · 90999-00135 · 90999-00137 · 90999-00138 |
| 69555 | key cover | 69555-20010 |
| 69561A | Luggage lock core fixing parts | 69561-12170 |
| 69561B | Rear door lock cylinder fixing parts | 69511-32010 |
| 69563 | Rear door lock cylinder gasket | 69563-12040 |
| 69563A | Trunk door lock cylinder lining | 69563-12050 · 69563-32010 · 69563-32020 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12010 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69502-12010 · 69511-32010 · 69581-12020 |
| 69685 | Lock cylinder liner | 69513-12020 · 69513-13010 · 69513-32010 |
| 69759C | Back door lock cylinder buckle | 69759-20080 · 69759-20090 |
| 69759G | Trunk door lock core buckle | 69759-20090 · 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-30040 · 69759-30050 |
