Toyota COROLLA 背门板和背门玻璃 — Figure 6708

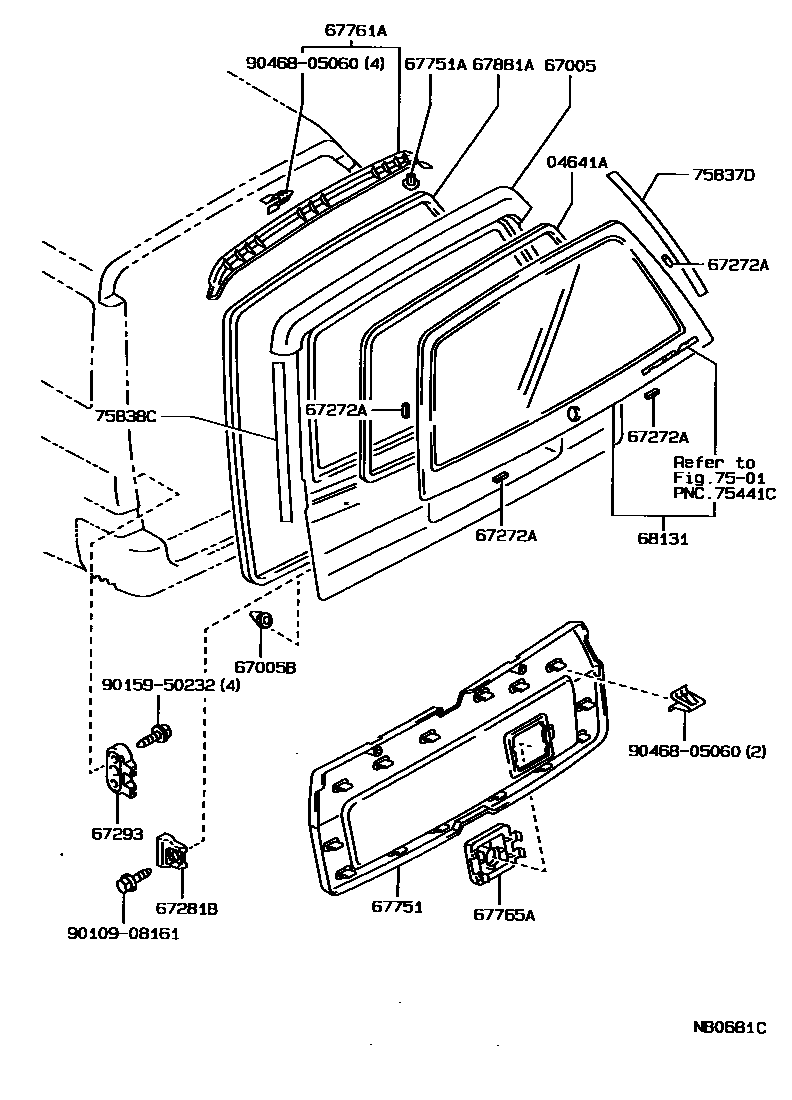

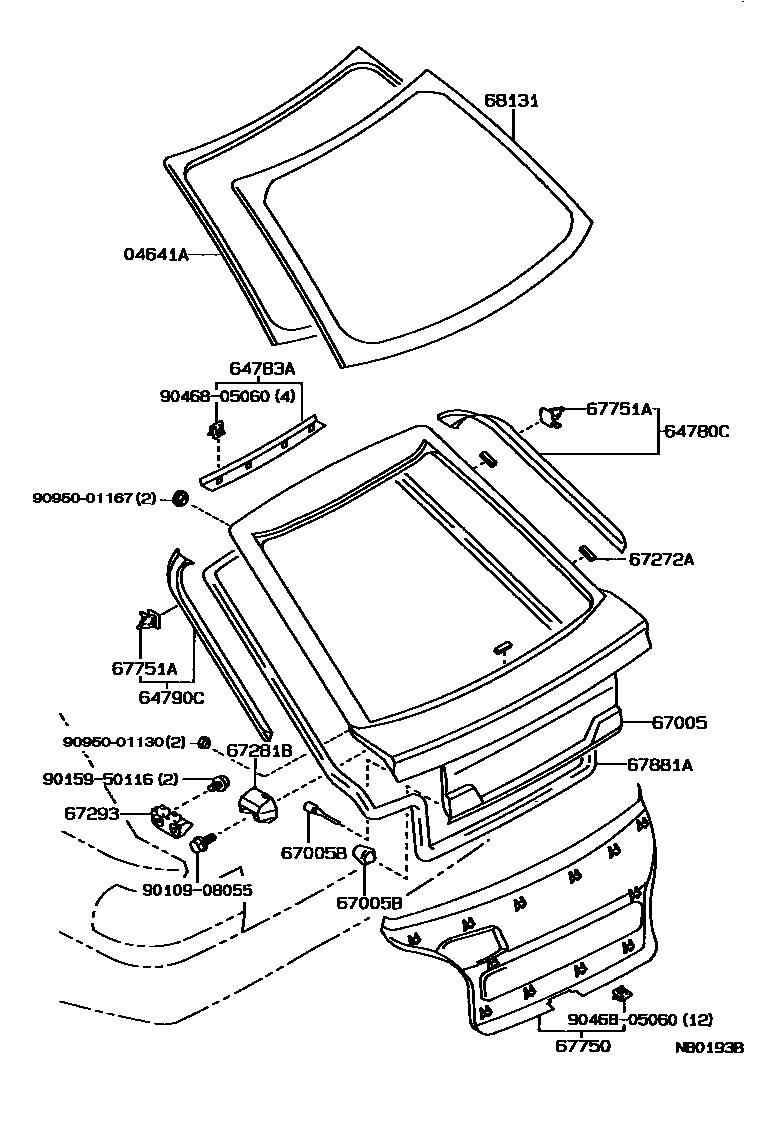

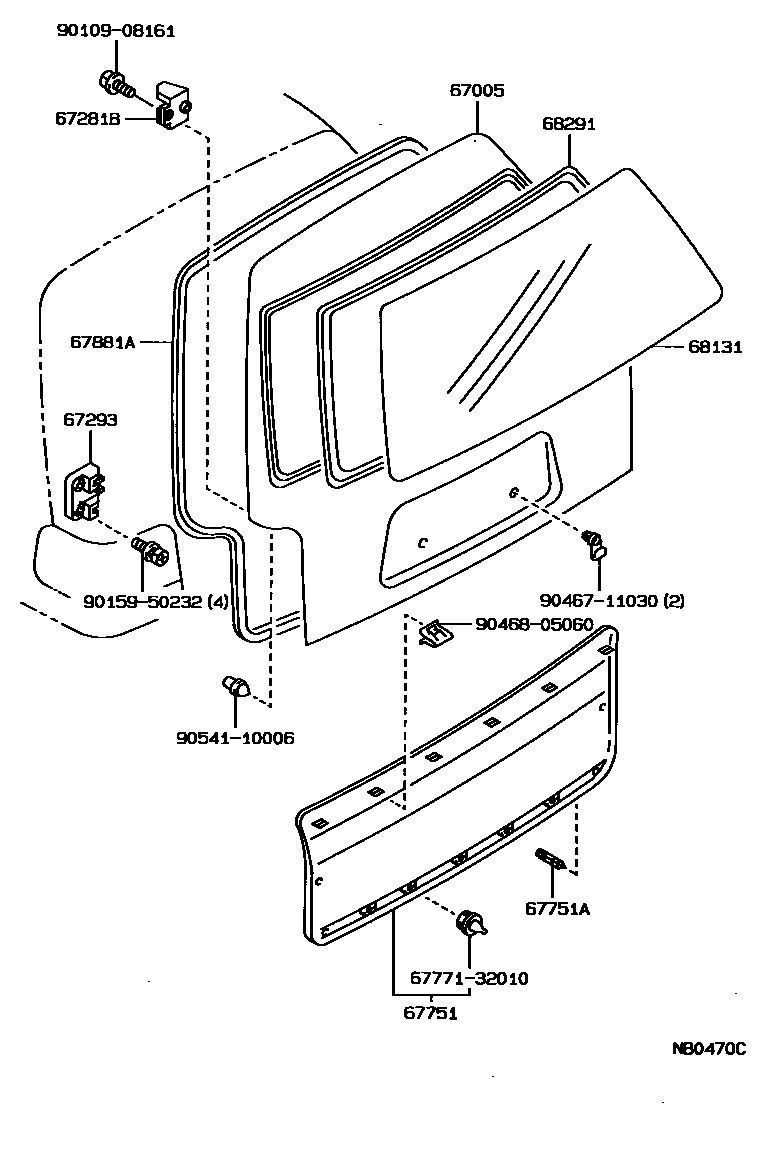

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 04562-12010 · 04562-12020 |
| 67005 | Rear door panel sub-assembly | 67005-13660 · 67005-13730 · 67005-13780 · 67005-13790 · 67005-13840 · 67005-13850 · 67005-13860 · 67005-13870 · 67005-13880 · 67005-1A250 · 67005-1A260 · 67005-1A270 · 67005-1A280 · 67005-1A290 · 67005-1A300 · 67005-1A450 · 67005-1A460 · 67005-1A470 · 67005-1A480 · 67005-1A540 · 67005-1A550 · 67005-1A590 · 67005-1A600 · 67005-1F010 · 67005-1F020 · 67005-1F030 |
| 67005B | Cushion pad (for back door panel) | 64459-12010 · 90541-09041 · 90541-20002 |
| 67272A | No. 2 rear door stop buffer pad | 67272-12010 · 67272-12030 |
| 67281B | Back door lower block | 67281-12040 · 67281-13050 · 67283-12010 · 67284-12010 |
| 67293 | Back door lower block cushion | 67293-12030 · 67293-13010 · 67293-20020 |
| 67751A | Clip (for rear door trim panel) | 90467-10084 |
| 67881A | Back door seal | 67881-12180 · 67881-12220 · 67881-13100 · 67881-13110 · 67881-13140 · 67881-13160 |
| 68131 | back door glass | 68131-12460 · 68131-12470 · 68131-12510 · 68131-12520 · 68131-12840 · 68131-12860 · 68131-12870 · 68131-12890 · 68131-13170 · 68131-13190 · 68131-13210 · 68131-1A190 · 68131-1A200 |
| 68291 | Rear door glass seal strip | 68291-13101 |
| 75837D | Decorative cover on the right side of the rear door | 75837-12050 |
| 75838C | Decorative cover on the left side of the rear door | 75837-12050 |
