Toyota COROLLA 底板和底板装饰罩 — Figure 6404

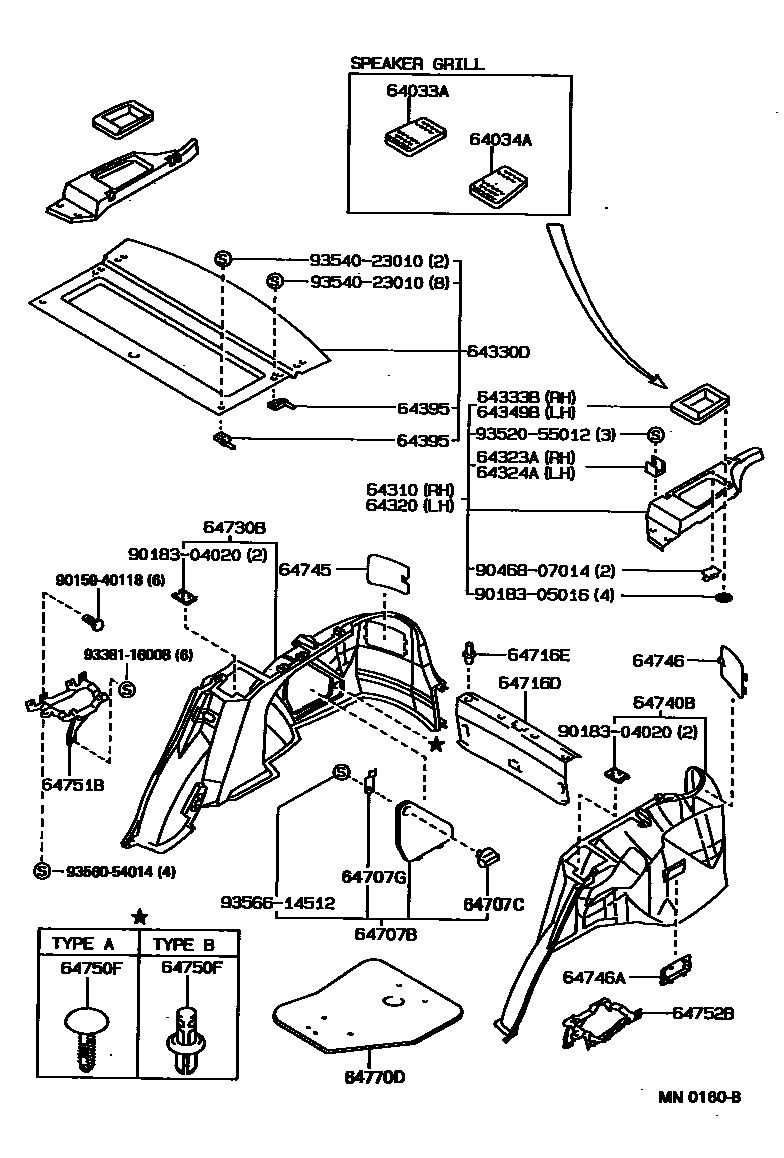

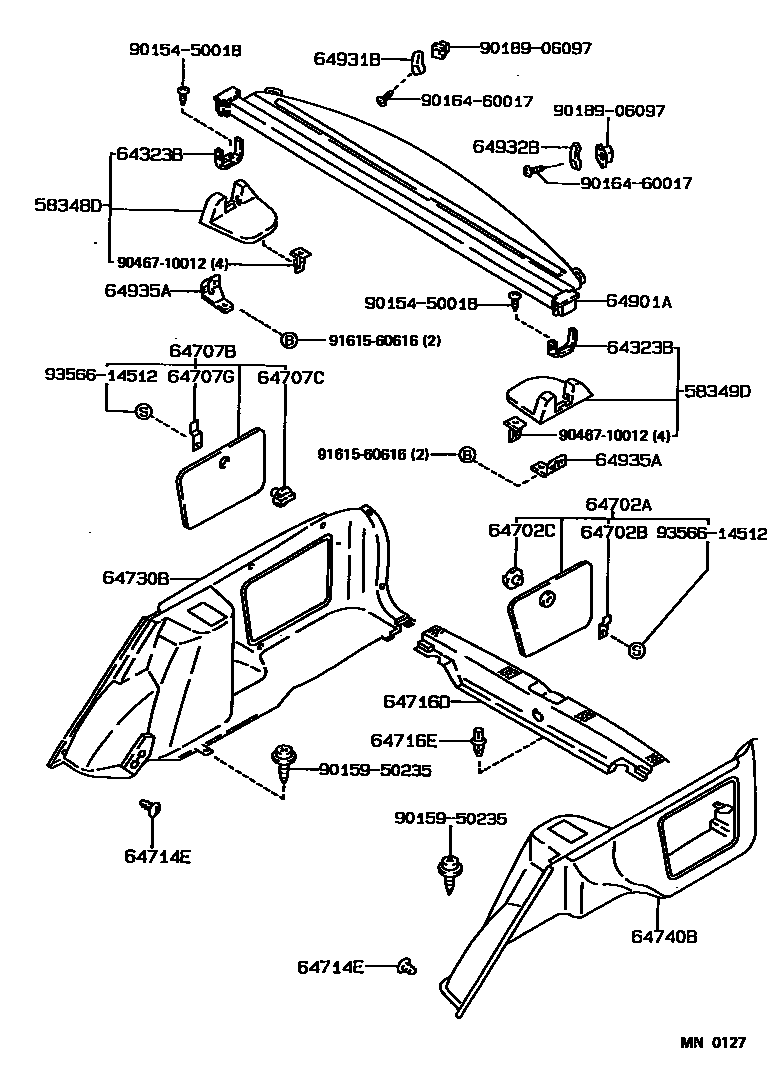

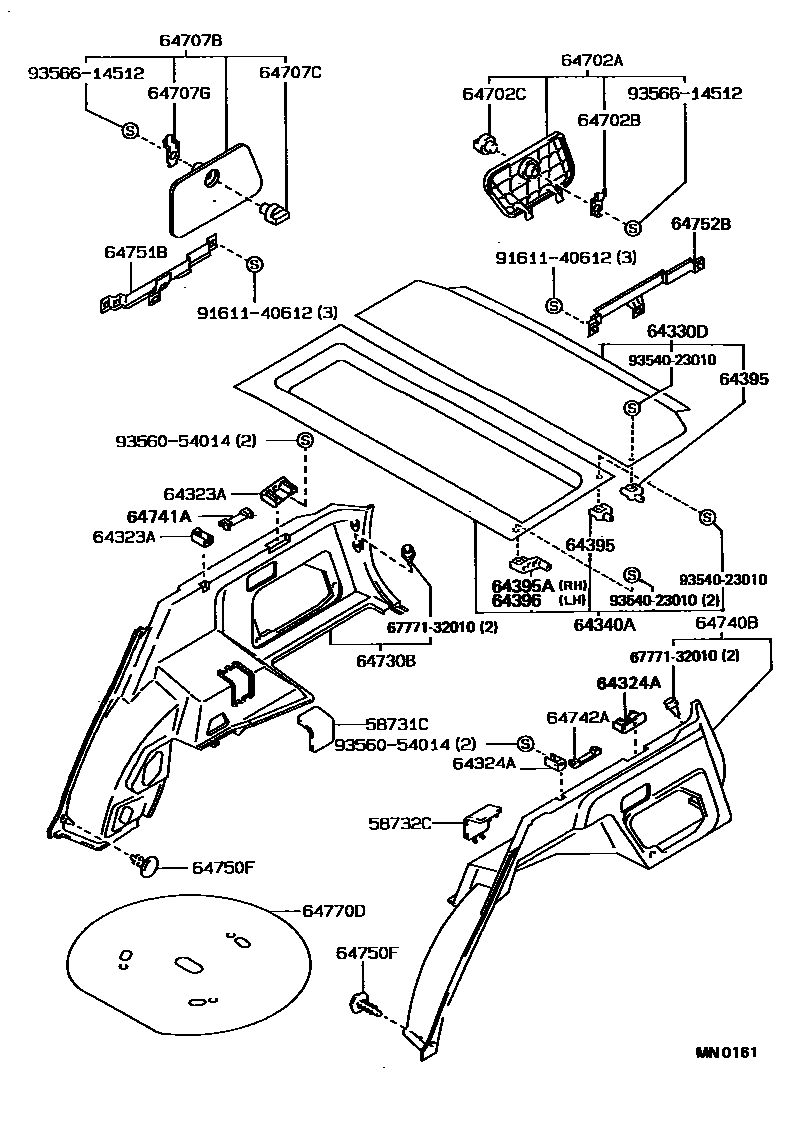

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64323A | Glove box decorative panel right clip | 64323-12020 · 64323-12030 · 64323-12040 |
| 64324A | Glove box decorative panel left clip | 64323-12030 · 64323-12040 · 64324-12010 |
| 64395 | Glove box trim panel hinge pin | 64395-12050 · 64395-12060 · 64395-12070 · 64395-12110 |
| 64395A | Glove box trim panel right hinge pin | 64395-12090 |
| 64396 | Glove box trim panel left hinge pin | 64396-12030 |
| 64702B | Washer water tank cover stopper | 64981-13010 · 64981-16021 |
| 64707G | Jack cover stop | 64981-13010 · 64981-16021 |
| 64751B | No. 1 right speaker fixing bracket | 64751-12010 · 64751-12030 |
| 64752B | No. 1 left speaker fixing bracket | 64752-12010 · 64752-12030 |
| 64770D | Spare tire cover assembly | 64770-12110 · 64770-16080 |
| 64935A | Trunk cover holder | 64935-13020 |
