Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

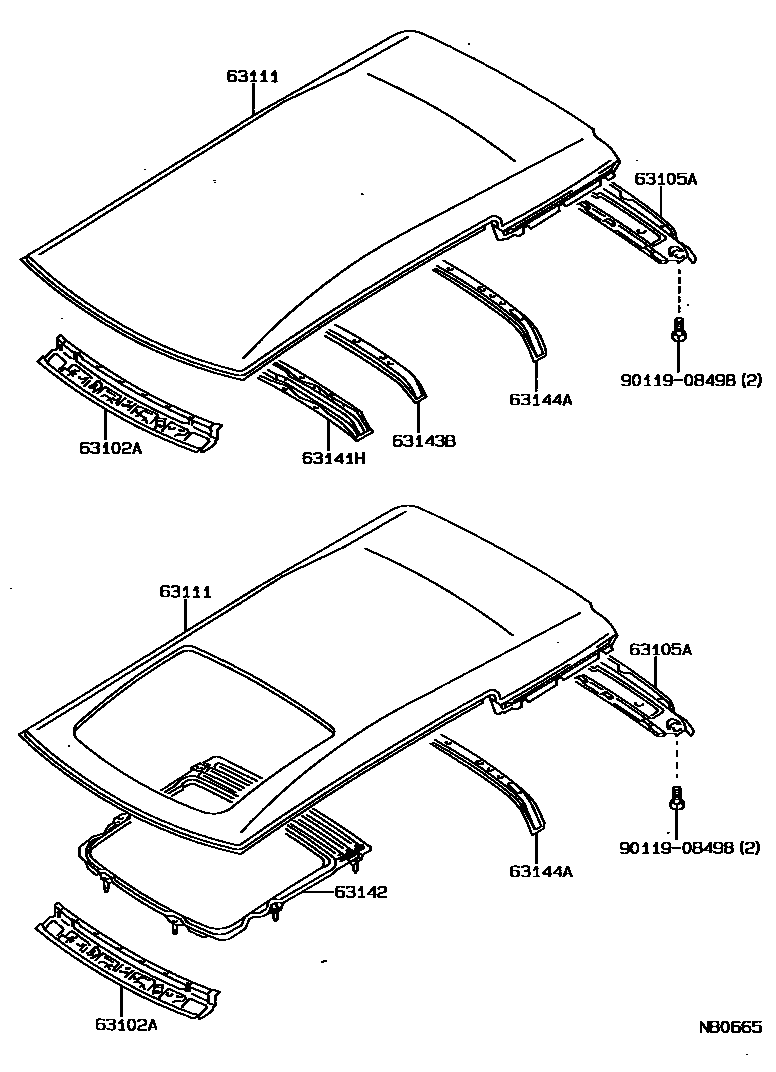

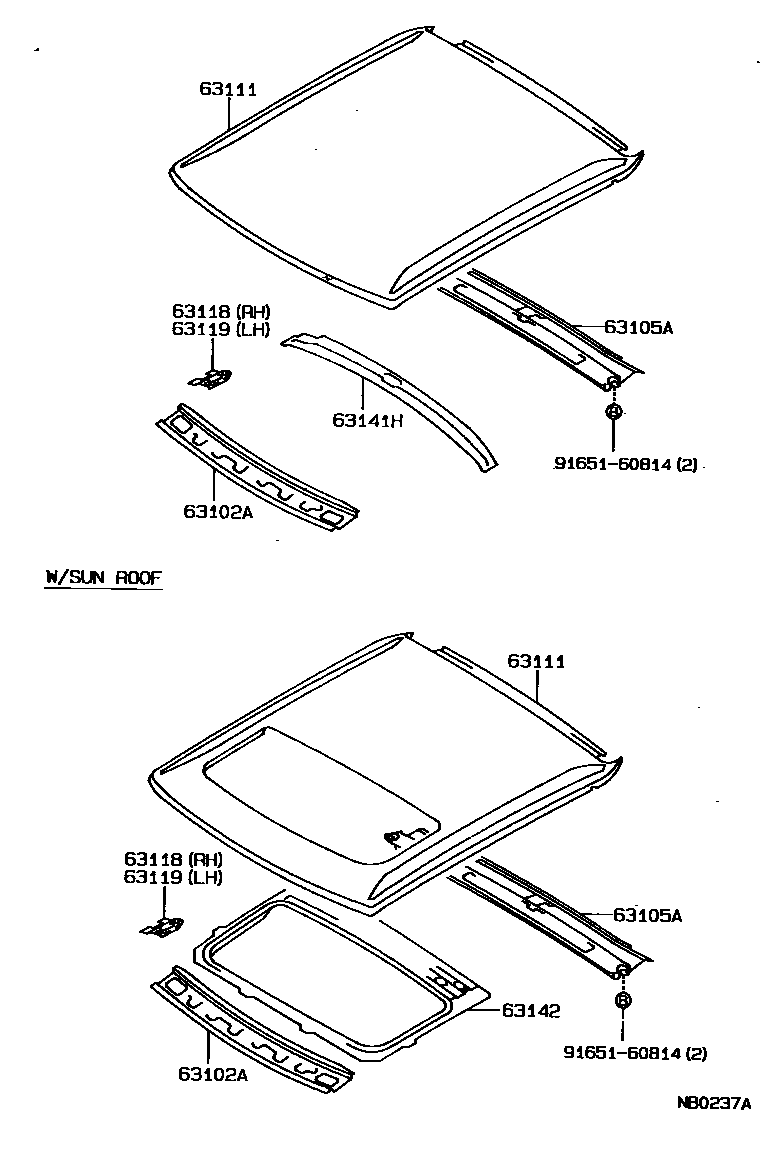

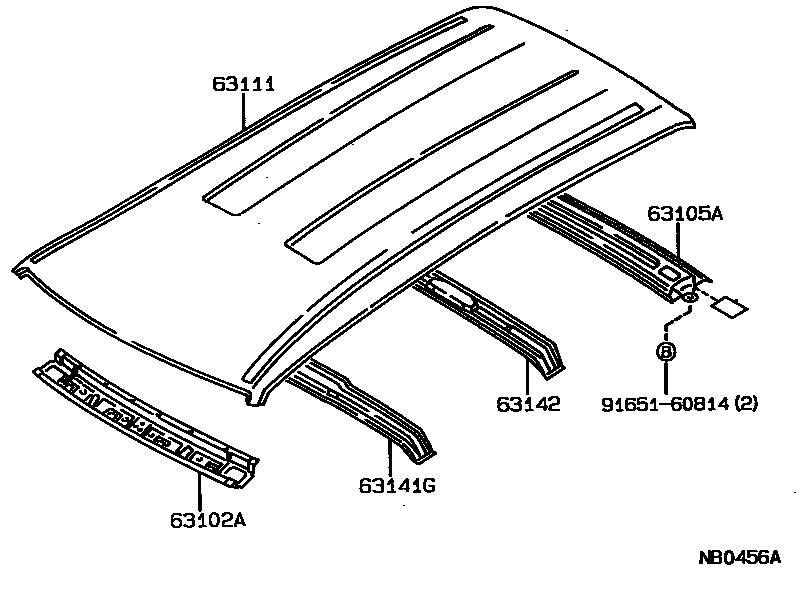

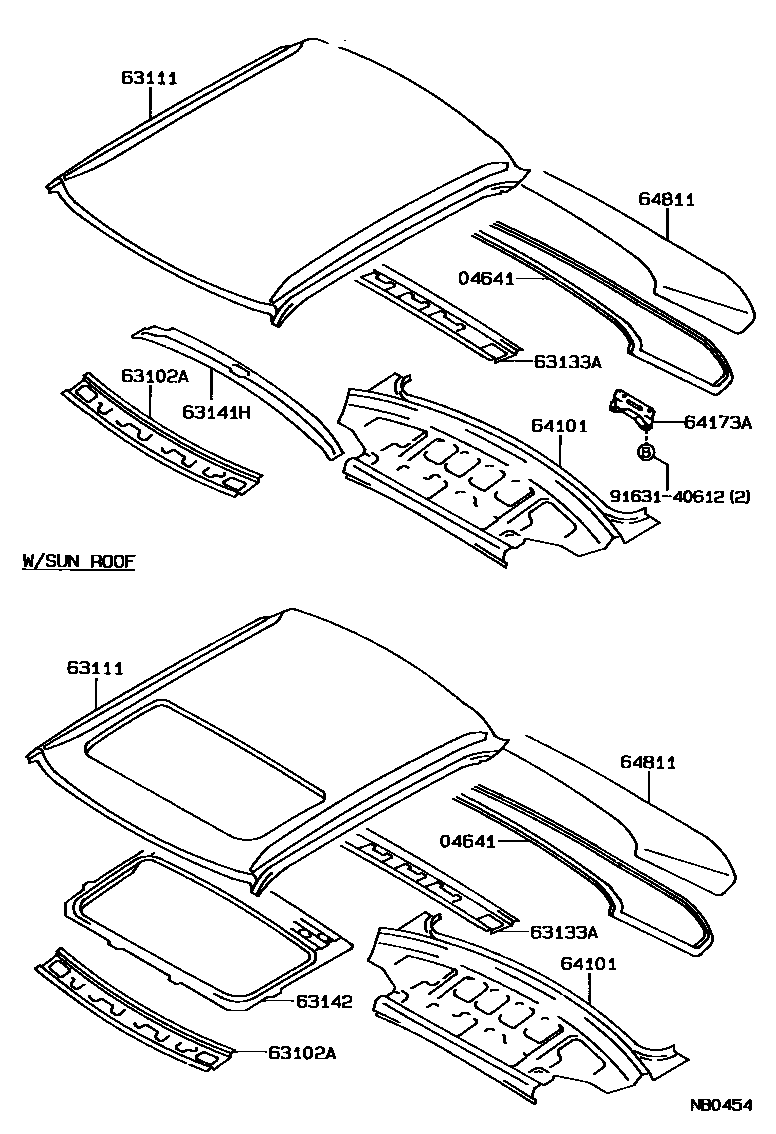

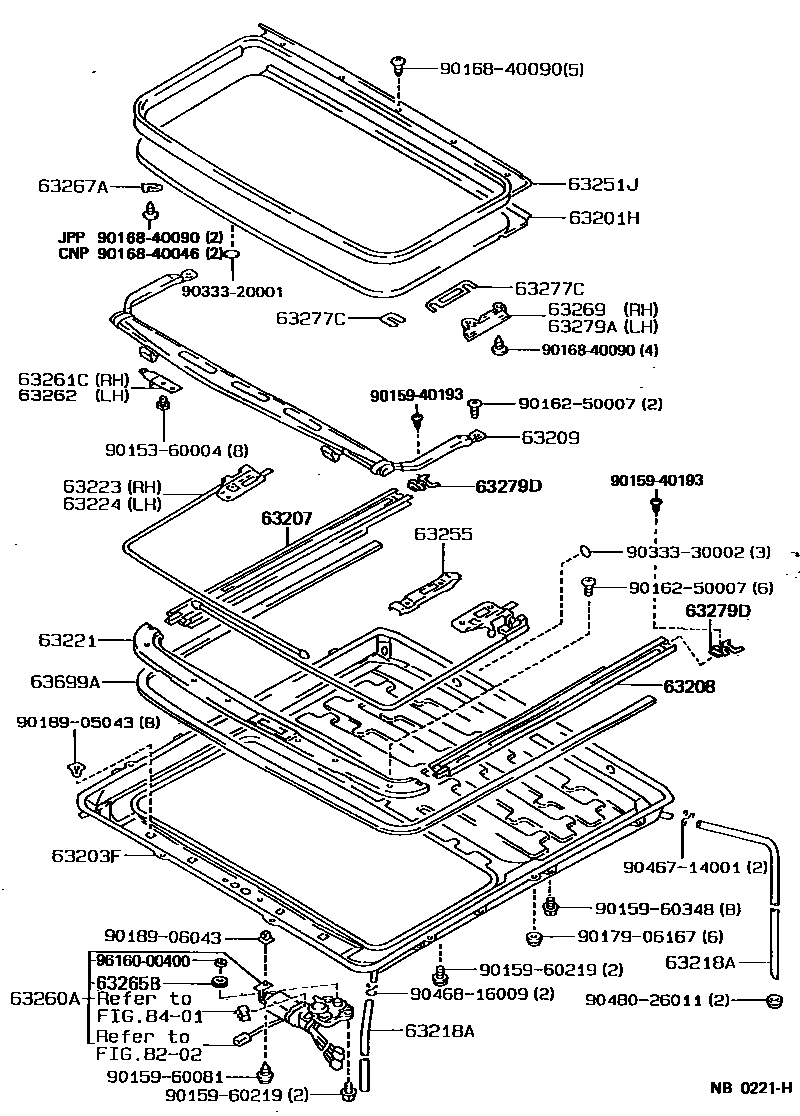

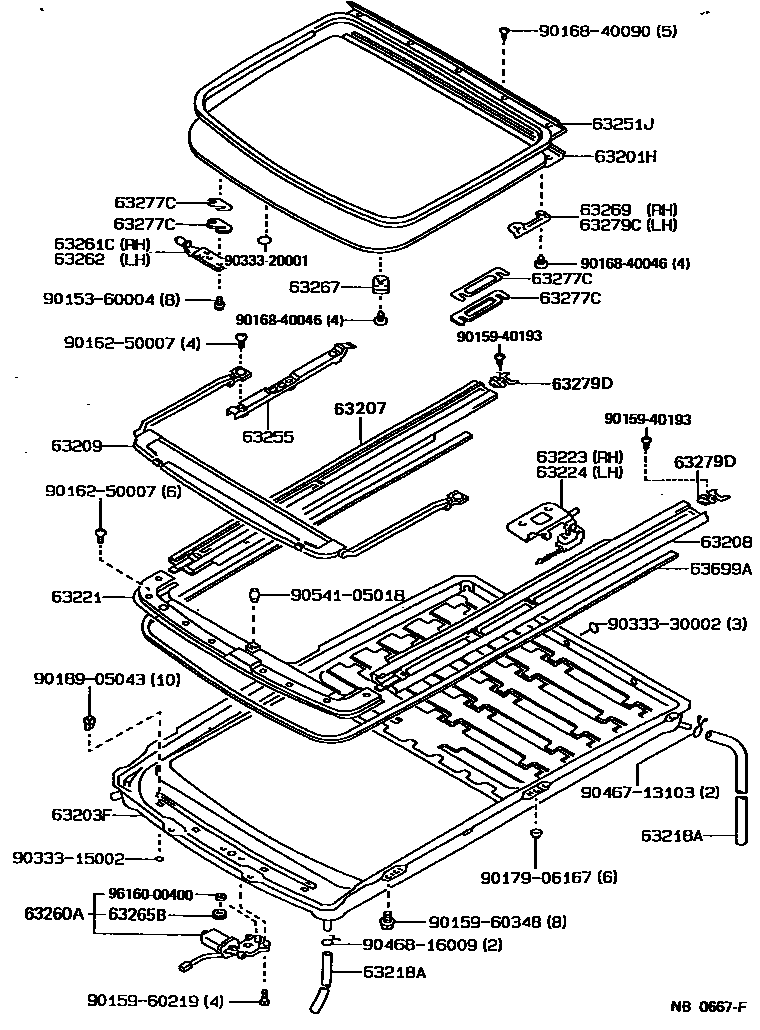

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 6 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641 | Back window glass sealing strip assembly | 04562-12010 |
| 63102A | Windshield roof sub-assembly | 63102-12040 · 63102-12050 · 63102-12070 · 63102-13010 |
| 63105A | Back door opening frame sub-assembly | 63105-12180 · 63105-12190 · 63105-13090 · 63105-13100 |
| 63111 | roof panel | 63111-12300 · 63111-12301 · 63111-12310 · 63111-12311 · 63111-12350 · 63111-12360 · 63111-12370 · 63111-12380 · 63111-12906 · 63111-12907 · 63111-12908 · 63111-12909 · 63111-12910 · 63111-12911 · 63111-12912 · 63111-12913 · 63111-13070 |
| 63118 | Right roof panel bracket | 63118-12010 |
| 63119 | Left roof panel bracket | 63119-12010 |
| 63133A | upper frame of back window | 63133-12160 |
| 63141G | No. 1 roof panel reinforcement | 63141-13050 |
| 63141H | Center roof panel reinforcement | 63141-12130 · 63141-12150 |
| 63142 | No. 2 roof panel reinforcement | 63142-12030 · 63142-12050 · 63142-13040 |
| 63143B | No. 3 roof panel reinforcement | 63143-12050 |
| 63144A | No. 4 roof panel reinforcement | 63144-12010 |
| 63201H | Sliding sunroof panel sub-assembly | 63201-12100 · 63201-12150 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12120 · 63203-12140 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-12050 · 63207-12051 · 63207-12080 · 63207-12081 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-12050 · 63208-12051 · 63208-12080 · 63208-12081 |
| 63209 | Roof deflector sub-assembly | 63209-12050 · 63209-12051 · 63209-12052 · 63209-12060 · 63209-12070 · 63209-12071 |
| 63218A | Hoses (for sliding roof or removable roof drainage) | 63249-12070 · 63249-12080 · 63249-12090 · 63249-12130 · 63249-12140 · 63249-14020 · 63249-16050 |
| 63221 | Sliding sunroof cable duct | 63221-12060 · 63221-16020 |
| 63223 | Right sliding sunroof transmission cable | 63223-12040 · 63223-12041 · 63223-12042 · 63223-12043 · 63223-12070 · 63223-12071 |
| 63224 | Left sliding sunroof transmission cable | 63224-12030 · 63224-12031 · 63224-12032 · 63224-12033 · 63224-12060 · 63224-12061 |
| 63251J | Sliding skylight seal No. 2 | 63251-12080 · 63251-12090 · 63251-12091 |
| 63255 | Right sliding sunroof guide cover | 63255-12070 · 63255-16010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12040 · 63260-12041 |
| 63261C | Right front sliding sunroof slider | 63261-12040 · 63261-12041 · 63261-12050 · 63261-12051 · 63261-16010 |
| 63262 | Left front sliding sunroof slider | 63262-12040 · 63262-12041 · 63262-12050 · 63262-12051 · 63262-16010 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63267 | Sliding sunroof sealing strip protection | 63267-12020 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-12020 |
| 63269 | Sliding sunroof sealing strip fixings | 63269-20010 |
| 63277C | Sliding skylight panel gasket | 63277-14020 · 63277-24010 · 63277-30020 · 63277-32010 · 63277-32020 |
| 63279A | No. 3 skylight frame to longitudinal beam bracket | 63279-20010 |
| 63279C | Left sliding sunroof sealing strip fixing | 63279-20010 |
| 63279D | Sliding sunroof guide rail stop | 63279-32010 |
| 63699A | Sliding sunroof guide seals | 63699-12040 · 63699-16010 |
| 64101 | Upper back panel sub-assembly | 64101-12350 · 64101-12360 |
| 64173A | high brake light bracket | 64173-12020 |
| 64811 | back window glass | 64811-1A090 · 64811-1A100 · 64811-1A120 · 64811-1A130 · 64811-1A150 |
