Toyota COROLLA 地板隔热垫 — Figure 5802

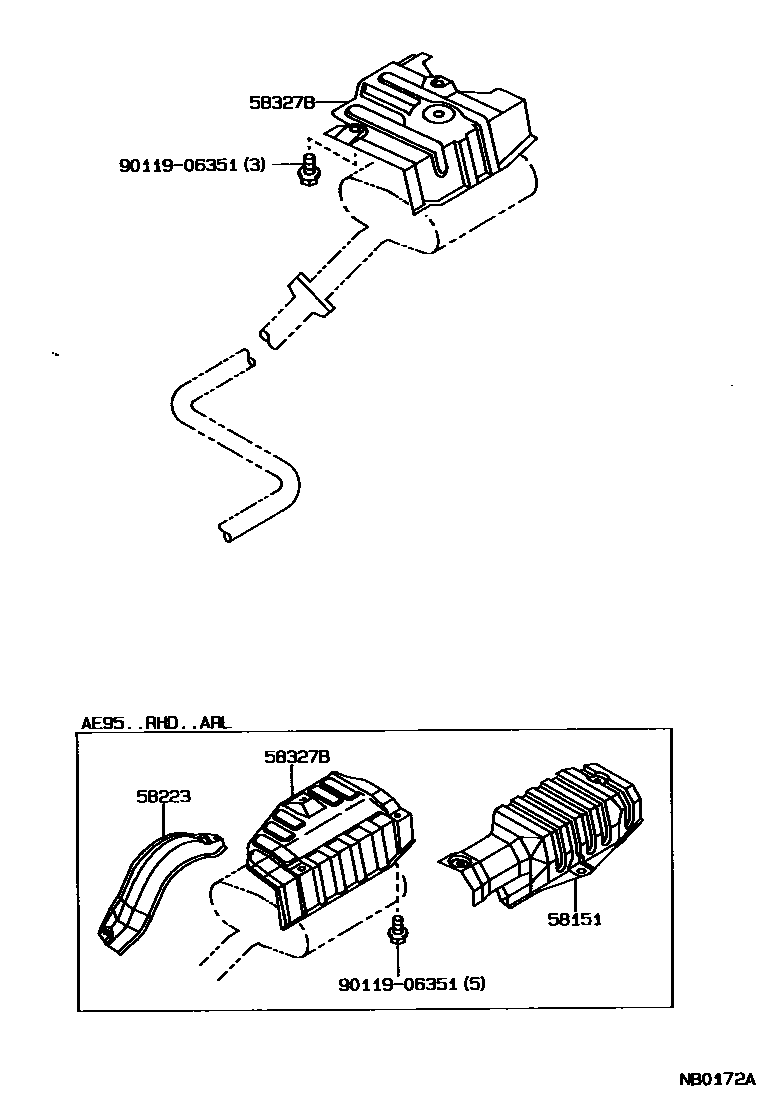

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-12130 |
| 58223 | Central Floor Insulating Mat No. 2 | 58223-12050 |
| 58327B | Main muffler heat insulation pad | 58327-12060 · 58327-12090 · 58327-13010 |
