Toyota COROLLA Floor stringers — Figure 5305

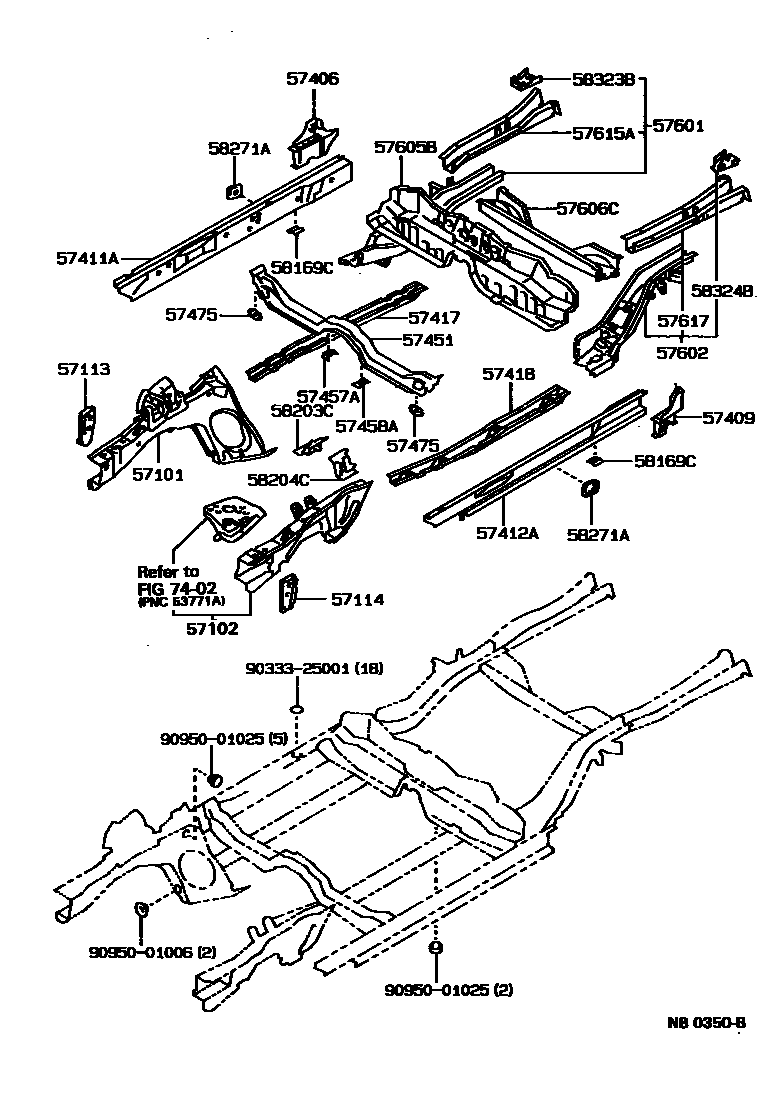

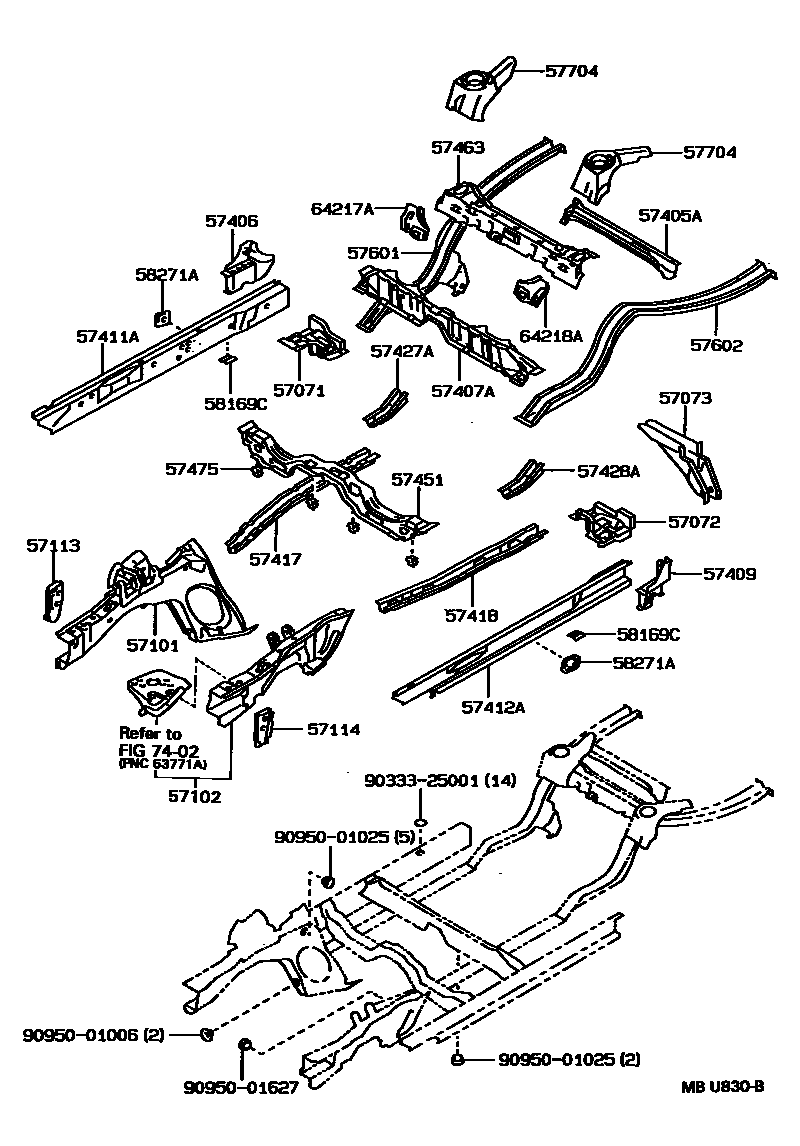

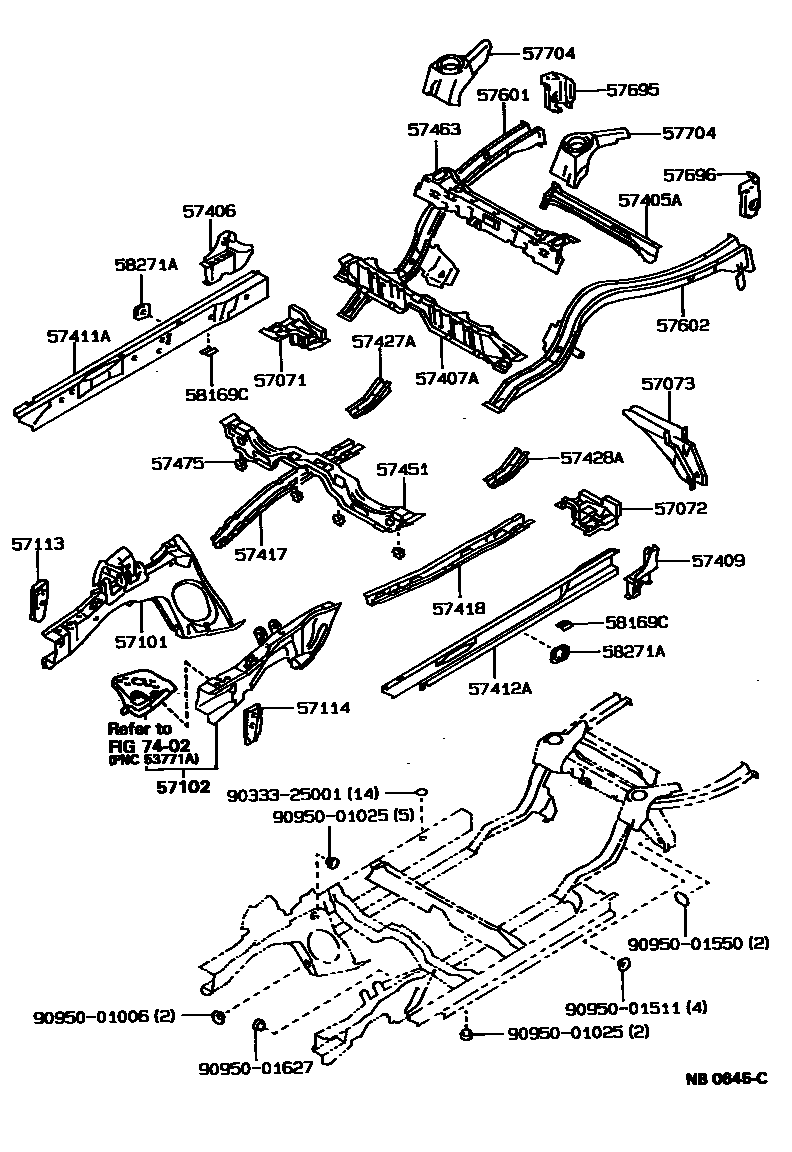

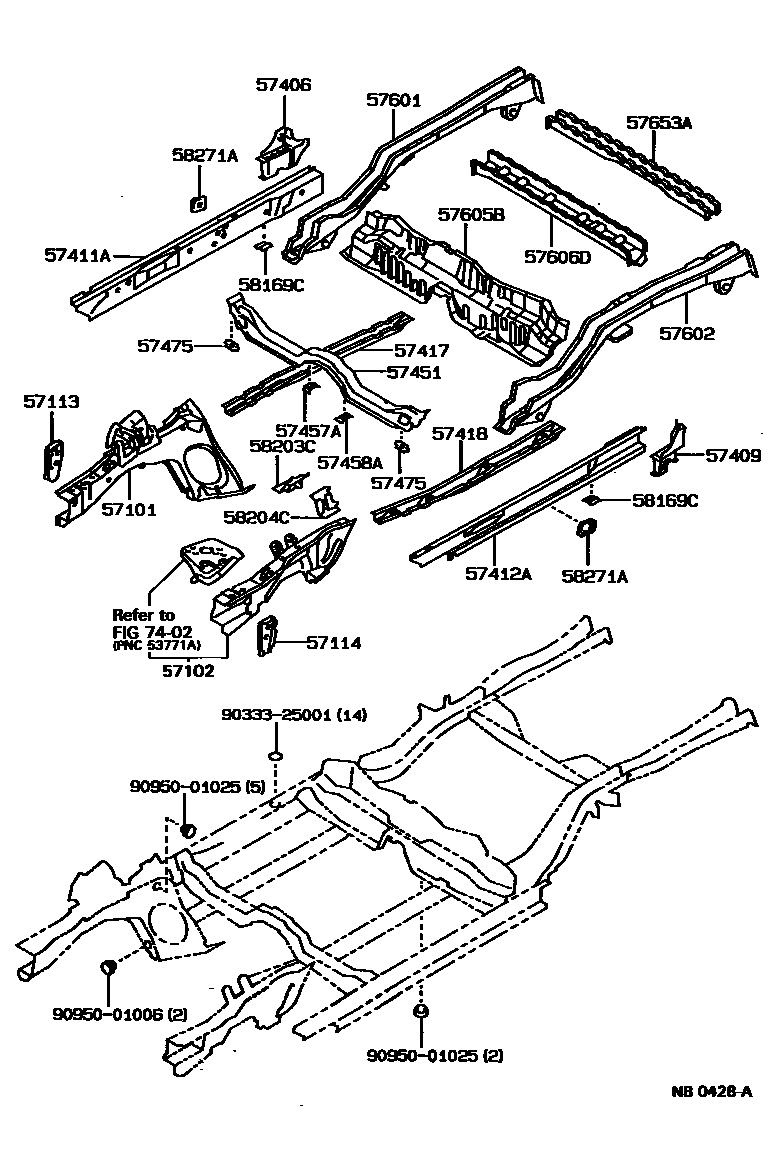

Toyota COROLLA EPC diagram 5305, Floor stringers, with 4 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57071 | Right rear anti-torsion box-section sub-assembly | 57071-12030 |
| 57072 | Left rear anti-torsion box-section sub-assembly | 57072-12030 |
| 57073 | Transverse thrust rod bracket sub-assembly | 57073-12040 · 57073-12041 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-12340 · 57101-12350 · 57101-12351 · 57101-12380 · 57101-12430 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12360 · 57102-12370 · 57102-12380 · 57102-12381 |
| 57113 | Right front longitudinal beam extension | 57113-12110 |
| 57114 | Left front longitudinal beam extension | 57114-12110 |
| 57405A | Center floor No. 2 beam sub-assembly | 57405-12050 |
| 57406 | Main floor right longitudinal beam sub-assembly | 57406-12010 · 57406-12020 · 57406-13010 |
| 57407A | Center floor beam sub-assembly | 57407-12030 |
| 57409 | Main floor left longitudinal beam sub-assembly | 57409-12010 · 57409-12020 · 57409-13010 |
| 57411A | Floor right inner longitudinal beam | 57411-12150 · 57411-12160 |
| 57412A | Floor left inner longitudinal beam | 57412-12150 · 57412-12160 |
| 57417 | Front floor lower right reinforcement | 57417-12080 · 57417-12090 |
| 57418 | Front floor lower left reinforcement | 57418-12040 · 57418-12050 |
| 57427A | Front floor No. 3 right reinforcement | 57427-12010 |
| 57428A | Front floor No. 3 left reinforcement | 57428-12030 |
| 57451 | front floor cross member | 57451-12110 · 57451-12111 · 57451-12120 · 57451-12121 |
| 57457A | Front floor No. 2 right cross member plate | 57457-12020 |
| 57458A | Front floor No. 2 left cross member plate | 57458-12020 |
| 57463 | Center floor beam No. 3 | 57463-12050 |
| 57475 | Front floor cross member panel | 57475-32010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12510 · 57601-12630 · 57601-12650 · 57601-12750 · 57601-13120 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12420 · 57602-12530 · 57602-12540 · 57602-12620 · 57602-12630 · 57602-13100 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12120 · 57605-13010 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-12100 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-13060 |
| 57615A | Rear floor right rear longitudinal member | 57615-12030 · 57615-12031 |
| 57617 | Rear floor left rear longitudinal member | 57616-12030 · 57616-12031 |
| 57653A | No. 2 rear floor cross member | 57653-13010 |
| 57695 | Rear floor cross member rear right extension | 57695-12010 |
| 57696 | Rear floor cross member rear left extension | 57696-12010 |
| 57704 | Rear suspension spring bracket sub-assembly | 57701-12060 · 57704-12070 |
| 58169C | Front floor rear lining | 58169-12010 |
| 58203C | Exhaust pipe mounting bracket sub-assembly | 58203-12030 |
| 58204C | Left exhaust pipe mounting bracket sub-assembly | 58204-12010 |
| 58271A | Seat belt anchor No. 3 to floor pan reinforcement | 58271-12050 |
| 58323B | Rear bumper arm right bracket reinforcement | 58323-12040 · 58323-12041 · 58323-12050 · 58323-12090 |
| 58324B | Rear bumper arm left bracket reinforcement | 58324-12020 · 58324-12021 · 58324-12040 · 58324-12050 |
| 64217A | Center floor to glove box right extension | 64217-12030 |
| 64218A | Center floor to glove box left extension | 64218-12030 |
