Toyota COROLLA 后保险杠及附件 — Figure 5202

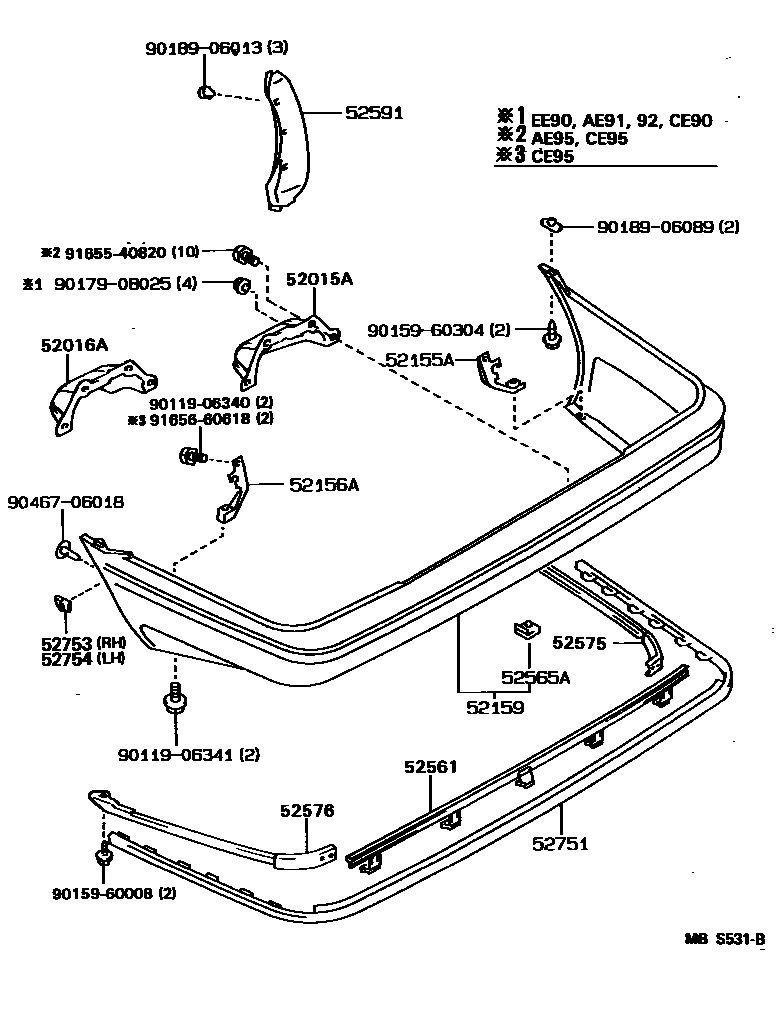

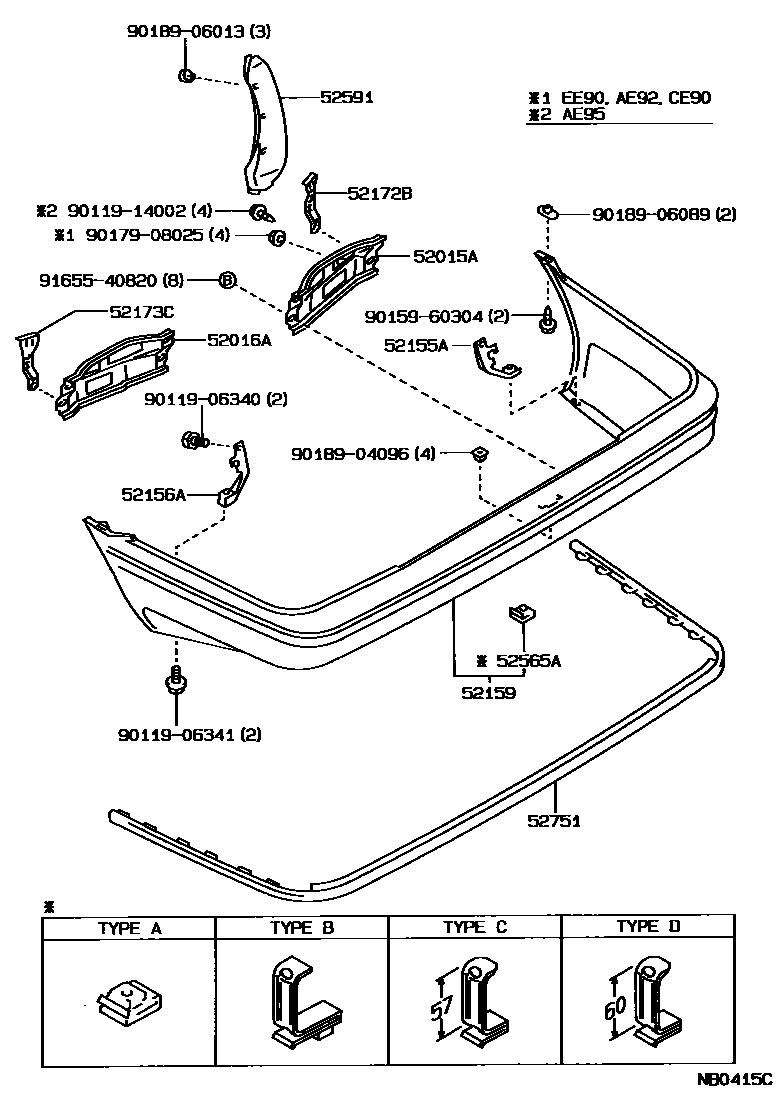

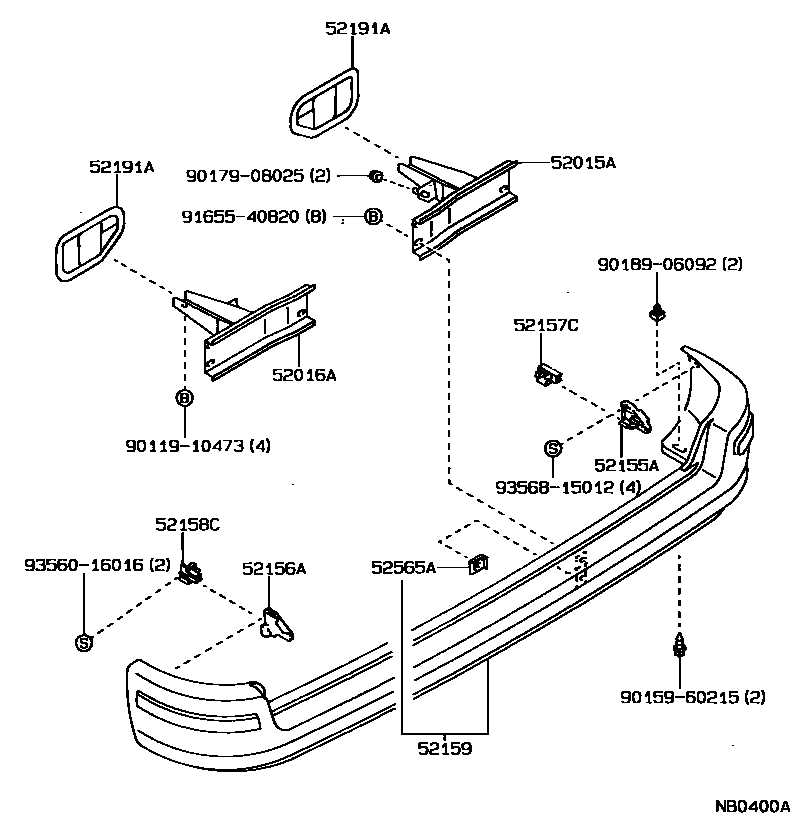

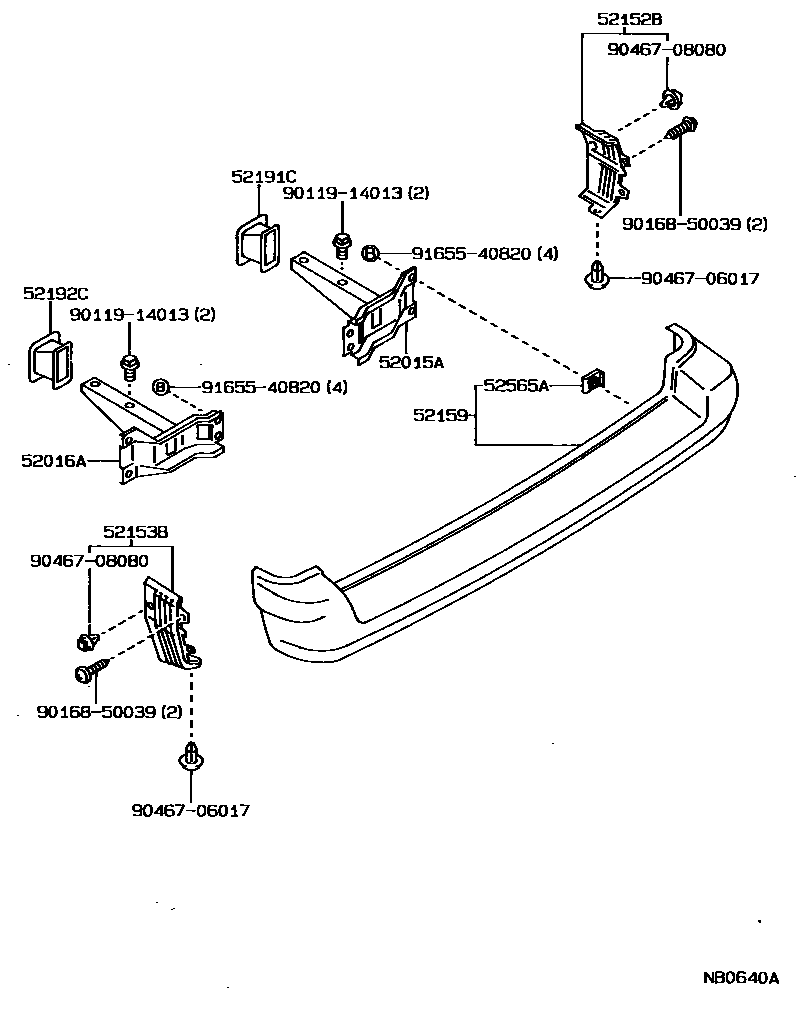

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12210 · 52015-12230 · 52015-12231 · 52015-13070 · 52015-13080 · 52181-12280 · 52181-12300 · 52181-12370 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12210 · 52016-12220 · 52016-12221 · 52016-13060 · 52016-13070 · 52182-12230 · 52182-12250 · 52182-12290 |
| 52152B | Rear bumper right extension | 52152-12250 |
| 52153B | Rear bumper left extension | 52153-12250 |
| 52155A | Rear bumper right side bracket | 52155-12150 · 52155-13030 |
| 52156A | Rear bumper left bracket | 52156-12140 · 52156-12170 · 52156-13030 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-13020 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-13020 |
| 52159 | rear bumper cover | 52159-12710 · 52159-12770 · 52159-12830 · 52159-13020 · 52159-1A060 · 52159-1A210 |
| 52172B | Rear bumper reinforcement No. 2 | 52172-12140 |
| 52173C | Rear bumper No. 3 reinforcement | 52173-12130 |
| 52191A | Rear bumper arm seal | 52191-13090 · 52191-13100 · 52192-13080 · 52192-13090 |
| 52191C | Rear bumper right arm seal | 52191-12020 |
| 52192C | Rear bumper left arm seal | 52192-12010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12100 |
| 52565A | Rear bumper lower fixing bracket | 52565-12040 · 52565-12100 · 52565-12110 · 52565-12160 · 52565-16020 |
| 52575 | Rear bumper right side fixing bracket | 52575-12070 |
| 52576 | Rear bumper left side fixing bracket | 52576-12070 |
| 52591 | Rear bumper right seal | 52591-12050 · 52591-12051 |
| 52751 | Rear bumper protection strip | 52751-12080 · 52751-12120 · 52751-12150 · 52751-12190 |
| 52753 | Rear bumper left protective strip | 52753-12030 |
| 52754 | Rear bumper No. 2 protective strip | 52754-12010 |
