Toyota COROLLA 前保险杠及附件 — Figure 5201

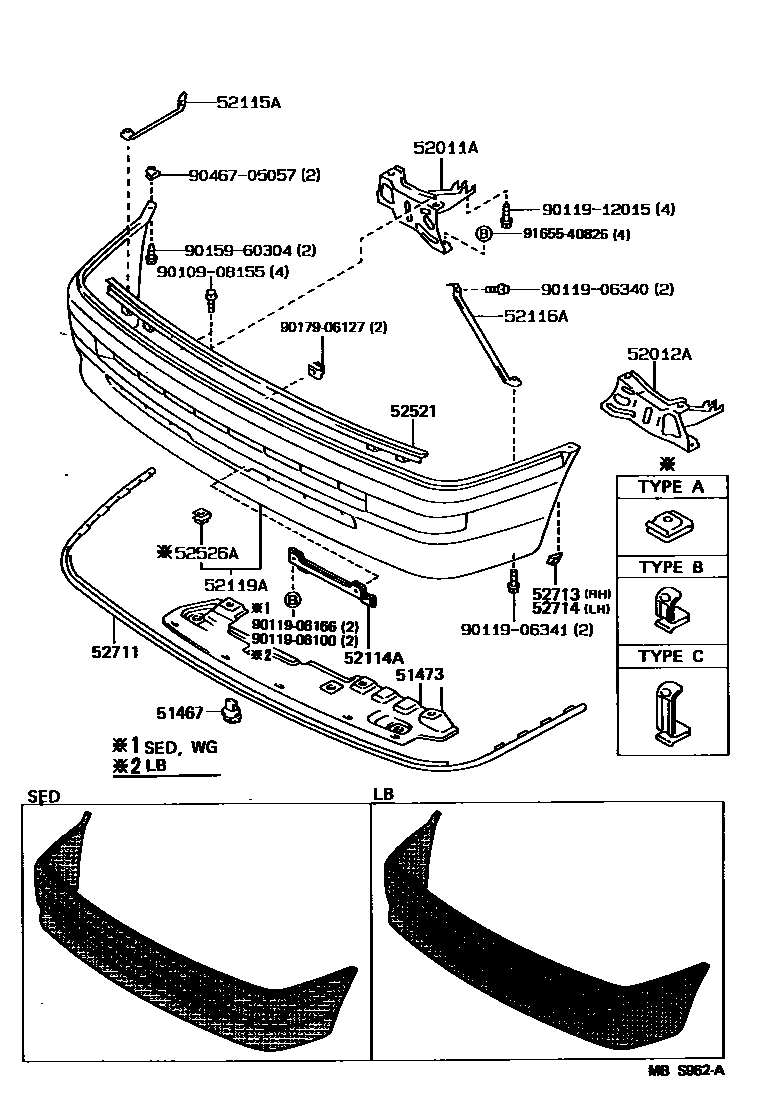

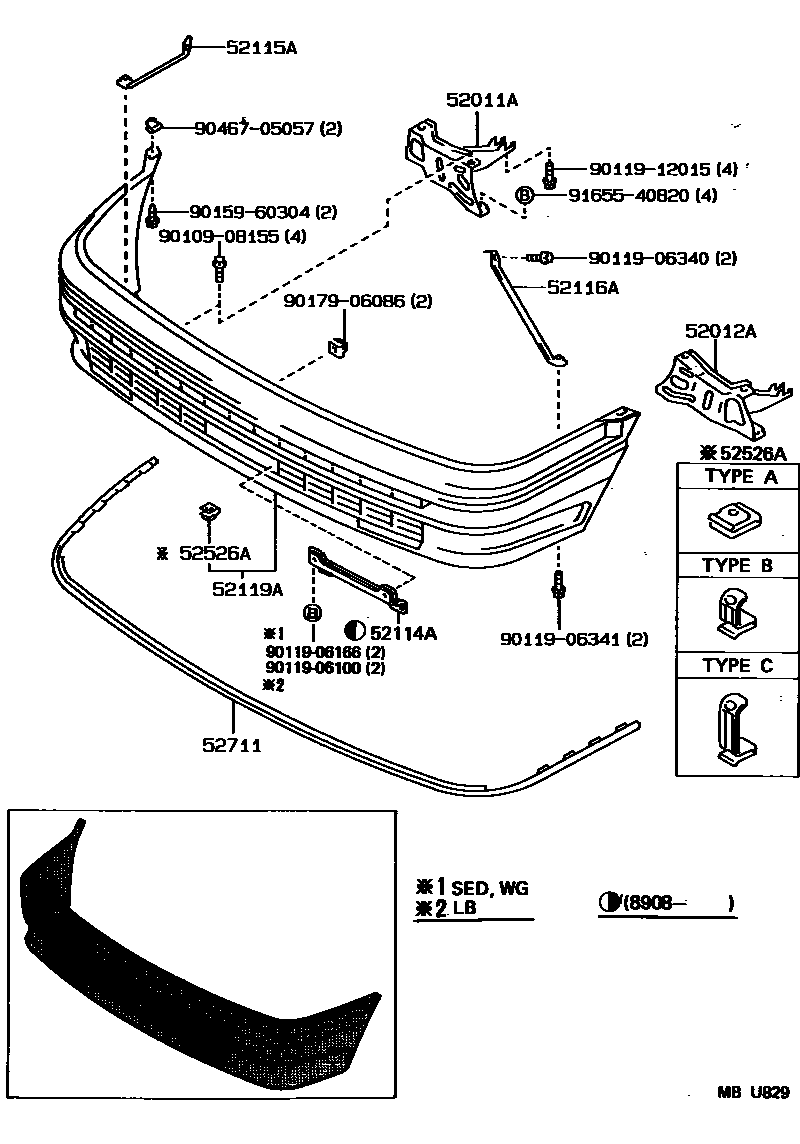

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51467 | Engine cover fixings | 51467-12020 |
| 51473 | Engine No. 5 front bottom cover | 51473-12020 |
| 52011A | Front bumper right arm sub-assembly | 52011-12360 · 52011-12370 · 52011-12420 · 52011-12430 |
| 52012A | Front bumper left arm sub-assembly | 52012-12370 · 52012-12380 · 52012-12430 · 52012-12440 |
| 52114A | Front bumper extension mounting bracket | 52114-30050 |
| 52115A | Front bumper right side bracket | 52115-12260 |
| 52116A | Front bumper left bracket | 52116-12200 |
| 52119A | front bumper cover | 52119-12840 · 52119-1A190 · 52119-1A230 · 52119-1A350 · 52119-1A630 |
| 52521 | Front bumper upper center fixing bracket | 52521-12100 · 52521-12110 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52565-12040 · 52565-12090 · 52565-12110 · 52565-16020 |
| 52711 | Front bumper protection strip | 52711-12040 · 52711-12120 · 52711-12130 · 52711-12180 · 52711-12190 · 52711-12220 · 52711-12230 |
| 52713 | Front bumper protection strip screw plug | 52713-12020 |
| 52714 | Front bumper left protective strip screw plug | 52714-12010 |
