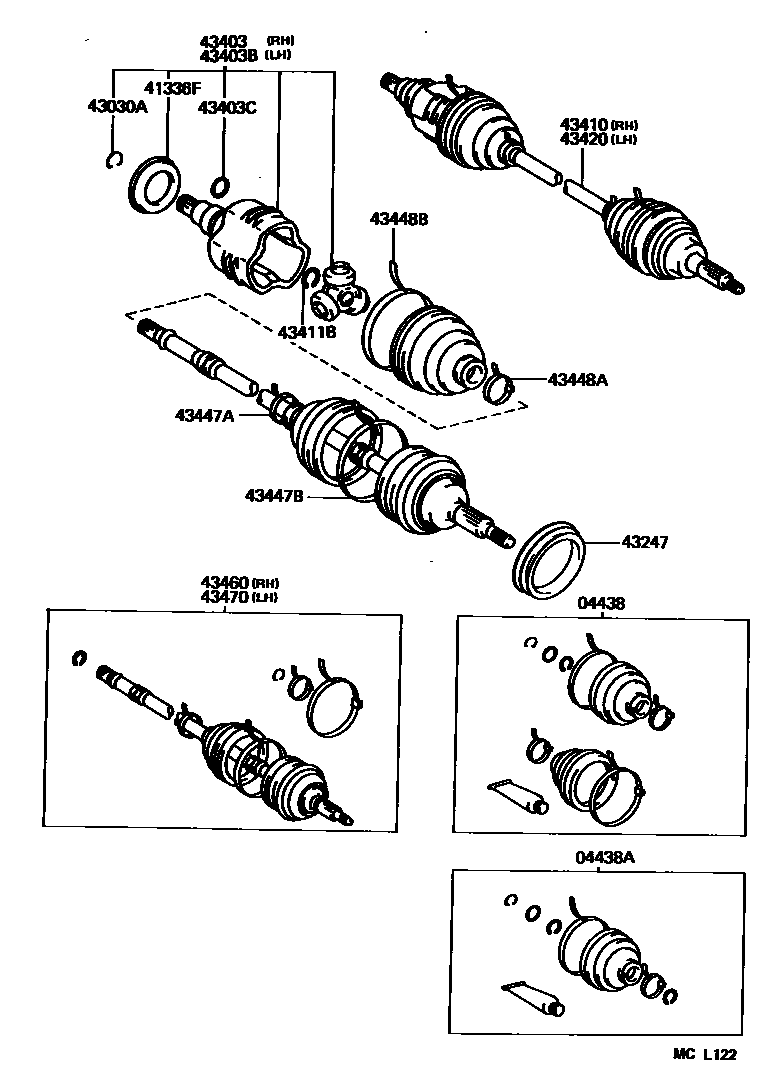

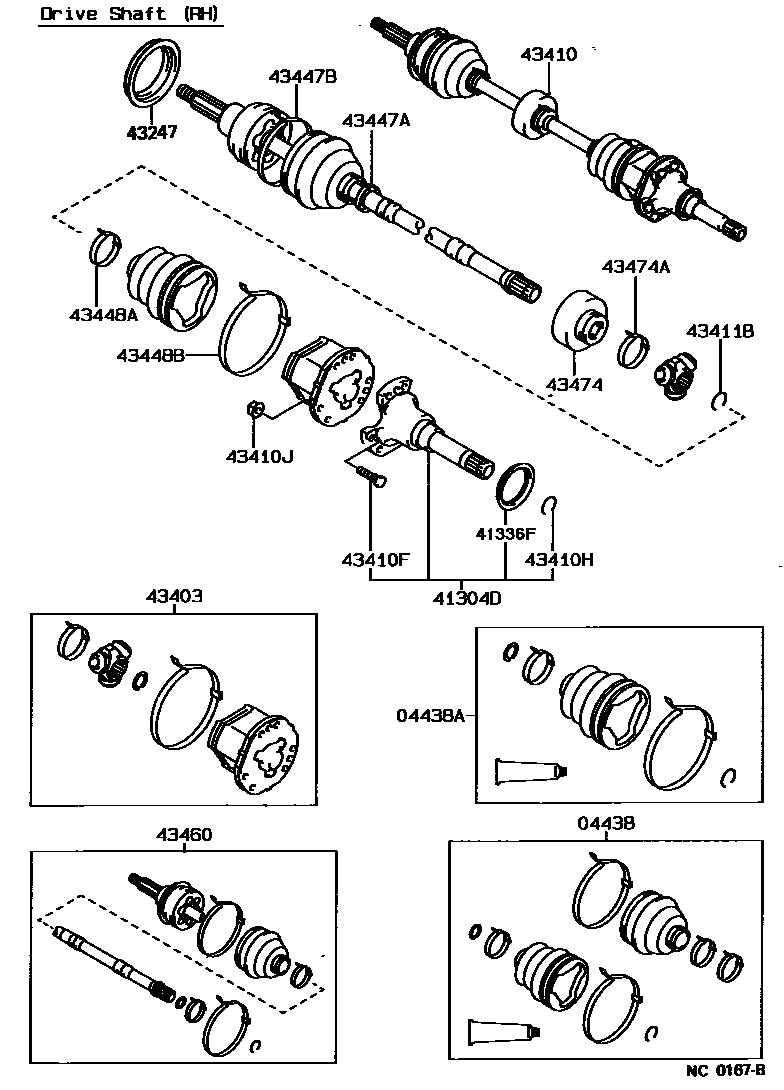

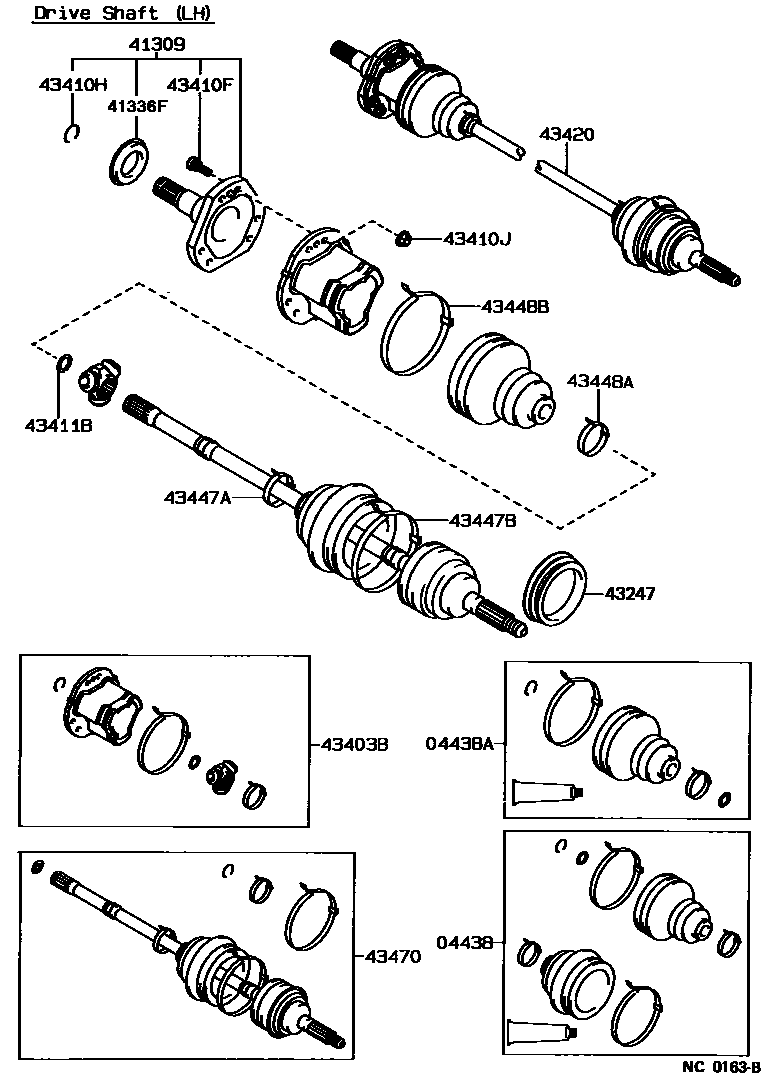

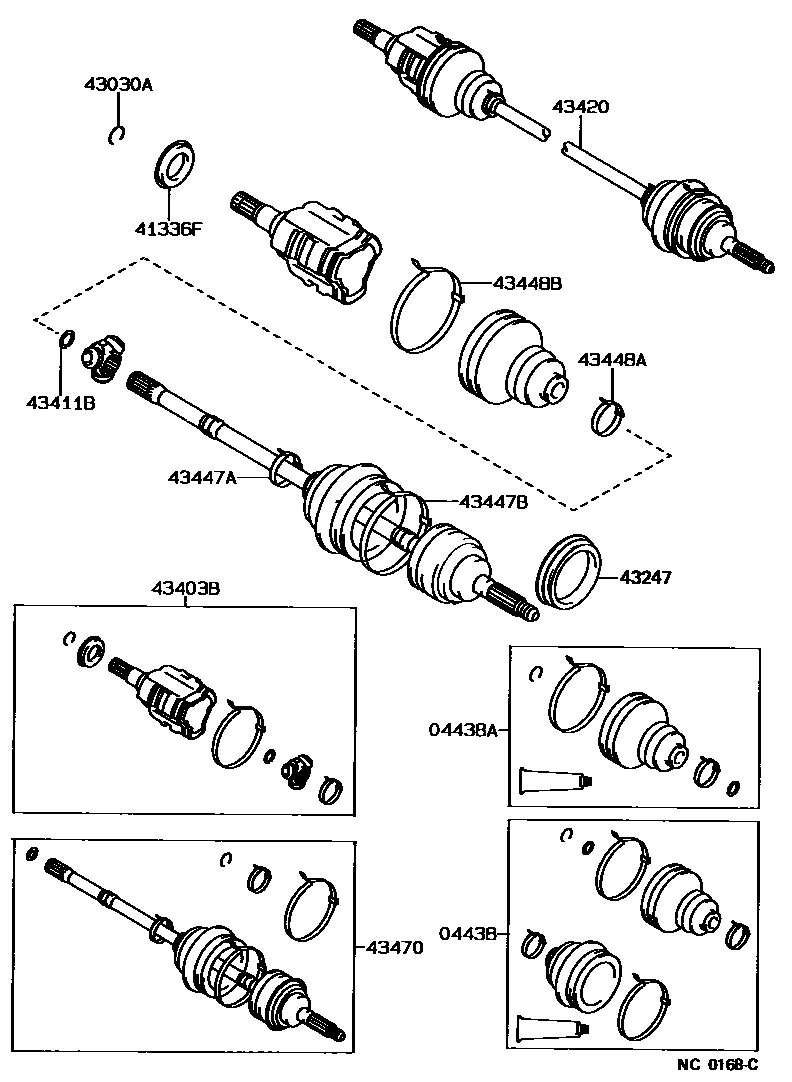

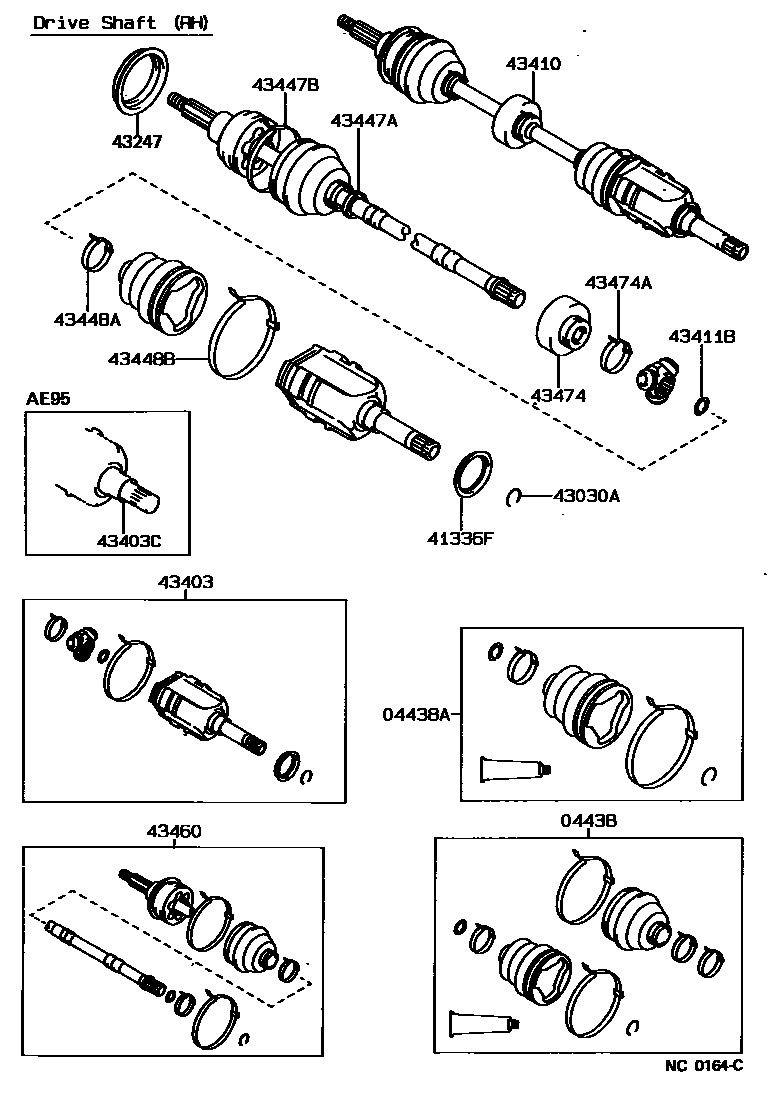

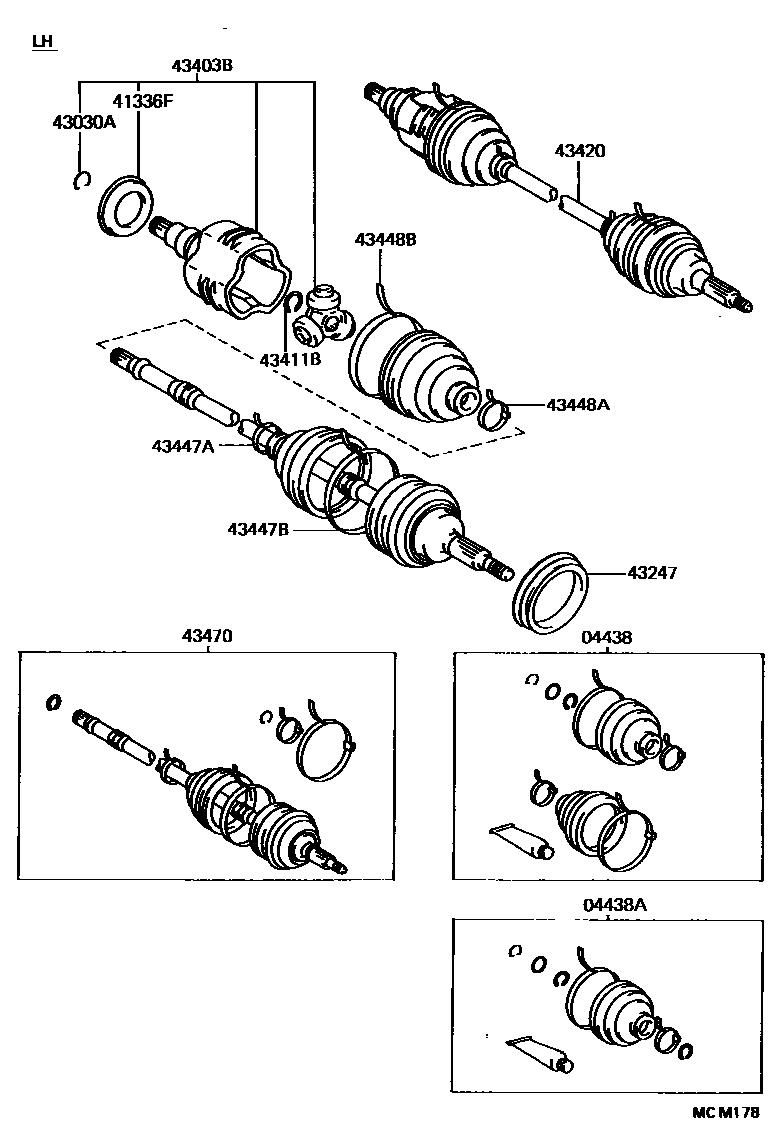

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438 | Front drive shaft dust boot assembly | 04438-12031 · 04438-12040 · 04438-12080 · 04438-12110 · 04438-12120 · 04438-12140 · 04438-12170 · 04438-12171 · 04438-12181 · 04438-12190 · 04438-12191 · 04438-12200 |
| 04438A | Front drive shaft inner universal joint dust boot assembly | 04438-12050 · 04438-12060 · 04438-12070 · 04438-12130 · 04438-12150 · 04438-12160 · 04438-12161 · 04438-12210 |
| 41304D | Right differential side gear shaft sub-assembly | 41304-17010 · 41304-20010 |
| 41309 | Left differential side gear shaft sub-assembly | 41309-17010 · 41309-32010 |
| 41336B | Dust cover (for front drive shaft) | 41336-12010 · 41336-32010 · 41336-32020 |
| 41336F | Dust cover (for front axle inner universal joint assembly) | 41336-12010 · 41336-12040 · 41336-20040 |
| 43030A | Hole snap ring (for front drive shaft inboard universal joint) | 90521-26004 |
| 43247 | No. 2 front wheel bearing dust cover | 43247-32011 · 43247-33010 |
| 43403 | Right front axle inner universal joint assembly | 43030-20020 · 43403-12040 · 43403-12050 · 43403-19055 · 43403-19065 · 43403-19085 · 43403-39016 · 43403-39025 |
| 43403B | Left front axle inner universal joint assembly | 43040-20010 · 43403-12040 · 43403-12060 · 43403-19055 · 43403-19075 · 43403-19085 · 43403-39016 · 43403-39025 |
| 43403C | O-ring (for front drive shaft inboard universal joint) | 90301-26006 |
| 43410 | Right front driveshaft assembly | 43410-12030 · 43410-12130 · 43410-12131 · 43410-12140 · 43410-12150 · 43410-12170 · 43410-12171 · 43410-12180 · 43410-20340 · 43410-20341 |
| 43410F | Serrated threaded bolt (for front drive shaft) | 90114-08006 |
| 43410H | Hole snap ring (for front driveshaft) | 90521-26002 · 90521-27005 |
| 43410J | Nut (for front driveshaft) | 90179-08053 |
| 43411B | Inner shaft snap ring (for front axle inner shaft) | 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-12090 · 43420-12091 · 43420-12100 · 43420-12110 · 43420-12130 · 43420-12140 · 43420-12141 · 43420-12150 · 43420-12210 · 43420-12211 |
| 43447A | Clamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle) | 42345-14010 · 90949-01078 |
| 43447B | Clamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle) | 90949-01076 · 90949-01080 |
| 43448A | Clamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14010 · 90949-01078 |
| 43448B | No. 2 clip (used to fix the universal joint dust cover on the inside of the front axle) | 42345-14020 · 90949-01076 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19275 · 43460-19276 · 43460-19285 · 43460-19305 · 43460-19306 · 43460-29145 · 43460-29146 · 43470-19265 · 43470-19266 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19215 · 43470-19216 · 43470-19235 · 43470-19265 · 43470-19266 · 43470-39085 · 43470-39086 |
| 43474 | drive shaft damper | 43474-12020 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 |
