Toyota COROLLA vacuum tube — Figure 1708

Toyota COROLLA EPC diagram 1708, vacuum tube, with 15 images and 27 PNC and OE references.

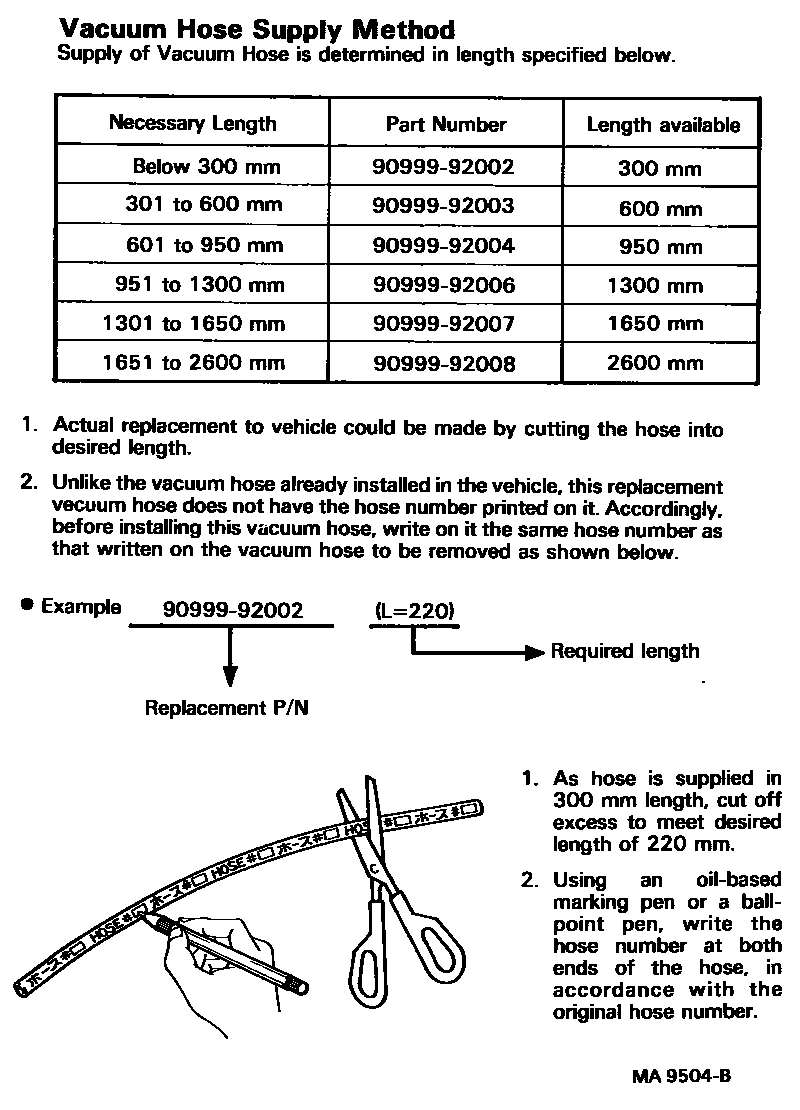

Toyota COROLLA vacuum tube EPC diagram — MA9504B — vacuum tube — MA9504B (198705 – 999999)

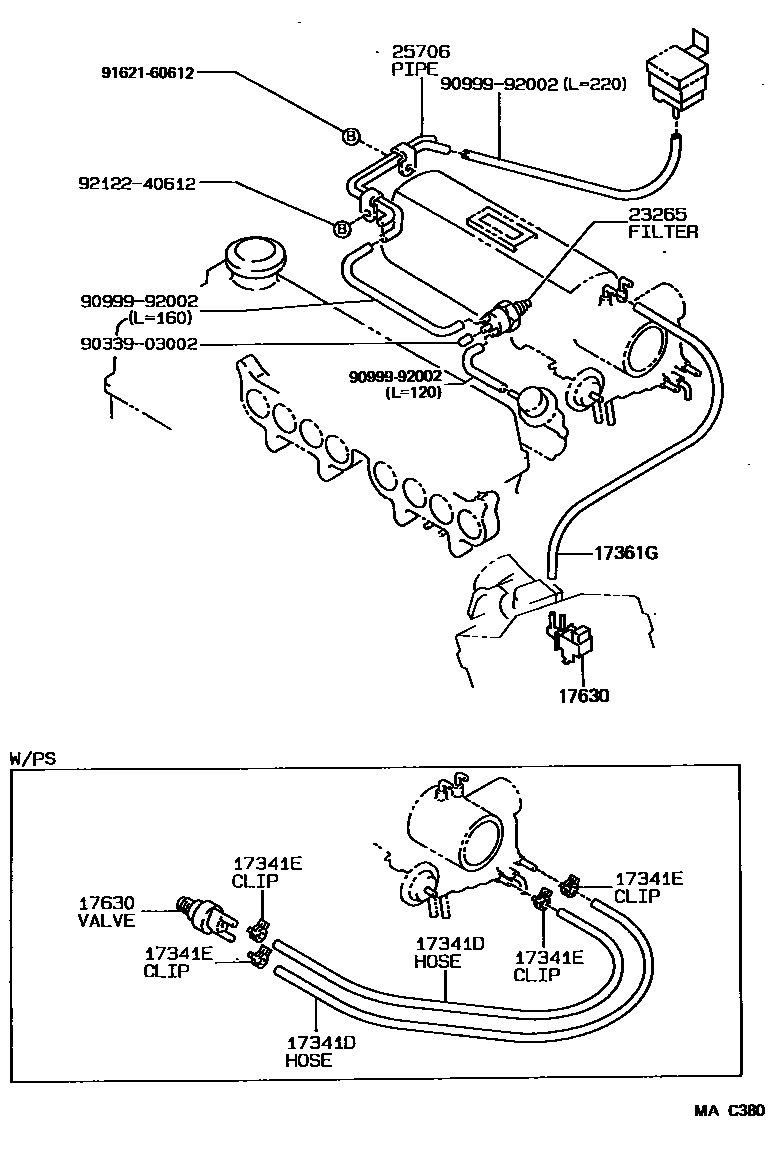

Toyota COROLLA vacuum tube EPC diagram — MAC380 — vacuum tube — MAC380 (198908 – 999999)

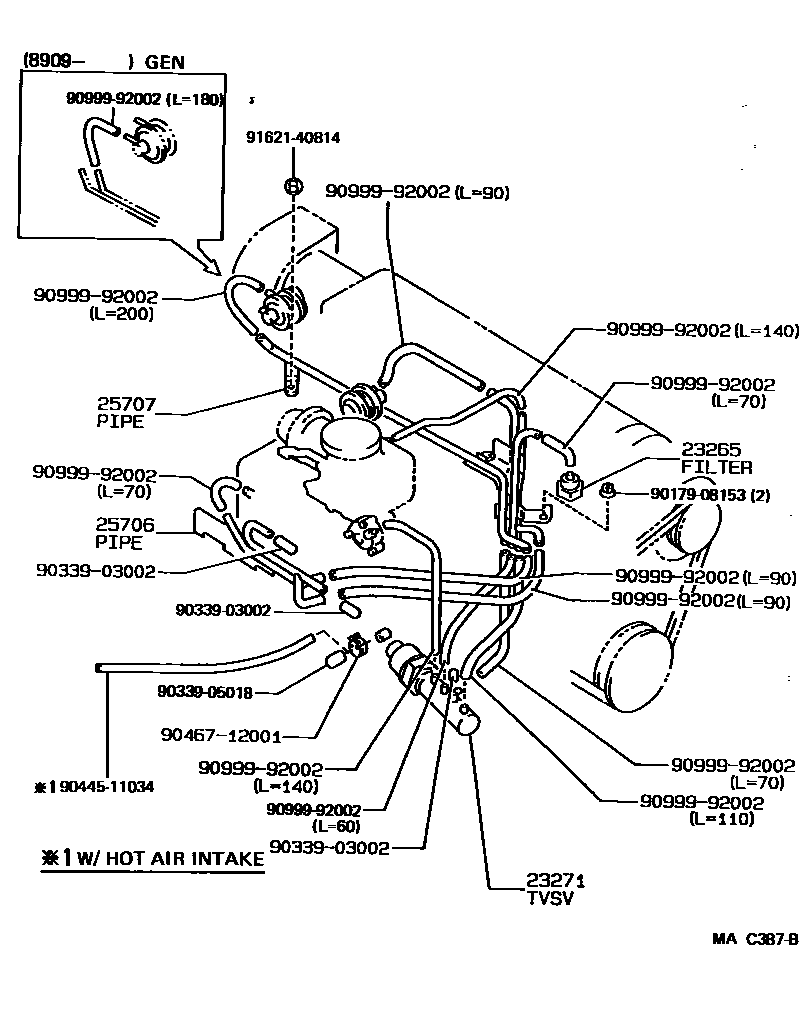

Toyota COROLLA vacuum tube EPC diagram — MAC387B — vacuum tube — MAC387B (198705 – 999999)

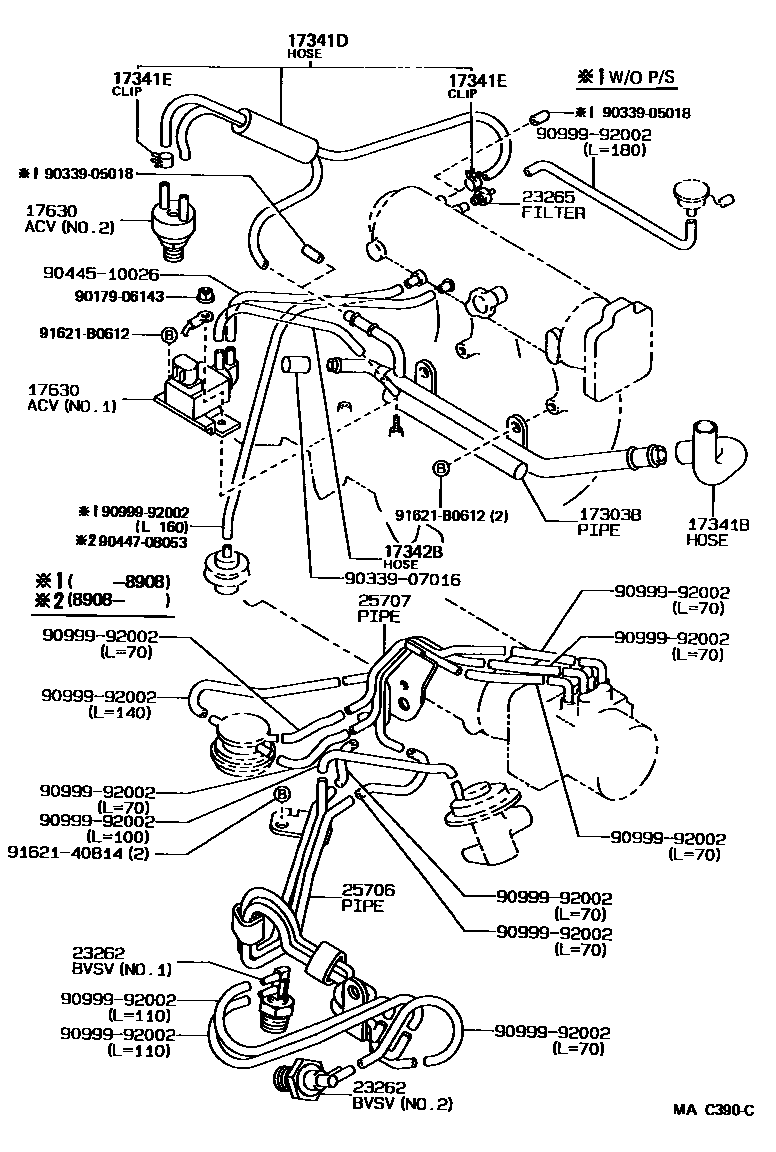

Toyota COROLLA vacuum tube EPC diagram — MAC390C — vacuum tube — MAC390C (198802 – 999999)

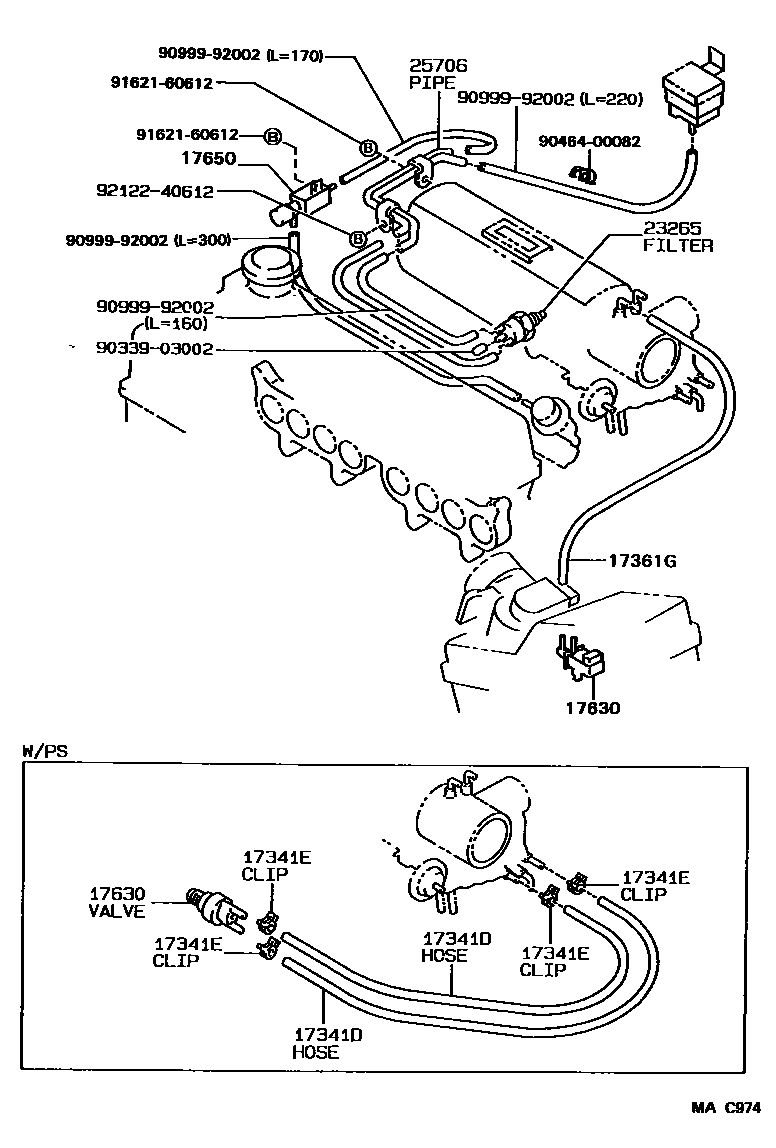

Toyota COROLLA vacuum tube EPC diagram — MAC974 — vacuum tube — MAC974 (198908 – 999999)

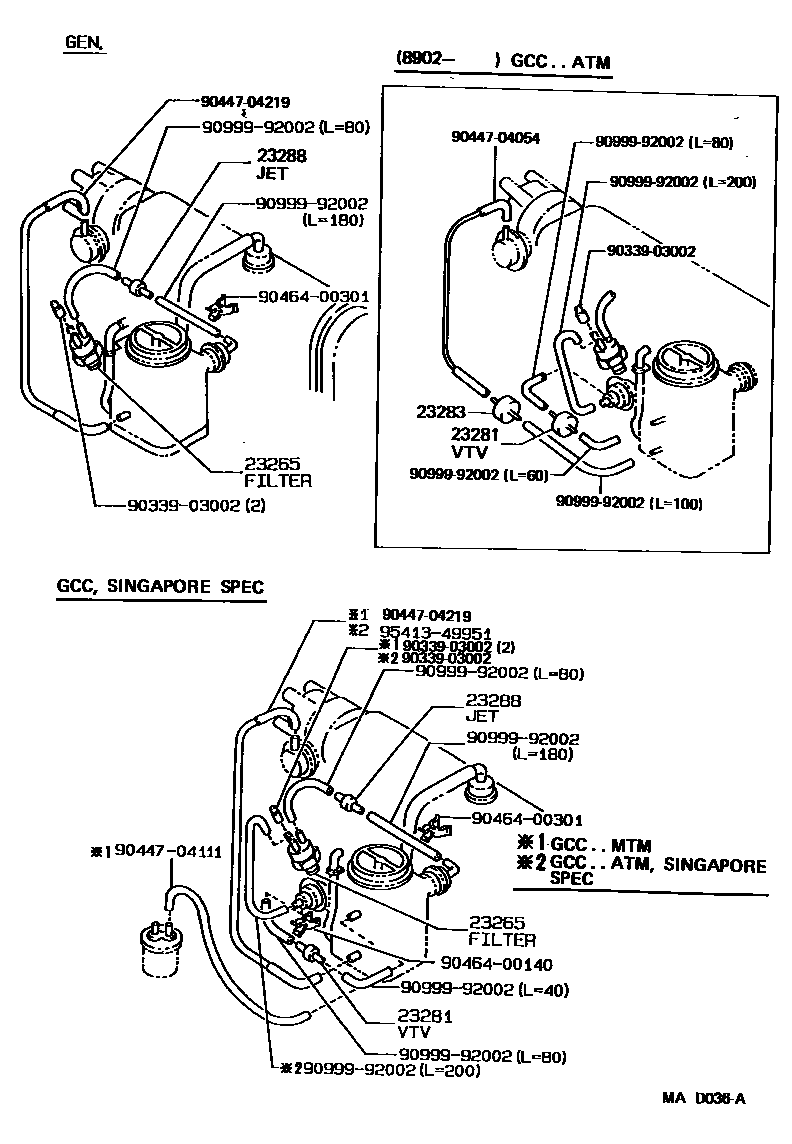

Toyota COROLLA vacuum tube EPC diagram — MAD036A — vacuum tube — MAD036A (198705 – 999999)

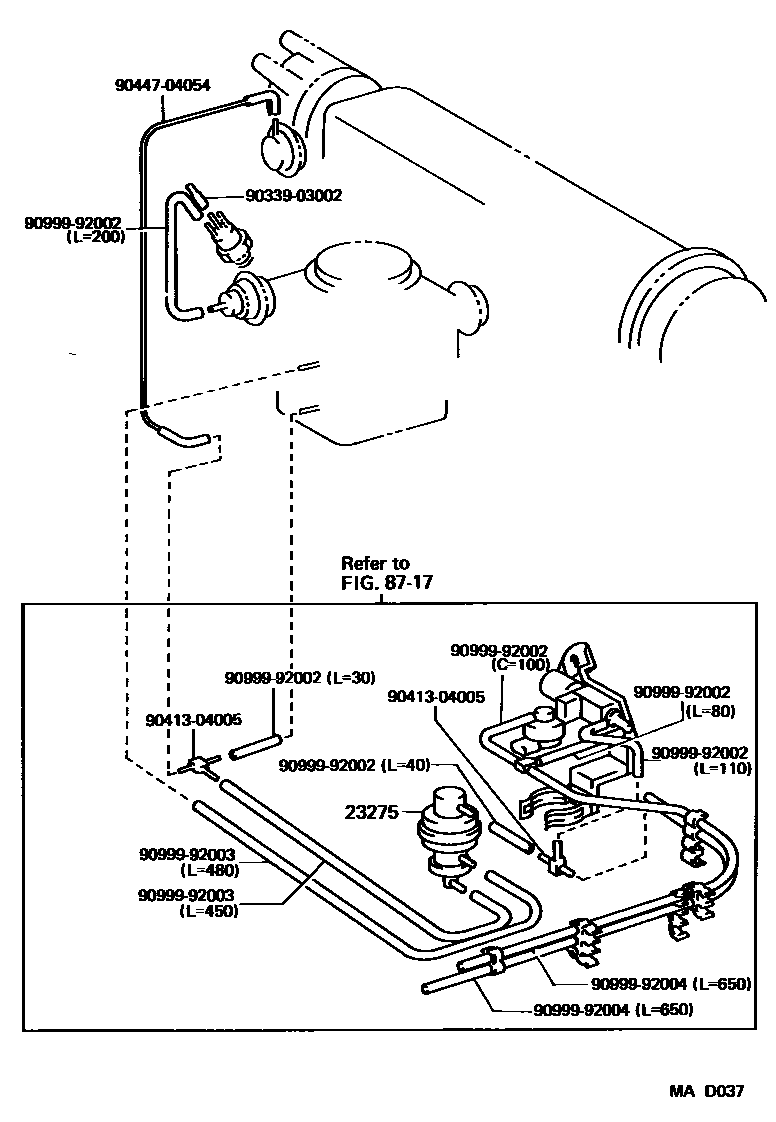

Toyota COROLLA vacuum tube EPC diagram — MAD037 — vacuum tube — MAD037 (198901 – 999999)

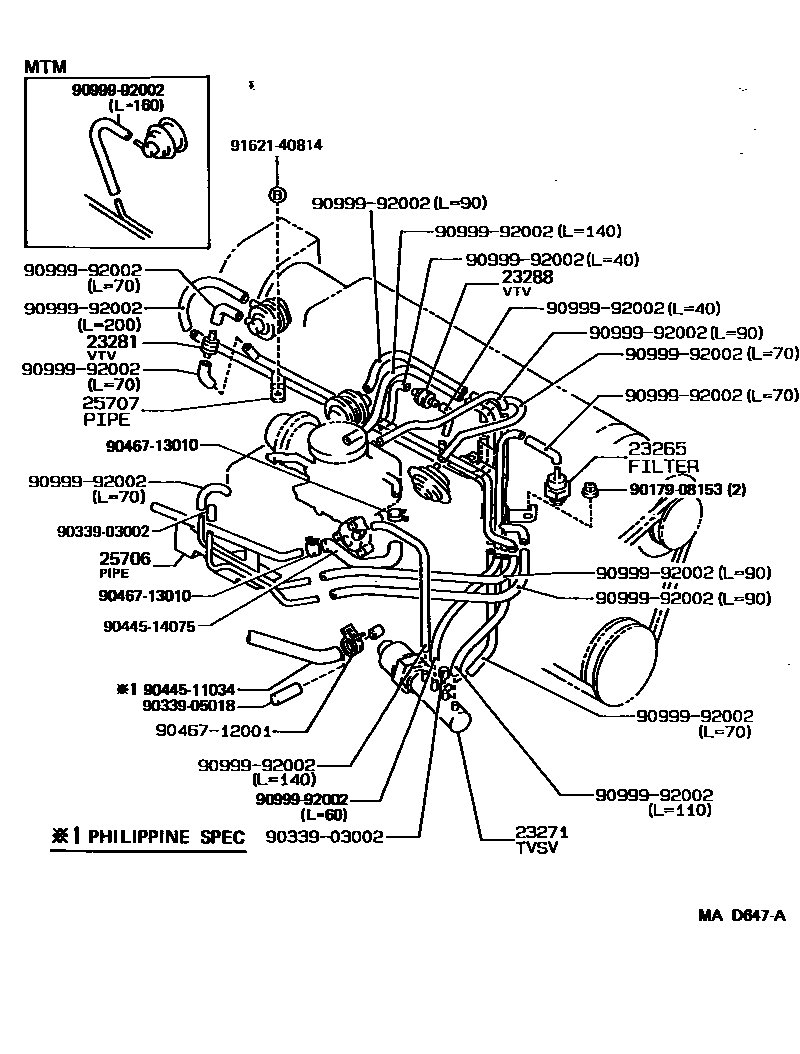

Toyota COROLLA vacuum tube EPC diagram — MAD647A — vacuum tube — MAD647A (198908 – 999999)

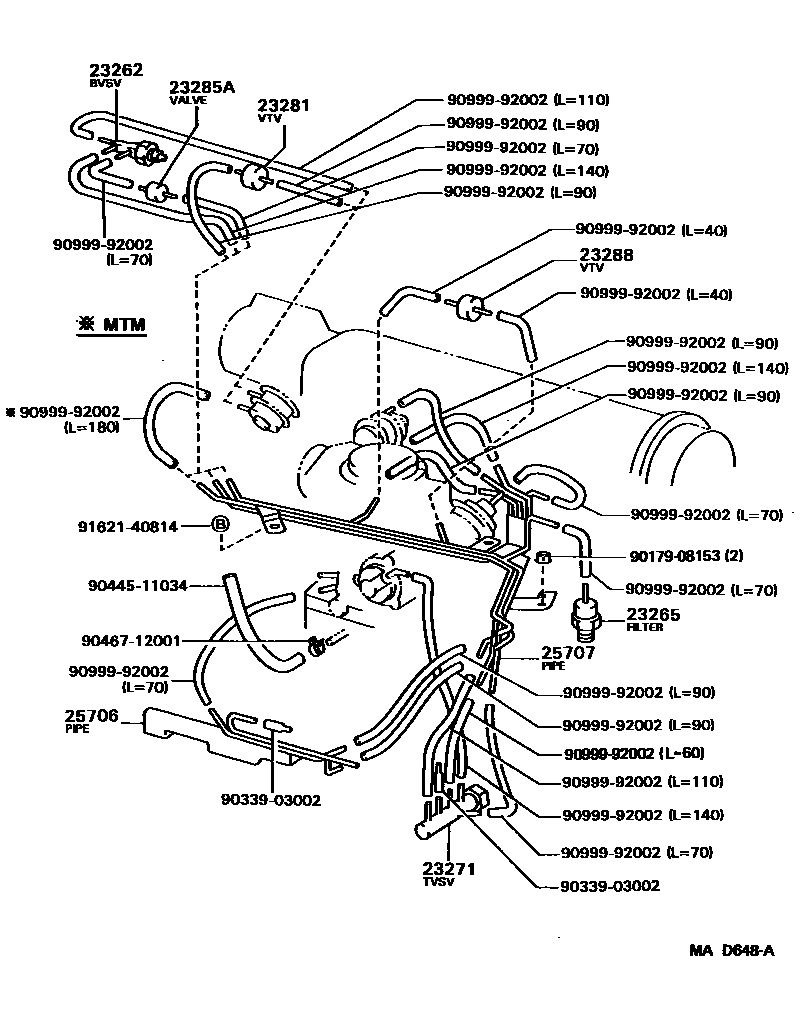

Toyota COROLLA vacuum tube EPC diagram — MAD648A — vacuum tube — MAD648A (198908 – 999999)

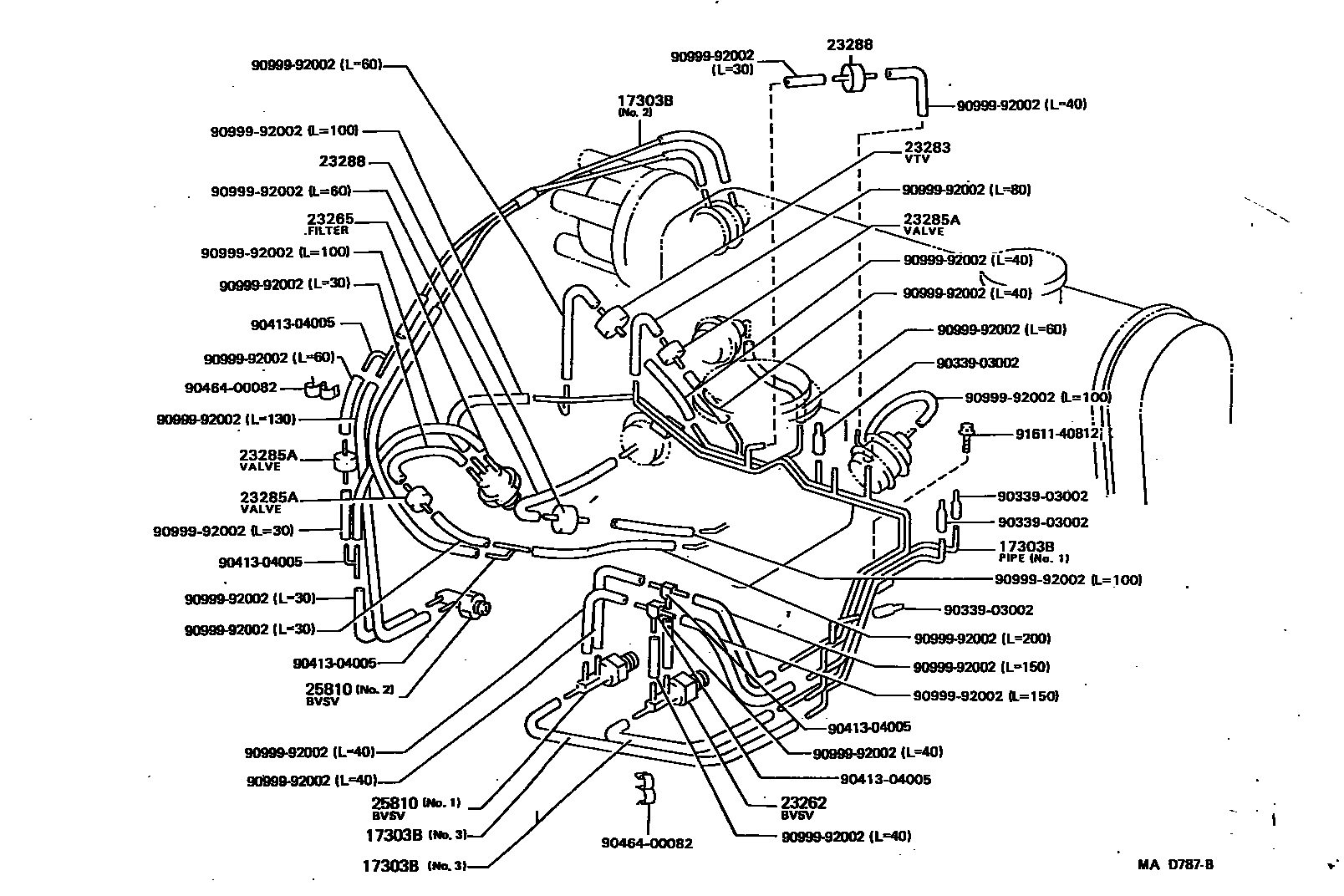

Toyota COROLLA vacuum tube EPC diagram — MAD787B — vacuum tube — MAD787B (198908 – 999999)

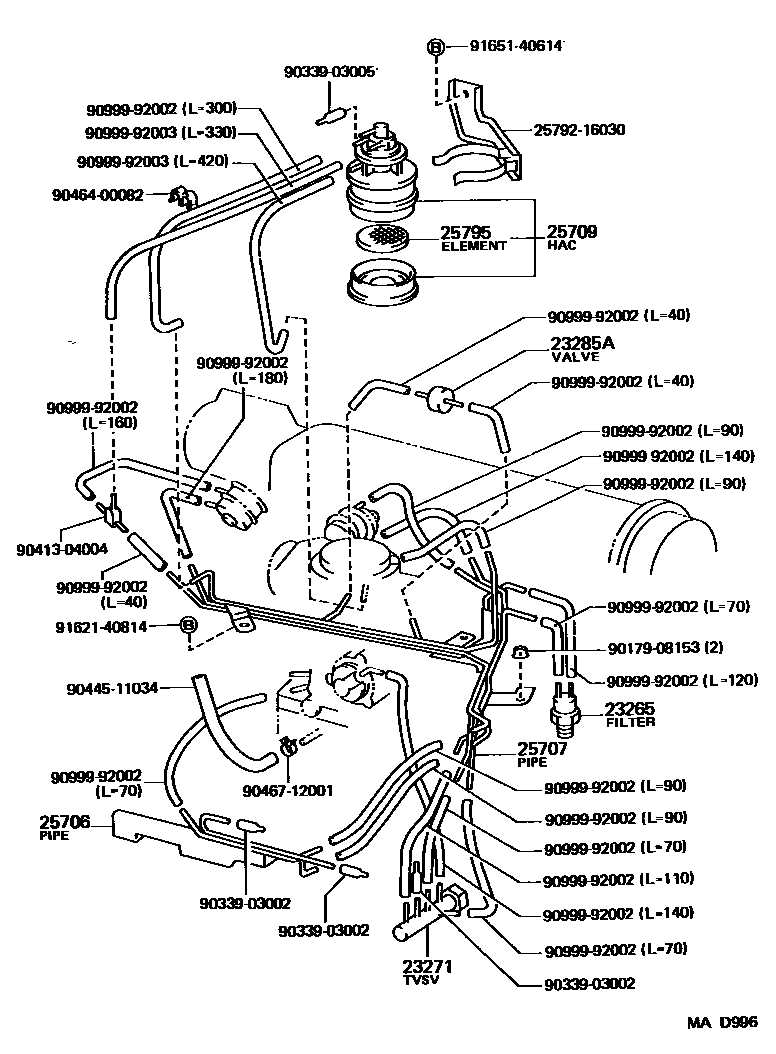

Toyota COROLLA vacuum tube EPC diagram — MAD996 — vacuum tube — MAD996 (198910 – 999999)

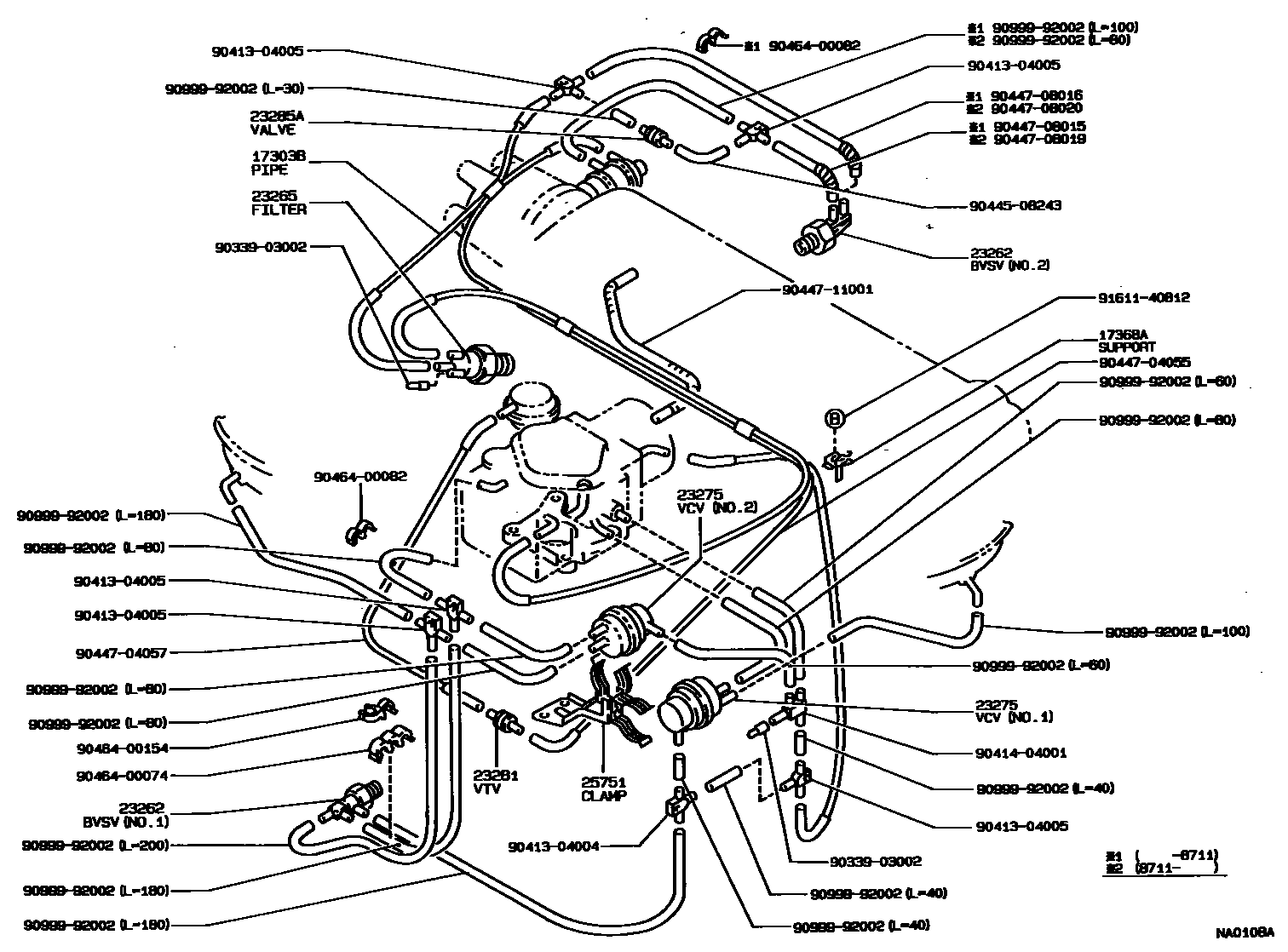

Toyota COROLLA vacuum tube EPC diagram — NA0108A — vacuum tube — NA0108A (198708 – 198908)

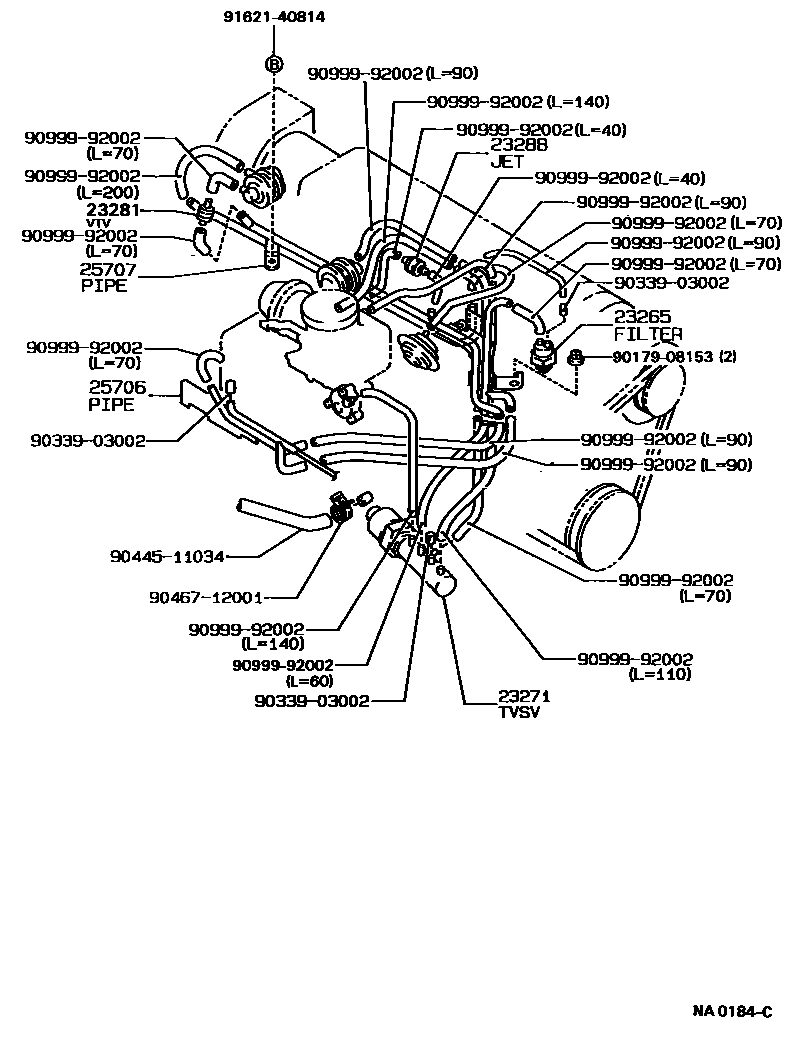

Toyota COROLLA vacuum tube EPC diagram — NA0184C — vacuum tube — NA0184C (198705 – 198908)

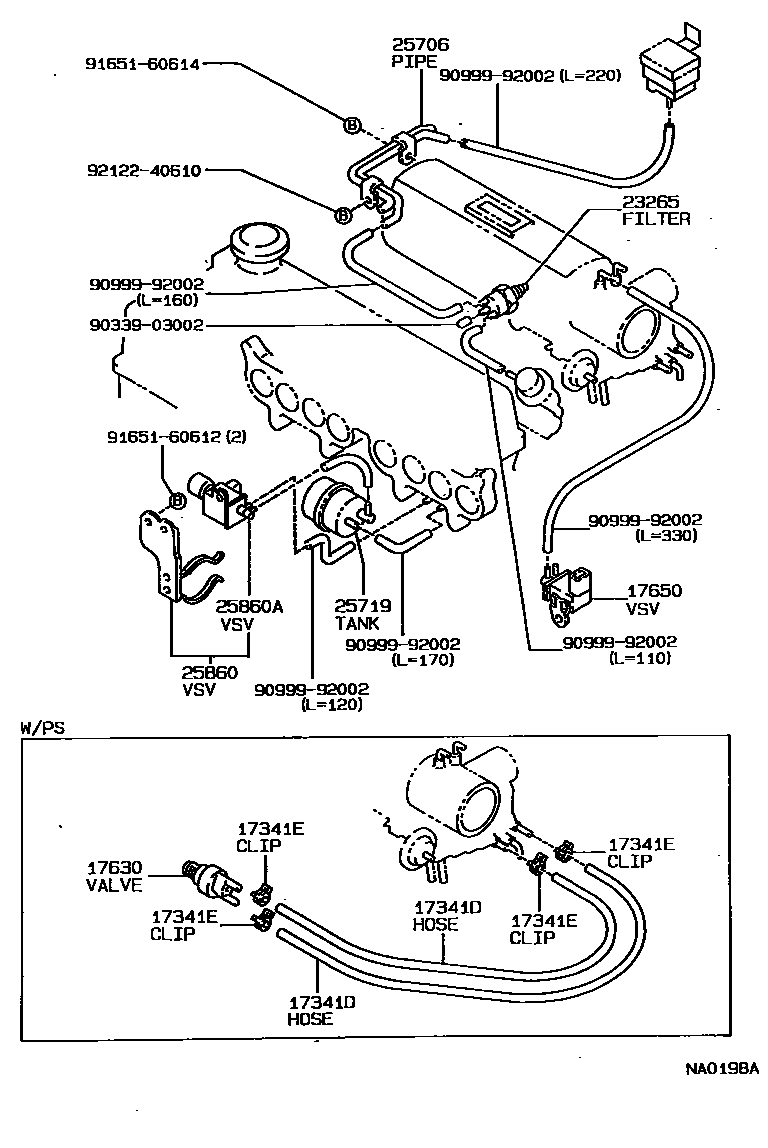

Toyota COROLLA vacuum tube EPC diagram — NA0198A — vacuum tube — NA0198A (198705 – 198908)

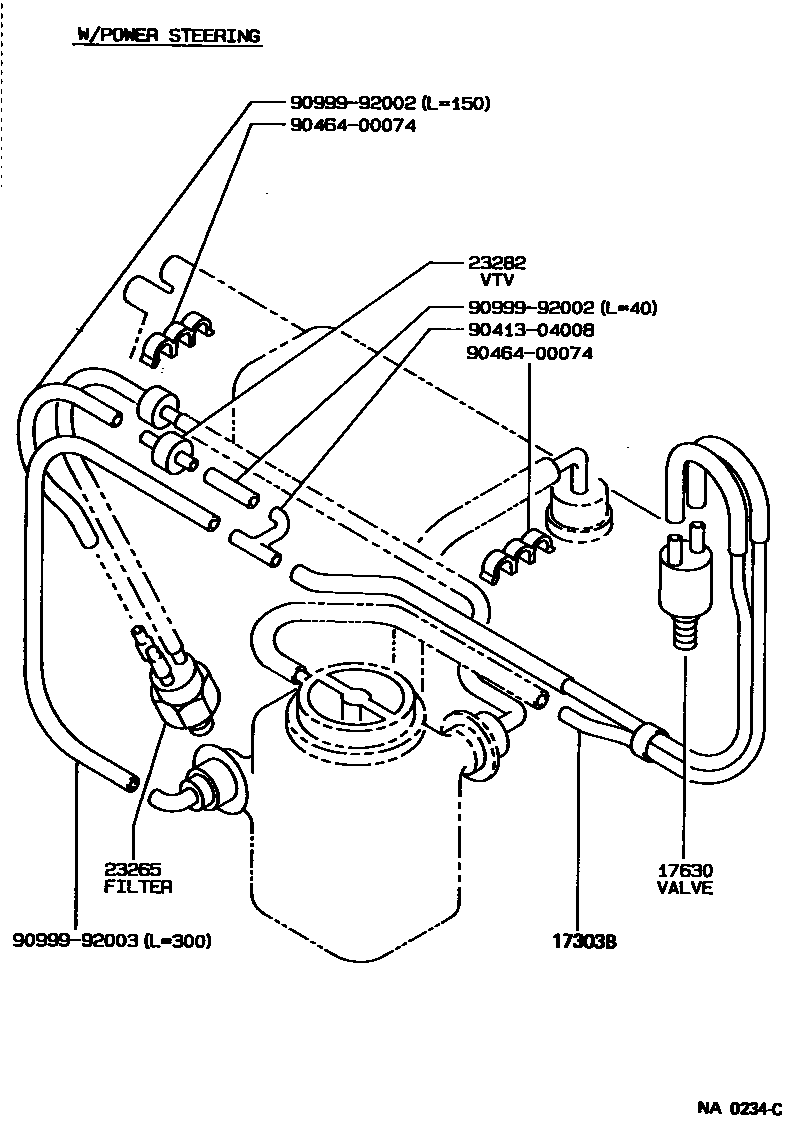

Toyota COROLLA vacuum tube EPC diagram — NA0234C — vacuum tube — NA0234C (198708 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17303B	No. 1 air pipe sub-assembly	17303-11051 · 17303-11052 · 17303-11300 · 17303-11301 · 17303-11440 · 17303-11460 · 17303-11550 · 17303-11570 · 17303-15050
17341B	Hoses No. 1 (for air injection systems)	17341-15130
17341D	No. 1 hose (for idle boost)	17302-16020 · 17341-15150 · 17341-16110
17341E	Clamp No. 1 (for idle lift hose)	96132-30400
17342B	No. 2 hose (for idle boost)	17342-15070
17361G	Air pipe (for idle boost)	17361-16100
17368A	Air tube support	17368-11010
17630	Air control valve assembly	17630-15030 · 17630-15040 · 17630-15060 · 17630-16040 · 17630-16080
17650	Vacuum switch valve assembly	25860-16090 · 90910-12060
23262	No. 1 bimetallic vacuum switch valve	25820-11020 · 25820-11040 · 90925-05035 · 90925-05068 · 90925-05075 · 90925-05085
23265	No. 1 gas filter	90917-11022 · 90917-11023 · 90917-11024 · 90917-11027
23271	No. 1 thermostatic vacuum switching valve	90925-02076
23275	Vacuum control valve No. 1	90925-03173 · 90925-03175 · 90925-03181
23281	Vacuum Transfer Valve No. 1	90925-01014 · 90925-01041 · 90925-01095 · 90925-01100
23282	Vacuum Transfer Valve No. 2	90925-01021 · 90925-01101
23283	Vacuum Transfer Valve No. 3	90925-01021 · 90925-01027 · 90925-01091 · 90925-01095
23285A	No. 1 one-way valve	90917-10049
23288	Nozzle No. 1	90925-01091 · 90925-01101 · 90925-03173 · 90925-04006
25706	No. 1 vacuum transfer tube sub-assembly	25706-16210 · 25706-16240 · 25706-16280 · 25706-16300 · 25706-16320
25707	No. 2 vacuum transfer pipe sub-assembly	25707-16040 · 25707-16060 · 25707-16061 · 25707-16140 · 25707-16160 · 25707-16170
25709	High altitude compensator valve sub-assembly	25709-38010
25719	Vacuum pressure tank	25719-16020
25751	No. 1 vacuum control valve clamp	25751-11050
25795	Altitude compensator filter element	25795-38010
25810	Bimetal valve assembly	25810-11070 · 25810-11080
25860	No. 1 vacuum switch valve assembly	25860-16070
25860A	No. 1 vacuum switch valve	90910-12052
