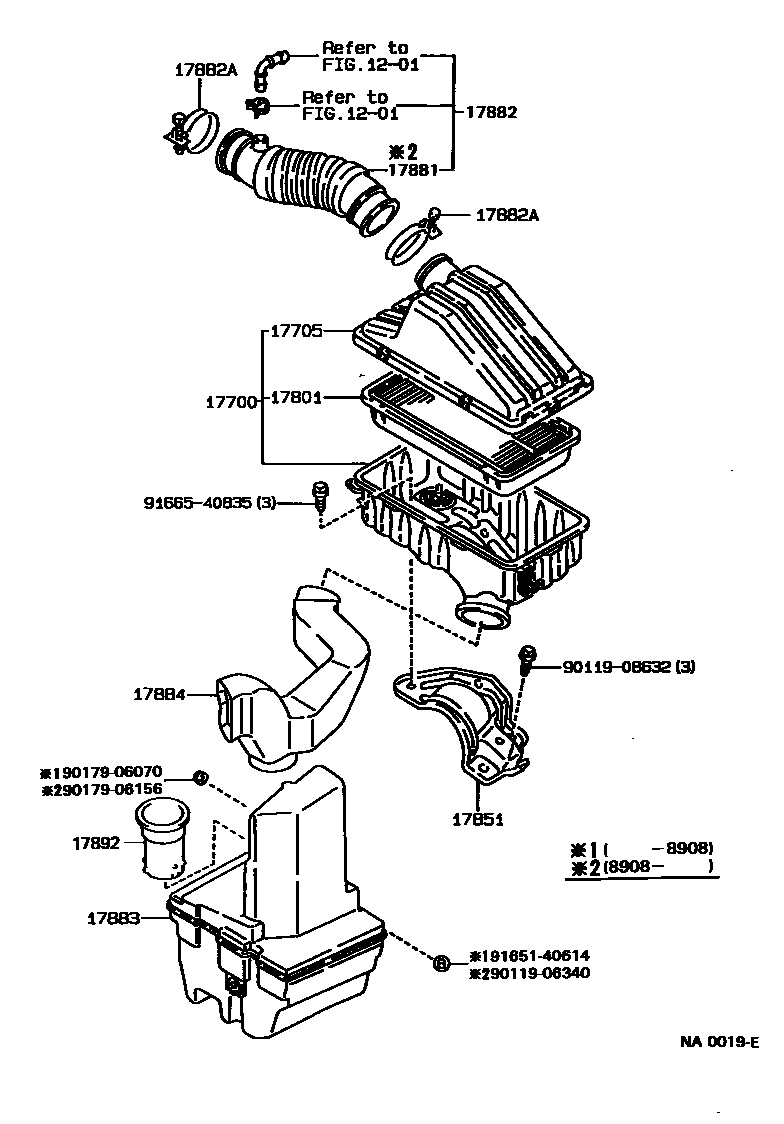

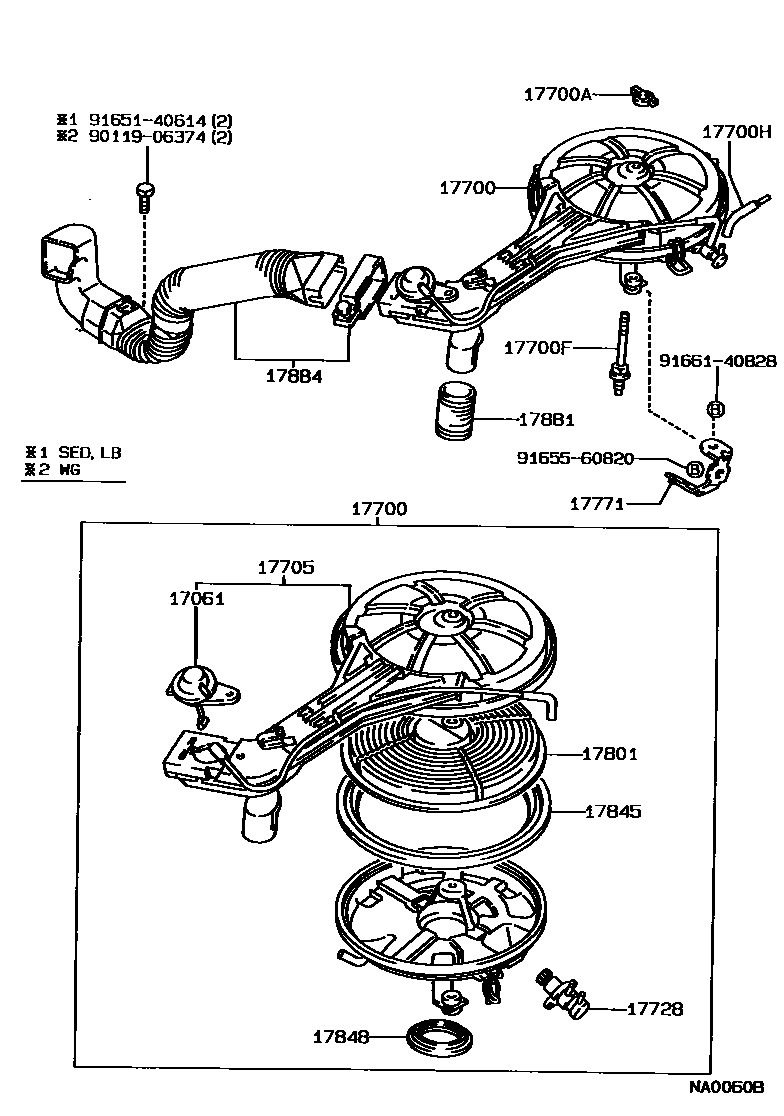

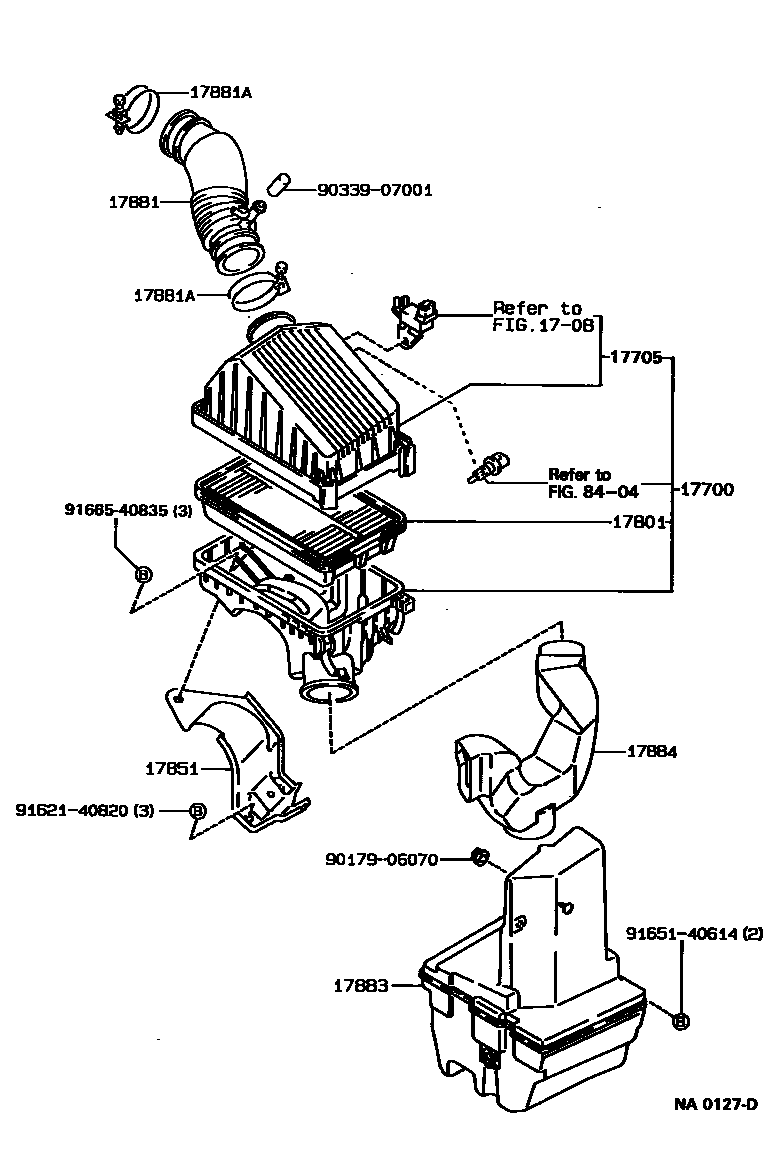

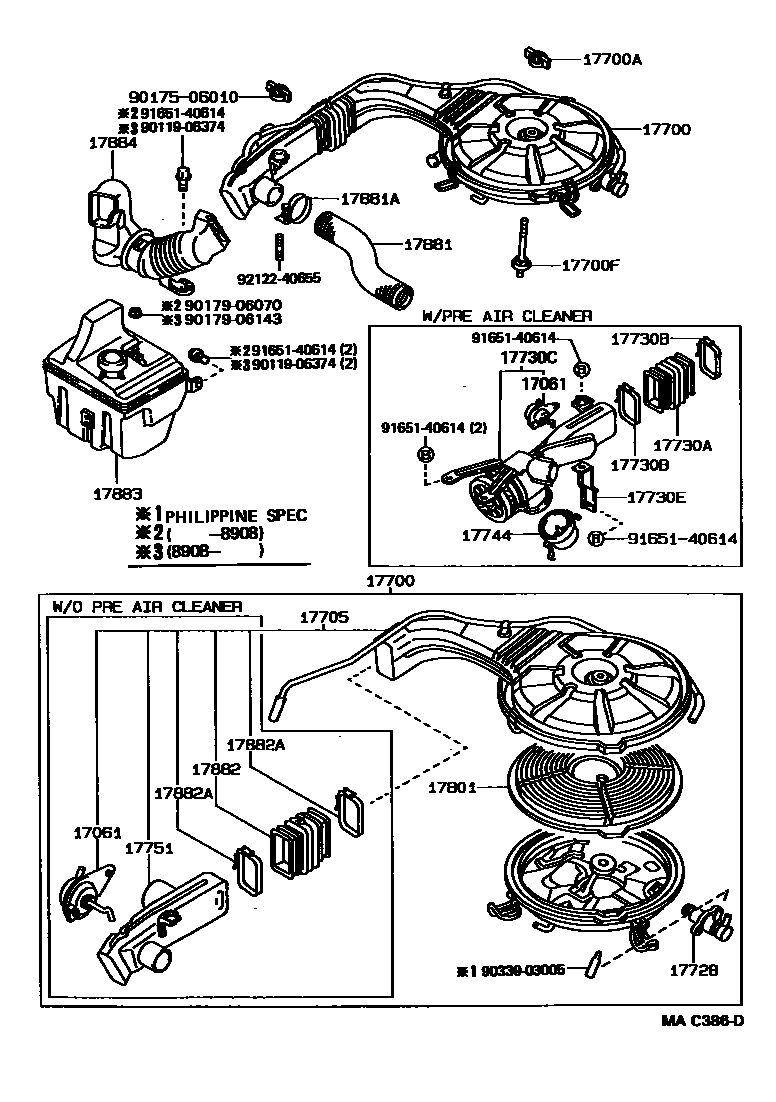

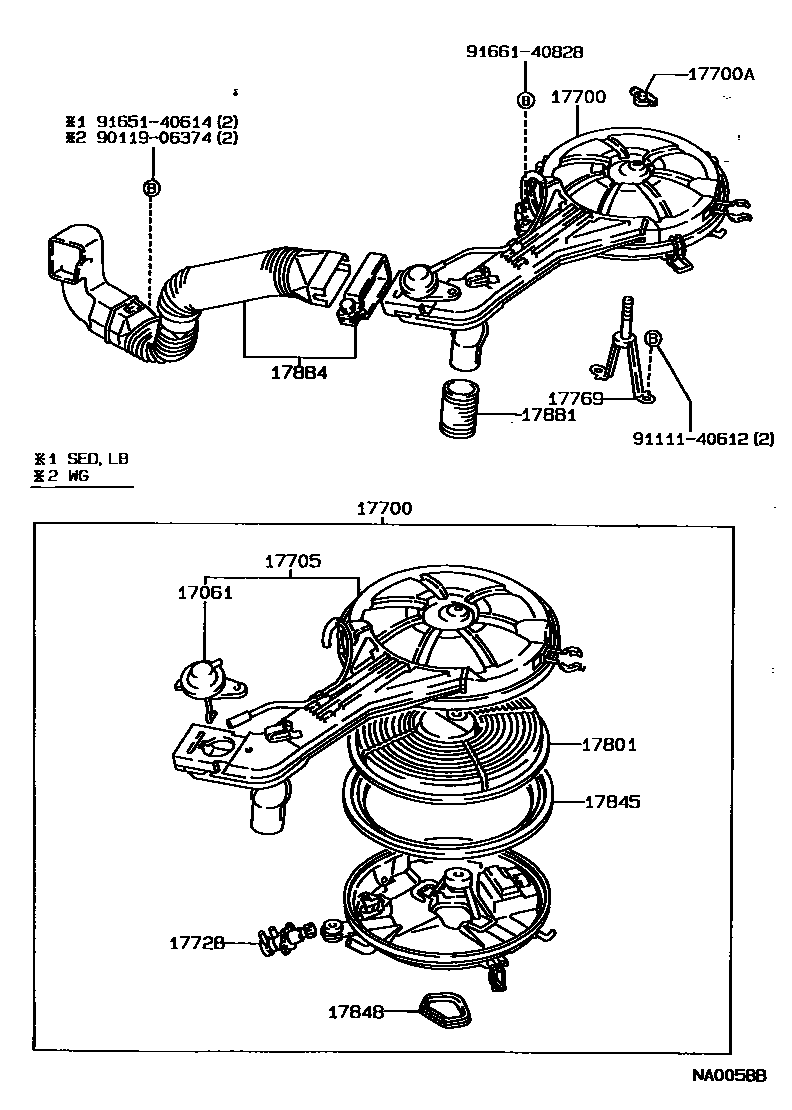

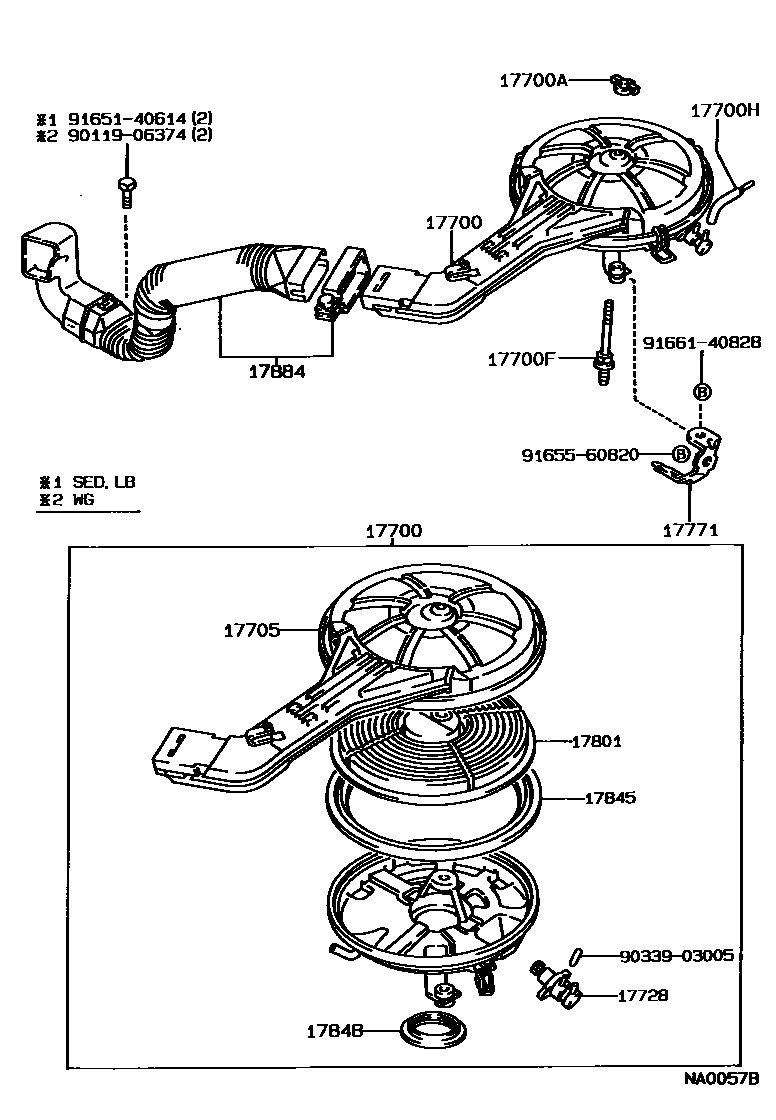

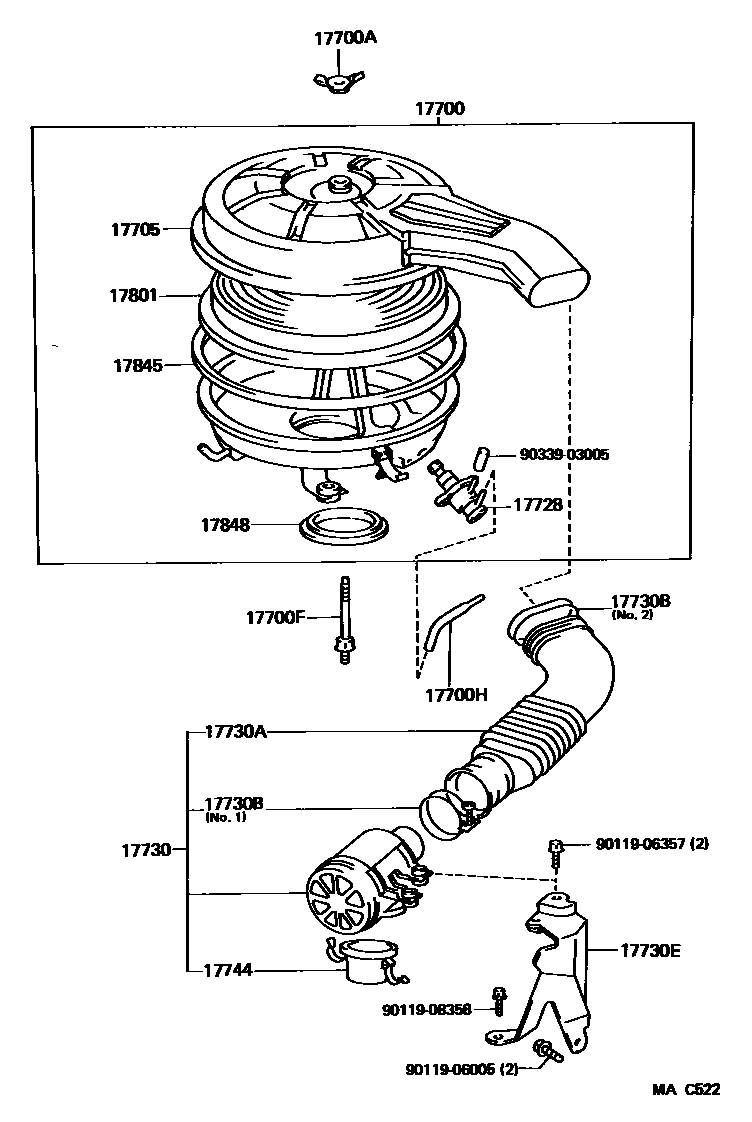

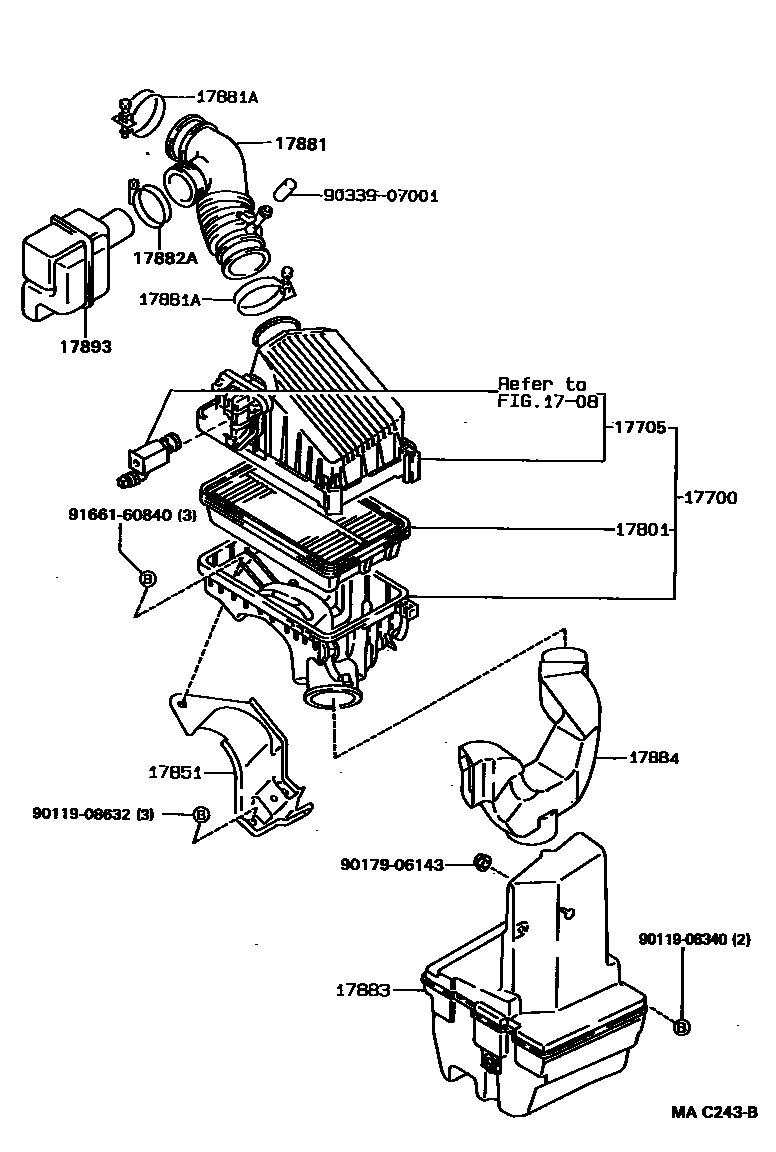

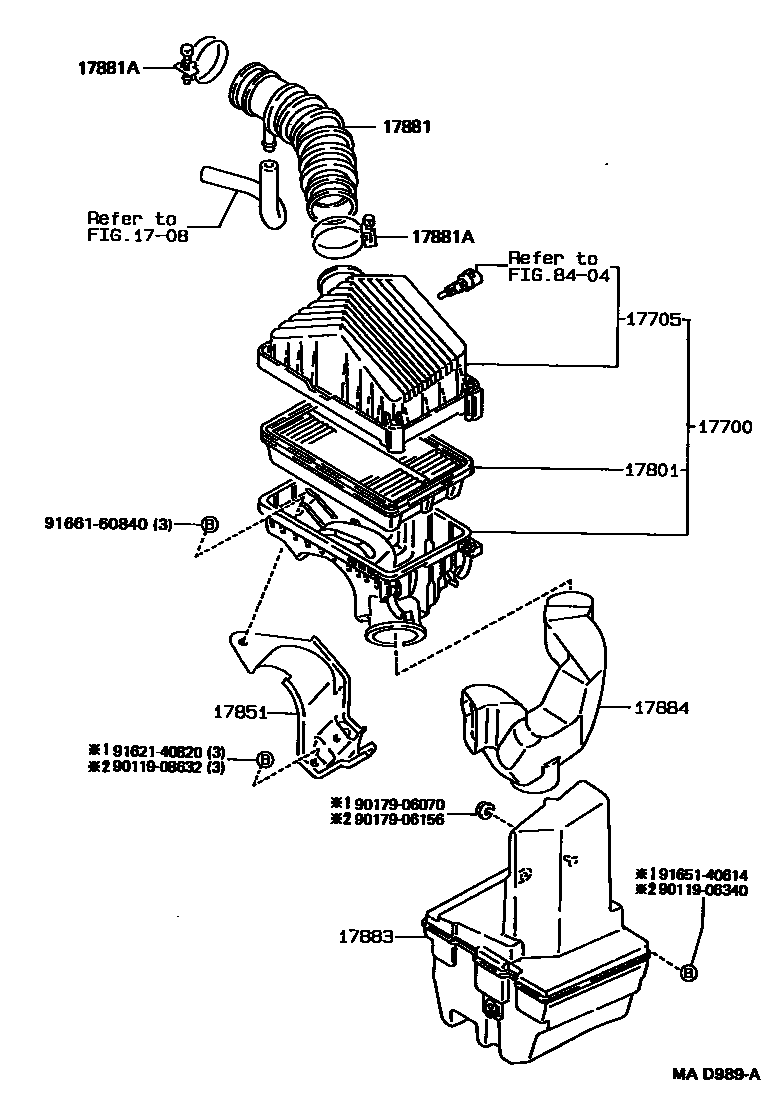

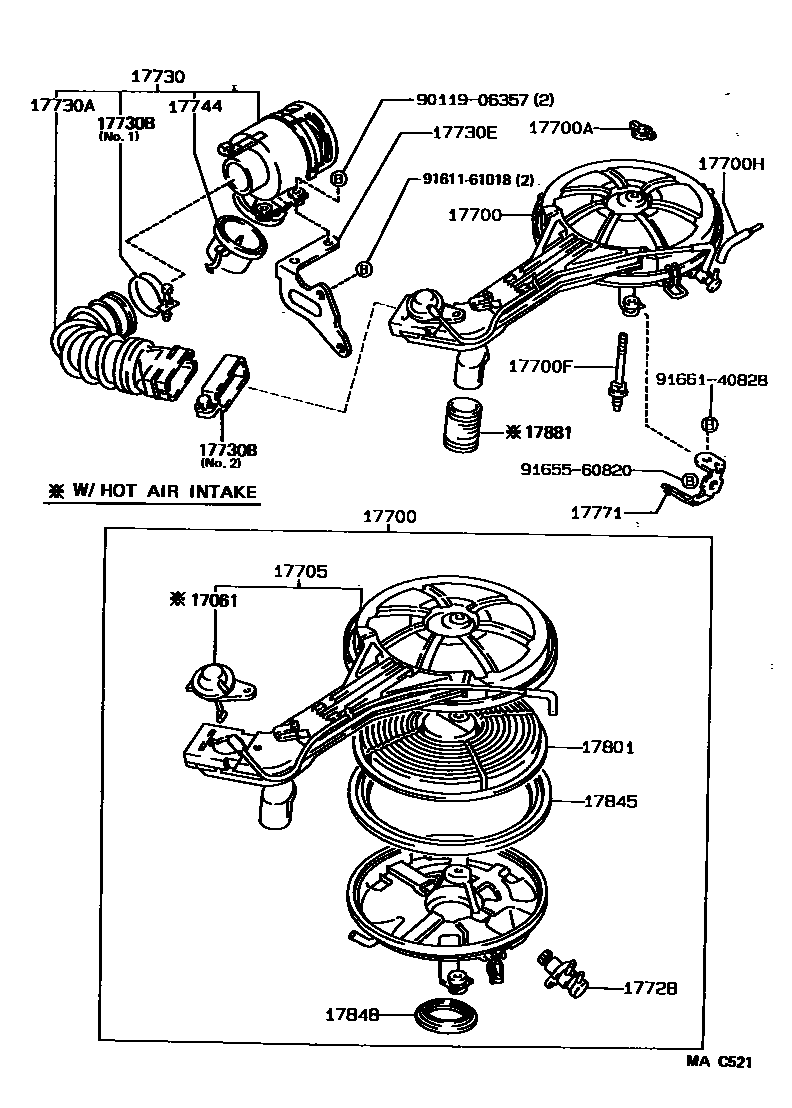

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 10 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-10010 · 17061-11010 · 17061-15040 |
| 17700 | air filter assembly | 17700-11200 · 17700-11210 · 17700-11360 · 17700-11470 · 17700-11540 · 17700-15250 · 17700-16370 · 17700-16420 · 17700-16430 · 17700-16480 · 17700-16510 · 17700-16590 · 17700-16640 · 17700-16710 · 17700-16720 · 17700-64220 · 17700-64240 |
| 17700A | Wing nut (for air cleaner) | 90175-06010 |
| 17700F | Stud bolt (for securing air filter) | 90116-06018 · 90116-06142 |
| 17700H | air hose | 17341-10010 |
| 17705 | Air filter cover sub-assembly | 17705-11170 · 17705-11180 · 17705-11190 · 17705-11360 · 17705-11370 · 17705-15140 · 17705-15150 · 17705-16160 · 17705-16210 · 17705-16220 · 17705-16240 · 17705-16290 · 17705-16320 · 17705-16380 · 17705-64110 · 17705-64130 |
| 17728 | thermostat valve | 17728-10010 · 17728-11020 · 17728-11040 · 17728-11080 · 17728-16010 |
| 17730 | Air pre-filter assembly with hose | 17730-11011 · 17730-11020 |
| 17730A | Coarse filter hose | 17881-11080 · 17881-11200 · 17881-16180 |
| 17730B | Hose clamp (for primary filter hose) | 17786-16010 · 90460-01005 · 90460-01034 · 96111-10600 |
| 17730C | Coarse filter housing | 17736-16030 · 17736-16040 |
| 17730E | No. 1 coarse filter holder | 17741-11010 · 17741-11020 · 17741-16020 |
| 17744 | Coarse filter cup | 17744-16020 · 17744-35010 |
| 17751 | No. 1 air filter air inlet | 17751-15010 · 17751-16010 · 17751-16030 · 17751-16050 |
| 17769 | air filter bracket | 17769-11020 |
| 17771 | Air filter inlet pipe bracket | 17771-11020 |
| 17801 | Air filter element sub-assembly | 17801-10030 · 17801-11100 · 17801-15060 · 17801-16020 · 17801-64010 · 17801-74020 |
| 17845 | air cleaner cover gasket | 17845-10020 |
| 17848 | Gasket from air cleaner to carburetor | 17848-10020 · 17848-10021 · 17848-15010 |
| 17851 | air filter bracket | 17851-15010 · 17851-64010 |
| 17881 | No. 1 air cleaner hose | 17881-10030 · 17881-10031 · 17881-10032 · 17881-10033 · 17881-15120 · 17881-15130 · 17881-15150 · 17881-16130 · 17881-16240 · 17881-64200 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73005 · 90460-80002 · 96111-10460 · 96111-10730 · 96111-10800 |
| 17882 | No. 2 air cleaner hose | 17880-64060 · 17880-64150 · 17881-15140 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17786-15010 · 90460-58003 · 96111-10560 · 96111-10650 |
| 17883 | No. 3 air cleaner hose | 17883-16030 · 17883-16031 · 17883-16040 · 17883-16041 |
| 17884 | No. 4 air cleaner hose | 17880-14070 · 17880-16010 · 17882-16100 · 17882-16130 · 17882-64050 |
| 17892 | Intake resonator hose | 17892-64010 |
| 17893 | Intake resonator | 17893-16040 |
