Toyota COROLLA Exhaust Pipe — Figure 1702

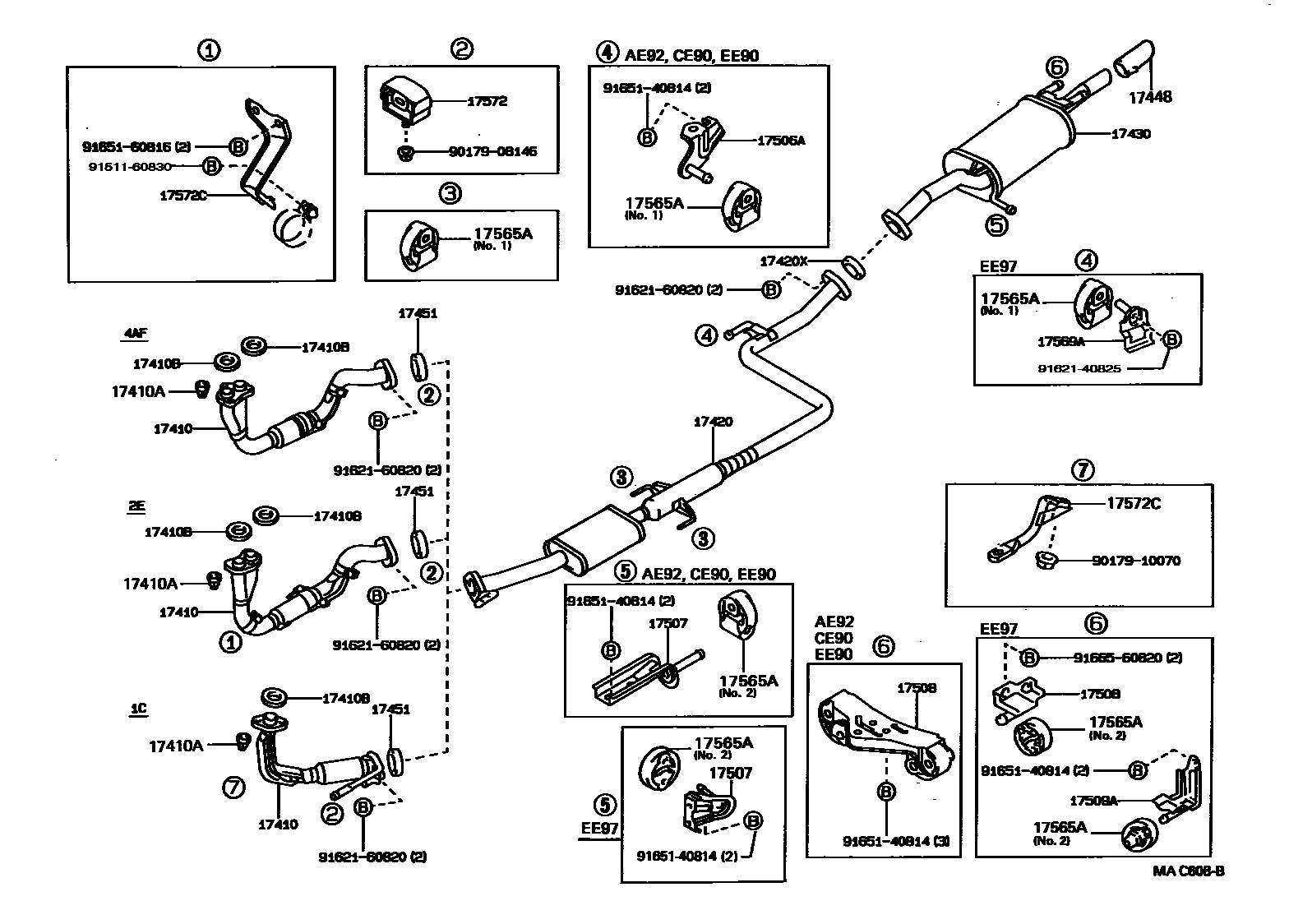

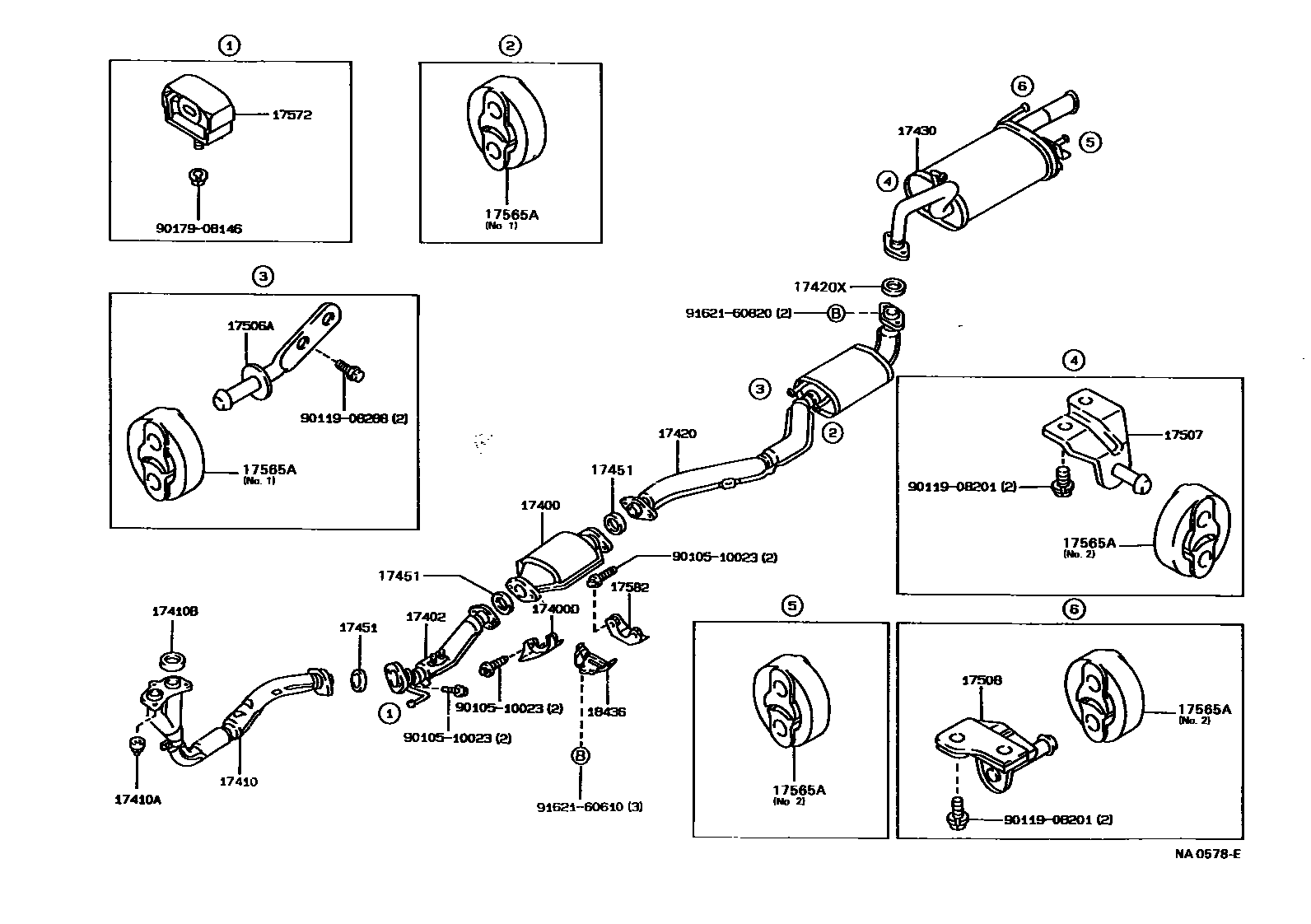

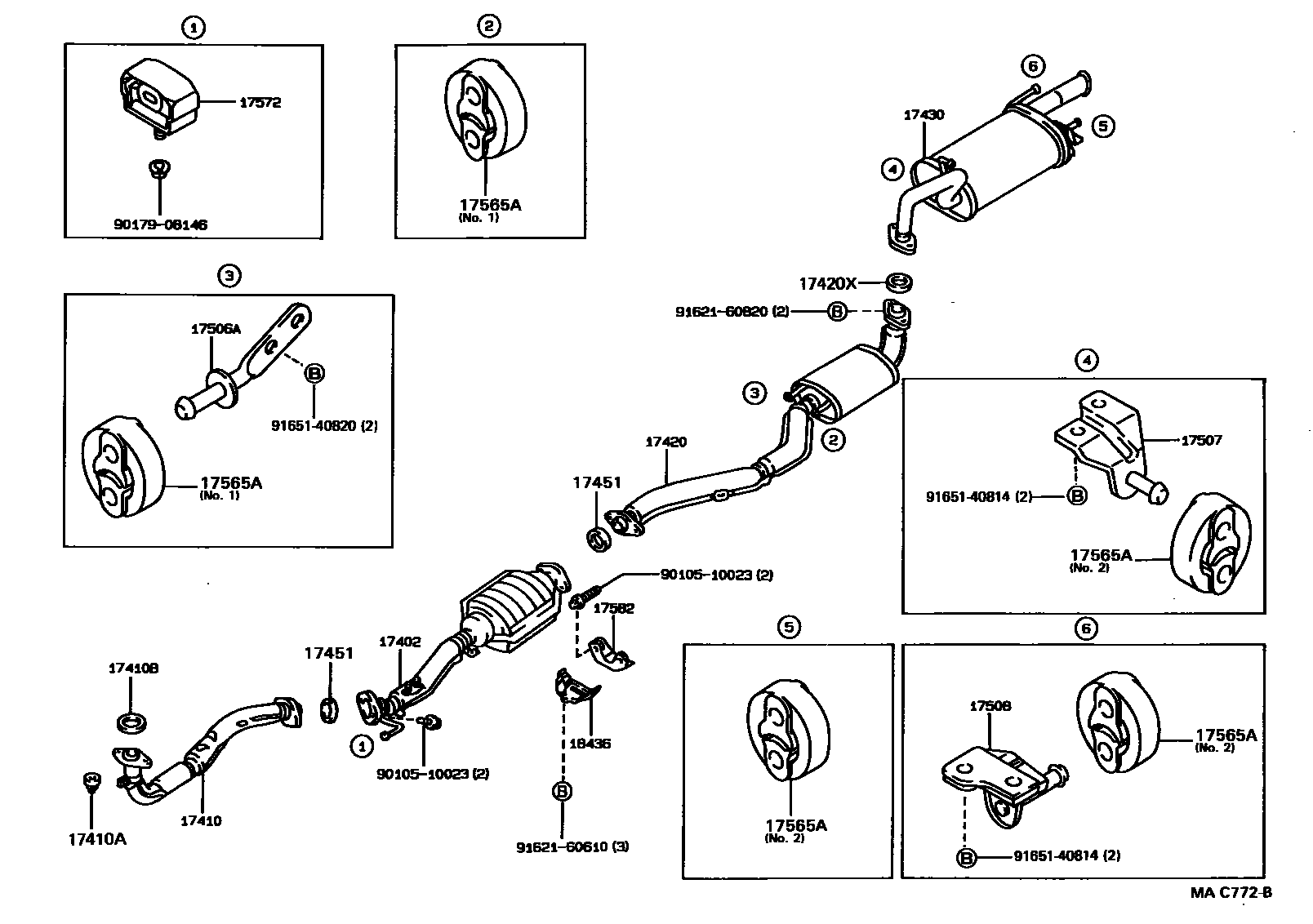

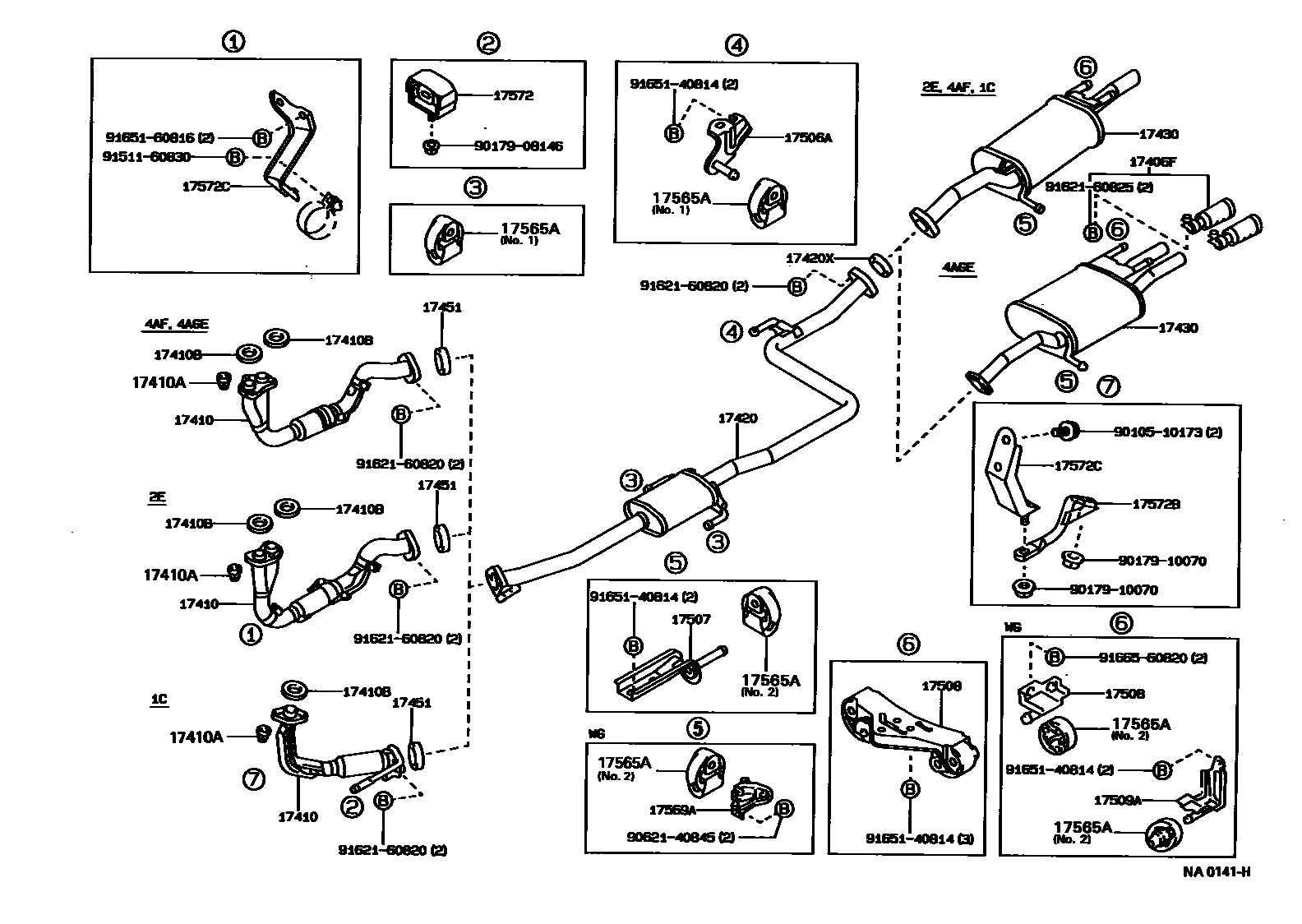

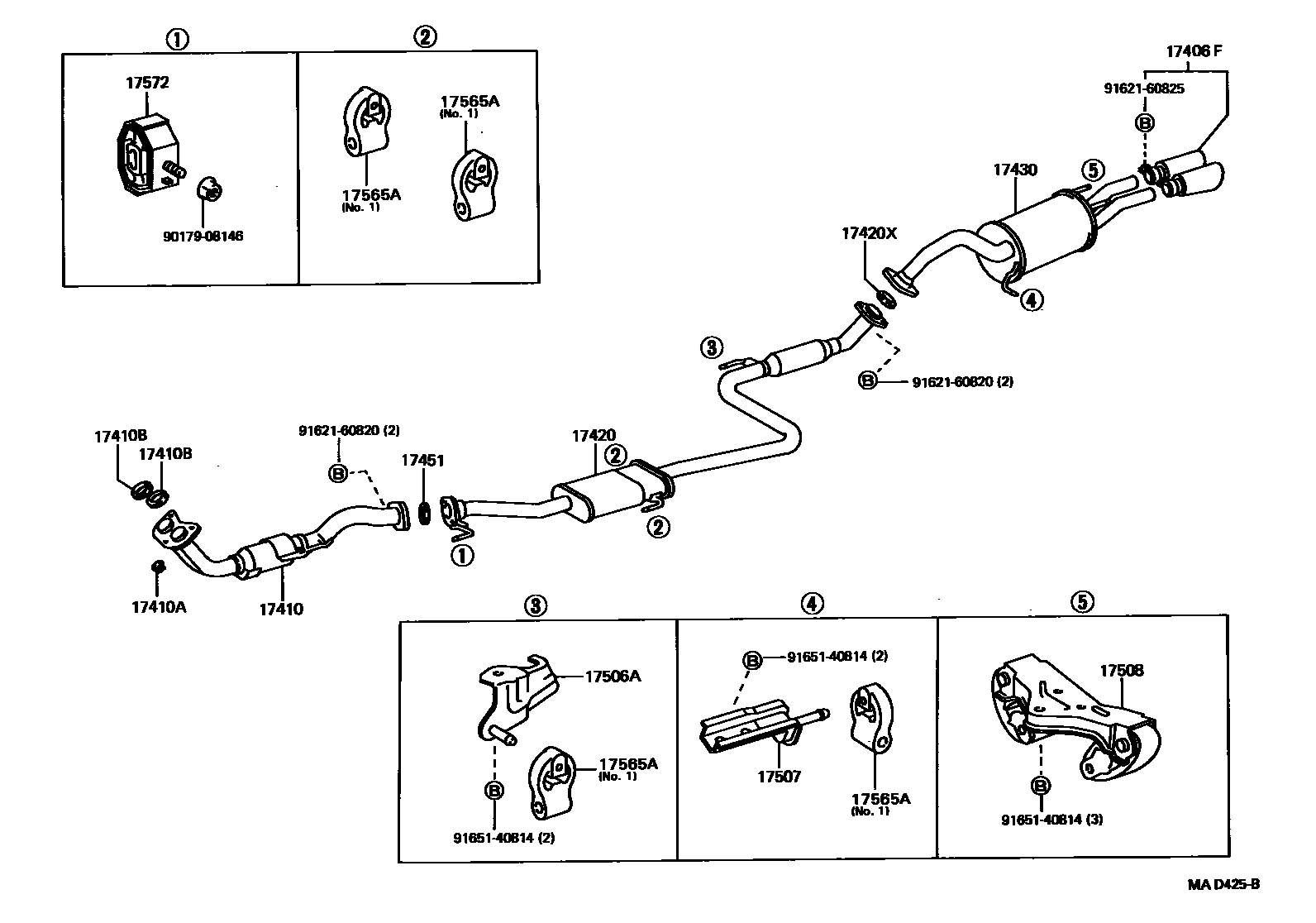

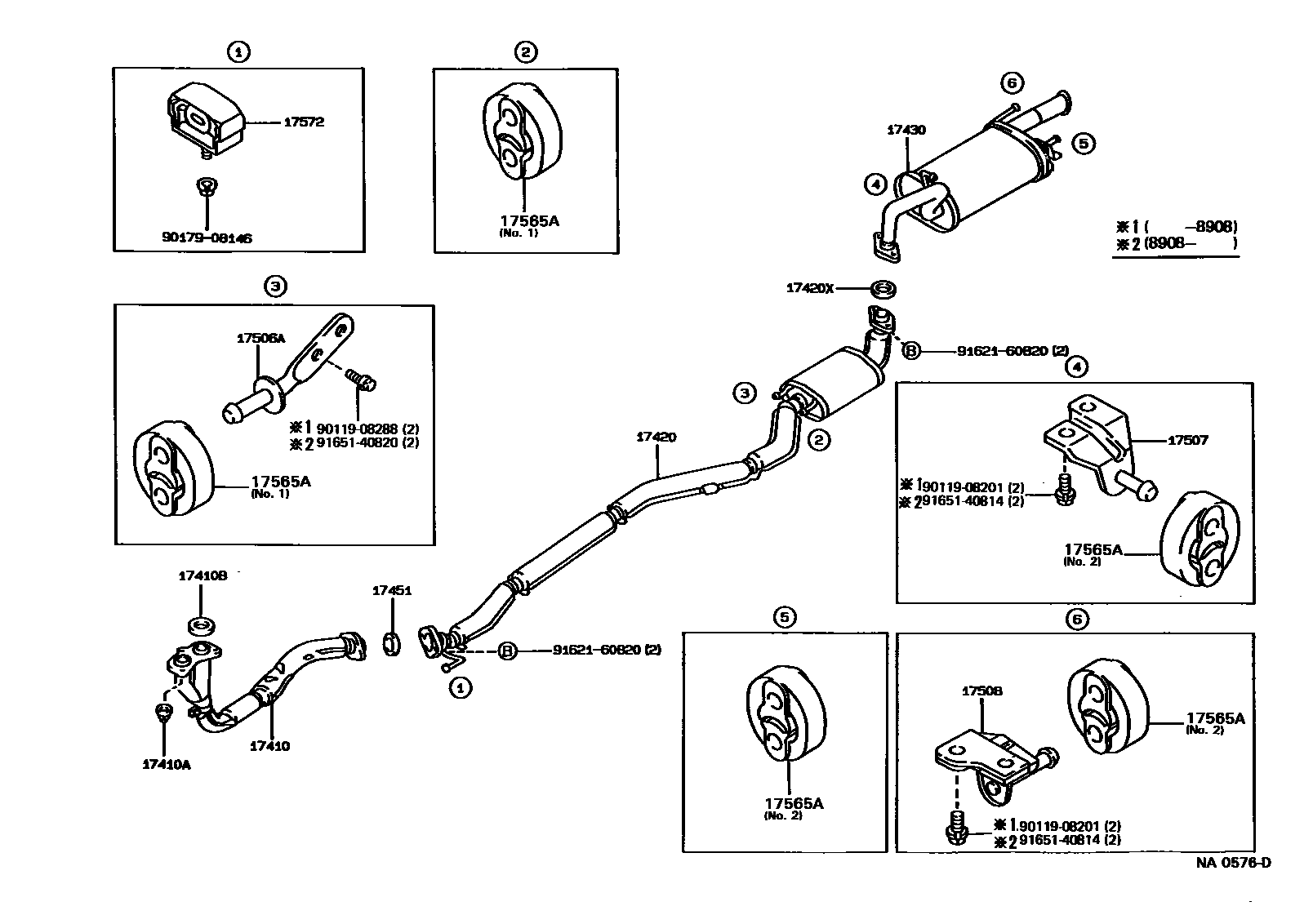

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 6 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-16300 · 18450-16370 |
| 17400D | Three-way catalytic converter bracket | 17503-16120 |
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-16060 · 17402-16080 · 17402-16081 |
| 17406F | Exhaust diffuser sub-assembly | 17406-19015 · 17406-19025 |
| 17410 | Front exhaust pipe assembly | 17410-11280 · 17410-16410 · 17410-16420 · 17410-16550 · 17410-16551 · 17410-16560 · 17410-16561 · 17410-16700 · 17410-64270 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 · 90917-06006 · 90917-06037 · 90917-06038 · 90917-06039 · 90917-06045 · 90917-06047 · 90917-06064 |
| 17420 | Central exhaust pipe assembly | 17420-11060 · 17420-11061 · 17420-11110 · 17420-16140 · 17420-16150 · 17420-16180 · 17420-16190 · 17420-16191 · 17420-16241 · 17420-16242 · 17420-16390 · 17420-16430 · 17420-64090 · 17420-64091 |
| 17420X | Center exhaust pipe liner | 90917-06001 · 90917-06004 · 90917-06012 · 90917-06038 · 90917-06039 · 90917-06045 · 90917-06047 · 90917-06060 |
| 17430 | Exhaust tailpipe assembly | 17430-11190 · 17430-11210 · 17430-11230 · 17430-11231 · 17430-11340 · 17430-11360 · 17430-16390 · 17430-16430 · 17430-16530 · 17430-16531 · 17430-16550 · 17430-16560 · 17430-16561 · 17430-16810 · 17430-16840 · 17430-16870 · 17430-1A020 · 17430-64450 |
| 17448 | Exhaust pipe tail throat | 17448-11020 · 17448-64010 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06023 · 90917-06039 · 90917-06041 · 90917-06045 · 90917-06047 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15050 · 17506-16040 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-11030 · 17507-15030 · 17507-16020 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-11020 · 17508-15030 · 17508-16040 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-11020 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-15050 · 17565-15070 · 17565-15110 · 17565-63030 · 17565-63071 |
| 17569A | Exhaust pipe support plate | 17569-11010 |
| 17572 | No. 1 exhaust pipe bracket | 17572-15050 |
| 17572B | No. 2 exhaust pipe bracket | 17572-64120 |
| 17572C | Front exhaust pipe bracket (for front) | 17571-11110 · 17571-64130 |
| 17582 | Three-way catalytic converter upper bracket | 17582-38070 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18436-16010 |
