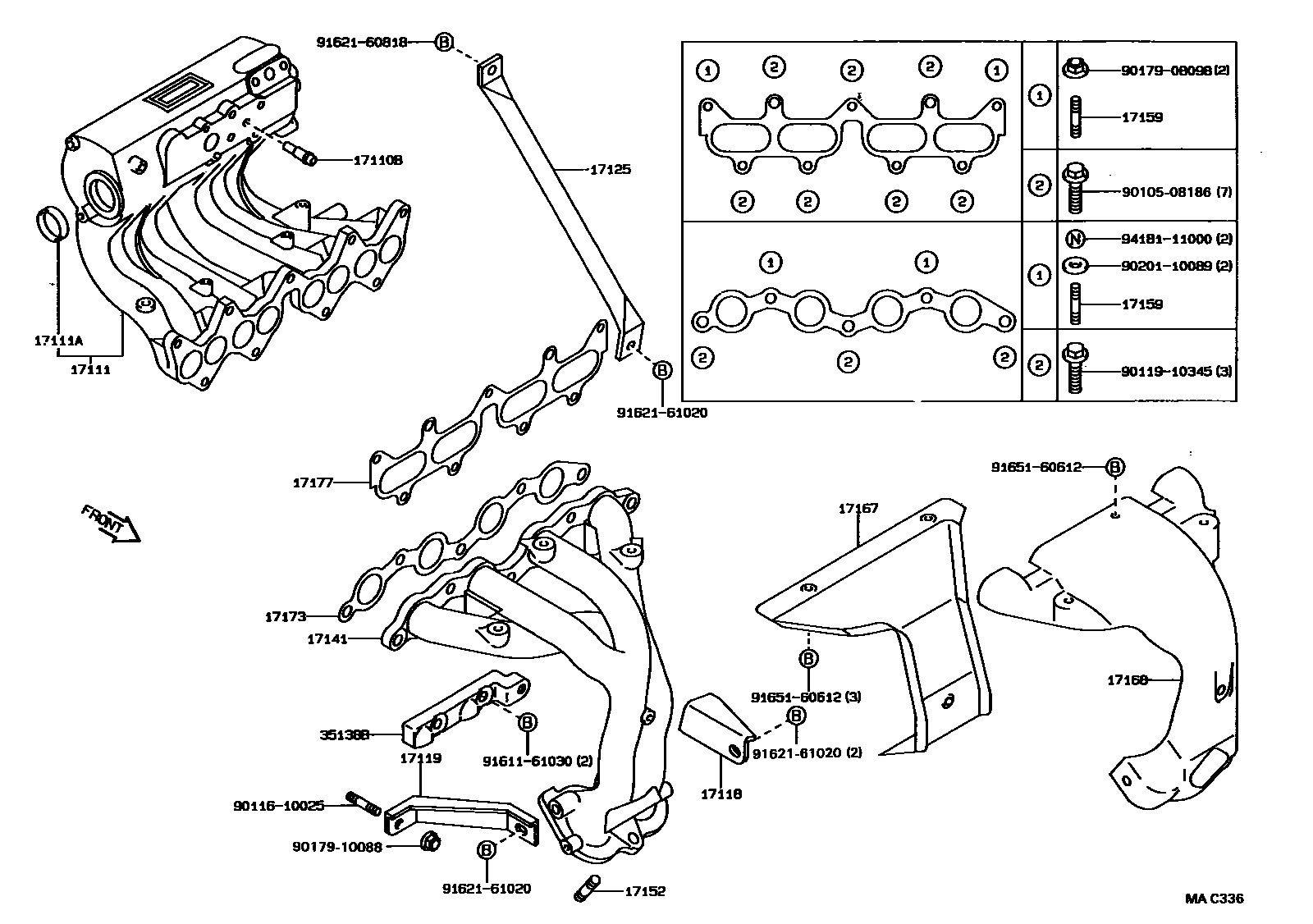

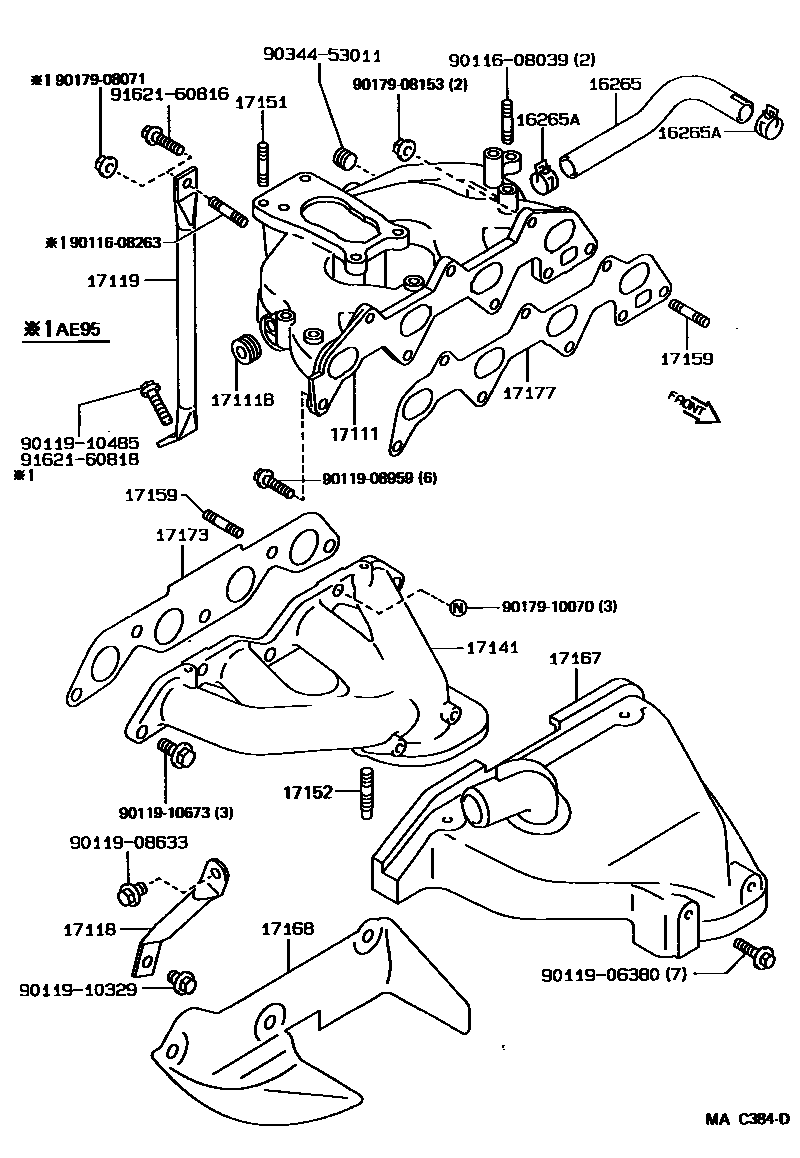

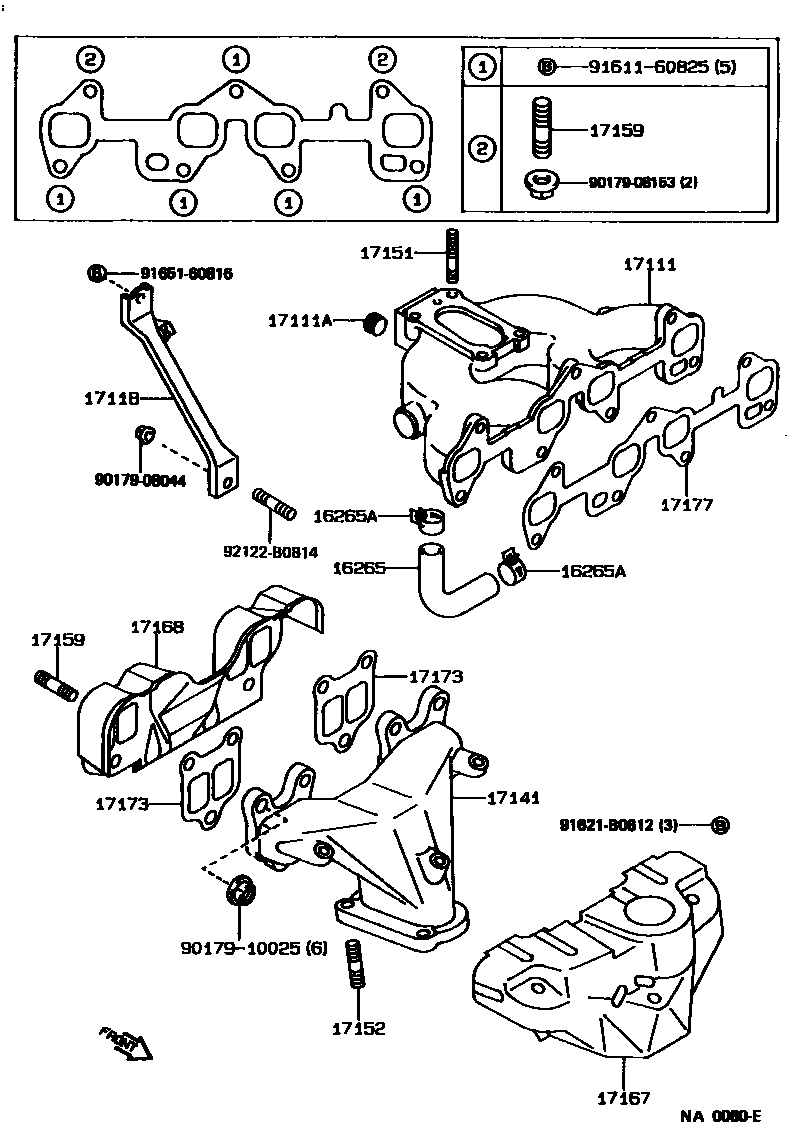

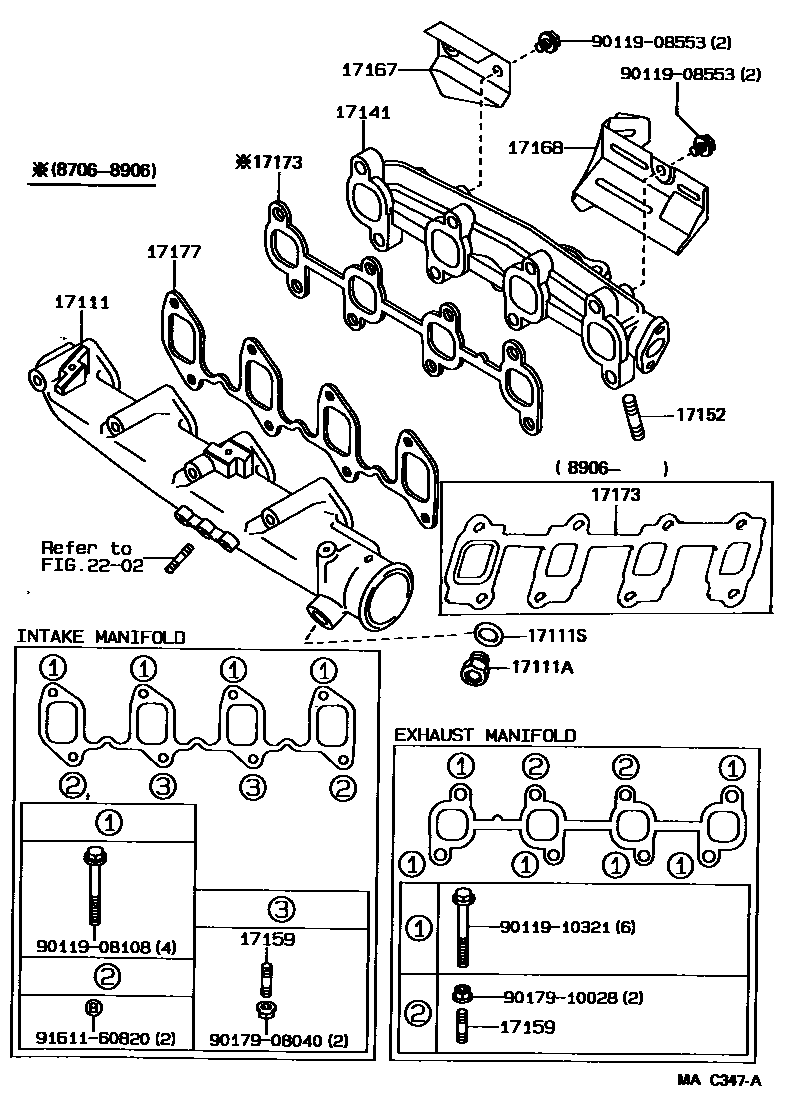

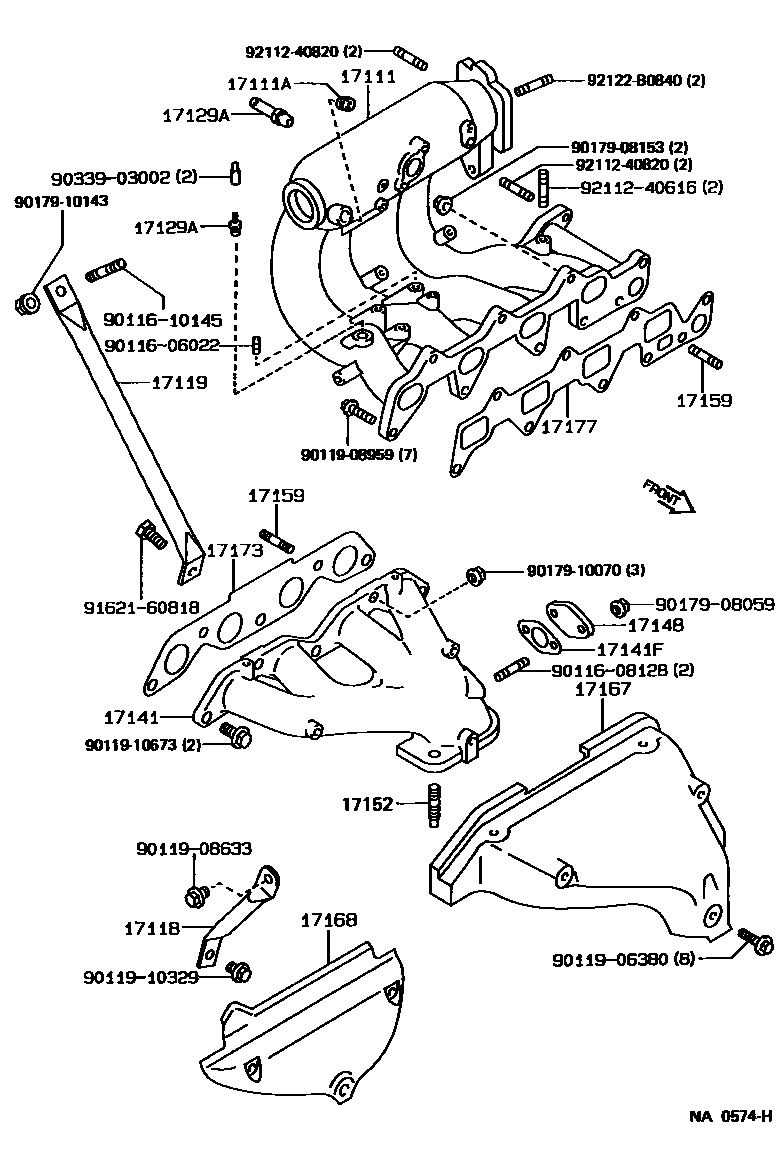

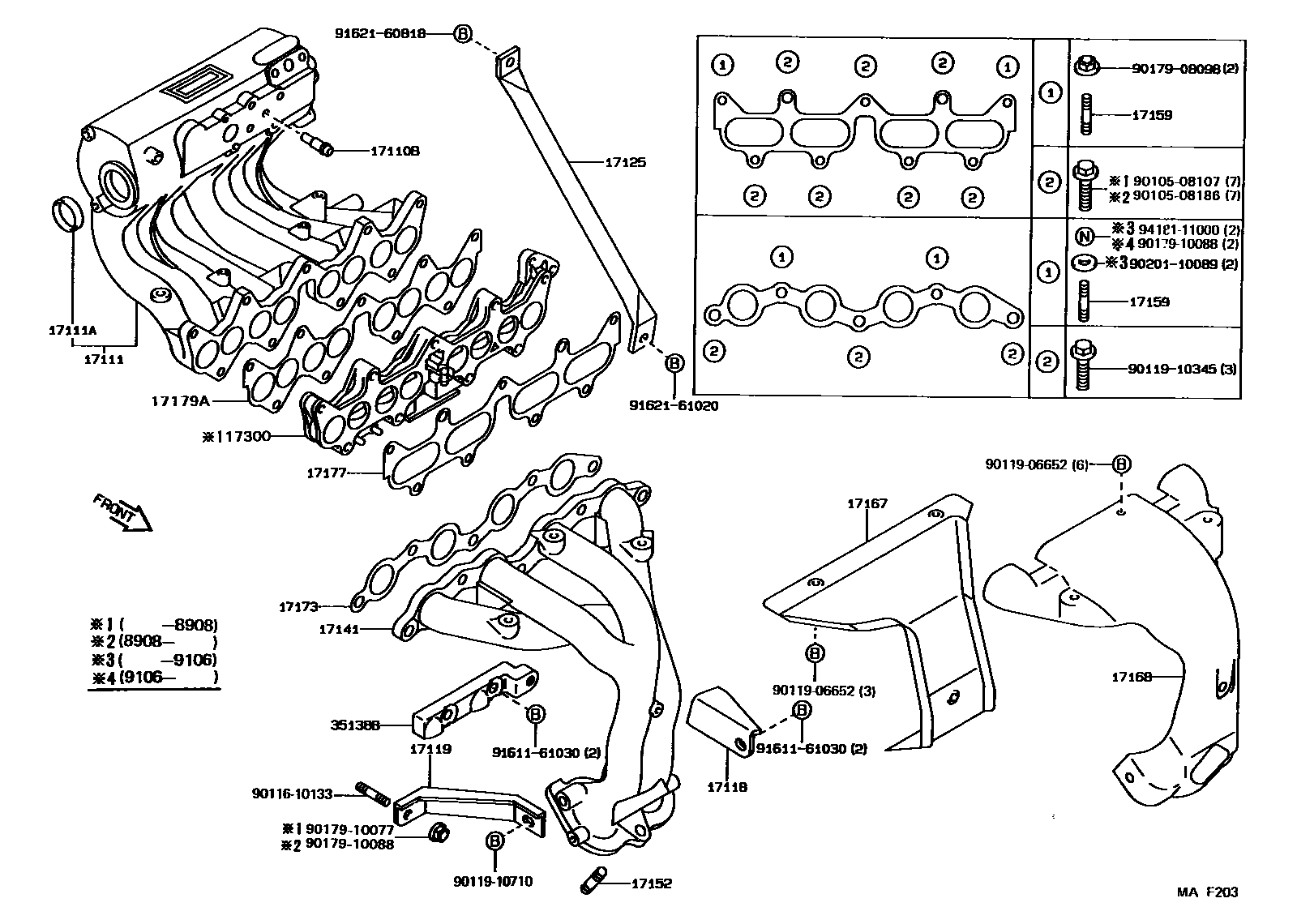

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 6 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16265 | Intake manifold water hose | 16265-11010 · 16265-15020 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 90467-21001 · 90467-21006 |
| 17110B | Fitting (for vent hose to manifold) | 90405-10009 |
| 17111 | Intake Manifold | 17101-10060 · 17101-11110 · 17101-11210 · 17101-16080 · 17101-16130 · 17101-16160 · 17101-16210 · 17111-64090 · 17111-64150 |
| 17111A | No. 1 screw plug | 90341-18006 · 90344-53015 · 90345-51006 · 96411-43500 |
| 17111B | No. 2 screw plug | 90344-54003 |
| 17111S | Gasket (for manifold plug) | 90430-18001 |
| 17118 | Manifold stays | 17118-11130 · 17118-16050 · 17118-16070 · 17118-16071 · 17139-16040 |
| 17119 | No. 2 manifold stay | 17118-16040 · 17139-15020 · 17139-16020 · 17139-16050 |
| 17125 | No. 1 pressure tank stay | 17125-16031 · 17125-16050 |
| 17129A | Connector No. 1 | 90404-51010 |
| 17141 | exhaust manifold | 17141-11040 · 17141-11041 · 17141-16180 · 17141-16200 · 17141-16220 · 17141-16250 · 17141-16260 · 17141-64100 · 17141-64101 |
| 17141F | Gasket (for exhaust manifold plate) | 89466-20020 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-41010 |
| 17151 | Studs (for manifold to carburetor) | 90116-08204 · 92112-40832 · 92112-60832 · 92122-40828 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10058 · 90116-10146 · 90126-10003 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08218 · 90116-08317 · 90116-10037 · 90116-10095 · 92112-60825 · 92112-61028 · 92112-61032 · 92122-60820 · 92122-61028 · 92132-60825 |
| 17167 | Exhaust manifold No. 1 heat shield | 17107-11030 · 17107-11090 · 17107-16070 · 17107-16071 · 17167-11040 · 17167-16050 · 17167-16090 · 17167-16100 · 17167-16150 · 17167-64031 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-10011 · 17168-16050 · 17168-16060 · 17168-16070 · 17168-64050 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-10020 · 17173-10021 · 17173-15010 · 17173-15011 · 17173-15040 · 17173-16010 · 17173-16011 · 17173-64020 · 17173-64060 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15020 · 17171-15021 · 17171-16030 · 17171-16031 · 17171-16040 · 17177-10010 · 17177-10011 · 17177-10020 · 17177-16012 · 17177-64010 · 17177-64020 |
| 17179A | No. 2 intake manifold gasket | 17171-16012 · 17171-16040 |
| 17300 | Intake control valve assembly | 17300-16011 |
| 35138B | Reinforcement plate connector | 35138-12020 |
