Toyota COROLLA Engine Mounting — Figure 1107

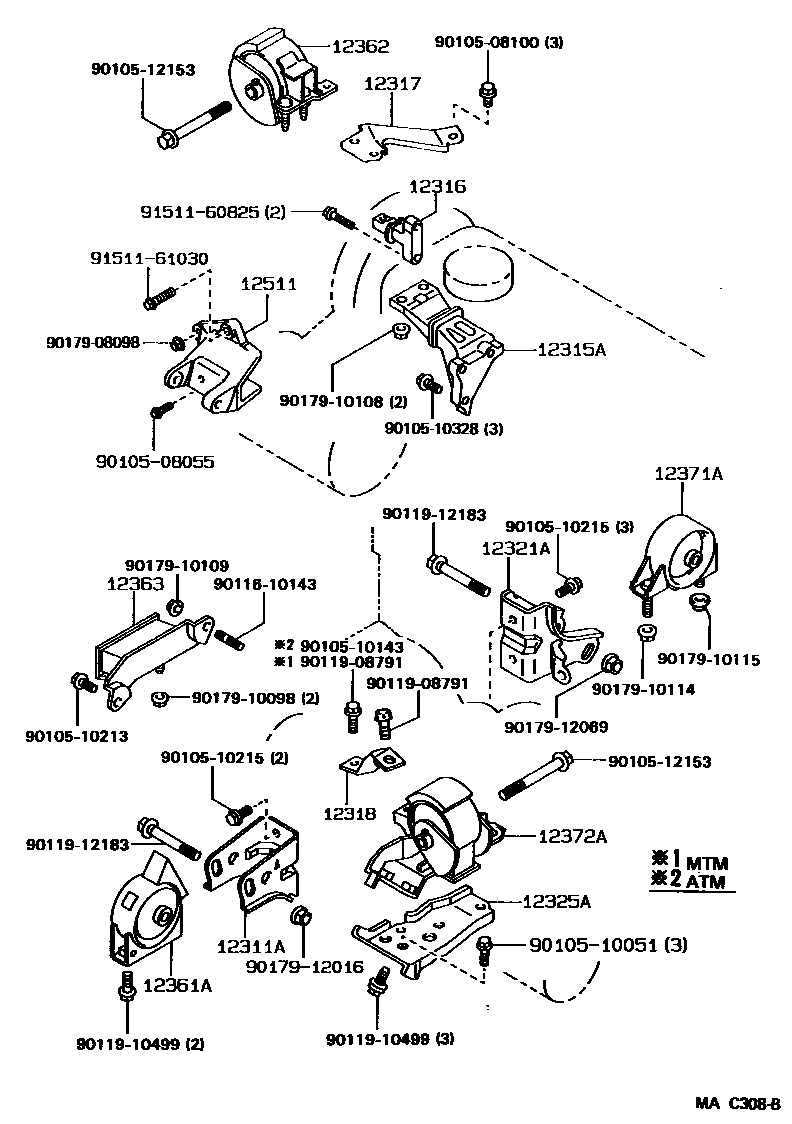

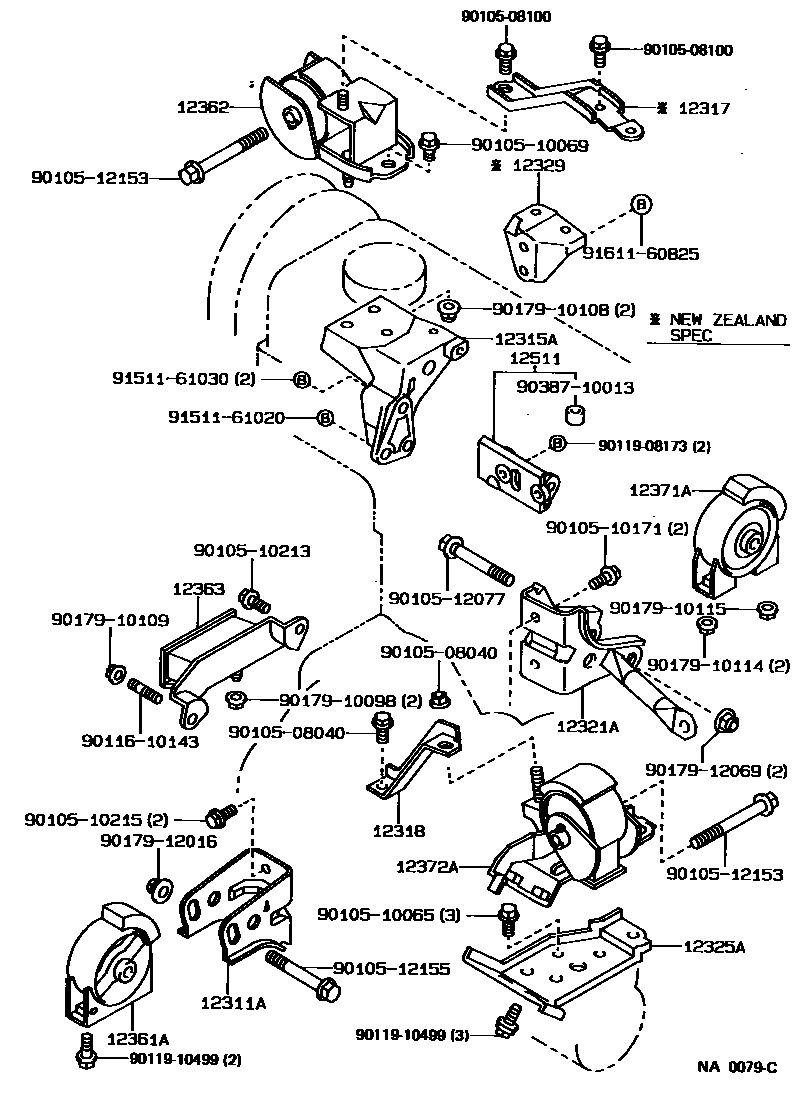

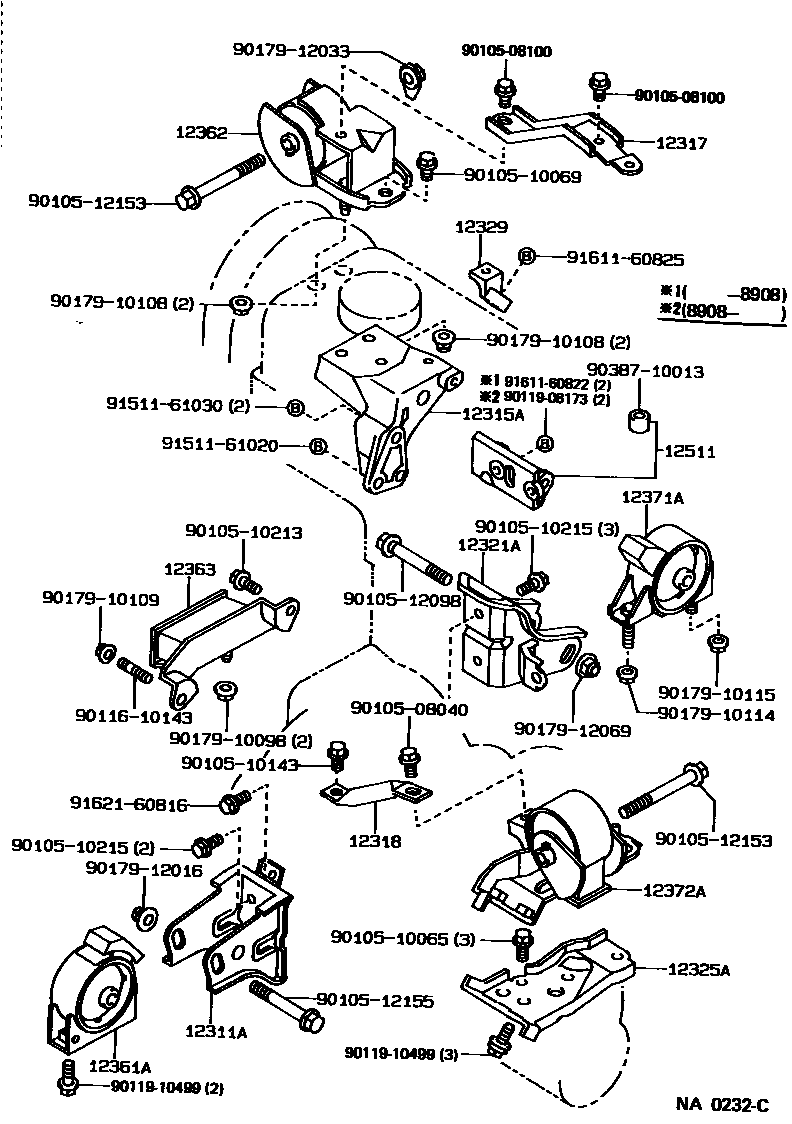

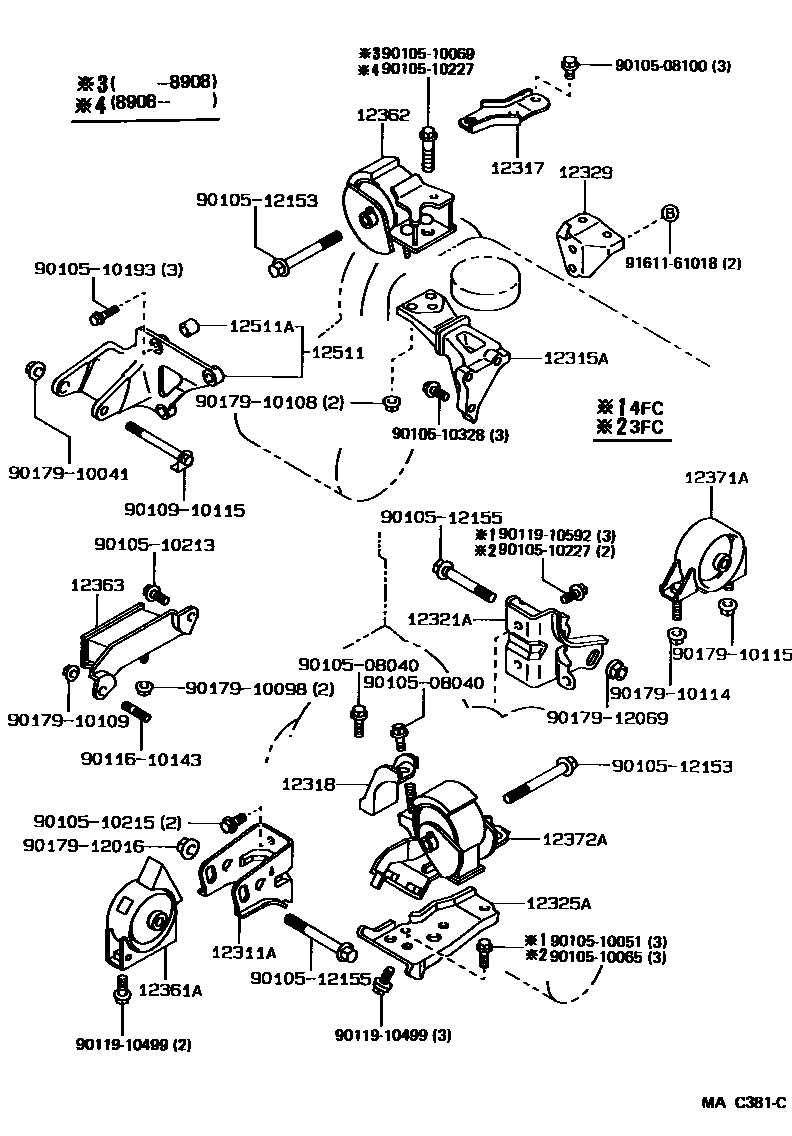

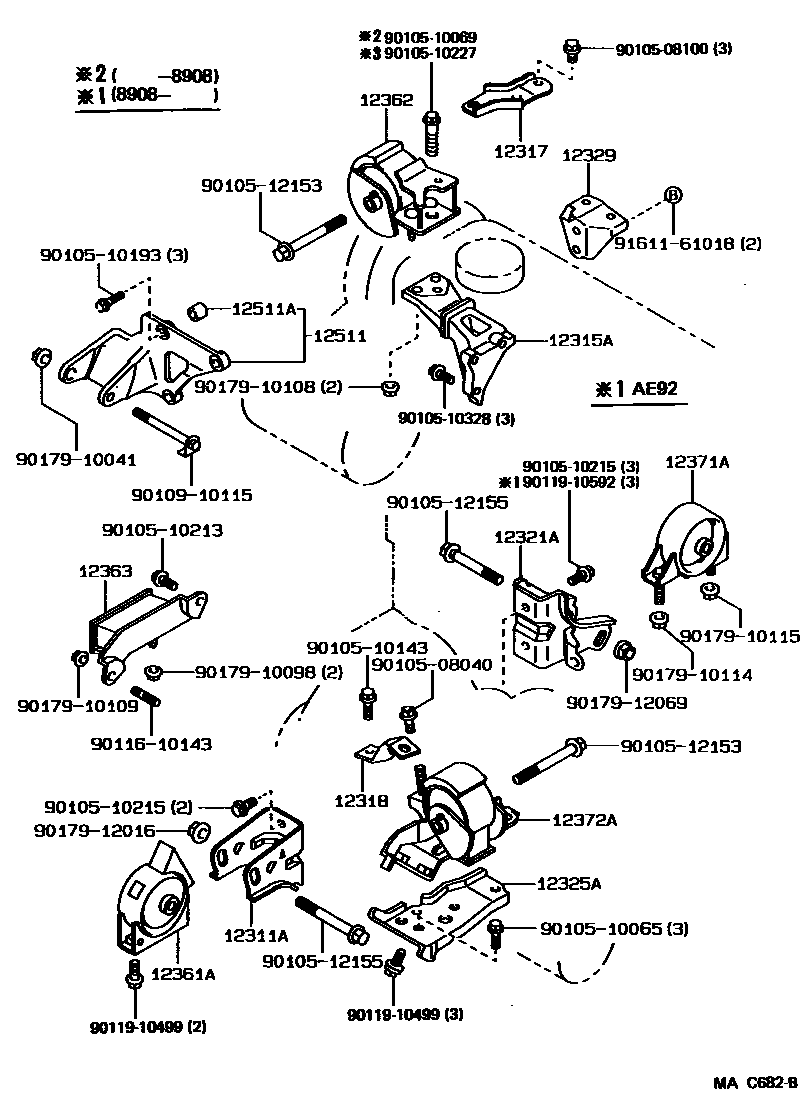

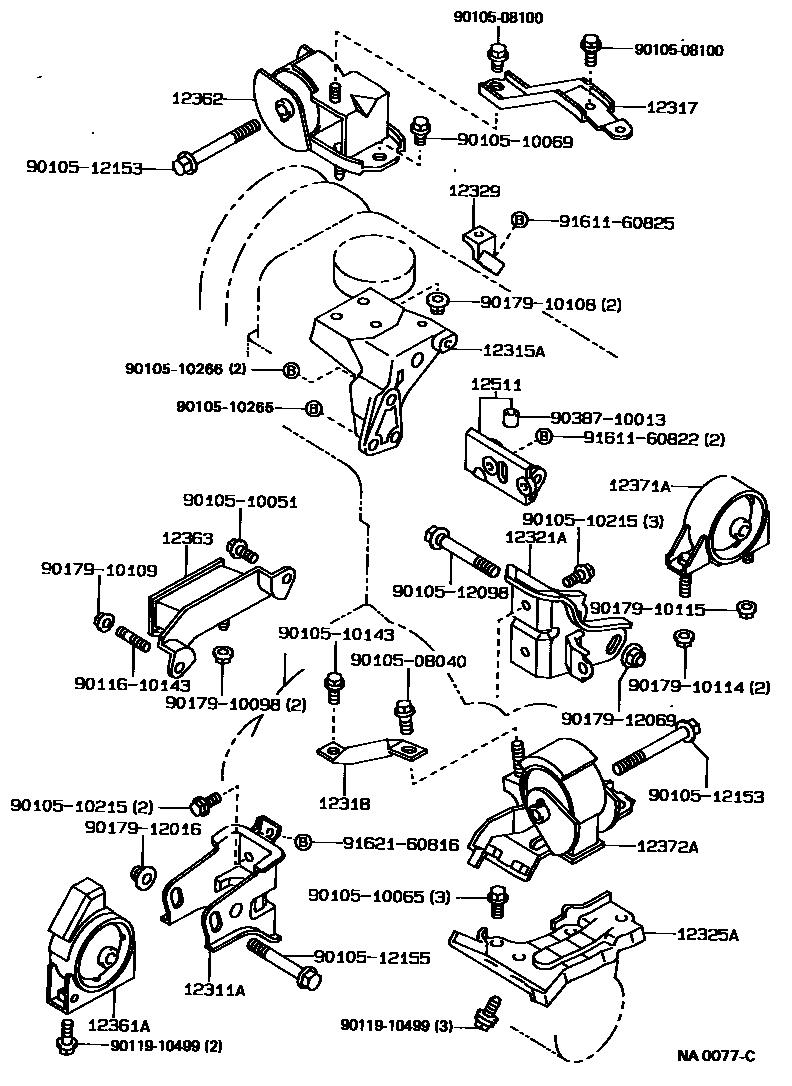

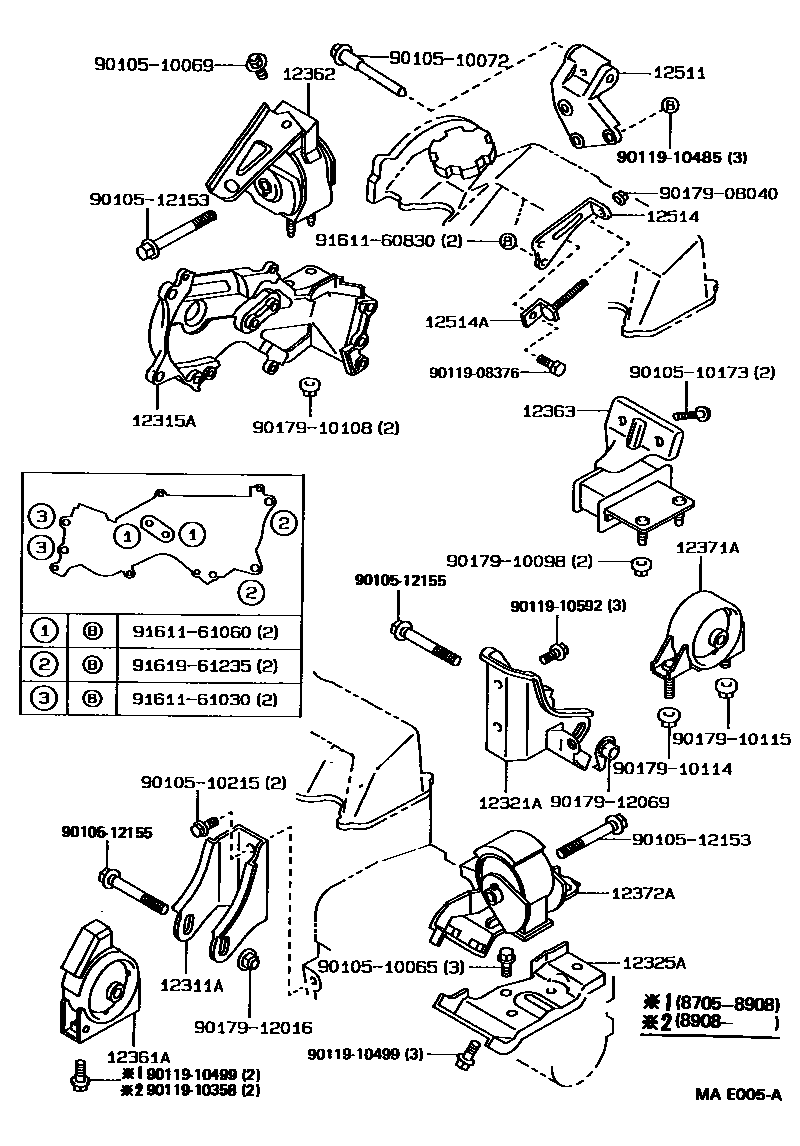

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-11050 · 12311-11060 · 12311-16040 · 12311-16050 · 12311-64090 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-11020 · 12315-11030 · 12315-15070 · 12315-16040 · 12315-64040 · 12315-64050 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-16010 |
| 12317 | Engine right mounting bracket | 12317-11010 · 12317-11030 · 12317-15010 · 12317-15020 · 12317-16010 |
| 12318 | Engine left mounting bracket | 12318-11010 · 12318-11020 · 12318-15010 · 12318-16010 · 12318-16040 · 12318-16070 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-11060 · 12321-15050 · 12321-15060 · 12321-15070 · 12321-16090 · 12321-16100 · 12321-64140 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-11050 · 12325-15050 · 12325-16060 · 12325-16070 · 12325-16080 · 12325-16090 · 12325-64010 |
| 12329 | Engine mounting bracket | 12329-11010 · 12329-15010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-16040 · 12361-16090 · 12361-16110 · 12361-16120 · 12361-64130 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-11070 · 12362-11100 · 12362-15130 · 12362-15160 · 12362-16070 · 12362-16120 · 12362-16141 · 12362-16150 · 12362-64060 · 12362-64120 |
| 12363 | Engine center mount vibration isolation pad | 12363-11010 · 12363-15010 · 12363-15020 · 12363-64020 · 12363-64030 |
| 12371A | Engine rear mount vibration isolation pad | 12371-11210 · 12371-15200 · 12371-15230 · 12371-16120 · 12371-16130 · 12371-16190 · 12371-64120 · 12371-64141 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-15110 · 12372-15130 · 12372-16060 · 12372-16130 · 12372-16150 · 12372-64080 · 12372-64100 |
| 12511 | No. 1 generator bracket | 12511-11010 · 12511-11020 · 12511-15040 · 12511-16030 · 12511-64020 |
| 12511A | Generator bracket bushing | 90387-10013 |
| 12514 | Generator belt adjustment lever | 16381-64020 |
| 12514A | Fan belt adjustment slider | 16385-64020 |
