Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

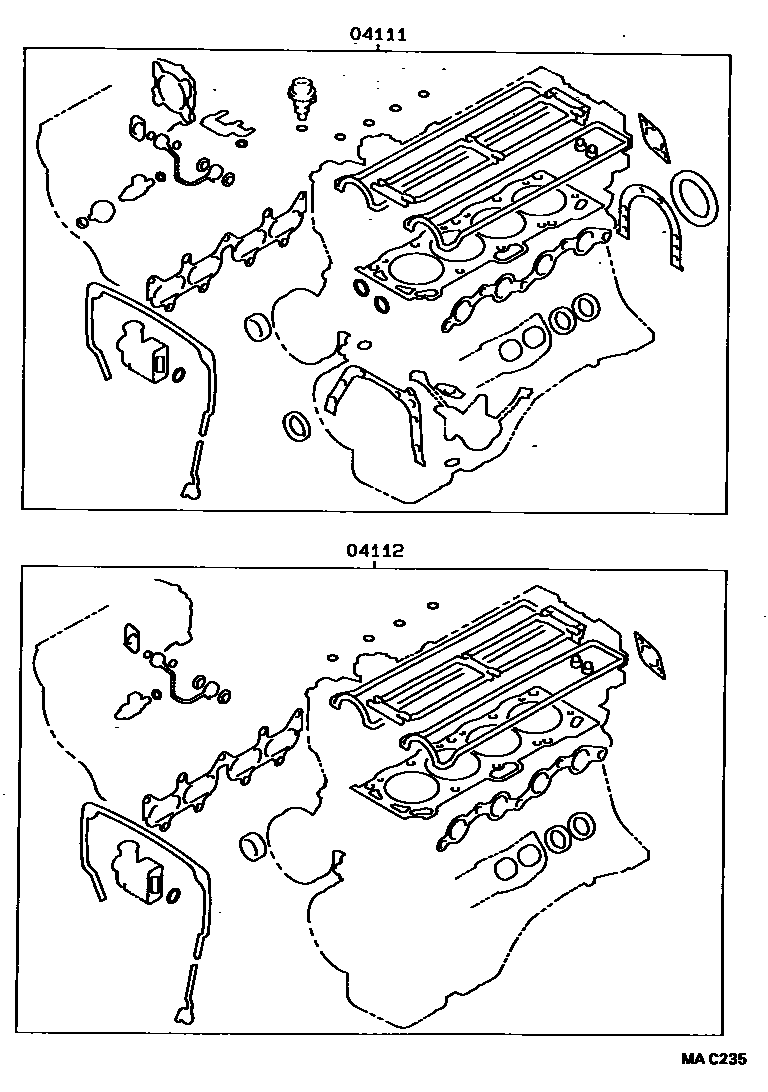

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MAC235
Engine Overhaul Gasket Kit — MAC235 (198908 – 999999)

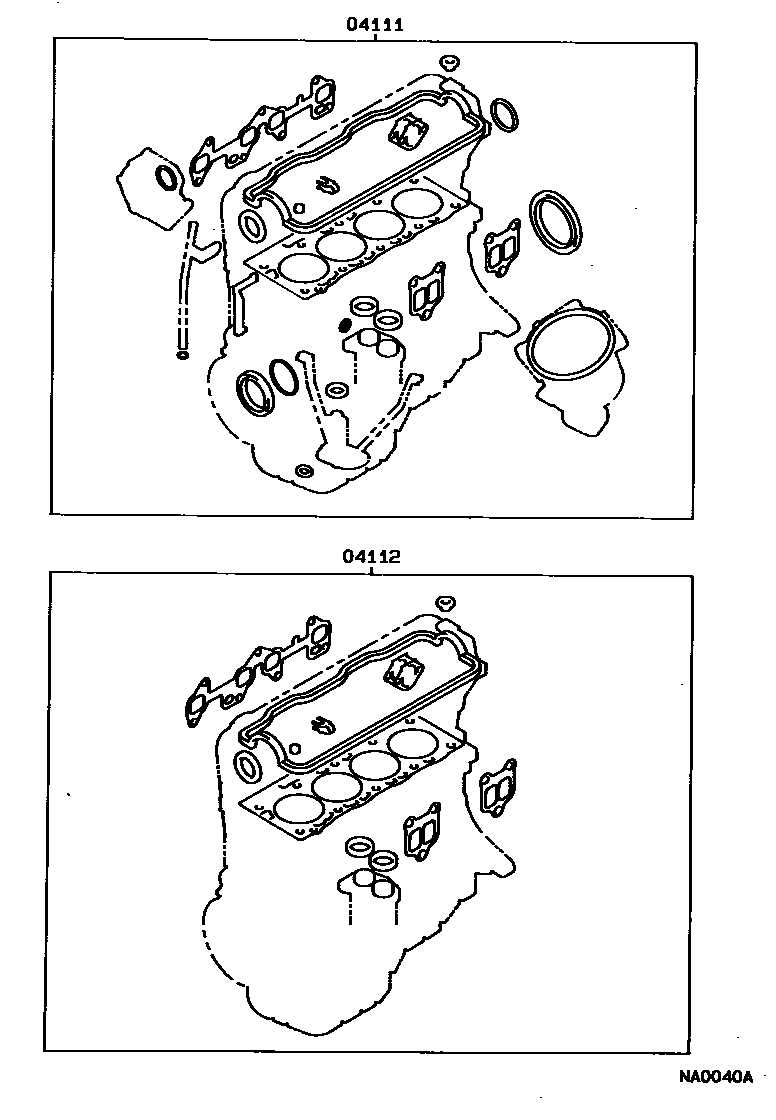

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0040A
Engine Overhaul Gasket Kit — NA0040A (198705 – 999999)

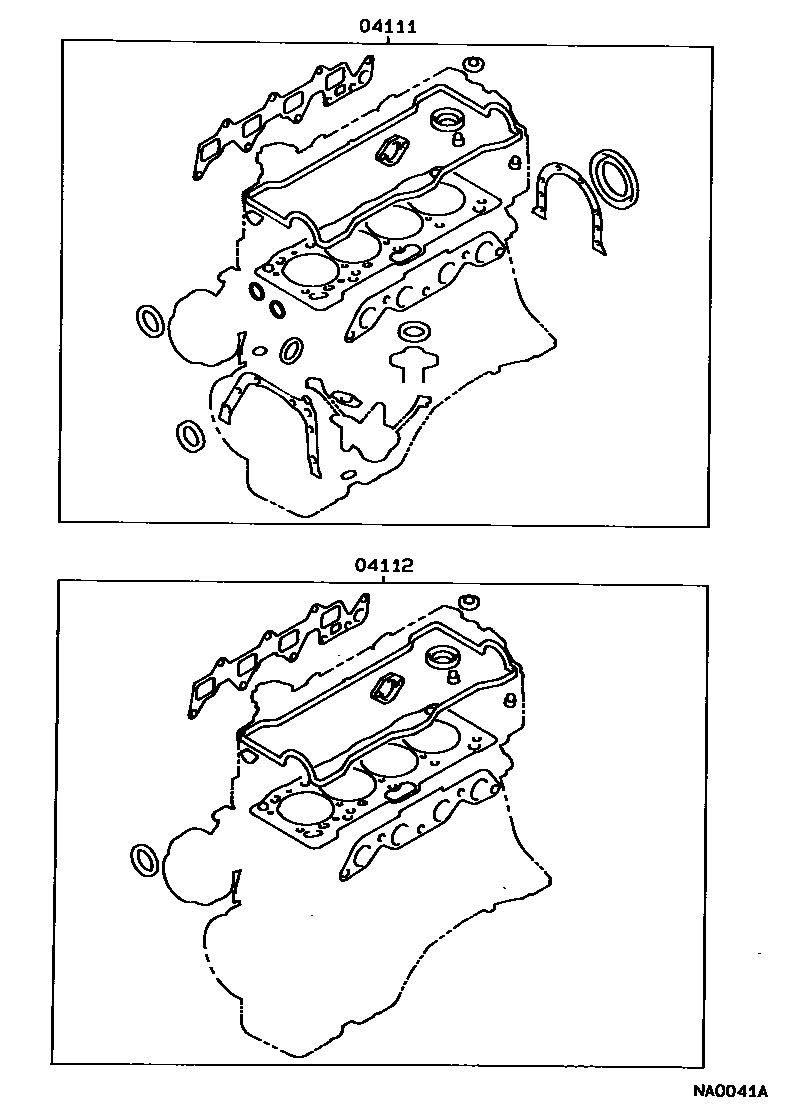

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0041A
Engine Overhaul Gasket Kit — NA0041A (198705 – 999999)

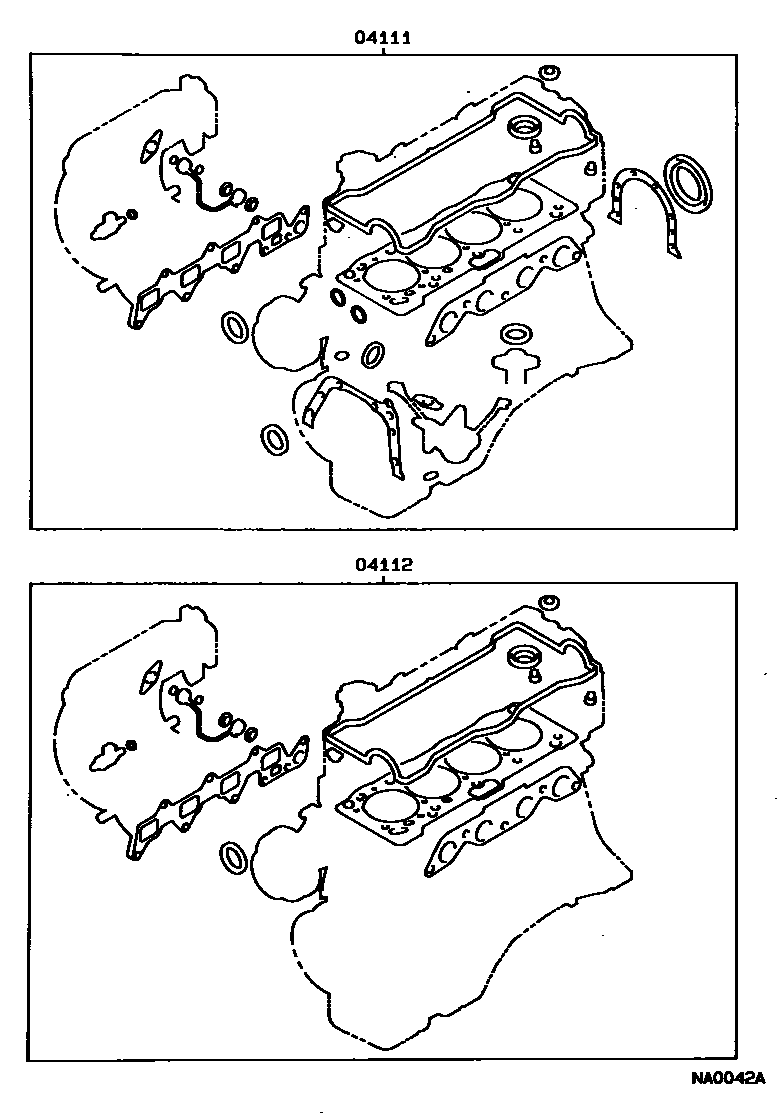

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0042A
Engine Overhaul Gasket Kit — NA0042A (198802 – 999999)

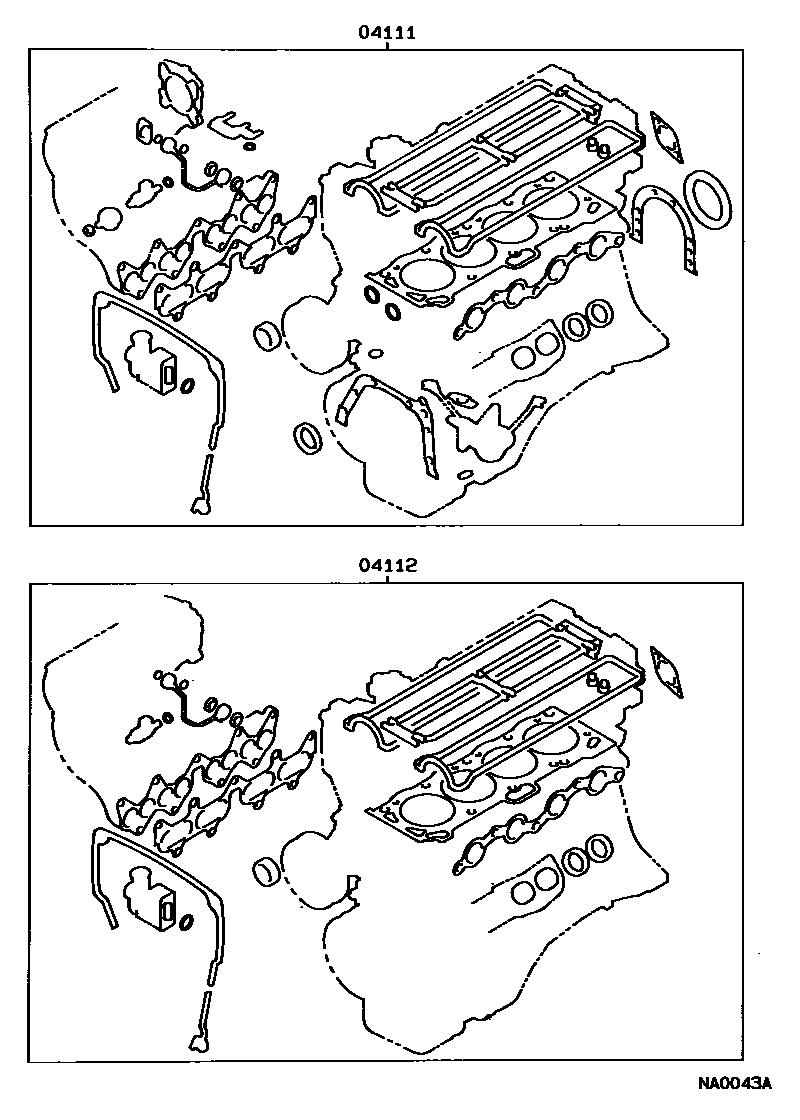

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0043A
Engine Overhaul Gasket Kit — NA0043A (198705 – 198908)

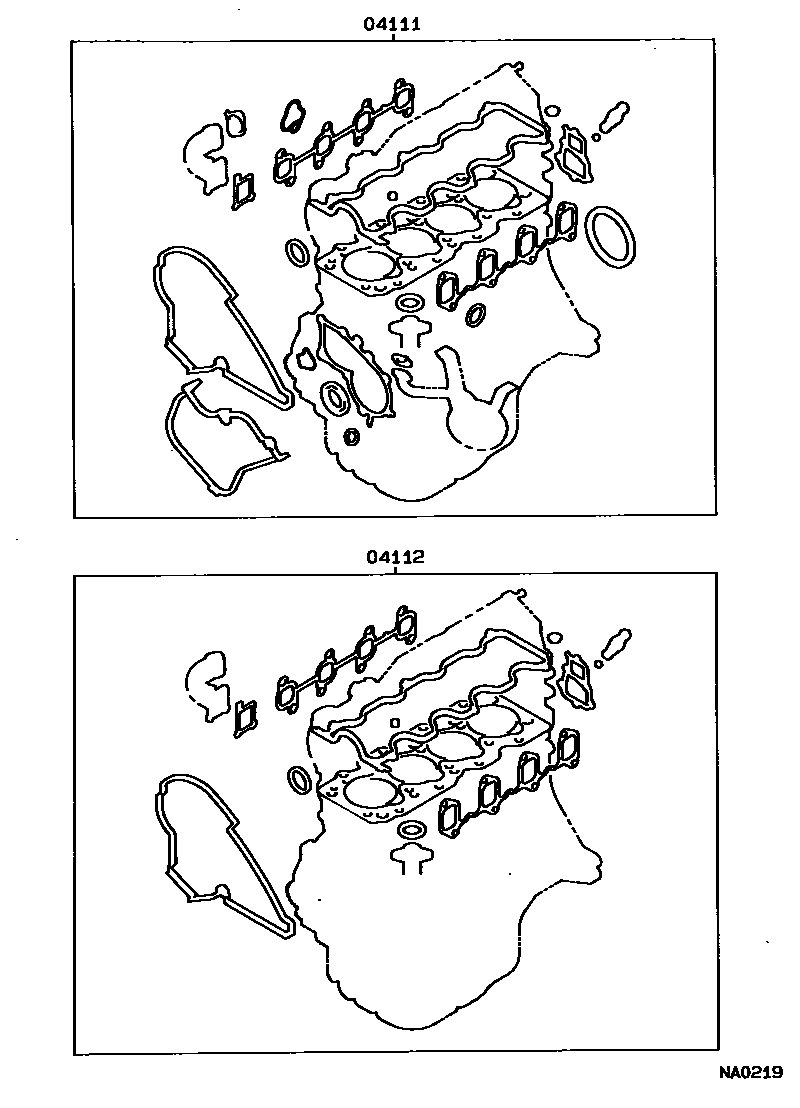

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0219
Engine Overhaul Gasket Kit — NA0219 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-11021 · 04111-11022 · 04111-11023 · 04111-11024 · 04111-16073 · 04111-16074 · 04111-16075 · 04111-16120 · 04111-16121 · 04111-16122 · 04111-16123 · 04111-16140 · 04111-16141 · 04111-16142 · 04111-16191 · 04111-16192 · 04111-16240 · 04111-64061 · 04111-64062 · 04111-64063 · 04111-64111 · 04111-64113
04112Engine valve grinding pad assembly04112-11010 · 04112-11011 · 04112-11012 · 04112-16023 · 04112-16024 · 04112-16025 · 04112-16120 · 04112-16121 · 04112-16122 · 04112-16123 · 04112-16141 · 04112-16142 · 04112-16143 · 04112-16191 · 04112-16240 · 04112-64060 · 04112-64061 · 04112-64062 · 04112-64064
