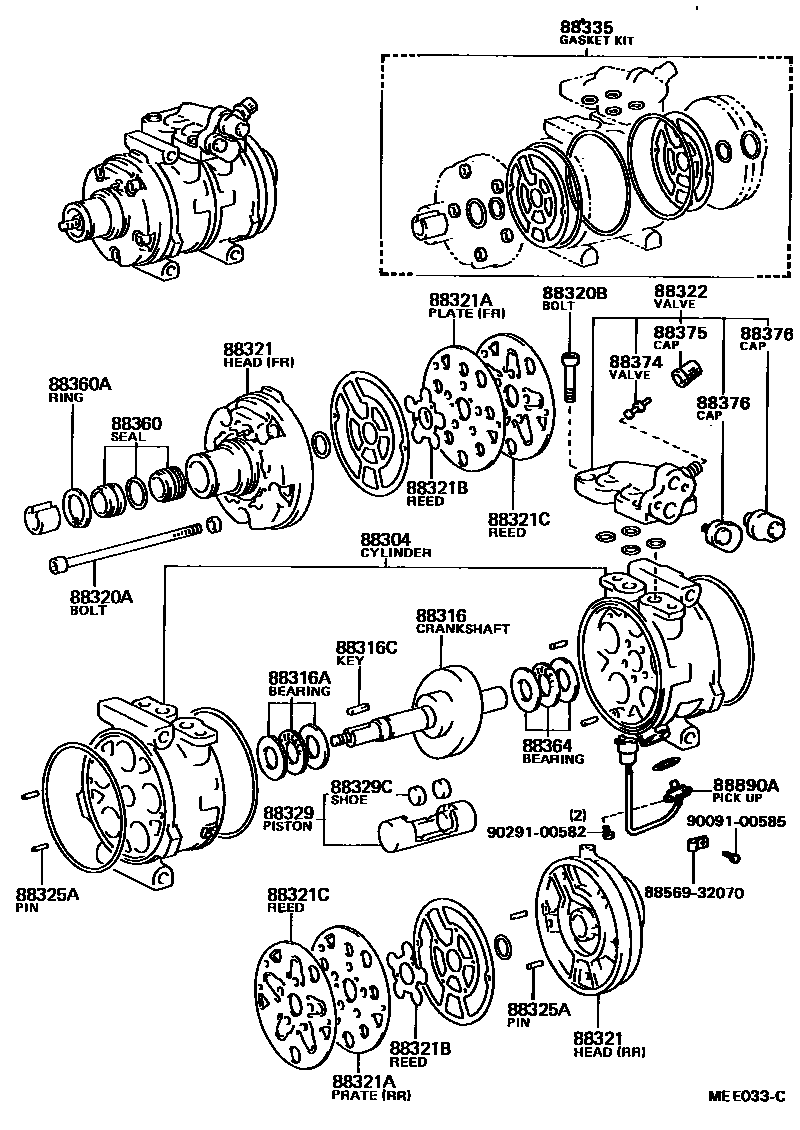

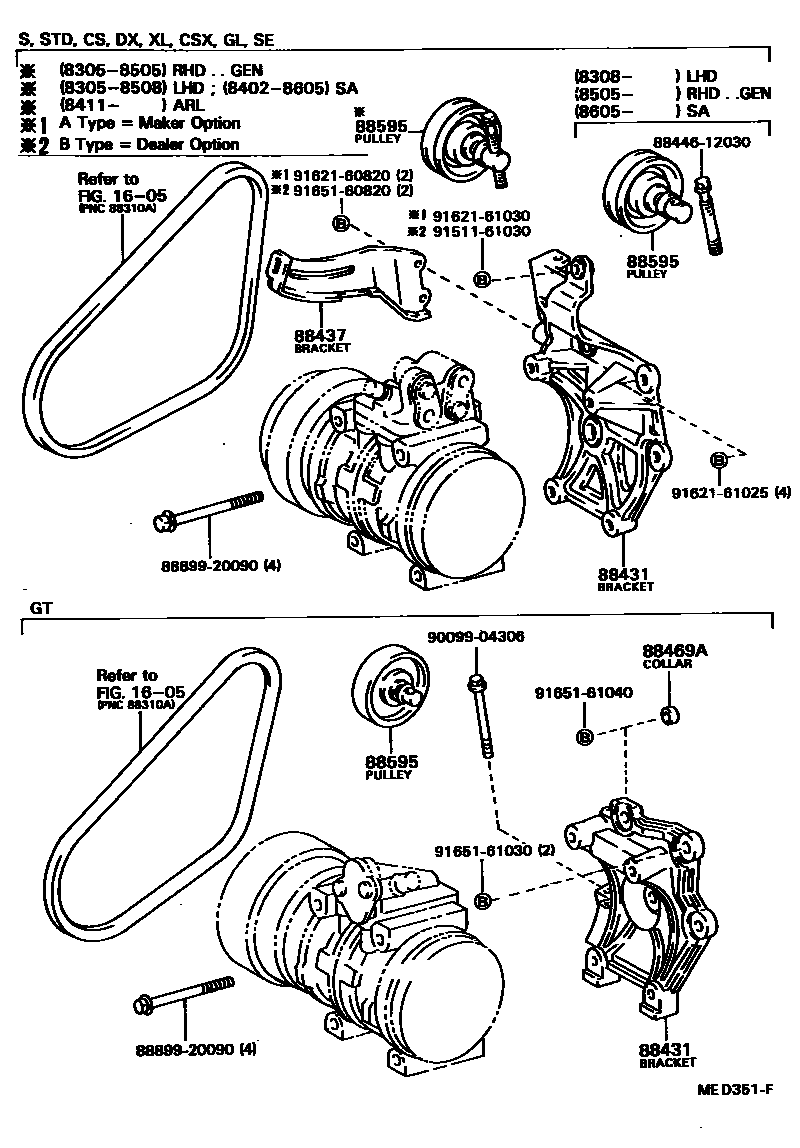

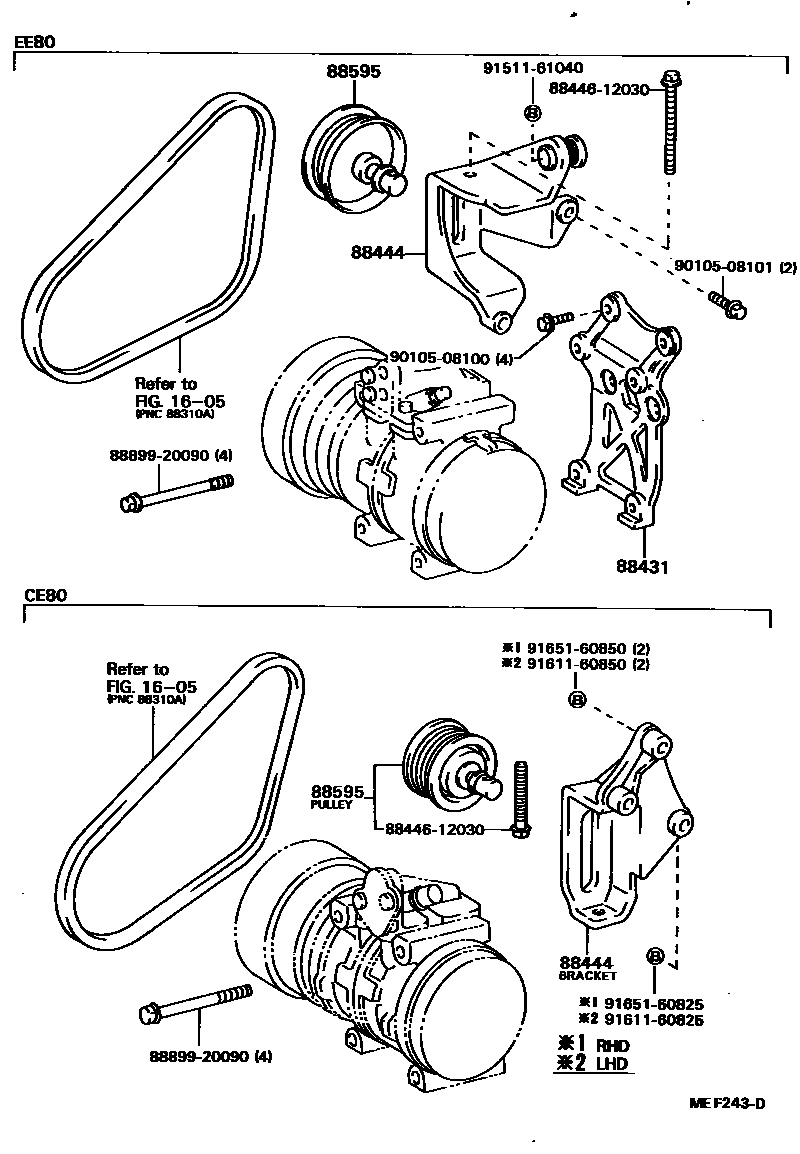

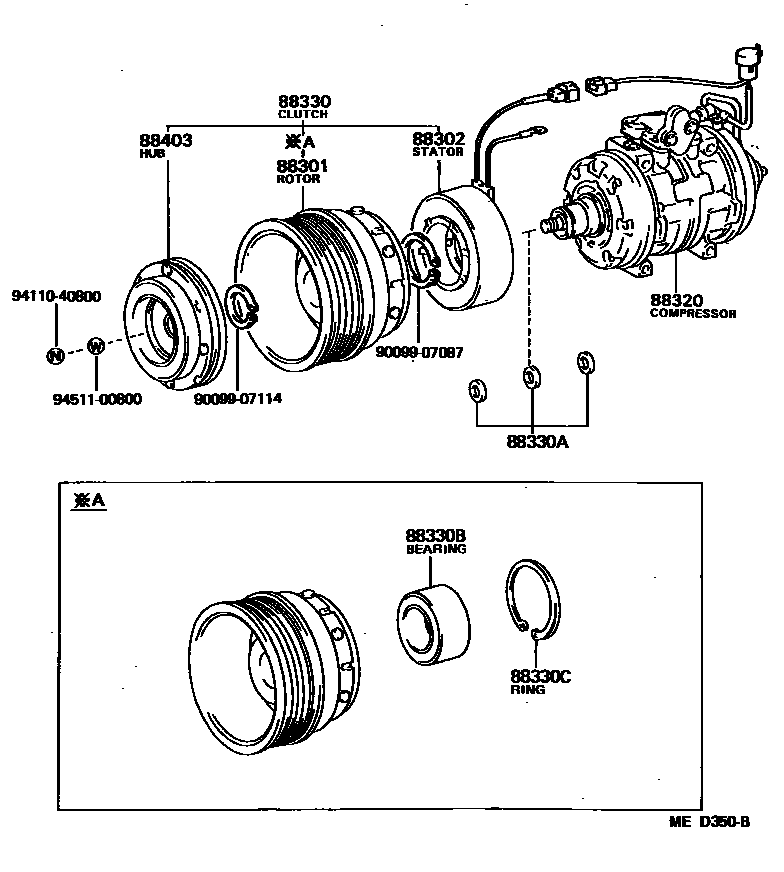

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-14010 · 88412-14030 · 88412-28010 · 88412-32010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-12090 · 88411-12100 · 88411-12130 · 88411-14050 · 88411-20100 · 88411-32010 |
| 88304 | Cooler compressor cylinder sub-assembly | 88304-12030 · 88304-14021 · 88304-14041 |
| 88316 | Cooler compressor crankshaft | 88316-12070 · 88316-12080 · 88316-14011 · 88316-14021 |
| 88316A | Compressor crankshaft front bearing | 88366-14010 |
| 88316C | Compressor crankshaft key | 90099-13012 · 90099-13024 |
| 88320 | Cooler Compressor Assembly | 88320-12250 · 88320-12260 · 88320-12290 · 88320-12310 · 88320-12330 · 88320-12340 · 88320-12350 · 88320-12360 · 88320-12370 · 88320-12380 · 88320-12390 · 88320-12480 |
| 88320A | Through bolt | 90099-04958 · 90099-04968 |
| 88320B | Service valve bolts | 90099-04255 · 90099-04334 · 90099-04905 · 90099-04924 |
| 88321 | Cooler compressor cylinder head | 88321-14011 · 88322-14011 · 88322-32010 |
| 88321A | Valve sub-assembly | 88341-14010 · 88342-14010 |
| 88321B | Valve reed sub-assembly | 88344-14011 |
| 88321C | suction valve reed | 88343-14011 |
| 88322 | Cooler compressor suction service valve | 88371-12210 · 88371-12240 · 88371-12260 · 88371-12280 · 88371-12330 · 88371-20170 · 88371-20270 · 88371-32010 |
| 88325A | cylinder pin | 90099-08058 |
| 88329 | Cooler compressor piston sub-assembly | 88301-12050 · 88301-14020 |
| 88329C | piston shoe | 88313-14010 |
| 88330 | Magnetic Clutch Assembly | 88410-12160 · 88410-12170 · 88410-12180 · 88410-12190 · 88410-12220 · 88410-20170 · 88410-28010 · 88410-32010 |
| 88330A | Washer (for electromagnetic clutch) | 88335-12050 |
| 88330B | Electromagnetic clutch bearing | 90099-10133 · 90099-10135 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07094 · 90099-07118 |
| 88335 | Overhaul gasket assembly | 04881-10010 · 04881-32010 · 88335-12020 · 88335-12030 |
| 88360 | Cooler compressor shaft seal assembly | 88360-40010 |
| 88360A | Compressor seal ring | 90096-90022 · 90099-07119 |
| 88364 | Compressor crankshaft rear bearing | 88366-14010 |
| 88374 | Cooler compressor service valve | 88374-12020 |
| 88375 | Cooler compressor repair valve cover | 88375-30270 |
| 88376 | blind cover | 88376-17020 · 88376-28010 · 88376-28020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 · 88403-14040 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12290 · 88431-12340 · 88431-12341 · 88431-12350 · 88431-12351 · 88431-20260 |
| 88437 | Compressor No. 7 mounting bracket | 88437-12250 |
| 88444 | Idler gear bracket | 88444-10030 · 88444-10031 · 88444-12040 |
| 88469A | Adjustment collar | 88469-12020 |
| 88595 | Cooler compressor idler pulley | 88440-12090 · 88440-12100 · 88440-12140 · 88440-12160 · 88440-12170 · 88440-17010 · 88440-32030 |
| 88890A | sensor assembly | 88890-12030 · 88890-12040 |
