Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

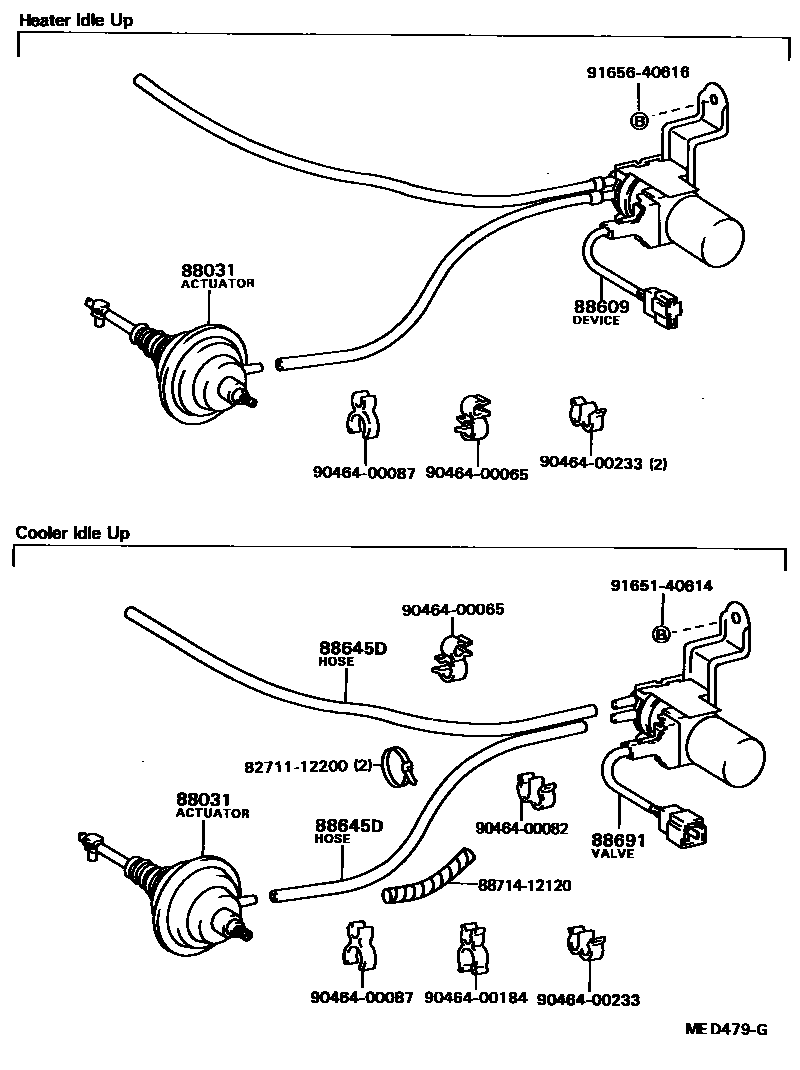

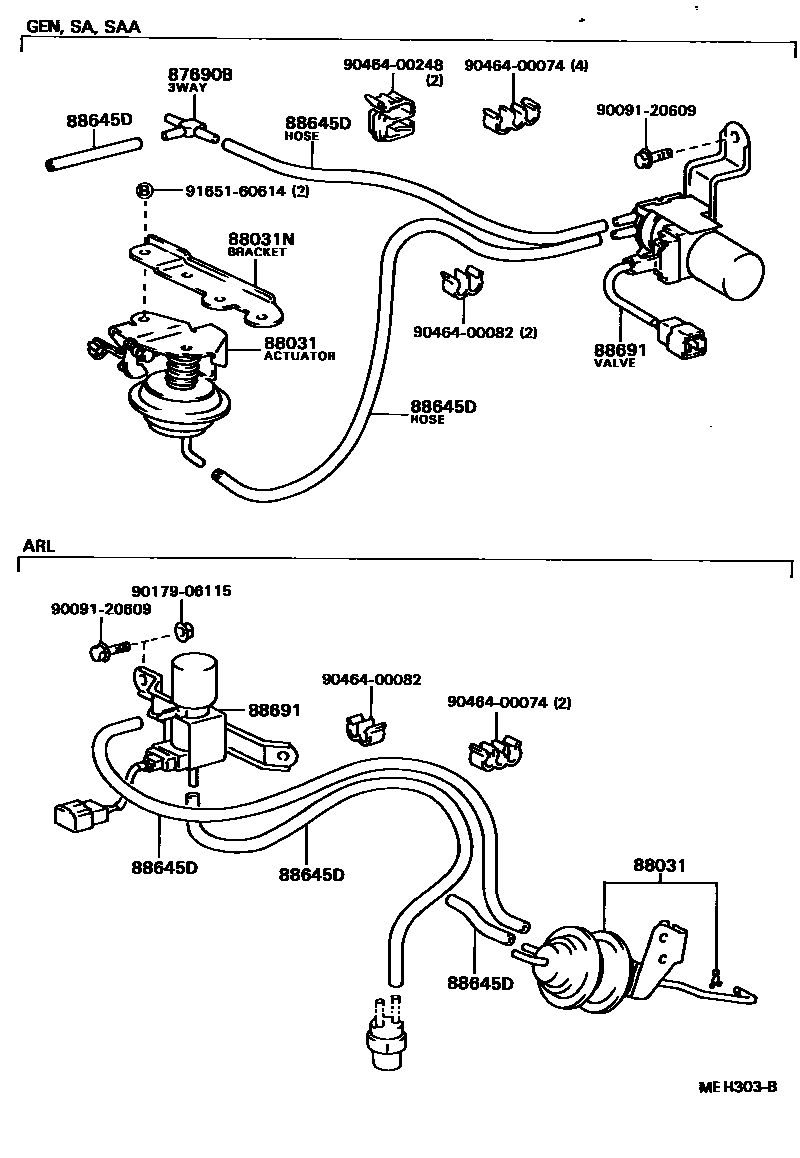

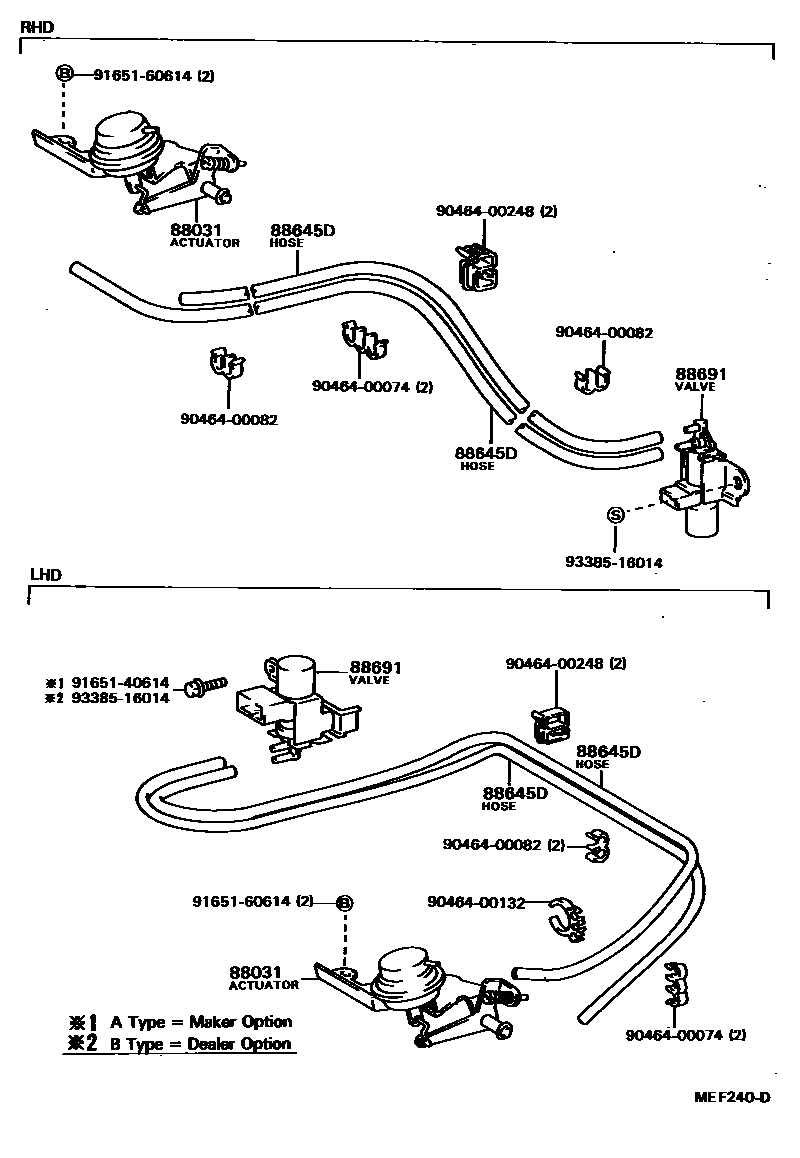

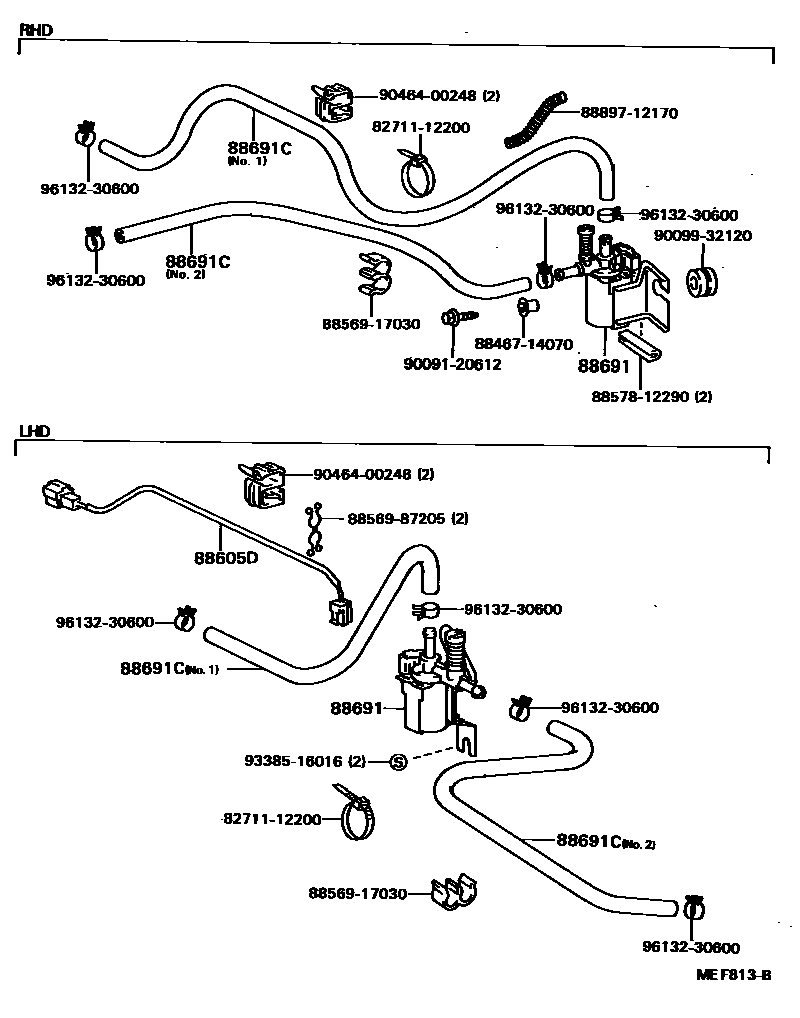

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87690B | tee pipe | 90413-04005 |
| 88031 | Idle speed lift actuator assembly | 88031-10010 · 88031-10020 · 88031-12150 · 88031-12160 · 88031-12170 · 88031-16020 · 88031-30070 |
| 88031N | Idle speed lift actuator bracket | 88688-12280 |
| 88605D | Air conditioning wiring harness | 88648-12310 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12230 · 88609-12231 |
| 88645D | Hoses (for idle lift) | 90445-08163 · 90445-08194 · 90445-08205 · 95411-10060 · 95411-19995 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12280 · 88690-12281 · 88690-12370 · 88691-12080 · 88691-12090 · 88691-30430 · 88691-90K02 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-12060 · 88689-12070 · 88689-12080 · 88689-12090 |
