Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

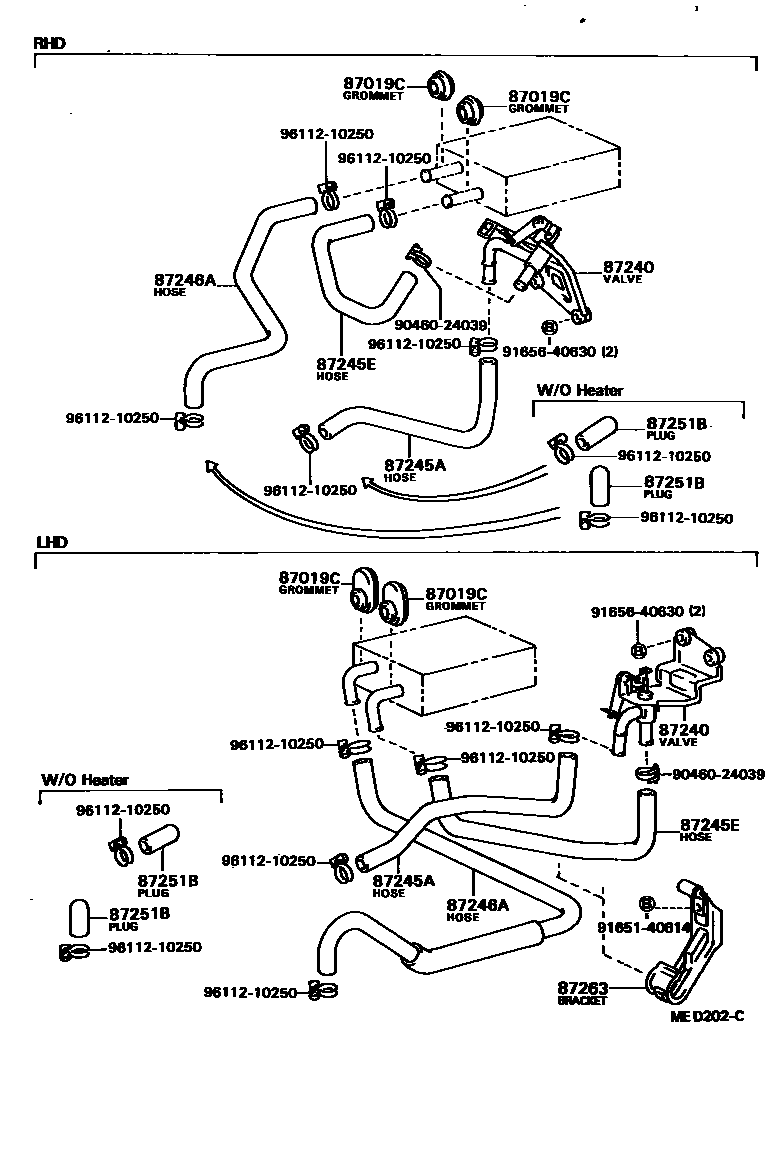

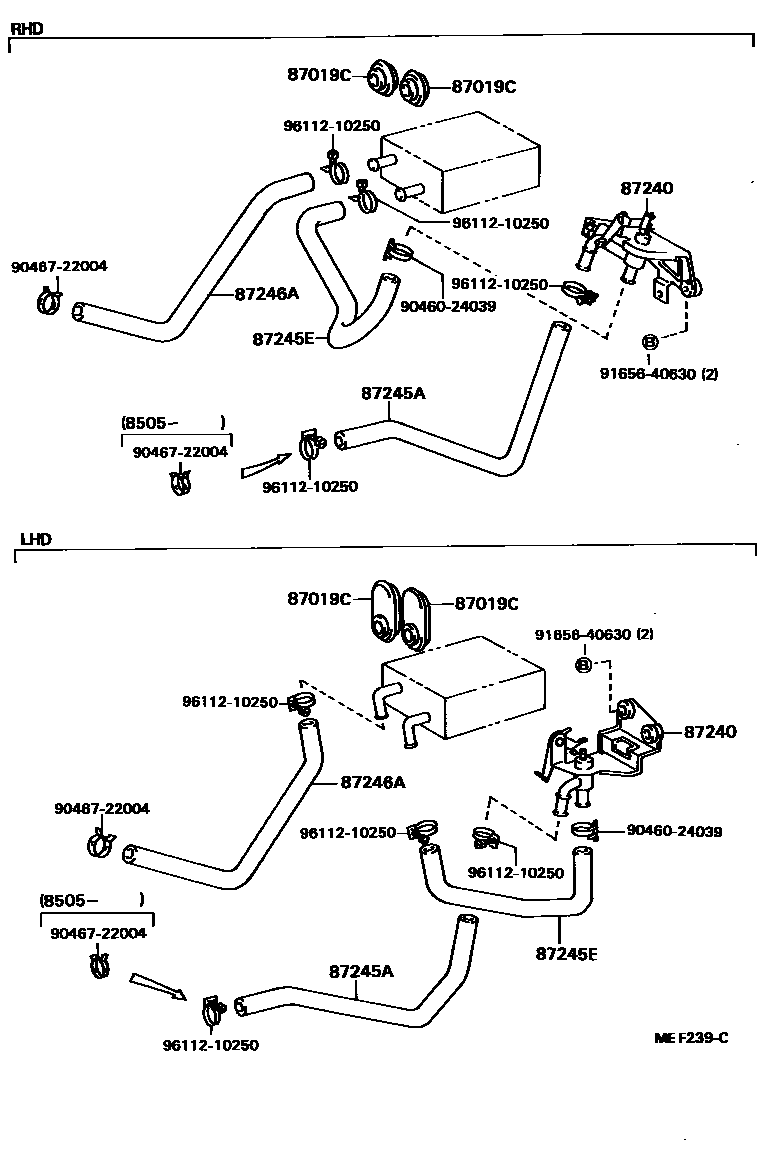

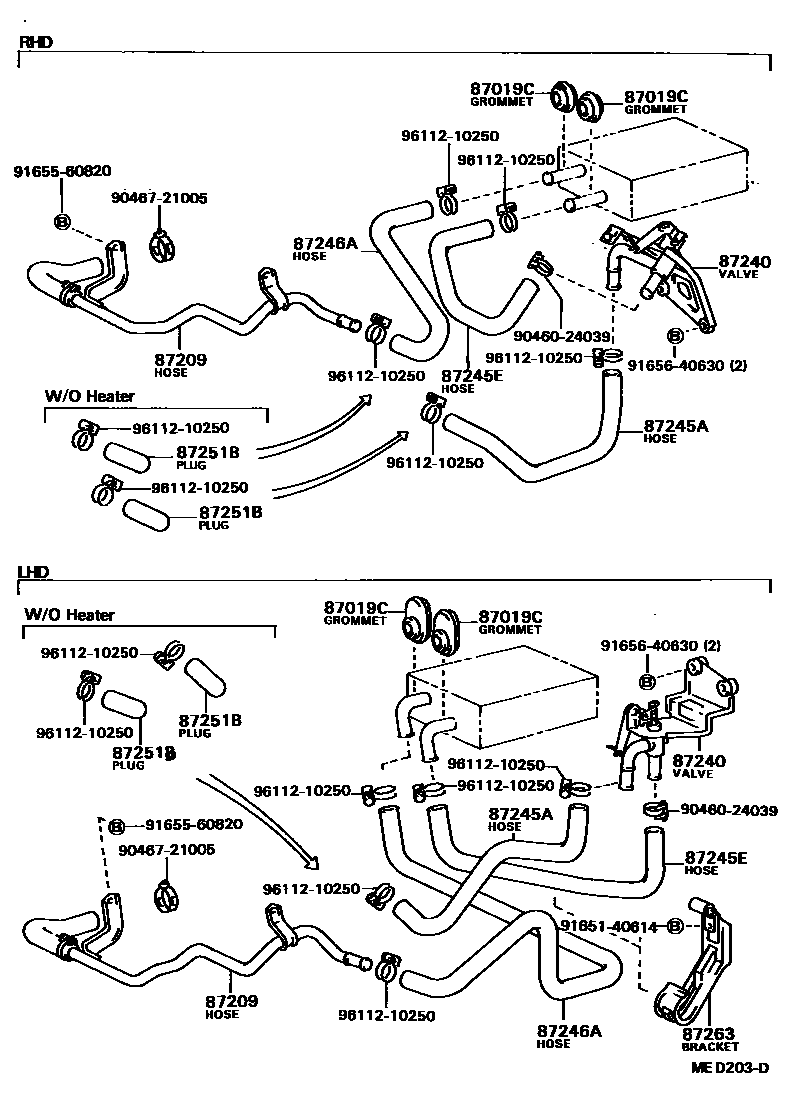

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01015 · 96531-13517 |
| 87209 | Water hose sub-assembly | 87209-12390 |
| 87240 | Heater water valve assembly | 87240-12190 · 87240-12200 · 87240-12201 · 87240-12220 |
| 87245A | Heater water inlet hose A | 87245-12690 · 87245-12710 · 87245-12730 · 87245-12750 · 87245-1A070 · 87245-1A090 · 87245-1A110 · 87245-1A120 |
| 87245E | Heater water inlet hose E | 87245-12670 · 87245-12680 · 87245-1A060 |
| 87246A | Heater outlet hose A | 87245-12700 · 87245-12720 · 87245-12740 · 87245-12760 · 87245-1A080 · 87245-1A100 |
| 87251B | heater water plug | 90339-16007 |
| 87263 | No. 1 heater water pipe bracket | 87263-12220 |
