Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

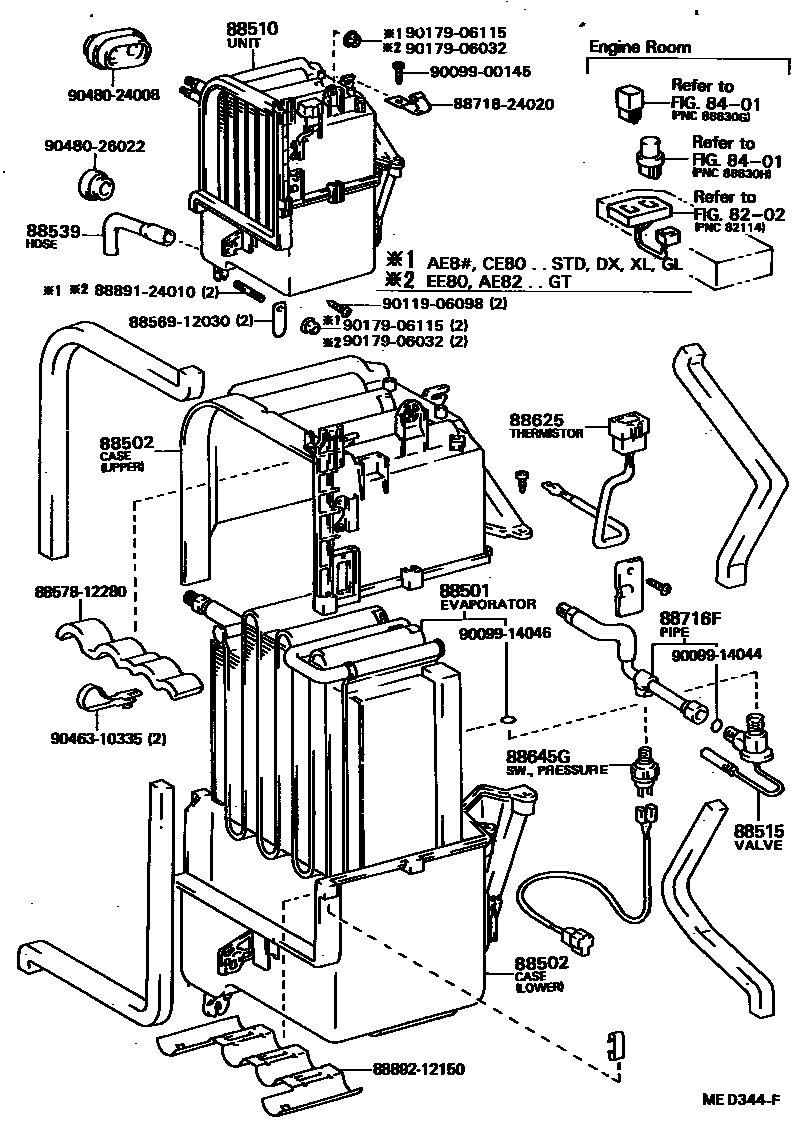

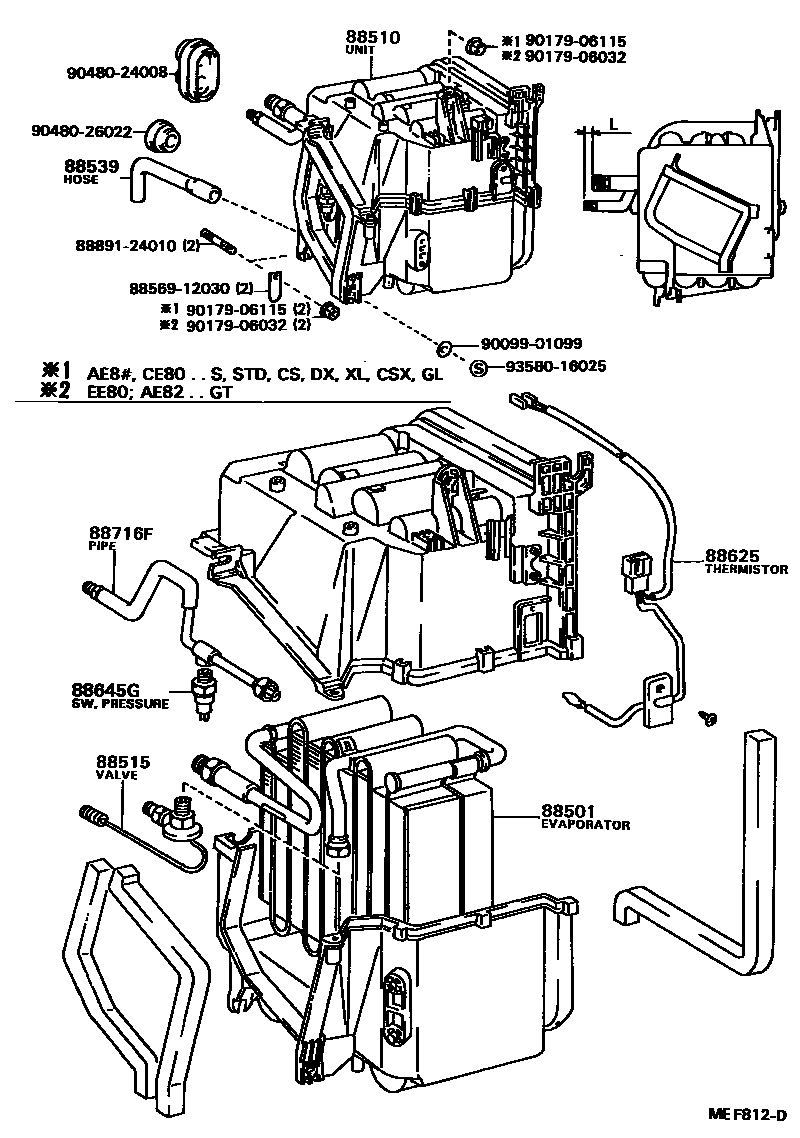

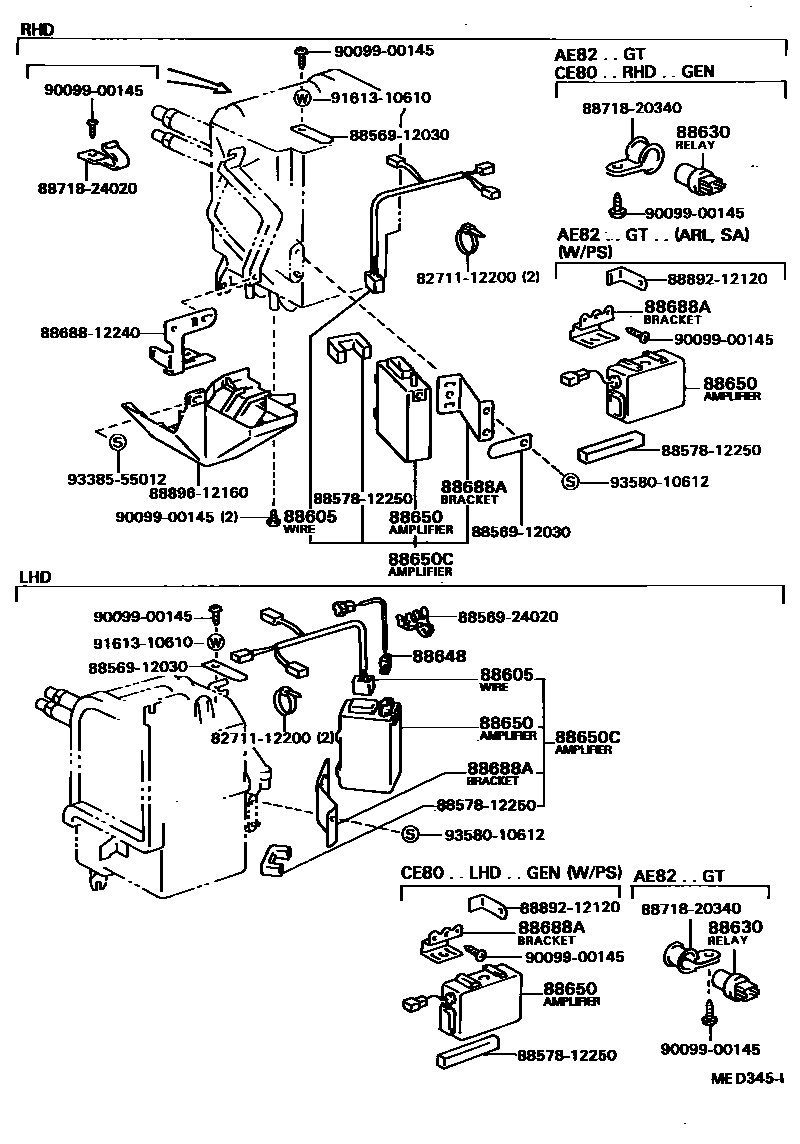

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12310 · 88501-12311 · 88501-16050 · 88501-16051 · 88501-16060 |
| 88502 | Cooling device shell sub-assembly | 88502-16051 · 88502-16061 |
| 88510 | Cooler device assembly | 88510-12620 · 88510-12640 · 88510-12650 · 88510-16080 · 88510-16090 |
| 88515 | Cooler expansion valve | 88515-16030 · 88515-16031 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12080 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12380 · 88605-12381 · 88605-12390 · 88605-12391 · 88605-12500 · 88605-12590 · 88605-12591 · 88605-12600 · 88605-12620 · 88605-12630 · 88605-12631 · 88605-12640 · 88605-12641 · 88605-12650 · 88605-12651 · 88605-12680 · 88605-1A040 · 88605-1A041 · 88605-1A050 · 88605-1A051 · 88605-1A070 · 88605-1A080 · 88605-1A081 · 88605-1A090 · 88605-1A091 · 88605-1A210 · 88605-1A220 |
| 88625 | Cooler No. 1 Thermistor | 88625-12200 · 88625-16060 |
| 88630 | Cooler relay assembly | 90987-02004 · 90987-03001 |
| 88645G | pressure switch | 88645-10020 · 88645-12020 |
| 88648 | No. 1 cooler wiring harness | 88648-12320 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12120 · 88650-12140 · 88650-12150 · 88650-12151 · 88650-12200 · 88650-12201 · 88650-12290 · 88650-12300 · 88650-12310 · 88650-12320 · 88650-12350 · 88650-12351 · 88650-12450 · 88650-12451 · 88650-14150 · 88650-16030 |
| 88650C | Air conditioning amplifier sub-assembly | 88650-12100 · 88650-12101 · 88650-12160 · 88650-12161 · 88650-12170 · 88650-12171 · 88650-12180 · 88650-12181 · 88650-12190 · 88650-12191 · 88650-12220 · 88650-12221 · 88650-12370 · 88650-12380 |
| 88688A | Cooler stabilized amplifier stand | 88688-12260 · 88688-16070 · 88688-16080 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-16160 · 88716-16170 |
