Toyota COROLLA 扬声器 — Figure 8602

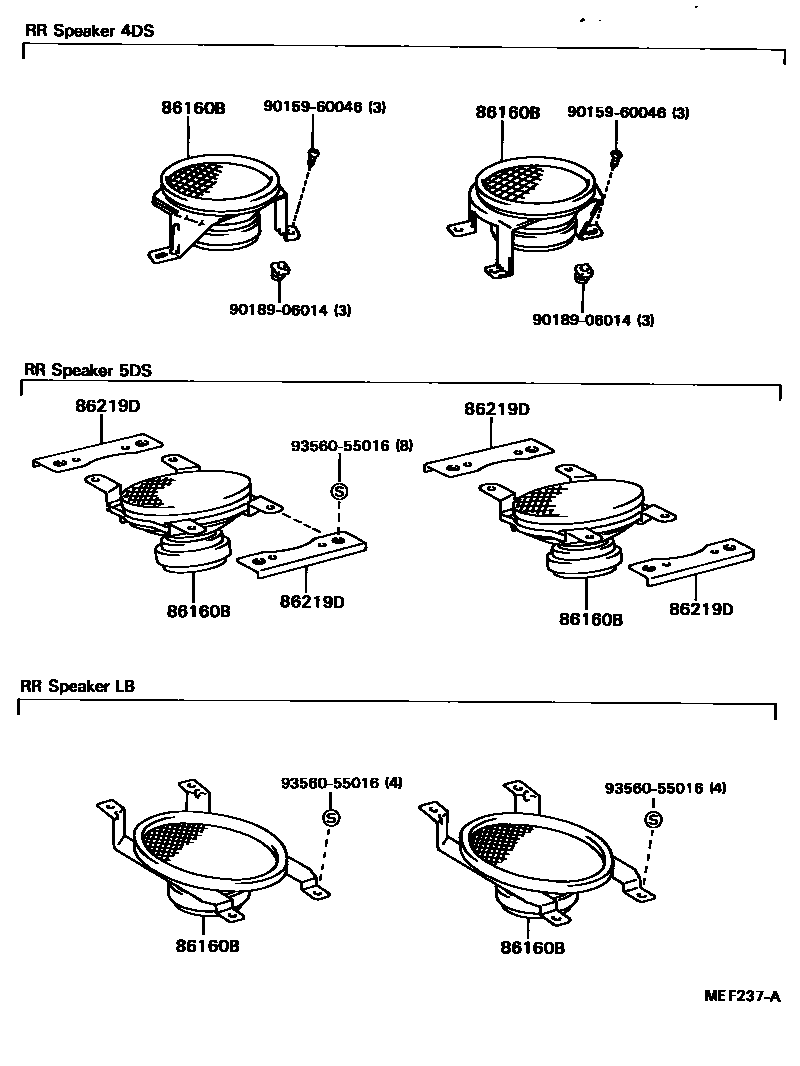

Toyota COROLLA EPC diagram 8602, 扬声器, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-12170 |
| 86160B | Rear speaker assembly | 86160-12100 · 86160-12110 · 86160-12120 · 86160-12180 · 86160-12190 · 86160-12200 |
| 86219D | No. 1 rear speaker bracket | 86219-12070 |
