Toyota COROLLA 开关和继电器和ECU — Figure 8401

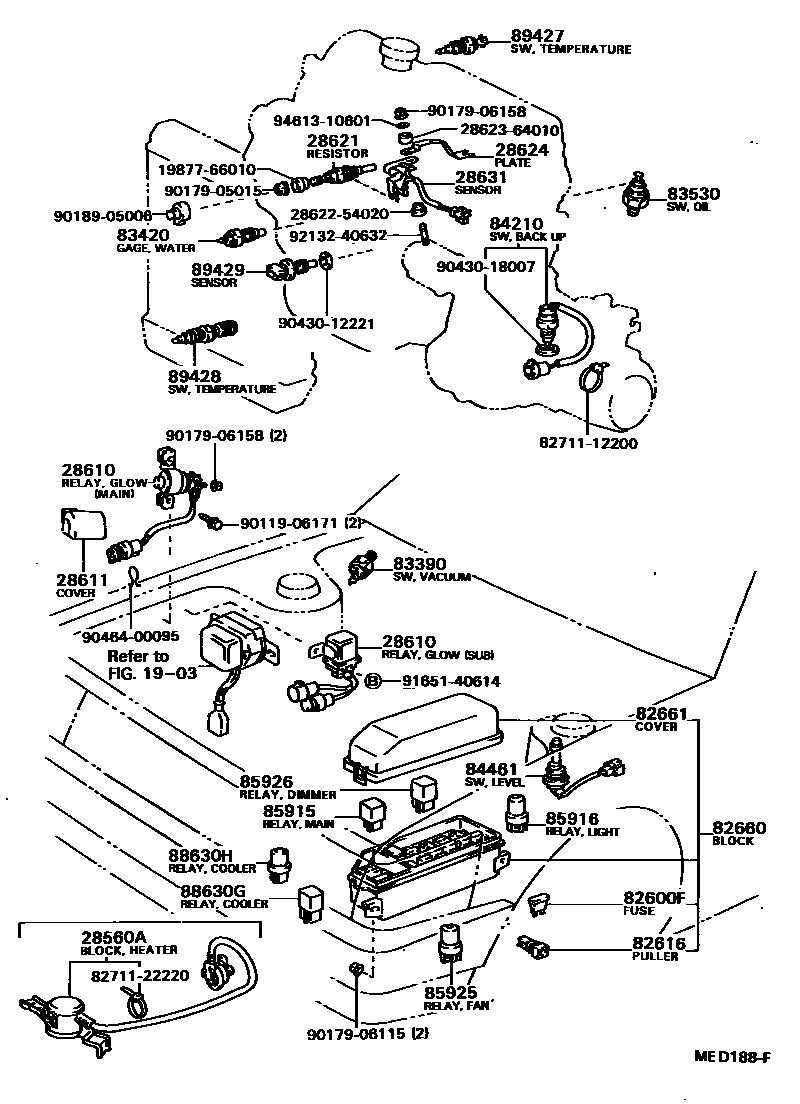

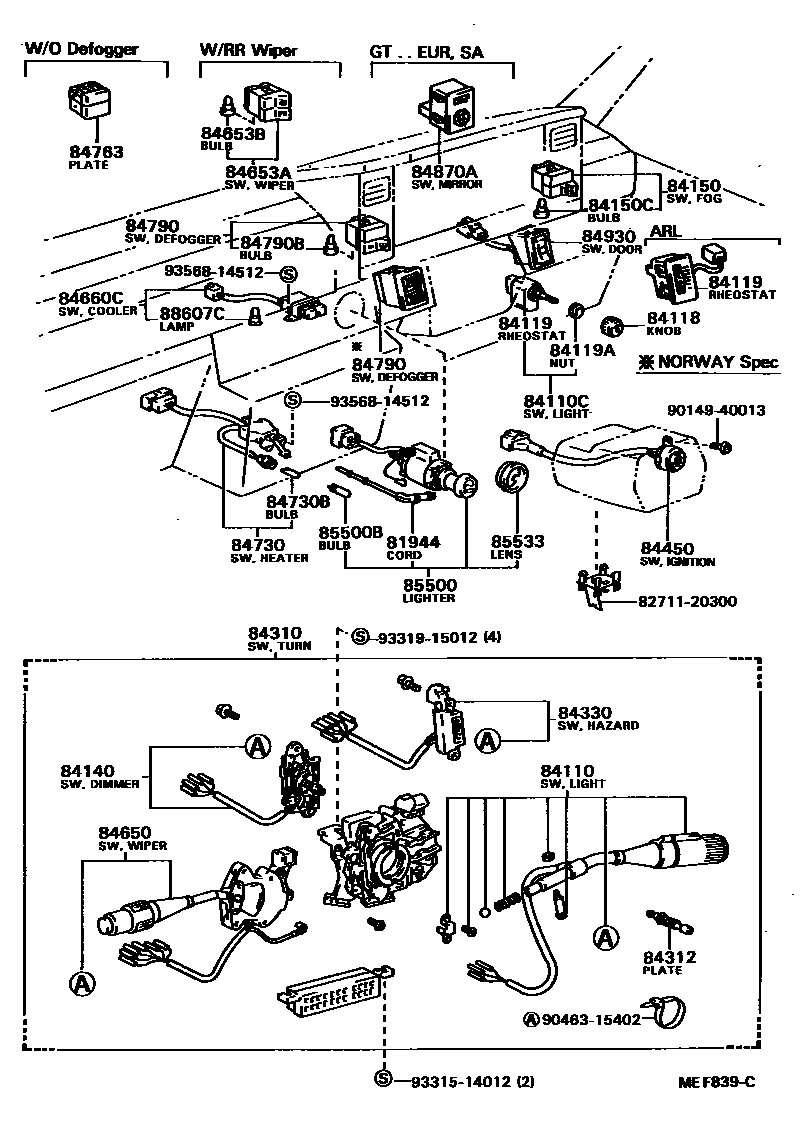

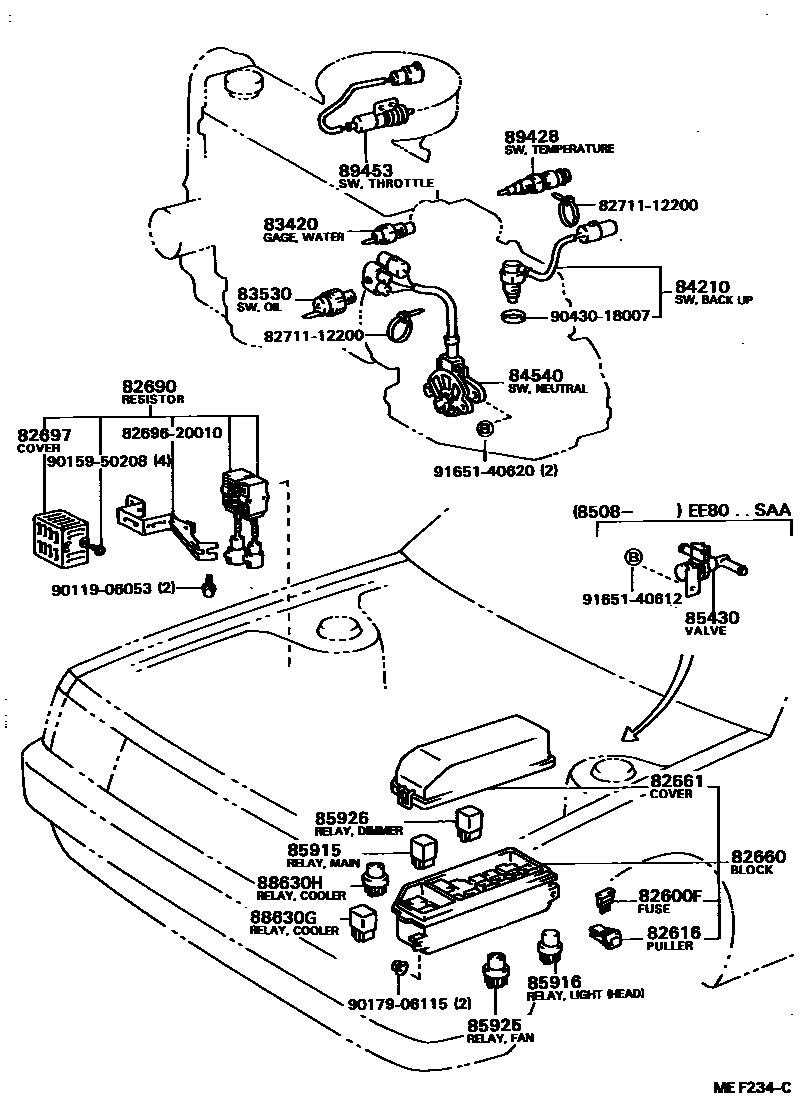

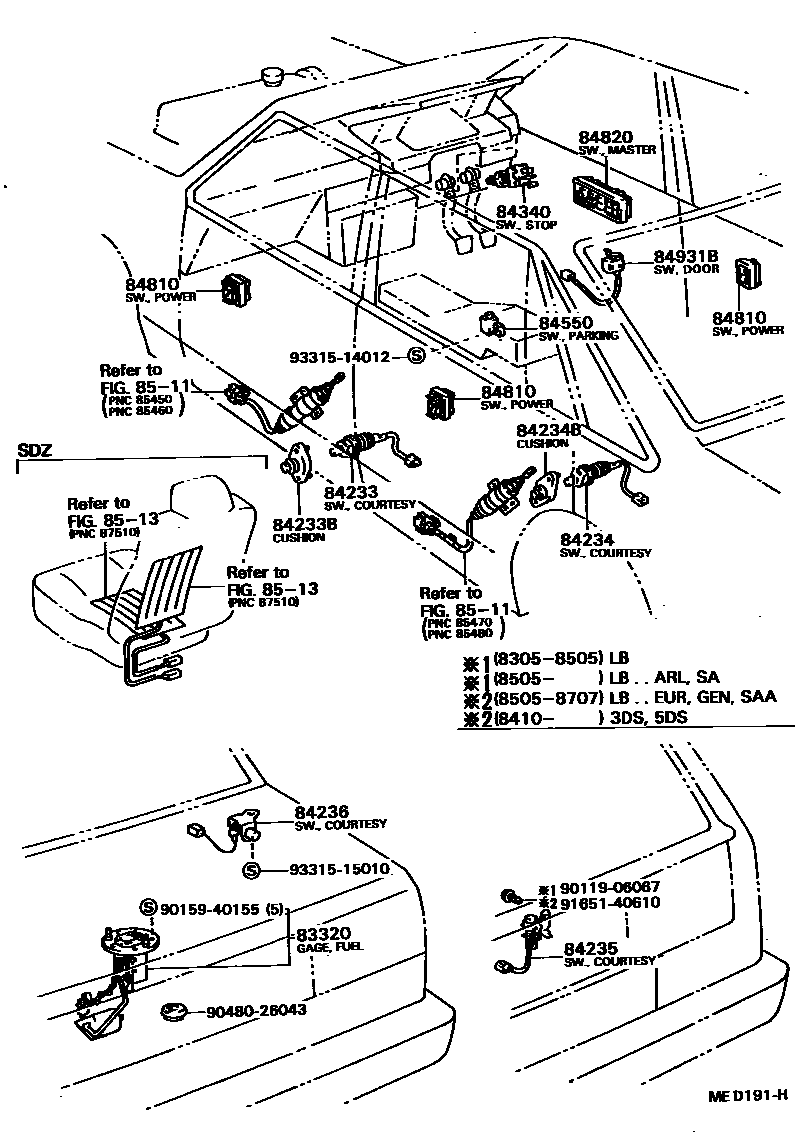

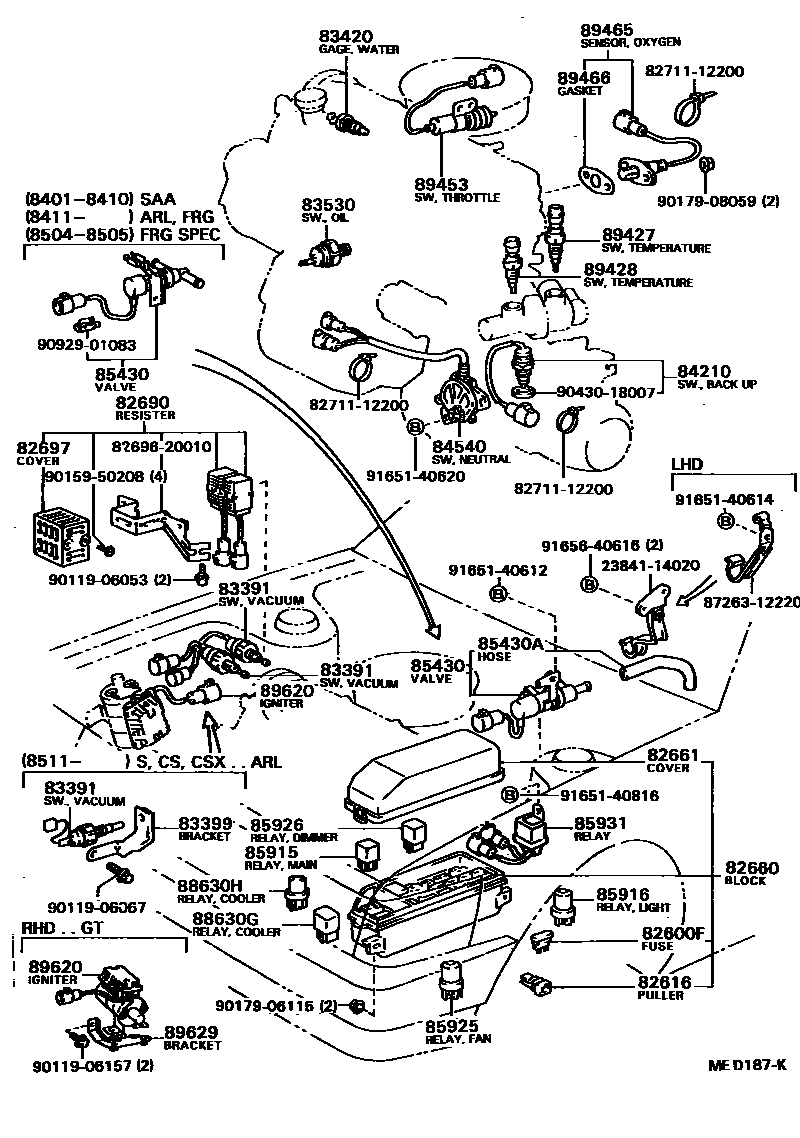

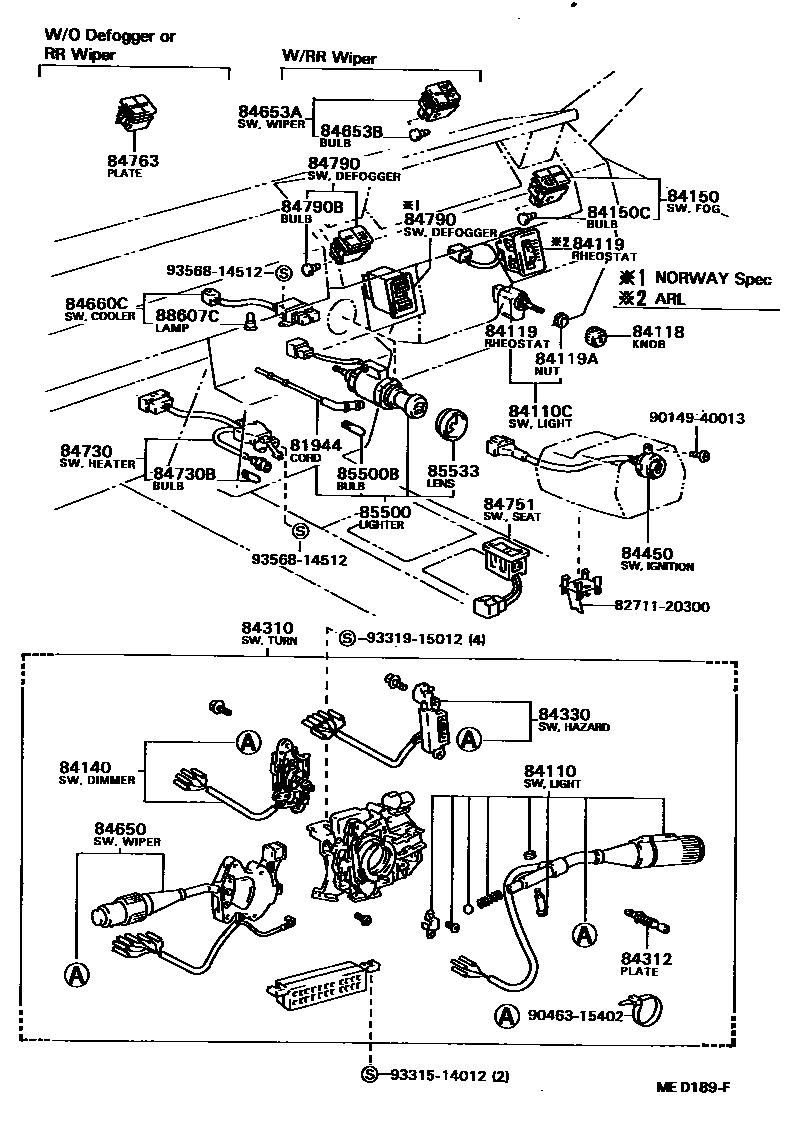

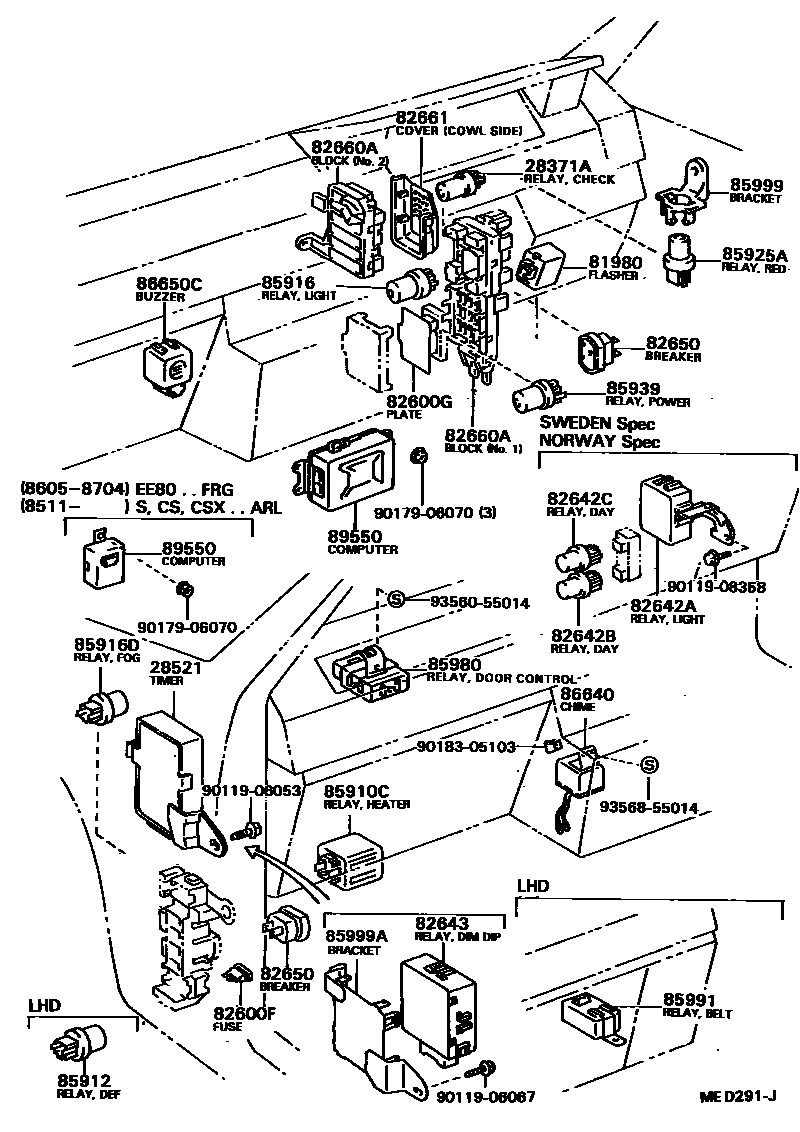

Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 7 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371A | Bulb check relay | 90987-02004 |
| 28521 | Preheat timer | 28521-64060 · 28521-64061 · 28521-64062 · 28521-64070 · 28521-64071 · 28521-64080 · 28521-64090 · 28521-64240 · 28521-64300 |
| 28560A | heater body | 28560-19015 |
| 28610 | Intake air heater or glow plug relay assembly | 28610-54080 · 28610-64010 |
| 28611 | Glow plug relay cover | 28611-54011 |
| 28621 | glow plug resistor | 28621-64011 · 28621-64020 |
| 28624 | Current sensor chip | 28624-64020 |
| 28631 | glow plug current sensor | 28631-64030 |
| 81944 | fiber optic cable | 81944-12010 |
| 81980 | Turn signal flasher relay assembly | 81980-16010 · 81980-22070 |
| 82600F | Spare fuse | 90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 82683-12040 · 82683-12050 · 82683-12060 |
| 82616 | fuse puller | 82616-12020 |
| 82642A | driving light relay | 82642-12020 |
| 82642B | No. 1 daytime running light relay | 90987-03001 |
| 82642C | No. 2 daytime running light relay | 90987-02002 · 90987-02004 |
| 82643 | low beam relay | 85926-32010 |
| 82650 | No. 1 circuit breaker assembly | 82650-12010 · 82650-12020 · 82650-20011 · 82650-35010 |
| 82660 | Engine room relay box assembly | 82660-12150 · 82660-12160 · 82660-12170 · 82660-12171 |
| 82660A | Front wall side relay box assembly | 82660-12130 · 82660-12200 · 82660-12210 |
| 82661 | No. 1 relay box cover | 82661-12040 · 82661-12070 · 82661-12080 · 82661-12081 · 82661-12090 · 82661-12100 |
| 82690 | Low beam resistor assembly | 82690-20010 |
| 82697 | Low beam resistor cover | 82697-20010 |
| 83320 | Fuel gauge sensor assembly | 83320-12241 · 83320-19675 · 83320-19695 · 83320-19705 · 83320-19706 · 83320-19765 · 83320-19875 |
| 83390 | Vacuum warning switch assembly | 83390-30020 |
| 83391 | Vacuum switch | 83391-12150 · 83391-12160 · 83391-16040 · 83391-16060 · 83391-32030 |
| 83399 | Vacuum switch bracket | 83399-22011 |
| 83420 | Water temperature sensor assembly | 83420-12010 · 83420-16020 · 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12040 · 83530-14040 · 83530-30042 · 83530-30050 · 83530-30060 · 83530-30080 · 83530-36011 |
| 84110 | No. 1 light control switch assembly | 84112-19485 · 84112-19515 · 84112-19525 |
| 84110C | No. 2 light control switch assembly | 84110-12160 · 84110-12190 |
| 84118 | Light control rheostat button | 84118-20011 |
| 84119 | Light control rheostat | 84119-12070 · 84119-12090 · 84119-20060 |
| 84119A | Rheostat control retaining bolt or nut | 90984-01007 |
| 84140 | Headlight dimmer switch assembly | 84140-19225 · 84140-19255 · 84140-19265 |
| 84150 | Fog light switch assembly | 84160-12040 · 84160-12050 |
| 84150C | fog light switch bulb | 84999-10170 |
| 84210 | Reversing light switch assembly | 84210-60021 |
| 84233 | Door control light switch assembly (for front door) | 84230-12120 |
| 84233B | Door light switch cushion (for front doors) | 84234-22010 |
| 84234 | Door control light switch assembly (for rear door) | 84230-12120 |
| 84234B | Door light switch cushion (for rear doors) | 84234-22010 |
| 84235 | Door control light switch assembly (for back door) | 84231-16021 · 84231-32010 |
| 84236 | Door control light switch assembly (for trunk) | 84231-12030 |
| 84310 | Turn signal switch assembly | 84310-12560 · 84310-12650 · 84310-12670 · 84310-12680 |
| 84312 | Speaker contact piece | 84312-32010 · 84312-32020 |
| 84330 | Hazard warning signal switch assembly | 84332-19195 · 84332-19225 · 84332-19235 |
| 84340 | brake light switch assembly | 84340-20030 · 84340-32010 |
| 84450 | Ignition or starter switch assembly | 84450-12120 · 84450-17030 |
| 84461 | Liquid level warning switch | 84461-26020 |
| 84540 | Neutral start switch assembly | 84540-12160 |
| 84550 | Parking brake switch assembly | 84550-12060 |
| 84650 | Windshield wiper switch assembly | 84652-80001 · 84652-80010 · 84652-80012 · 84652-80013 |
| 84653A | Rear wiper switch | 84653-12090 · 84653-12110 · 84653-12130 · 84653-12150 |
| 84653B | Rear wiper switch light bulb | 84999-10170 |
| 84660C | Cooler switch | 84660-12050 · 84660-12060 |
| 84730 | Heater blower switch assembly | 84732-12110 · 84732-12160 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84751 | Seat heater switch | 84751-14010 |
| 84763 | switch board | 84763-12030 · 84763-12040 |
| 84790 | Rear window defogger switch assembly | 84790-12140 · 84790-12170 · 84790-32070 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10170 |
| 84870A | Exterior rearview mirror switch assembly | 84870-22040 |
| 84930 | Door control switch assembly | 84930-12050 · 84930-95701 |
| 84931B | door control switch | 84931-12010 |
| 85430 | External ventilation control valve | 85430-12070 · 85430-12081 · 90925-09005 · 90925-09011 · 90925-09041 |
| 85430A | hose | 23829-14010 |
| 85500 | Cigarette lighter assembly | 85500-12180 · 85500-12181 · 85500-12210 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-16010 · 85533-20011 |
| 85910C | Relay assembly (for heater blower motor) | 85913-30020 |
| 85912 | defogger relay | 90987-02002 · 90987-02004 |
| 85915 | main relay | 85913-30020 |
| 85916 | Light control relay | 90987-01003 |
| 85916D | fog light relay | 90987-01003 · 90987-02002 · 90987-02004 |
| 85925 | Radiator fan relay | 90987-03001 |
| 85925A | red indicator light relay | 90987-03001 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85931 | Emission control relay | 85931-16010 |
| 85939 | Power window relay | 90987-02002 · 90987-02004 |
| 85980 | Door control relay assembly | 85980-12060 · 85980-12061 |
| 85991 | Seat belt warning relay | 85991-12040 |
| 85999 | Combination relay bracket | 85999-12050 |
| 85999A | No. 2 relay bracket | 85999-12120 |
| 86640 | Warning bell assembly | 86640-12080 |
| 86650C | Sediment warning buzzer assembly | 86650-30070 |
| 88607C | Indicator light sub-assembly | 88607-12010 |
| 88630G | Cooler relay assembly | 88630-32010 |
| 88630H | Cooler relay assembly | 90987-02004 |
| 89427 | Temperature detection switch | 89427-12051 · 89427-12070 |
| 89428 | No. 2 temperature detection switch | 89428-10100 · 89428-15011 · 89428-15030 |
| 89429 | oil temperature sensor | 89422-30020 |
| 89453 | Throttle position switch (for T.C.S.) | 89453-12010 · 89453-16010 |
| 89465 | oxygen sensor | 89465-29045 · 89465-29075 |
| 89466 | Oxygen sensor pad | 89466-30010 |
| 89550 | Emission control ECU assembly | 89550-12650 · 89550-12722 · 89550-12760 · 89550-12820 |
| 89620 | Ignition assembly | 89620-12300 |
| 89629 | Ignition bracket assembly | 89629-12020 |
