Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.

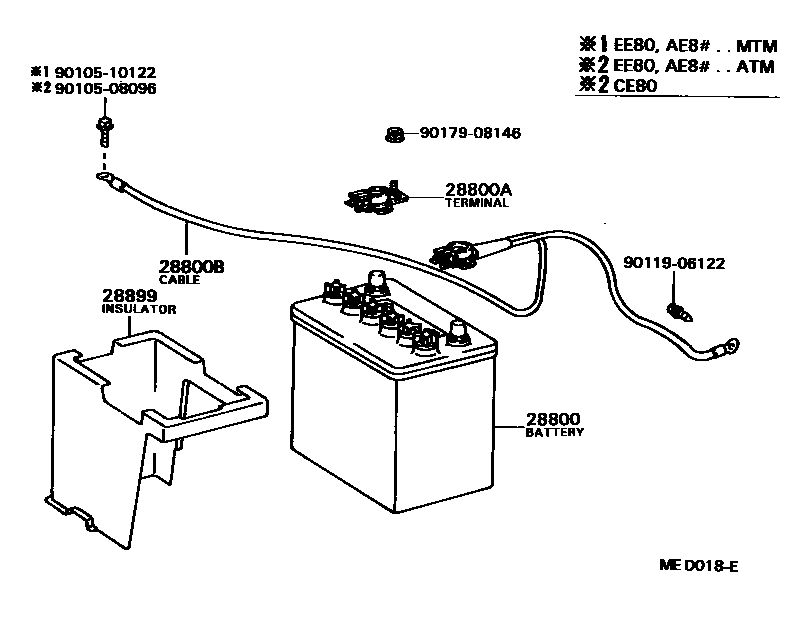

Toyota COROLLA 蓄电池和蓄电池电缆 EPC diagram — MED018E
蓄电池和蓄电池电缆 — MED018E (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-13010 · 28800-26040 · 28800-31031 · 28800-54020 · 28800-54030 · 28800-64010 · 28800-64030
28800Abattery positive terminal90982-05018 · 90982-05019 · 90982-05022 · 90982-05023 · 90982-05027 · 90982-05028 · 90982-05029 · 90982-05030
28800BCable between battery and ground82123-12050 · 82123-12060 · 82123-12070 · 82123-12100
28899Battery insulation cover28899-64010 · 28899-64020
