Toyota COROLLA 前示宽灯 — Figure 8104

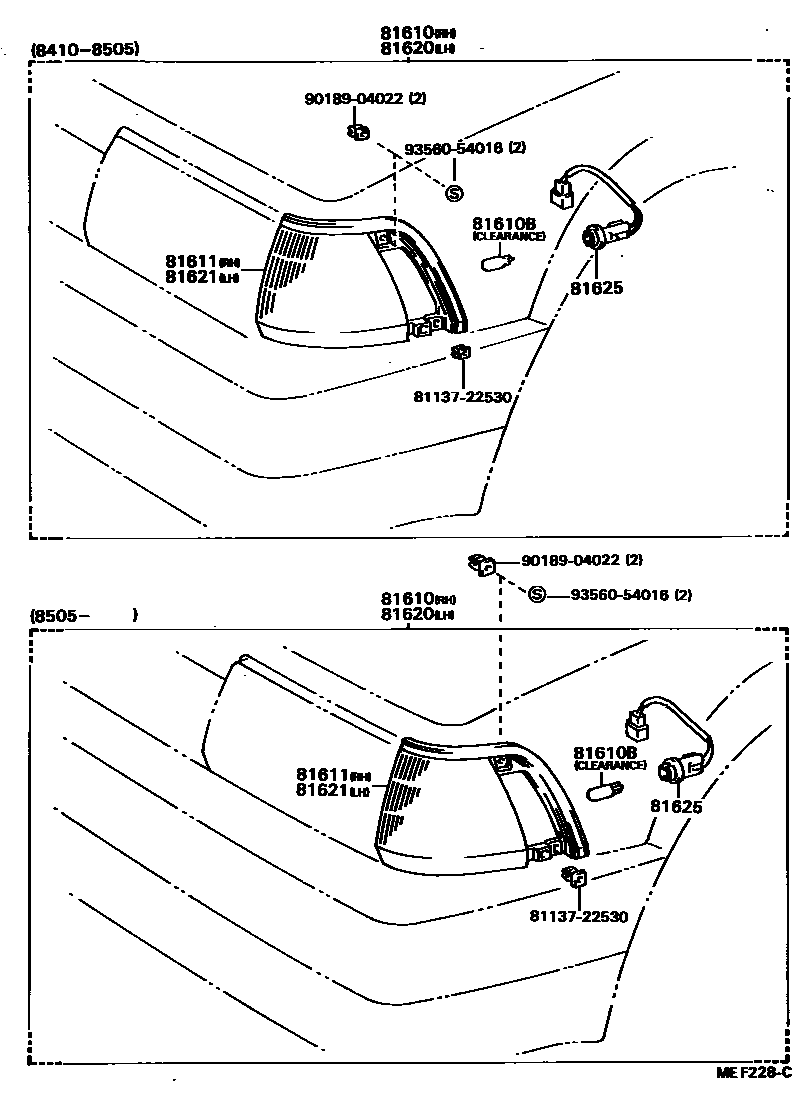

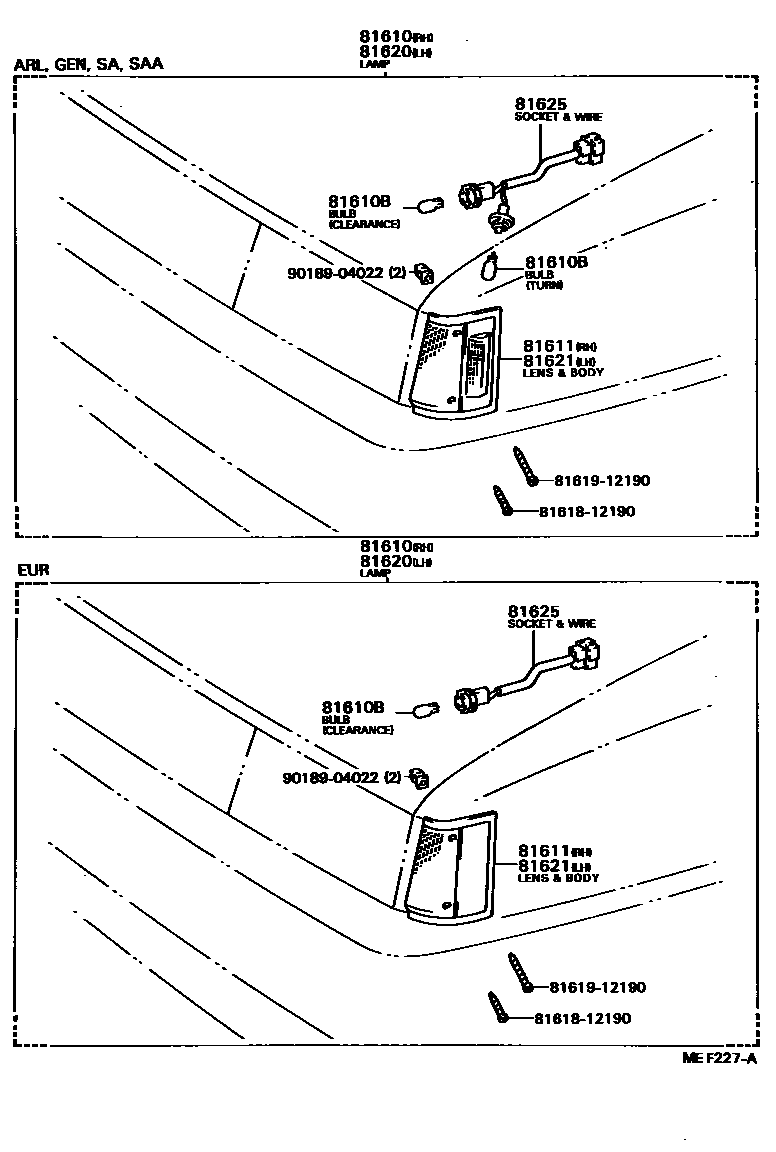

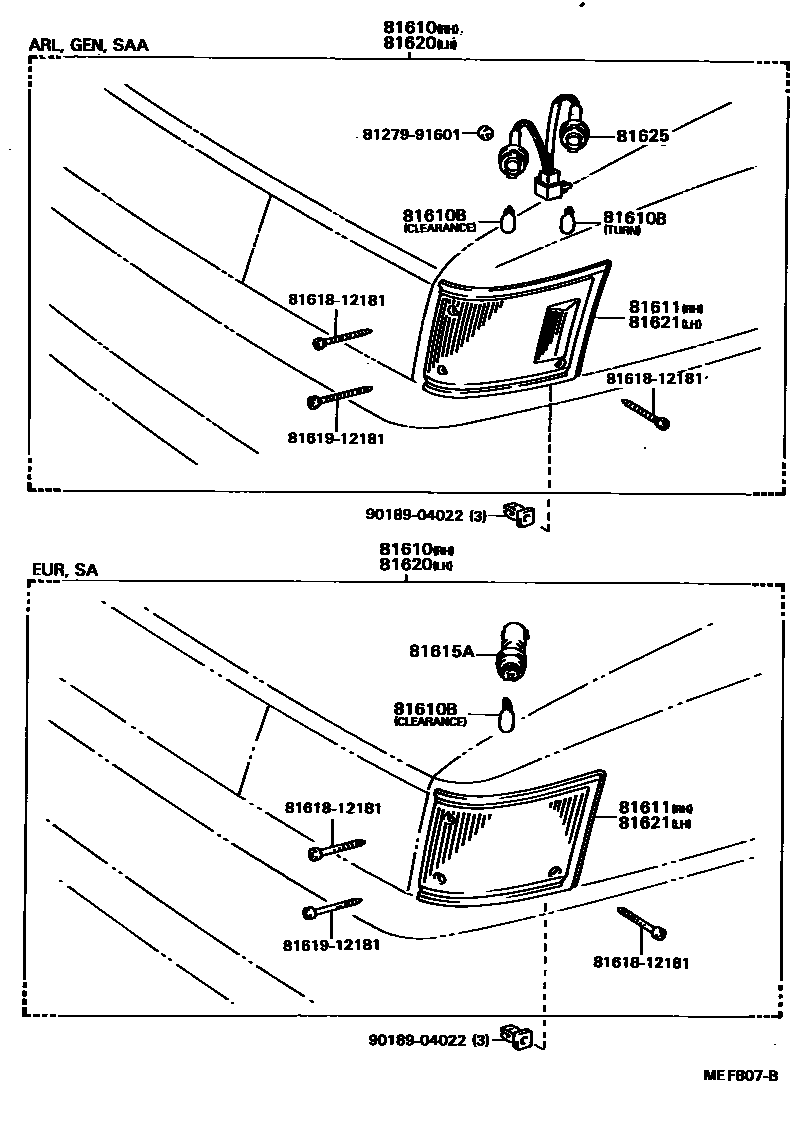

Toyota COROLLA EPC diagram 8104, 前示宽灯, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-12181 · 81610-12201 · 81610-12261 · 81610-12270 · 81610-12320 · 81610-12340 · 81610-19455 · 81610-19475 · 81610-19535 · 81610-19585 |
| 81610B | Bulbs (for parking lights and side lights) | 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-12180 · 81611-12181 · 81611-12200 · 81611-12201 · 81611-12240 · 81611-12260 · 81611-12270 · 81611-12320 · 81611-12340 |
| 81615A | Width light lamp holder plug | 81735-12180 |
| 81620 | Left parking light and width indicator light assembly | 81620-12181 · 81620-12201 · 81620-12261 · 81620-12270 · 81620-12320 · 81620-12340 · 81620-19455 · 81620-19475 · 81620-19535 · 81620-19585 |
| 81621 | Left parking light and width indicator light cover | 81621-12180 · 81621-12181 · 81621-12200 · 81621-12201 · 81621-12240 · 81621-12260 · 81621-12270 · 81621-12320 · 81621-12340 |
| 81625 | Parking light and width indicator lamp holder and wiring harness | 81615-12180 · 81615-12181 · 81615-12200 · 81615-12260 · 81615-12261 · 81625-12260 |
