Toyota COROLLA 前转向灯 — Figure 8103

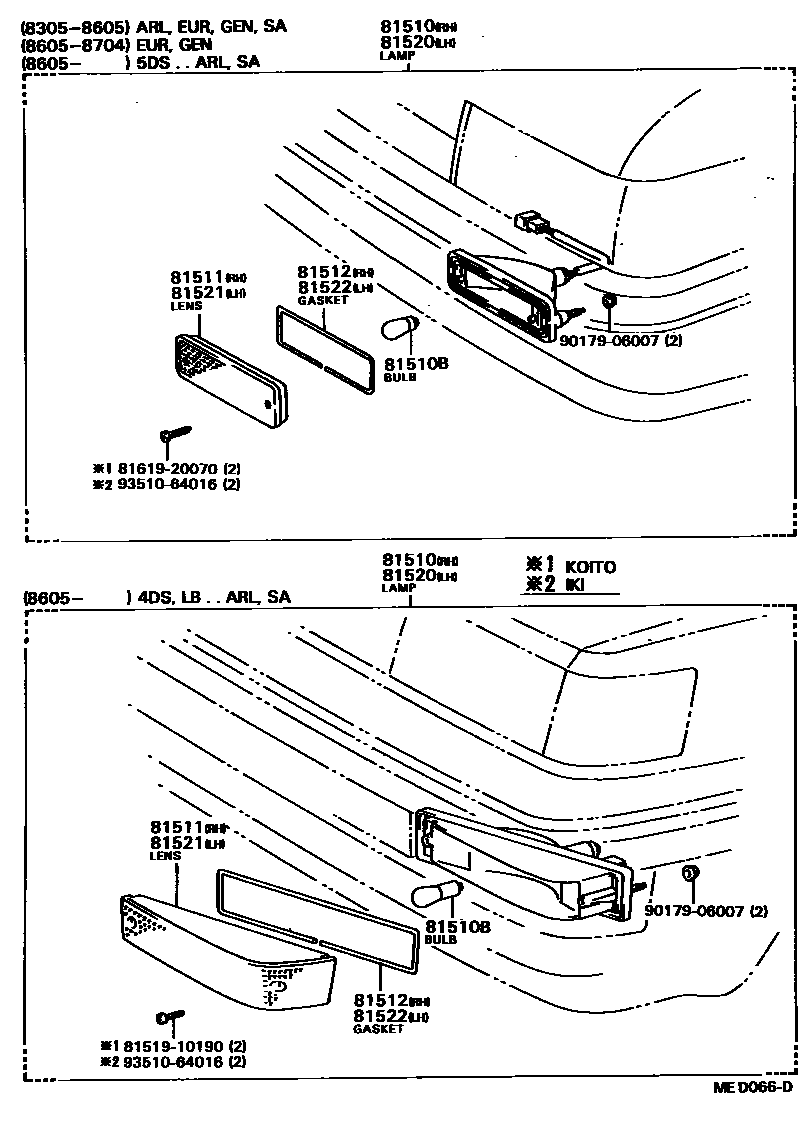

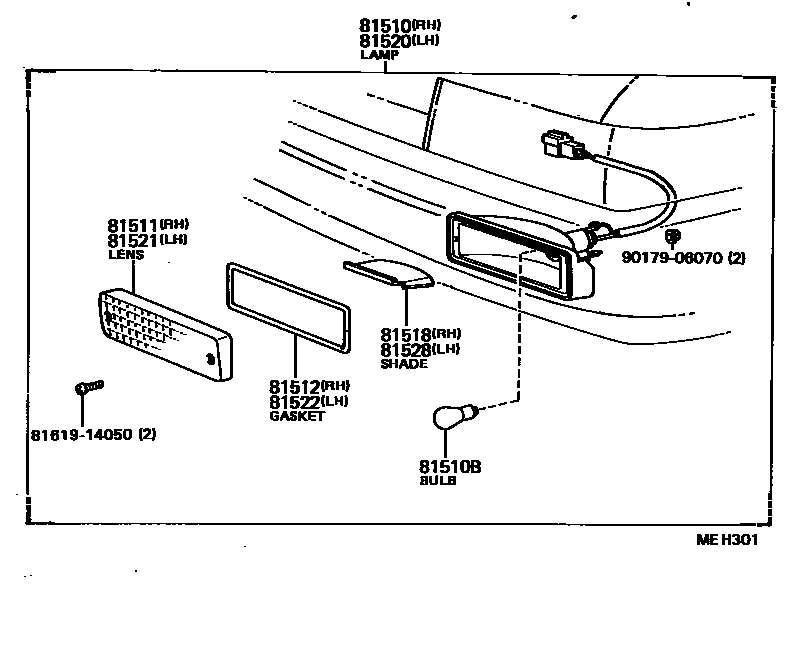

Toyota COROLLA EPC diagram 8103, 前转向灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-19875 · 81510-19895 · 81510-29705 · 81510-80022 · 81510-80024 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 · 99132-11230 · 99132-11270 |
| 81511 | Right front turn signal lamp cover | 81511-12420 · 81511-12450 · 81511-12470 · 81511-12480 · 81511-12490 · 81511-22220 |
| 81512 | Right front turn signal lamp housing gasket | 81512-12450 · 81512-12470 · 81512-12480 · 81512-14140 · 81512-14150 |
| 81518 | Right front turn signal lamp cover | 81517-22220 |
| 81520 | Left front turn signal lamp assembly | 81520-19875 · 81520-19895 · 81520-29695 · 81520-80022 · 81520-80024 |
| 81521 | Left front turn signal lamp cover | 81521-12400 · 81521-12430 · 81521-12450 · 81521-12460 · 81521-12470 · 81521-22220 |
| 81522 | Left front turn signal lamp housing gasket | 81512-12450 · 81512-12470 · 81512-12480 · 81512-14140 · 81512-14150 |
| 81528 | Left front turn signal lamp cover | 81517-22220 |
